Page 1097 of 2189

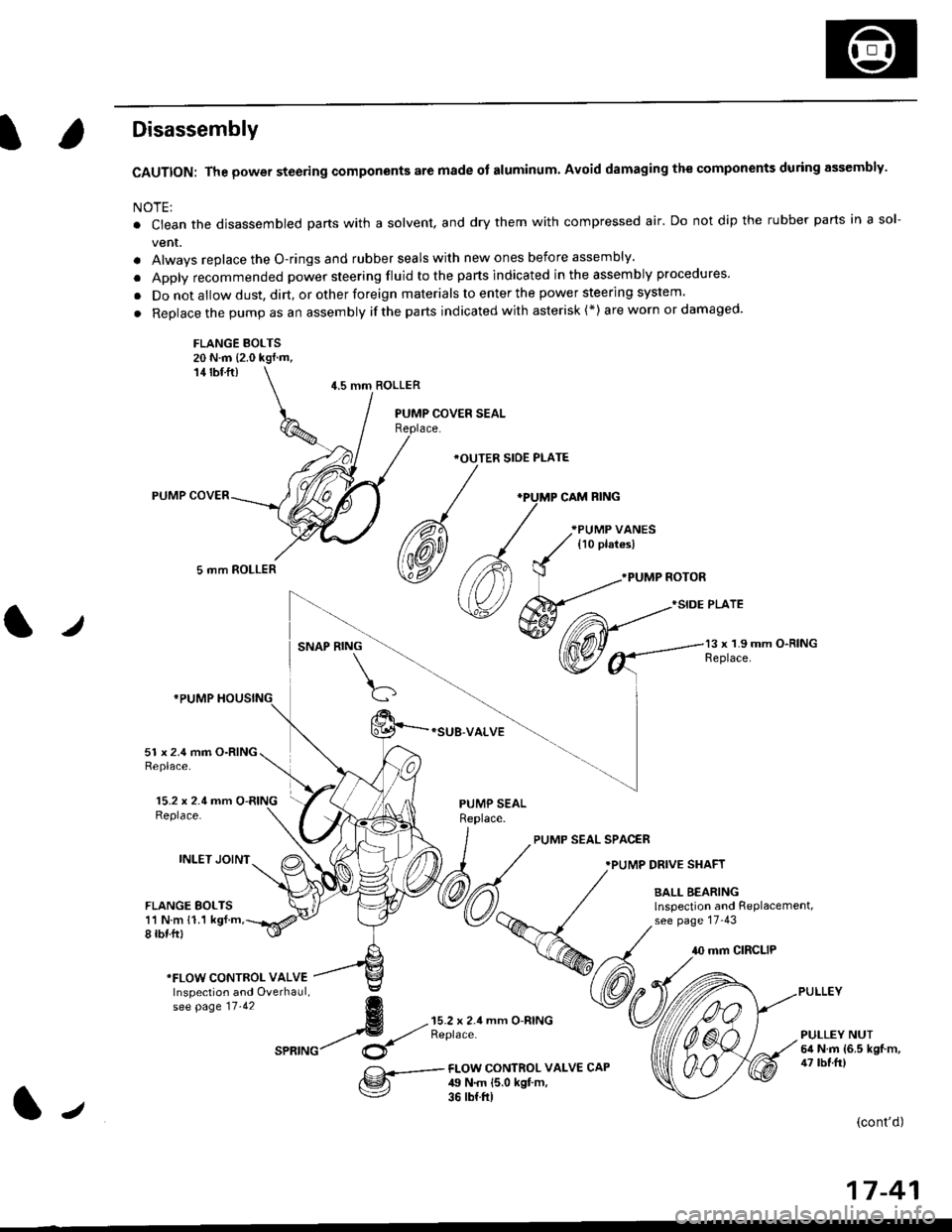

HONDA CIVIC 1998 6.G Workshop Manual Disassembly CAUTION: The power steering components are made of aluminum. Avoid damaging the components during assembly. NOTE: . Ctean the disassembled parts with a solvent, and dry them with compresse

Page 1098 of 2189

HONDA CIVIC 1998 6.G Workshop Manual Power Steering Pump Disassembly (contdl 2. t.Drain the fluid from the pump. Hold the steering pump in a vise with soft jaws, hold the pulley with the special tool, and remove the pulley nut and pull

Page 1099 of 2189

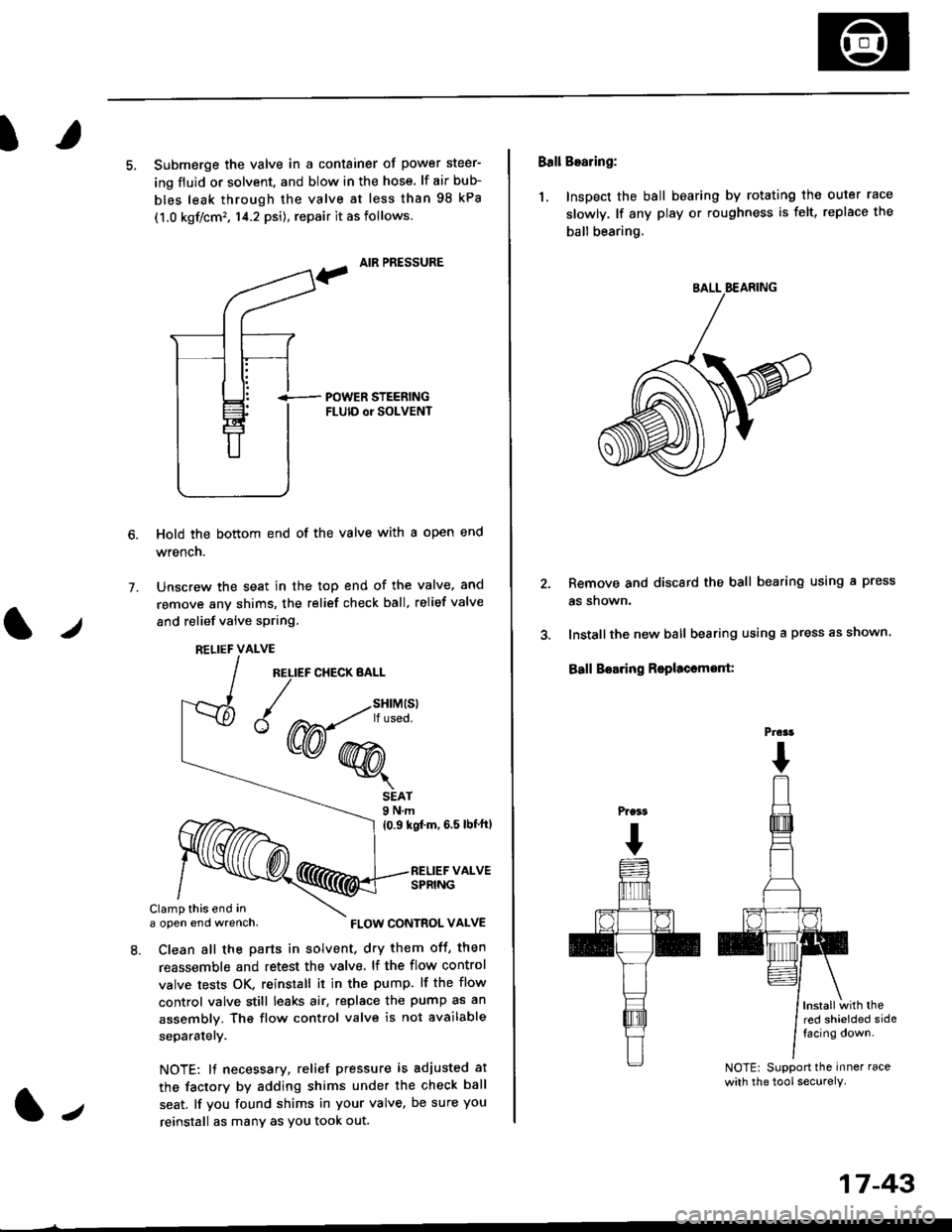

HONDA CIVIC 1998 6.G Workshop Manual I 5, Submerge the valve in a container of power steer- ing fluid or solvent. and blow in the hose. lf air bub- bles leak through the valve at less than 98 kPa (1.0 kgf/cm�, 14.2 psi), repair it as fo

Page 1100 of 2189

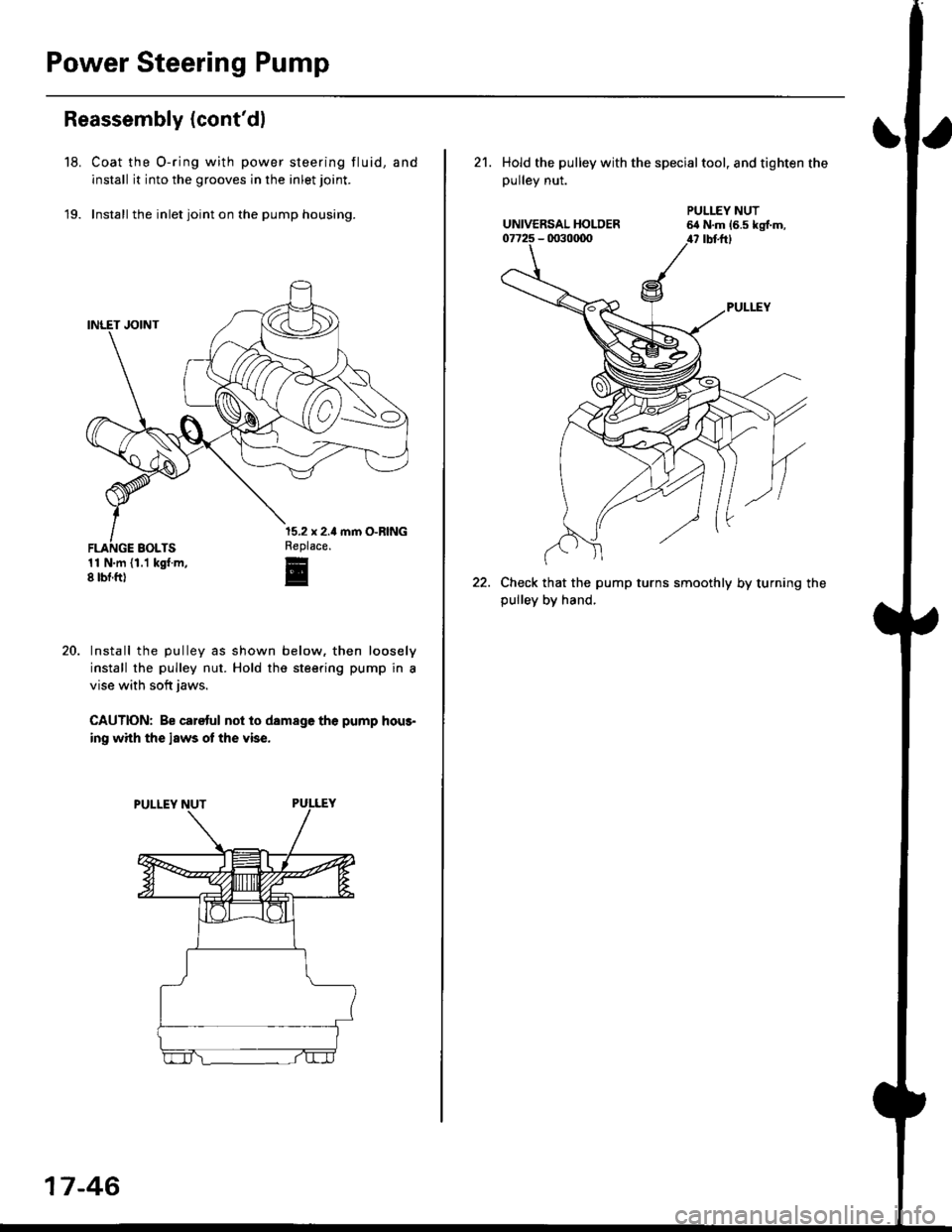

HONDA CIVIC 1998 6.G Workshop Manual Power Steering Pump Reassembly 1.Align the pin of the sub-valve with the oil passage in pump housing. and push down the sub-valve. Installthe snap ring properly. OIL PASSAGEAlign the pin of the oil pa

Page 1101 of 2189

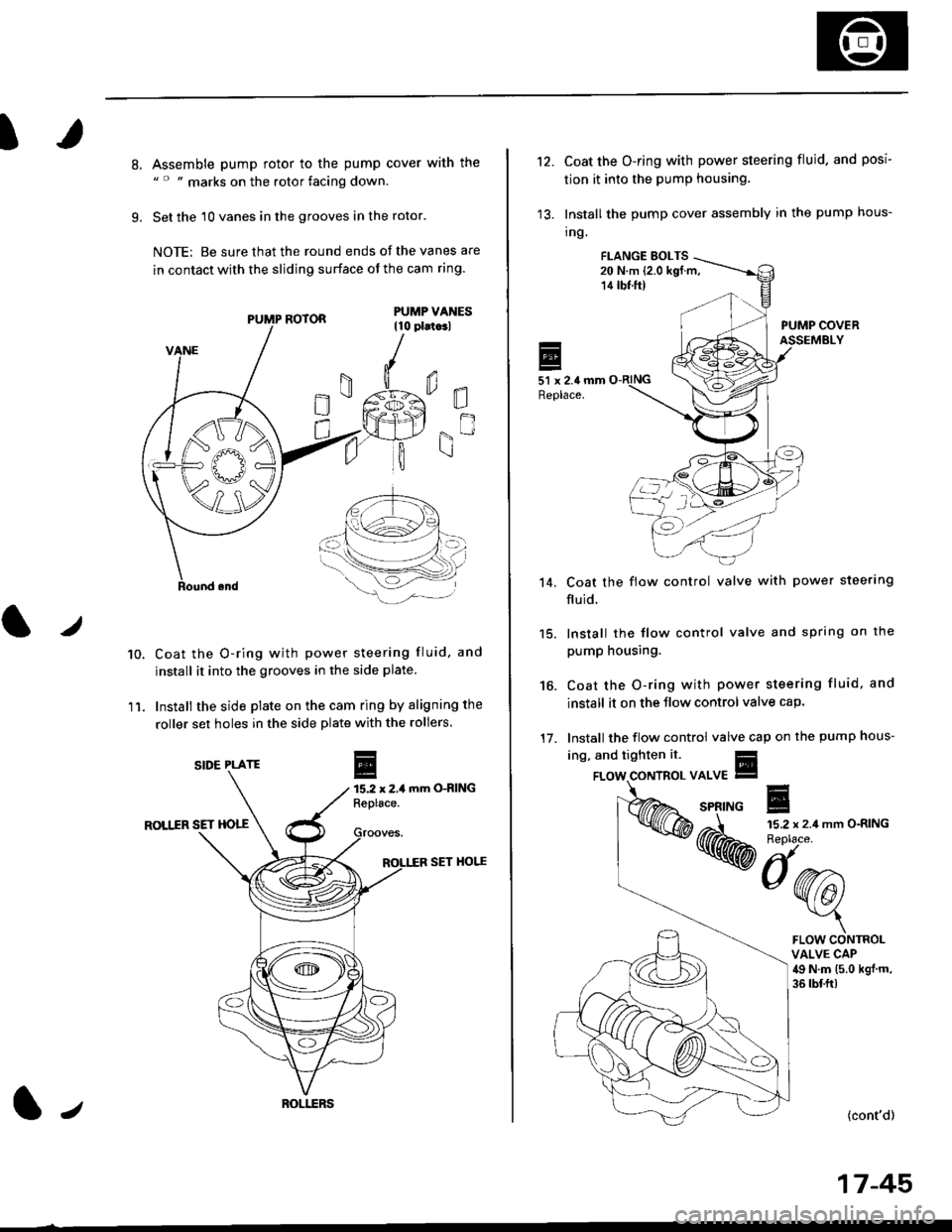

HONDA CIVIC 1998 6.G Workshop Manual I 8. 9. Assemble pump rotor to the pump cover with the" " " marks on the rotor facing down. Set the 10 vanes in the grooves in the rotor. NOTE: Be sure that the round ends ot the vanes are in contact

Page 1102 of 2189

HONDA CIVIC 1998 6.G Workshop Manual Power Steering Pump Reassembly (contdl Coat the O-ring with power steering fluid, and install it into the grooves in the inlet joint. Install the inlet joint on the pump housing. 11 N.m (1.1 kgt.m,8

Page 1103 of 2189

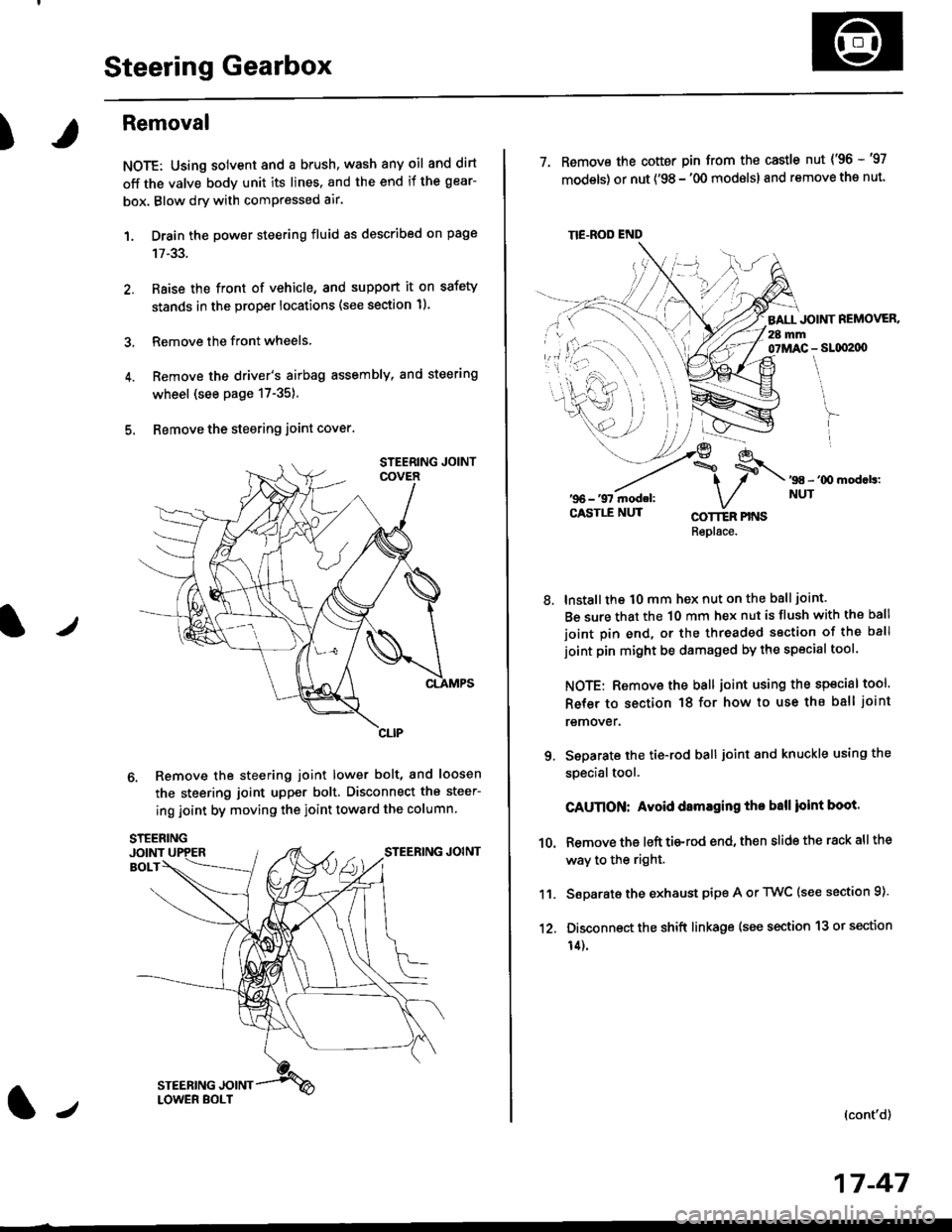

HONDA CIVIC 1998 6.G Workshop Manual Steering Gearbox ) Removal NOTE: Using solvent and a brush, wash any oil and dirt off the valve body unit its lines. and the end if the gear- box. Blow dry with comPressed air. 1. Drain the power stee

Page 1104 of 2189

HONDA CIVIC 1998 6.G Workshop Manual Steering Gearbox Removal {contdl Loosen the 14 mm flare nut and disconnect the feed line. Loosen the adjustable hose clamp and disconnect the return hose. Loosen the 16 mm flare nut and remove the re
