1998 GMC SIERRA glove box

Synchronization
Synchronization may be necessary d~te to the security
method used by this system. The transmitter does not
send the
same signal twice to the receiver. The receiver
will not respond to a signal it has been sent previously.
This prevents anyone from recording and playing back
the signal
from the transmitter.
To resynchronize your transmitter, stand close to your
vehicle and simultaneously press and hold the
LOCK
and UNLOCK buttons on the transmitter for at least
five seconds. The door locks should cycle to confirm
synchronization.
If the locks do not cycle. see your
dealer for service.
Theft
Vehicle theft is big business, especially in scme cities.
Although your vehicle has
a number of theft-deterrent
features, we know that nothing we put on
it can make it
impossible to steal. However. there are ways you can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target forjoy riders
01- professional thieves -- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear
a tone reminding you to remove your key
from the ignition and take
it with you. Always do this.
Ycx~r steering wheel will be locked, and so will your
ignition.
If you have an automatic transmission, taking
your key
out also locks your transmission. And
remember
to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember
to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it's best to lock
it up and take your keys.
But what if you have to leave your ignition key? What if
you have to leave something valuable in your vehicle'?
Put your valuables in a storage area, like your
glove box.
Lock all the doors except the driver's.
2-9
ProCarManuals.com

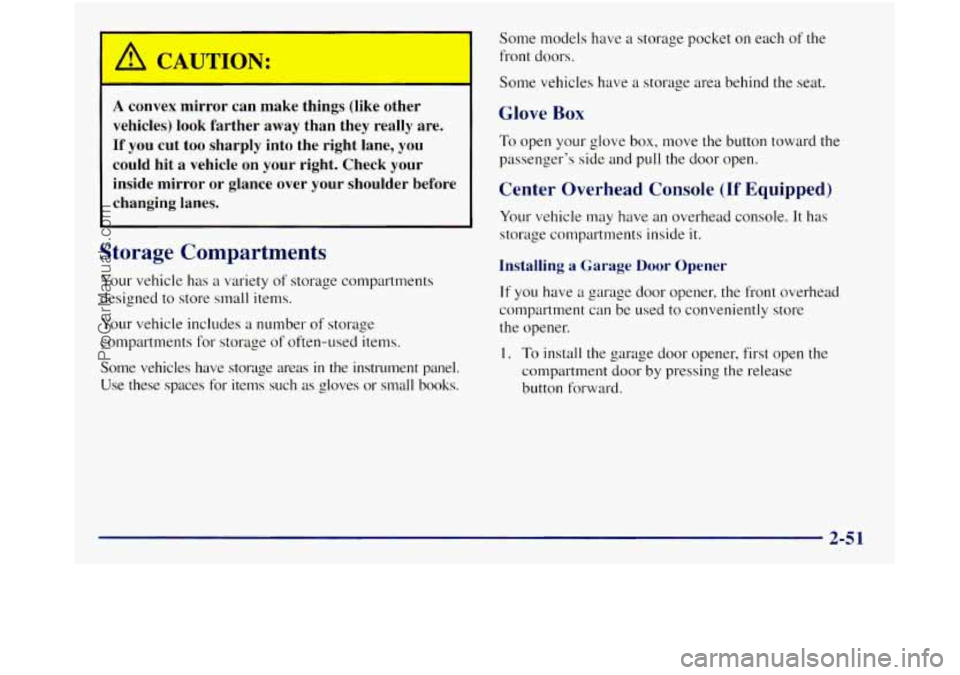

A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle
on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Your vehicle has a variety of storage compartments
designed to store small items.
Your vehicle includes a number of storage
compartments for storage
of often-used items.
Some vehicles have storage areas
in the instrument panel.
Use these spaces for items such as gloves or small books. Some
models have
a storage pocket on each of the
front doors.
Some vehicles have a storage area behind the seat.
Glove Box
To open your glove box, move the button toward the
passenger’s side and pull the door open.
Center Overhead Console (If Equipped)
Your vehicle may have an overhead console. It has
storage compartments inside it.
Installing a Garage Door Opener
If you have a garage door opener, the front overhead
compartment can be used to conveniently store
the opener.
1. To install the garage door opener, first open the
compartment door by pressing the release
button forward.
2-51
ProCarManuals.com

A. Dome Lamp Switch
B. Lamp Controls
C. Air Outlets
D. Multifunction Lever
E. Instrument Cluster
F. Gearshift Lever
G. Audio System
H. Comfort Control System
I. Glove Box
J. Ashtray
K. Cupholder
L. Auxiliary Power Outlets
M. Storage Area or Compact Disc Player (If Equipped)
N. Rear Window Defogger Switch (If Equipped)
0. Passenger Air Bag Off Switch (If Equipped)
P. Electronic Transfer Case Switch (If Equipped)
Q. Tilt Lever (If Equipped)
R. Parking Brake Release
S. Hood Release
T. Fuse
Block
2-61
ProCarManuals.com

c

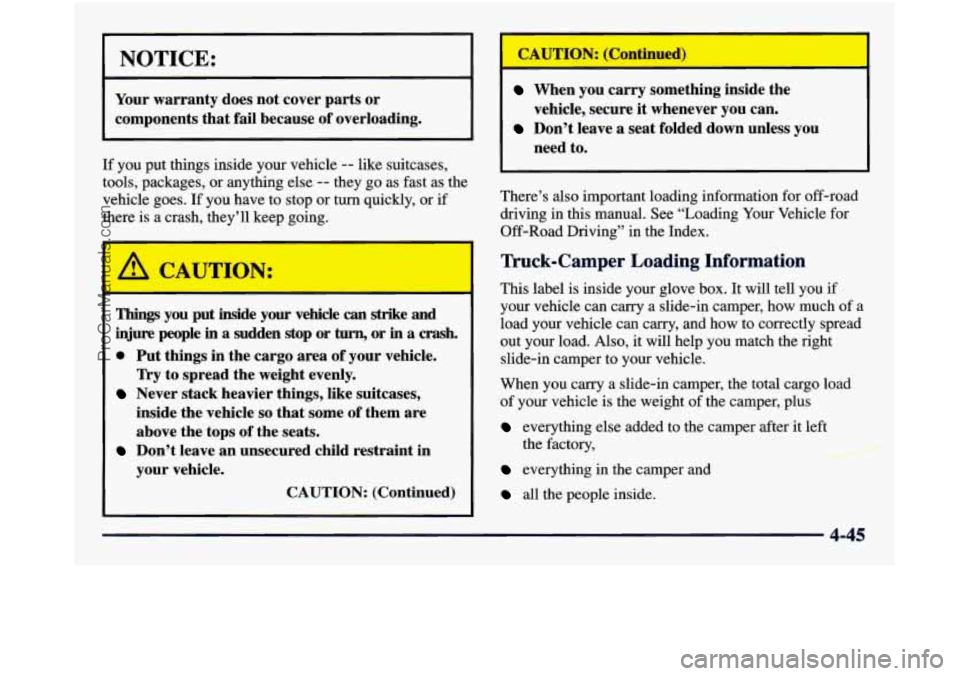

NOTICE:
Your warranty does not cover parts or
components that fail because of overloading.
If you put things inside your vehicle -- like suitcases,
tools, packages, or anything else
-- they go as fast as the
vehicle goes.
If you have to stop or turn quickly, or if
there is a crash, they’ll keep going.
Things you put inside your vehicle can strike and
injure people in a sudden stop or turn, or in a crash.
0 Put things in the cargo area of your vehicle.
Try to spread the weight evenly.
Never stack heavier things, like suitcases,
inside the vehicle
so that some of them are
above the tops
of the seats.
Don’t leave an unsecured child restraint in
your vehicle.
CAUTION: (Continued)
When you carry something inside the
vehicle, secure it whenever you can.
Don’t leave a seat folded down unless you
need to.
There’s also important loading information for off-road
driving in this manual. See “Loading Your Vehicle for
Off-Road Driving” in the Index.
Truck-Camper Loading Information
This label is inside your glove box. It will tell you if
your vehicle can carry a slide-in camper, how much
of a
load your vehicle can carry, and how to correctly spread
out your load. Also, it will help you match the right
slide-in camper to your vehicle.
When you carry a slide-in camper, the total cargo load
of your vehicle is the weight of the camper, plus
everything else added to the camper after it left
the factory,
everything in the camper and
all the people inside.
4-45
ProCarManuals.com

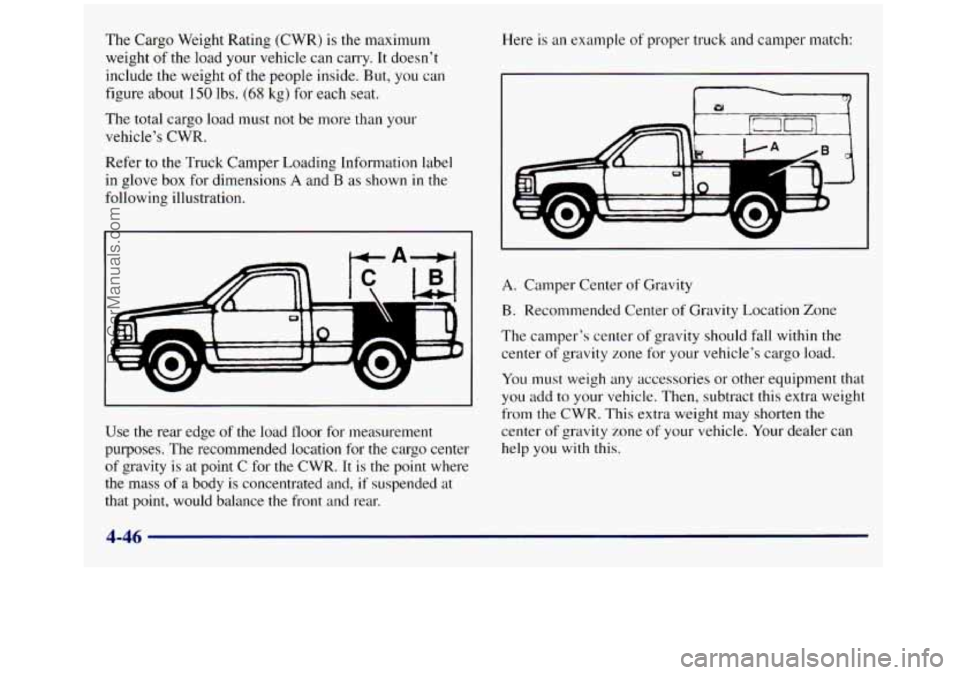

The Cargo Weight Rating (CWR) is the maximum
weight of the load your vehicle can carry. It doesn’t
include the weight
of the people inside. But, you can
figure about
150 lbs. (68 kg) for each seat.
The total cargo load must not be more than your
vehicle’s CWR.
Refer
to the Truck Camper Loading Information label
in glove
box for dimensions A and B as shown in the
following illustration.
Use the rear edge of the load
floor for measurement
purposes. The recommended location for the cargo center
of gravity is at point
C for the CWR. It is the point where
the mass
of a body is concentrated and, if suspended at
that point, would balance the front and rear. Here
is an example of proper truck and camper match:
A. Camper
Center of Gravity
B. Recommended Center of Gravity Location Zone
The camper’s center
of gravity should fall within the
center
of gravity zone for your vehicle’s cargo load.
You must weigh any accessories or other equipment that
you add to your vehicle. Then, subtract this extra weight
from
the CWR. This extra weight may shorten the
center of gravity zone of your vehicle. Your dealer can
help you with this.
ProCarManuals.com

Vehicle IdentiP ’* -In N mber (VIN)
- =I I1 11111111 1111 11111111t 111 111111 II 111111111111 111111111 II
ENGINE A98 f ASSEMBLY
CODE- MODEL YEAR PLANT
This is the legal identifier for your vehicle. It appears on
a plate in the front corner
of the instrument panel, on the
driver’s side.
You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on
the Vehicle Certification and Service Parts
labels and the certificates
of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You’ll find this label on the inside of the glove box. It’s
very helpful if
you ever need to order parts. On this
label is:
your VIN,
the model designation,
0 paint information and
0 a list of all production options and special
Be sure that this label is not removed from the vehicle.
equipment.
Electrical System
Add-on Electrical Equipment
1 NOTICE:
Don’t add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered
by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see “Servicing
Your Air Bag-Equipped Vehicle”
in the Index.
6-70
ProCarManuals.com

FuseKircuit Breaker
3
4
Usage
Courtesy Lamps, Cargo Lamp,
Glove Box Lamp, Dome/Reading
Lamps, Vanity Mirrors,
Power Mirrors
Instrument Cluster, DRL Relay,
Lamp Switch, Keyless Entry,
Low Coolant Module, Illuminated Entry Module,
DRAC (Diesel Engine)
Not Used
Cruise Control
Auxiliary Power Outlet
Crank
License Lamp, Parking Lamps,
Taillamps,
Roof Marker Lamps,
Tailgate Lamps, Front
Sidemarkers, Fog Lamp Relay,
Door Switch Illumination,
Fender Lamps, Headlamp Switch Illumination
FuseKircuit
Breaker
10
11
12
13
14
15
I6
17
18
19
Usage
Air Bag System
Wiper Motor, Washer Pump
A/C,
A/C Blower,
High Blower Relay
Power
Amp, Cigarette Lighter,
Door Lock Relay,
Power Lumbar Seat
4WD Indicator, Cluster, Comfort
Controls, Instrument Switches,
Radio Illumination,
Chime Module
DRL Relay,
Fog Lamp Relay
Front and Rear Turn Signals,
Back-up Lamps, BTSl Solenoid
Radio (Ignition)
4WAL/VCM, ABS. Cruise Control
Radio (Batterv)
6-73
ProCarManuals.com

Tachometer .................................. 2-63
Voltmeter
................................... 2-67
Garage Door Opener
............................ 2-5 1
GAWR ....................................... 4-43
Gear Positions. Automatic Transmission
............. 2- 15
Gear Positions. Manual Transmission .......... 2- I8 . 2- 19
GloveBox .................................... 2-51
Gross Axle Weight Rating ........................ 4-43
Gross Vehicle Weight Rating
...................... 4-43
Guide en Franpis
11
GVWR ....................................... 4-43
.. .................................
Halogen Bulbs ................................ 6-39
Hazard Warning Flashers
.......................... 5-2
Head Restraints ................................. 1-5
Headlamps .................................... 2-41
Bulb Replacement
....................... 6-40. 6.4 I
High/Low Beam Changer ...................... 2-36
On Reminder
................................ 2-42
Wiring
..................................... 6-71
Heating
........................................ 3-5
High-Beam Headlamps
.......................... 2-36
Hill and Mountain Roads
......................... 4-34
Hitches. Trailer
................................. 4-55
Hood
Checking Things Under ......................... 6-9
Release
..................................... 6-10
Horn ......................................... 2-34
Hydraulic Clutch Fluid
...................... 6-25 . 7-46
Hydraulic Clutch System Check
................... 7-41
Hydroplaning
.................................. 4-30
Hearing Ilnpaired
. Customer Assistance .............. 8-4
Highway Hypnosis
.............................. 4-33 Ignition
Positions
..............................
Brakesystem ................................ 7-45
Drive Axle
.................................. 7-45
Engine Cooling System
........................ 7-44
Exhaust
Systems ............................. 7-44
Steering
.................................... 7-44
Suspension
.................................. 7-44
Throttle Linkage
.............................. 7-44
Transfer Case (Four-Wheel Drive)
............... 7-45
Instrument Panel
............................... 2-60
Cleaning
.................................... 6-64
Cluster
..................................... 2-62
FuseBlock
.................................. 6-72
Intensity Control
............................. 2-43
Interior Lamps
................................. 2-43
.................................... J ack. Tire 5-25
Jump Starting
................................... 5-3
Key Lock Cylinders Service
..................... 7-41
Key Release Button
............................. 2-12
Keyless Entry System ............................ 2-6
Keys
.......................................... 2-2
9-5
ProCarManuals.com
