1998 GMC SIERRA fuses

Passlock@ New Vehicle “Break-In”
Your vehicle is equipped with the Passlock
theft-deterrent system.
Passlock is a passive theft-deterrent system. The
system
is armed once the key is removed from the ignition.
Passlock enables fuel if the ignition lock cylinder
is
turned with a valid key. If a correct key is not used, f~lel
is disabled.
During normal operation, the
SECURITY light will go
off after the engine is started.
If the engine stalls and the SECURITY light flashes.
wait
until the light stops flashing before trying to restart
the engine. Remember to release the key from the
START position as soon as the engine starts.
If you are driving and the SECURITY light comes on, you
will be able to restart the engine
if you turn the engine off.
However, your Passlock system is not working properly
and must be serviced by your dealer. Your vehicle is not
protected by Passlock at this time,
You may also want to
check the fuse (see “Fuses
and Circuit Breakers” in the
Index), See your dealer for service.
If the SECURITY light comes on while the engine is
running, a problem has been detected and the system
may need service. See your dealer for service.
In an emergency, call the Roadside Assistance Center.
NOTICE:
Your vehicle doesn’t need an elaborate
“break-in.” But it will perform better in the long
run if you follow these guidelines:
0
0
0
0
Keep your speed at 55 mph (88 kmh) or
less for the first
500 miles (805 km).
Don’t drive at any one speed
-- fast or
slaw
-- for the first 500 miles (805 km).
Don’t make full-throttle starts.
Avoid making hard stops for the first
200 miles (322 km) or so. During this time
your new brake linings aren’t yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every
time you get new brake linings.
Don’t tow
a trailer during break-in.
See “Towing
a Trailer” in the Index for
more information.
ProCarManuals.com

If a bulb is burned out, replace it to help avoid an
accident. If the arrows don’t go on at all when you
signal
a turn, check for burned-out bulbs and a blown
fuse (see “Fuses and Circuit Breakers”
in the Index).
Headlamp HighLow-Beam Changer
To change the headlamps from low to high beam or high
to low beam, pull the multifunction lever all the way
toward
you. Then release it.
When the high beams are
on, this light
on the
instrument panel also will
be on.
Windshield Wipers
You control the windshield
wipers
by turning the knob
with the wiper
symbol on it.
For a single wiping cycle, turn the knob to MIST. Hold
it there until the wipers start, then let
go. The wipers will
stop after one cycle.
If you want more cycles, hold the
knob on MIST longer.
You can set
the wiper speed for a long or short delay
between wipes. This can be very useful
in light rain or
snow. Turn the knob to choose the delay time. The
closer to
LOW, the shorter the delay.
2-36
ProCarManuals.com

Headlamps Fuses and Circuit Breakers
The headlamp wiring is protected by an internal circuit
breaker. An electrical overload will cause
the lamps
to go on and off, or
in some cases to remain off. If
this happens, have your headlamp wiring checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and
a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop
until the motor cools. If
the overload is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit
until the problem is fixed or goes away. The wiring circuits
in your vehicle are protected from
short circuits by
a combination of fuses, circuit breakers
and fusible thermal links.
This greatly reduces the
chance
of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace
a bad fuse with a new one of the identical size
and rating.
If you ever have
a problem on the road and don’t have a
spare fuse, you can “borrow” one that has the same
amperage. Just pick some feature
of your vehicle that
you can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace
it as soon as you can.
6-7 1
ProCarManuals.com

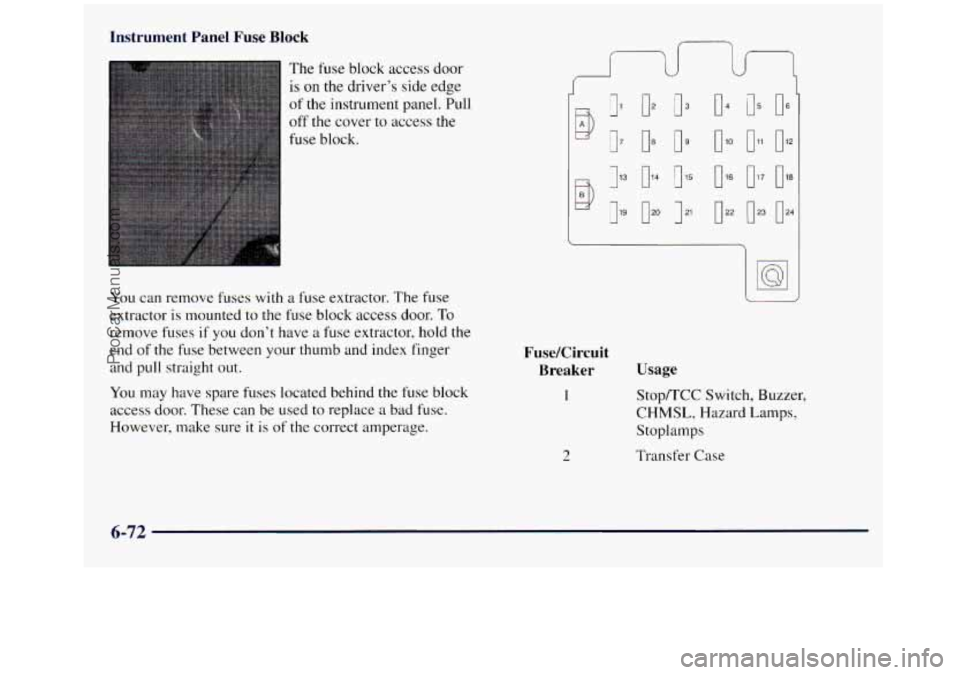

Instrument Panel Fuse Block
The fuse block access door
is on the driver’s side edge
of the instrument panel. Pull
off the cover to access the
fuse block.
You can remove
fuses with a fuse extractor. The fuse
extractor
is mounted to the fuse block access door. To
remove fuses if you don’t have a fuse extractor, hold the
end
of the fuse between your thumb and index finger
and
pull straight out.
You may have spare fuses located behind the fuse block
access door. These can be used to replace a bad fuse.
However, make
sure it is of the correct amperage.
J
D
13
ug
7 I
FuseKircuit
Breaker
1
2
Usage
Stop/TCC Switch, Buzzer,
CHMSL, Hazard Lamps,
S toplamps
Transfer
Case
6-72
ProCarManuals.com

Fuse/Circuit Breaker Usage
20
21
22
23
24
A
B
PRNDL, Automatic Transmission,
Speedometer, Check Gages
Warning Light
Security/Steering
Not Used
Not Used
Front Axle,
4WD Indicator Lamp,
TP2 Relay (Gasoline Engine)
Power Door Lock, Six-Way Power Seat, Keyless Entry Module
Power Windows
Underhood Fuse/Relay Center
The underhood fusehelay center is located in the rear of
the engine compartment near the brake fluid reservoir.
Move the retainer clips
for the cover to access the
fuse block.
You can remove fuses with a fuse extractor. The fuse
extractor
is mounted to the interior fuse block. TO
remove fuses
if you don’t have a fuse extractor, hold the
end of the fuse between your thumb and index finger
and pull straight out.
6-74
ProCarManuals.com

STARTER RELAY
[-I
[-I
[T)
I BLOWER
n STOPiHAZ
Name
ECM-B RR DEFOG
IGN-E
FUEL
SOL
GLOW PLUG
Usage
Horn, Underhood Lamps
Auxiliary Fan
Injectors, PCM/VCM
Not Used
Air Conditioning
Not Used
Ignition Switch, EGR, Canister
Purge, EVRV Idle Coast Solenoid,
Heated
02, Fuel Heater
(Diesel Engine), Water Sensor
(Diesel Engine)
HTD ST-RR Not Used
LIGHTING Headlamp and Panel Dimmer
BATT Battery, Fuse Block Busbar
IGN-A Ignition Switch
IGN-B Ignition Switch Switch,
Fog and Courtesy Fuses
ABS Anti-Lock Brake Module
BLOWER High Blower Relay
STOP/HAZ Stoplamps
HEATED SEATS Not Used
6-75
Usage
Fuel Pump, PCM/VCM
Rear Window Defogger
Auxiliary Fan Relay Coi
il, AIC
Compressor Relay, Hot Fuel
Module, Dual Tanks
Fuel Solenoid (Diesel Engine)
Glow Plugs (Diesel Engine)
Name
HORN
AUX FAN
ECM- 1
HTD ST-FR
AIC HTD MIR
ENG-
1
ProCarManuals.com

Manual Transmission Check
...................................... 7-41
Fluid
.................................. 6.24, 7.46
Shifting
................................ 2- 18. 2. I9
Starting Your Engine .......................... 2- 13
Manualwindows
............................... 2-32
Memo Pad Holder
......................... 2.55. 2.57
Methanol
...................................... 6- 5
Mirrors ....................................... 2-45
CamperType
................................ 2-48
Convex Outside
.............................. 2-50
Electrochromic Daymight Rearview
.............. 2-46
Inside Daymight Rearview
..................... 2-45
Manual
..................................... 2-48
Power Remote Control
......................... 2-50
WestCoastType
.............................. 2-50
MMT
......................................... 6-4
Model Reference
................................. vi
MountainRoads ................................ 4-34
New Vehicle Break-In
.......................... 2- 10
Nightvision ................................... 4-27
Noise Control System ........................... 6- 13
Normal Maintenance. Normal Replacement Parts
...... 6-78
Odometer
.................................... 2-63
Odometer. Trip
................................. 2-63
Off-Road Driving
.............................. 4- I4
Off-Road Recovery
............................. 4- I I
Oil. Engine ............................... 6-14. 7-46
Opener. Garage Door
............................ 2-51
Overheating Engine ............................. 5- 13 Owner Checks
and Services
....................... 7-40
Owner Publications. Ordering
................ 8- 1 1. 8- 12
Paint Spotting. Chemical
........................ 6-68
Park. Shifting Into
.............................. 2-26
Park. Shifting Out of
............................ 2-29
Parking
AtNight
..................................... 2-9
Brake
...................................... 2-25
Brake Mechanism Check
....................... 7-43
Over Things That Burn
........................ 2-30
With a Trailer ................................ 4-58
Your Vehicle. Manual Transmission
.............. 2-29
Passenger Position
.............................. 1-23
Lots
........................................ 2-9
Passin;
@ ..................................... 4-11
Passlock
................................ 2- 10, 2-73
Periodic Maintenance Inspections
.................. 7-44
Pickup Box Identification Lamp Bulb Replacement
.... 6-47
Pickup Conversion to Chassis Cab
................. 4-48
Power
Accessory Outlet
............................. 2-59
DoorLocks
................................... 2-6
Driver’sSeat ................................. 1-3
Option Fuses
................................ 6-71
Remote Control Mirror
........................ 2-50
Steering ..................................... 4-8
Steering Fluid ........................... 6-33, 7-46
Take-Off .................................... 4-61
Winches
.................................... 4-61
Windows
................................... 2-32
ProCarManuals.com

Windshield Washet- Fluid
..........
Fluid Level Check
Windshield WiDers
.
............................. 2-37 Winter Drivins ................................. 4-36
................... 2-37.6-33. 7-47 Wiper Blades. Cleaning .......................... 6-65
............................ 7-40 Wiring Headlamp .............................. 6-71
............................. 2-36 Wrench, Wheel ................................. 5-25 L Blade
Replacement ...................... 6-50.6-78
Cleaning
the Blades ........................... 6-65
Fuses ...................................... 6-71
