1998 CHEVROLET ASTRO Owners Manual

Downloaded from www.Manualslib.com manuals search engine To open the driver’s side
rear door, pull on the latch
release handle in the inside
of the door.
I
To fully open the rear doors,
push in on the clip and lift
To close the rear doors, close the driver’s side door first.
Check to make sure both doors are completely closed.
The rear doors have a check assembly to keep the doors
from opening beyond 90 degrees.
Do this on each door. Replace the check assemblies on
the mounting brackets before closing the doors.
See the Caution following “Swing-Out Windows” in
this section.
2-5

Downloaded from www.Manualslib.com manuals search engine Door Locks
I
I
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won’t open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out
of the vehicle in a
crash if the doors aren’t locked. Wear safety belts
properly, lock your doors, and you will be far
better
off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
Your vehicle
may be equipped with Remote Keyless
Entry. For more information, see “Remote Keyless
Entry” later in this section.
To unlock your door from the outside, use your key.
To lock the front doors and
sliding side door from the
inside, slide the lock levers
down. To unlock the front
doors and the sliding side
door from the inside, slide
the lock levers up.
Power Door Locks (If Equipped)
If your vehicle has power
door locks, press the power
door lock switch to lock
or
unlock all the doors at once.
2-6

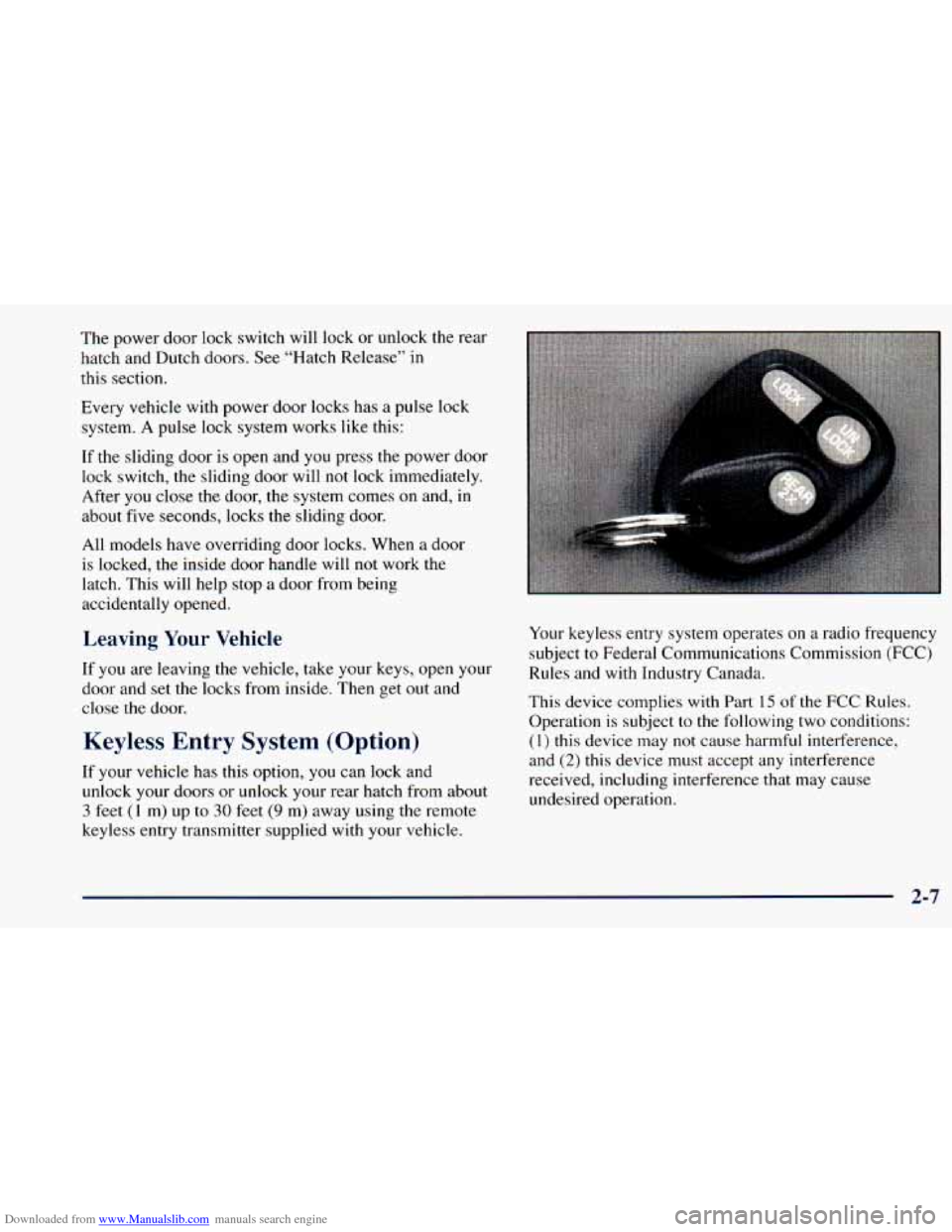

Downloaded from www.Manualslib.com manuals search engine The power door lock switch will lock or unlock the rear
hatch and Dutch doors. See “Hatch Release” in
this section.
Every vehicle with power door locks
has a pulse lock
system. A pulse lock
system works like this:
If the sliding door
is open and you press the power door
lock switch, the sliding door will not lock immediately.
After you close the door, the system comes
on and, in
about five seconds, locks the sliding door.
All models have overriding door locks. When a door
is locked, the inside door handle will not work the
latch. This will help stop a door from being
accidentally opened.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door.
Keyless Entry System (Option)
If your vehicle has this option, you can lock and
unlock your doors or unlock your rear hatch from about
3 feet (1 m) up to 30 feet (9 m) away using the remote
keyless entry transmitter supplied with your vehicle. Your
keyless entry system operates on a radio frequency
subject
to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part
15 of the FCC Rules.
Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
2-7

Downloaded from www.Manualslib.com manuals search engine This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this
device must accept any interference received, including
interference that may cause undesired operation of
the devict .
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
This system has a range of about
3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease in
range. This is normal for any remote keyless entry
system. If the transmitter does not work or if
you have
to stand closer to your vehicle for the transmitter to
work,
try this:
Check to determine if battery replacement
or
transmitter resynchronization is necessary. See the
instructions that follow.
Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather,
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.
If you’re still having trouble, see your dealer or a
qualified technician for service.
Operation
When you press UNLOCK, the driver’s door will
unlock automatically. If you press
UNLOCK again
within five seconds, all doors will unlock. All doors
will lock when
LOCK is pressed. The interior lamps
will come on whenever you lock or unlock the doors.
Pressing the REAR
2X button twice within three
seconds will unlock the rear cargo doors.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only two transmitters
matched to it.
2-8

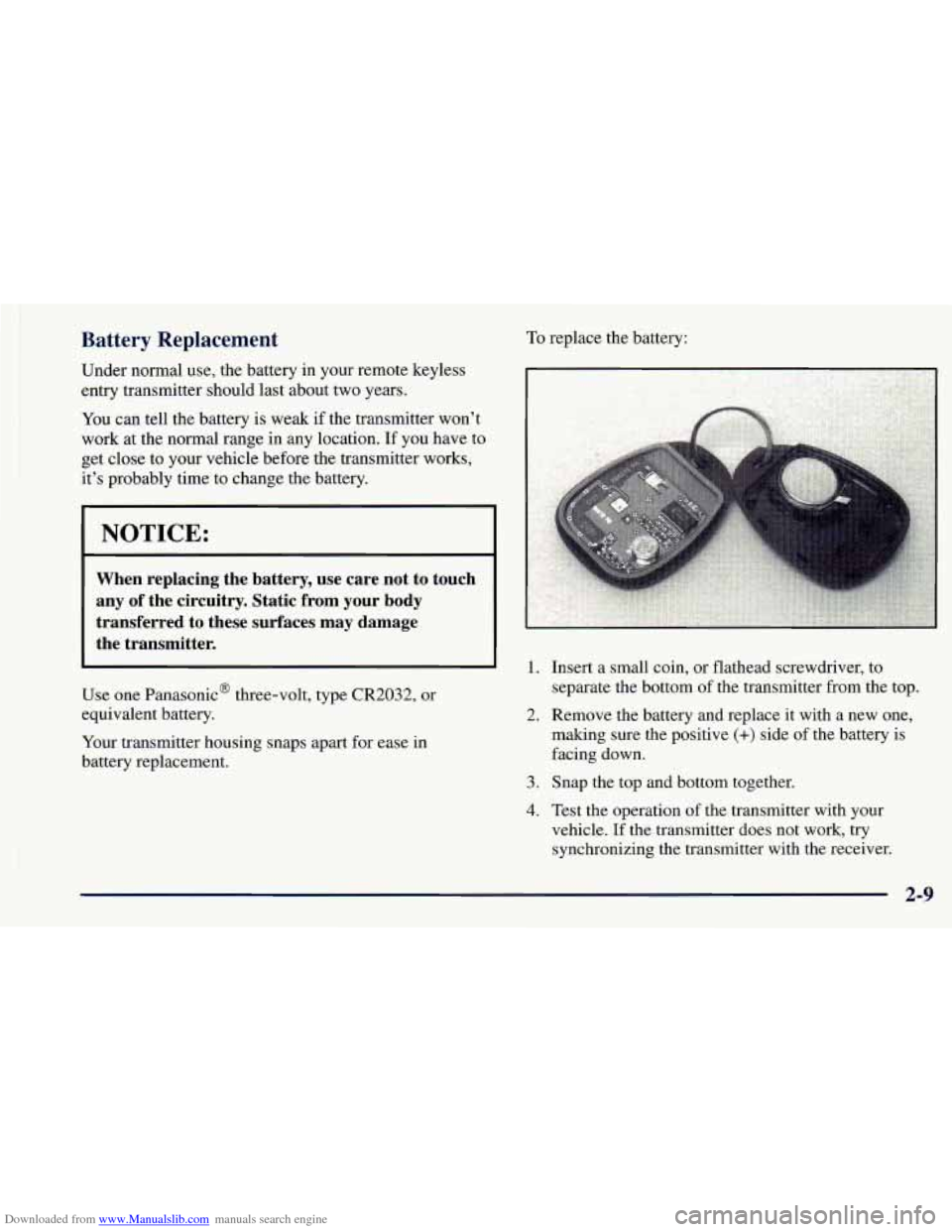

Downloaded from www.Manualslib.com manuals search engine Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak
if the transmitter won’t
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
I the transmitter. I
To replace the battery:
L.
Use one PanasonicB three-volt, type CR2032, or
equivalent battery.
Your transmitter housing snaps apart for ease in
battery replacement. 2.
3.
4.
Insert a small coin, or flathead screwdriver, to
separate the bottom
of the transmitter from the top.
Remove the battery and replace it with a new one,
making sure the positive
(+) side of the battery is
facing down.
Snap the top and bottom together.
Test the operation of the transmitter with your
vehicle. If the transmitter does not work, try
synchronizing the transmitter with the receiver.

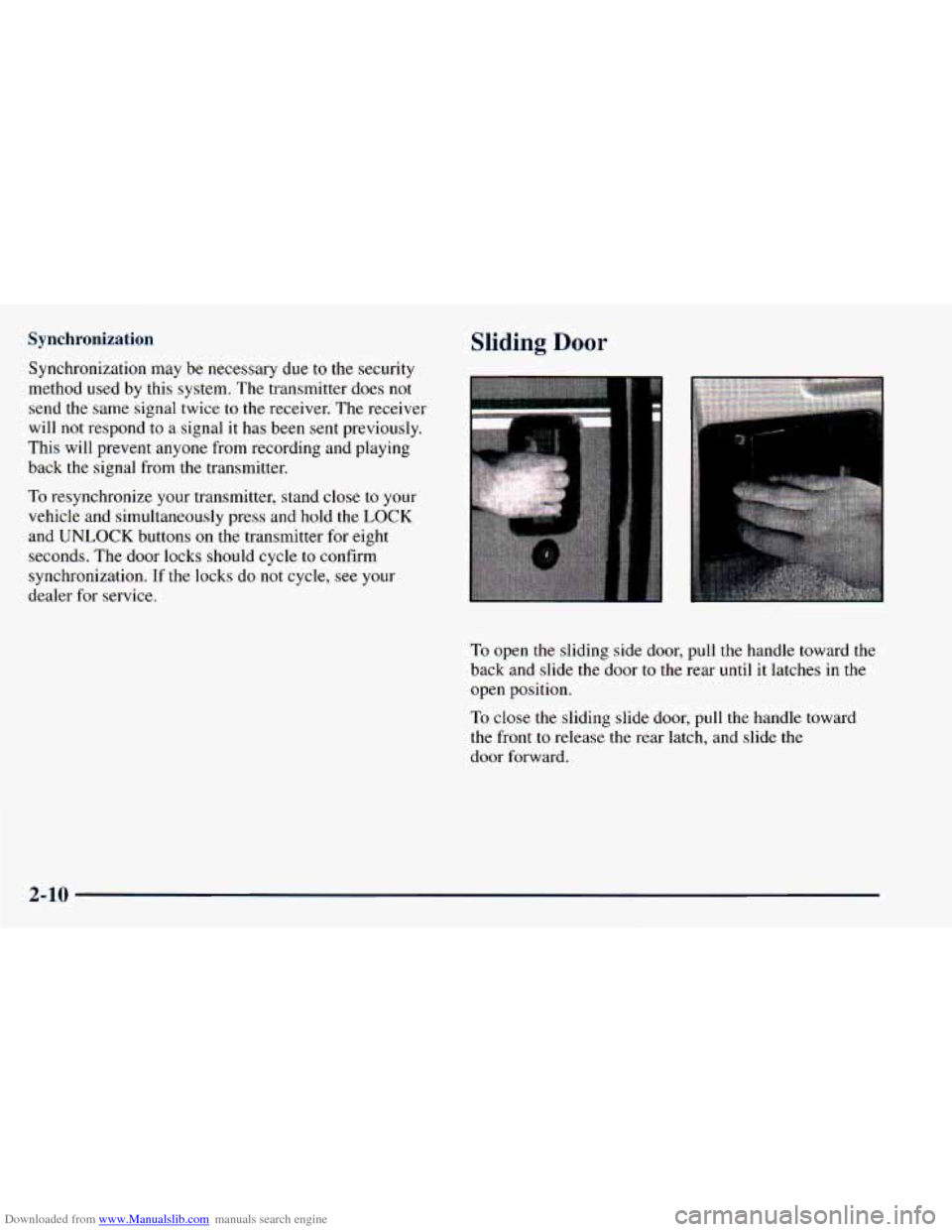

Downloaded from www.Manualslib.com manuals search engine Synchronization
Synchronization may be necessary due to the security
method used by this system. The transmitter does not
send the same signal twice to the receiver.
The receiver
will not respond to a signal it has been sent previously.
This will prevent anyone from recording and playing
back the signal from the transmitter.
To resynchronize your transmitter, stand close to your
vehicle and simultaneously press and hold the
LOCK
and UNLOCK buttons on the transmitter for eight
seconds. The door locks should cycle
to confirm
synchronization.
If the locks do not cycle, see your
dealer for service.
Sliding Door
To open the sliding side door, pull the handle toward the
back and slide the door to
the rear until it latches in the
open position.
To close the sliding slide door, pull the handle toward
the front
to release the rear latch, and slide the
door forward.
2-10

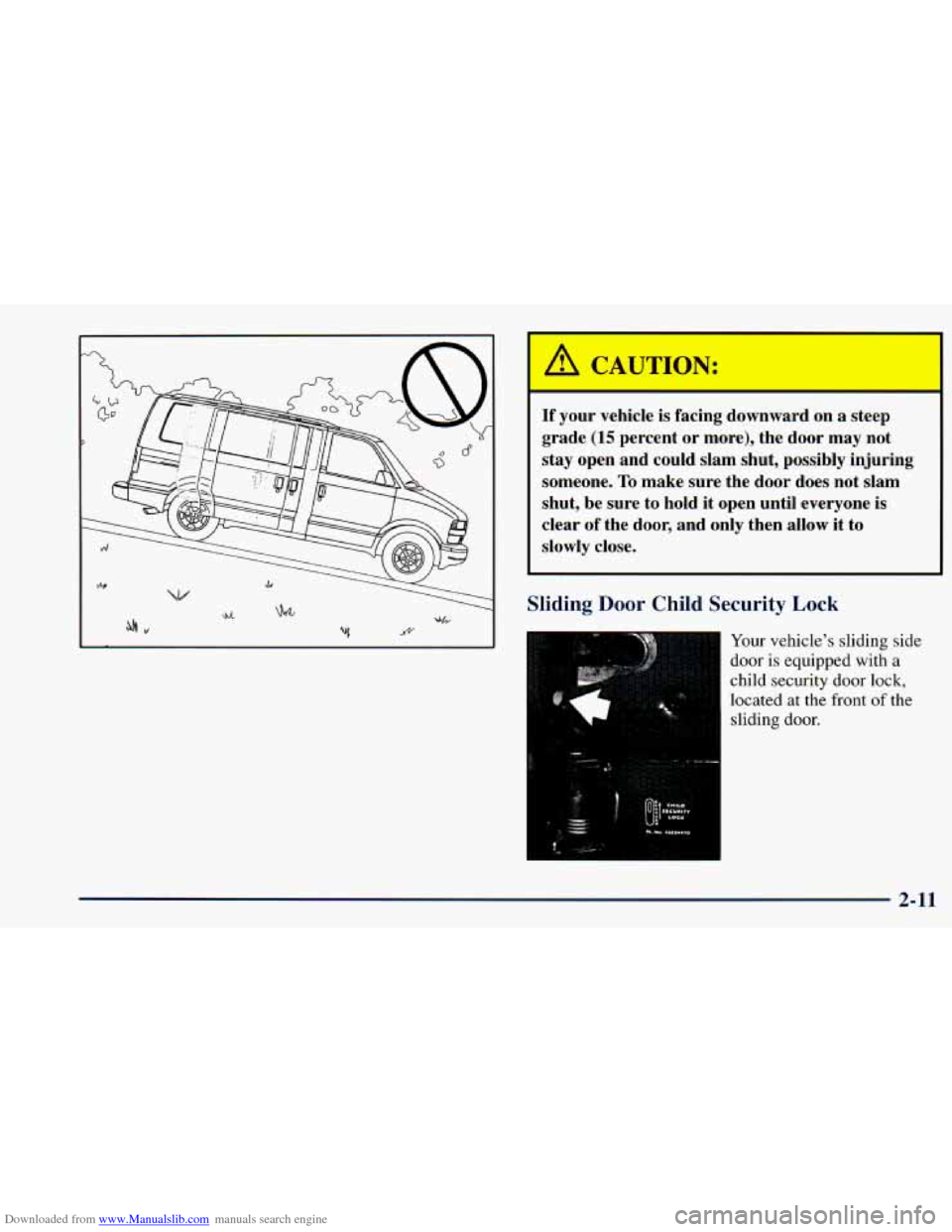

Downloaded from www.Manualslib.com manuals search engine If yc vehi is fac .g do! rd on a steep
grade
(15 percent or more), the door may not
stay open and could slam shut, possibly injuring
someone.
To make sure the door does not slam
shut, be sure to hold it open until everyone is
clear of the door, and only then allow it to
slowly close.
Sliding Door Child Security Lock
Your vehicle's sliding side
door is equipped with
a
child security door lock,
located at the front
of the
sliding door.
2-11

Downloaded from www.Manualslib.com manuals search engine There are two labels on your vehicle to remind you that
you have this feature. One can be seen from the outside
on your sliding door. It is located near the bottom of the
door glass, toward the front of the door.
Lu c3
c3
z w
n
a
l- I
The other label is at the
front of the sliding door,
near the child security
door lock.
This feature prevents passengers from opening the
sliding side door from the inside.
To use this feature, do the following:
1. Move the lever all the way up.
2. Close the door. To
open the sliding side door while the child security
lock
is engaged, unlock the door and open it from
the outside.
If you don’t cancel the security lock feature, adults or
older children who ride in the rear won’t be able to open
the sliding door from the inside.
You should let adults
and older children know how the security door lock
works, and how
to cancel the lock.
Canceling the Sliding Door Child
Security
Lock
To cancel the child security lock:
1. Unlock the door and open it from the outside.
2. Move the lever all the way down.
2-12
