1998 CHEVROLET ASTRO Owners Manual

Downloaded from www.Manualslib.com manuals search engine r-- -

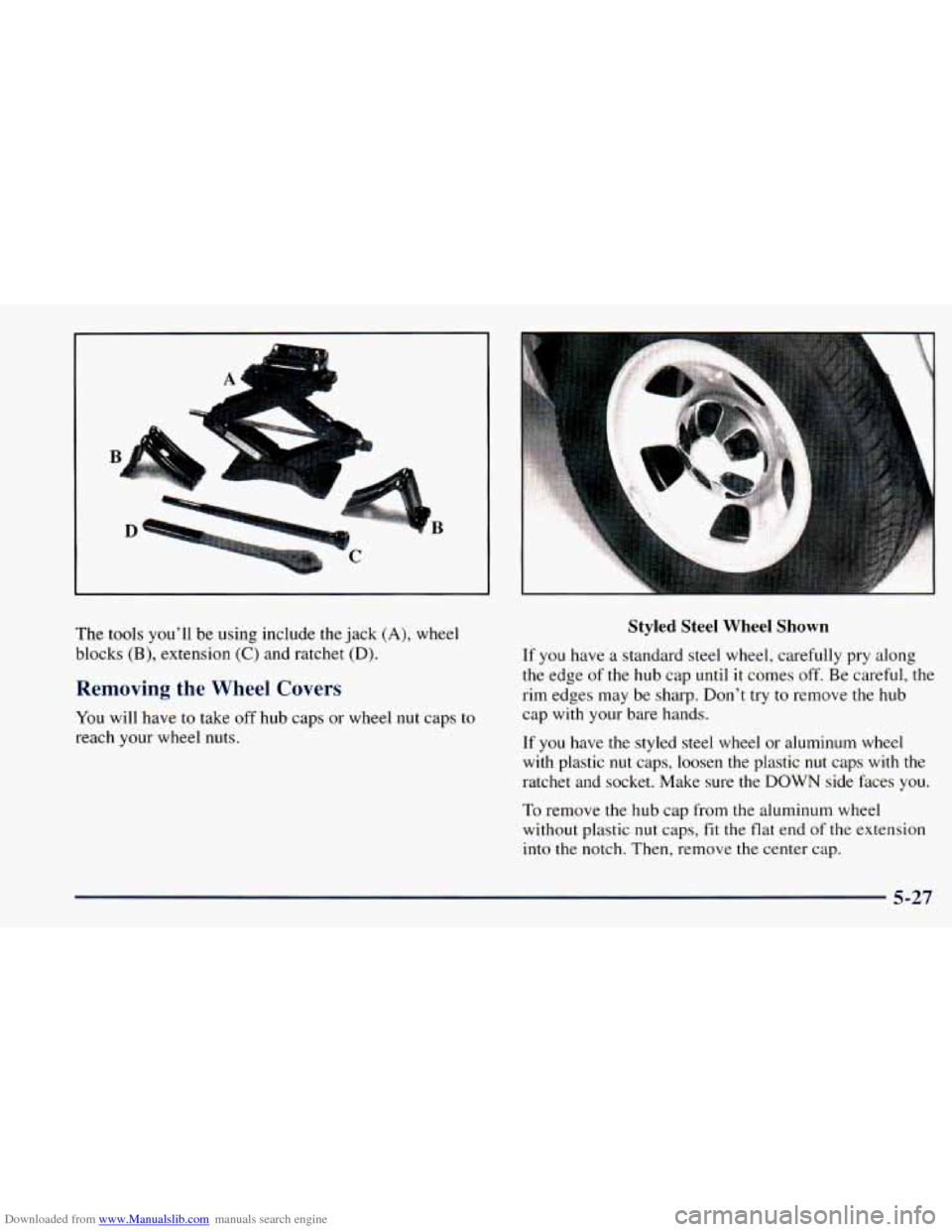

The tools you'll be using include the jack (A), wheel
blocks
(B), extension (C) and ratchet (D).
Removing the Wheel Covers
You will have to take off hub caps or wheel nut caps to
reach your wheel nuts.
I
Styled Steel Wheel Shown
If you have a standard steel wheel, carefully pry along
the edge
of the hub cap until it comes off. Be careful, the
rim edges may be sharp. Don't try to remove the hub
cap with your bare hands.
If you have the styled steel wheel or aluminum wheel
with plastic nut caps, loosen the plastic nut caps with the
ratchet and socket. Make sure the
DOWN side faces you.
To remove the hub cap from the aluminum wheel
without plastic
nut caps, fit the flat end of the extension
into the notch. Then, remove the center cap.
5-27

Downloaded from www.Manualslib.com manuals search engine Removing the Flat Tire and Installing the
Spare Tire
. . . . . . . ..
I
1. Before you start, block the front and rear of the tire
farthest away from the one being changed. Then put
your spare tire near the flat tire.
2. With the DOWN side facing you, use the ratchet and
socket
to loosen all the wheel nuts. Don’t remove
them yet.
3. The jack has a bolt on the end. Attach the socket end
of the extension
to the jack bolt.
5-28

Downloaded from www.Manualslib.com manuals search engine /- I 1 I n:
- 1 2.0”
(30.0 cm)

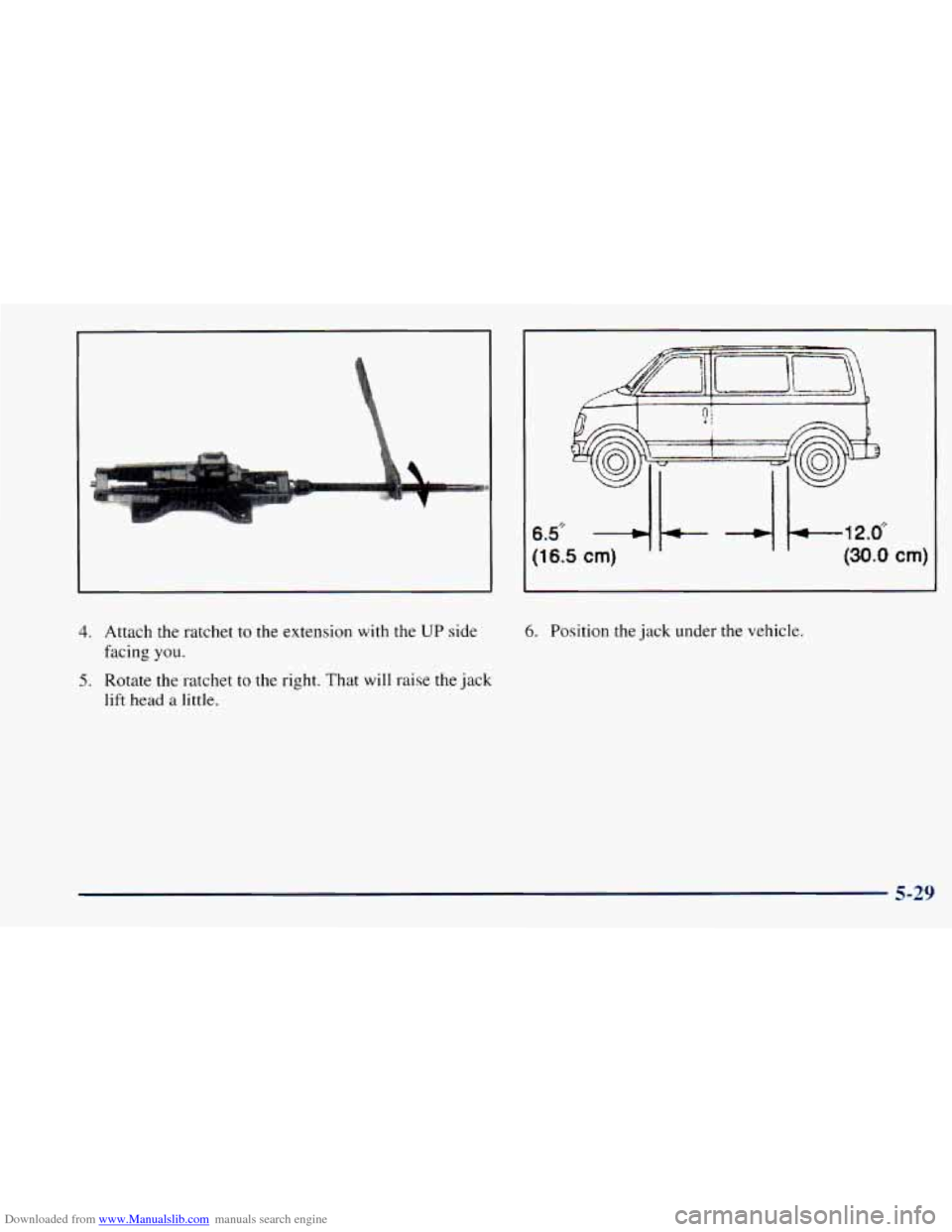

4. Attach the ratchet to the extension with the UP side
facing
you.
5. Rotate the ratchet to the right. That will raise the jack
lift
head a little.
6. Position the jack under the vehicle.
5-29

Downloaded from www.Manualslib.com manuals search engine C B

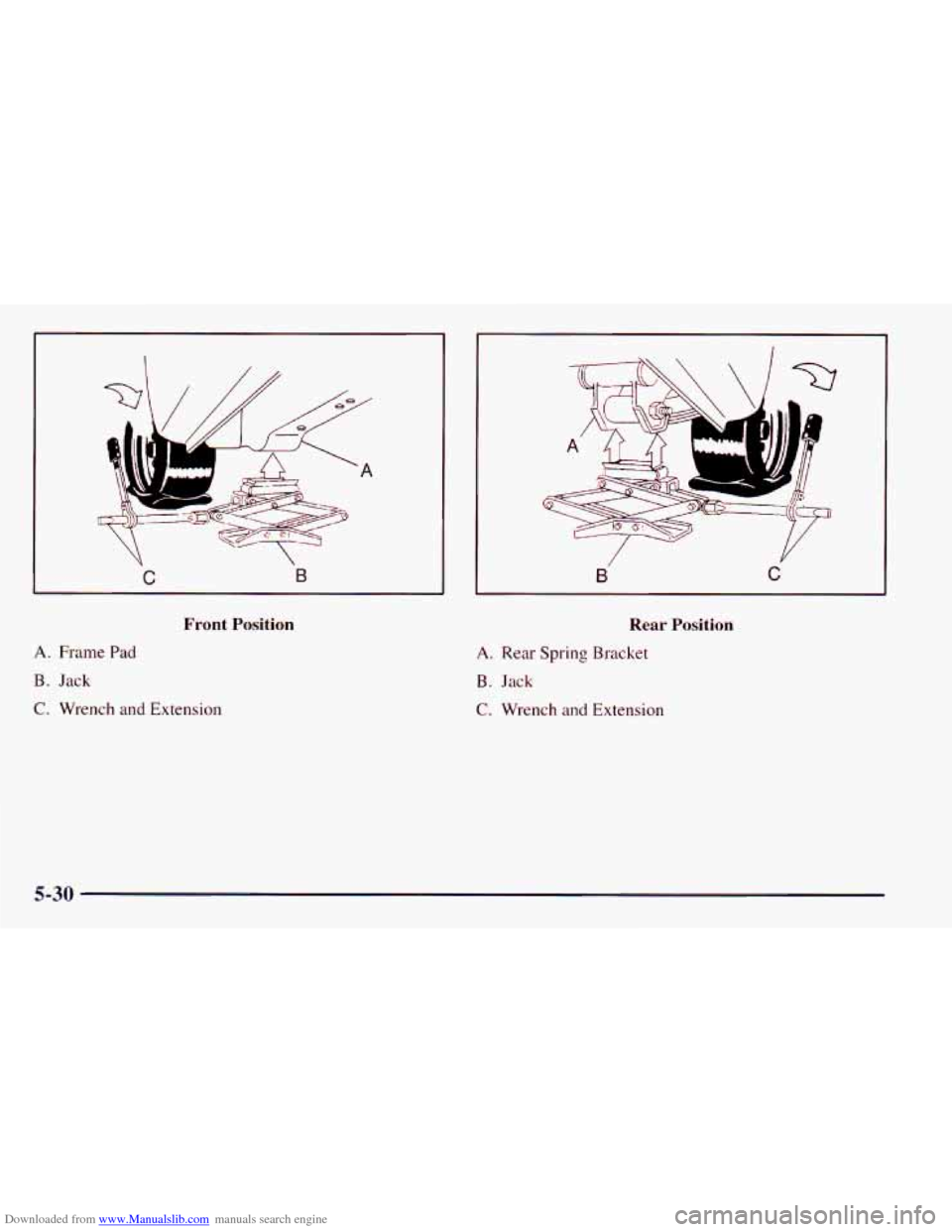

Front Position
A. Frame Pad
B. Jack
C. Wrench and Extension
Rear Position
A. Rear Spring Bracket
B. Jack
C. Wrench and Extension
5-30

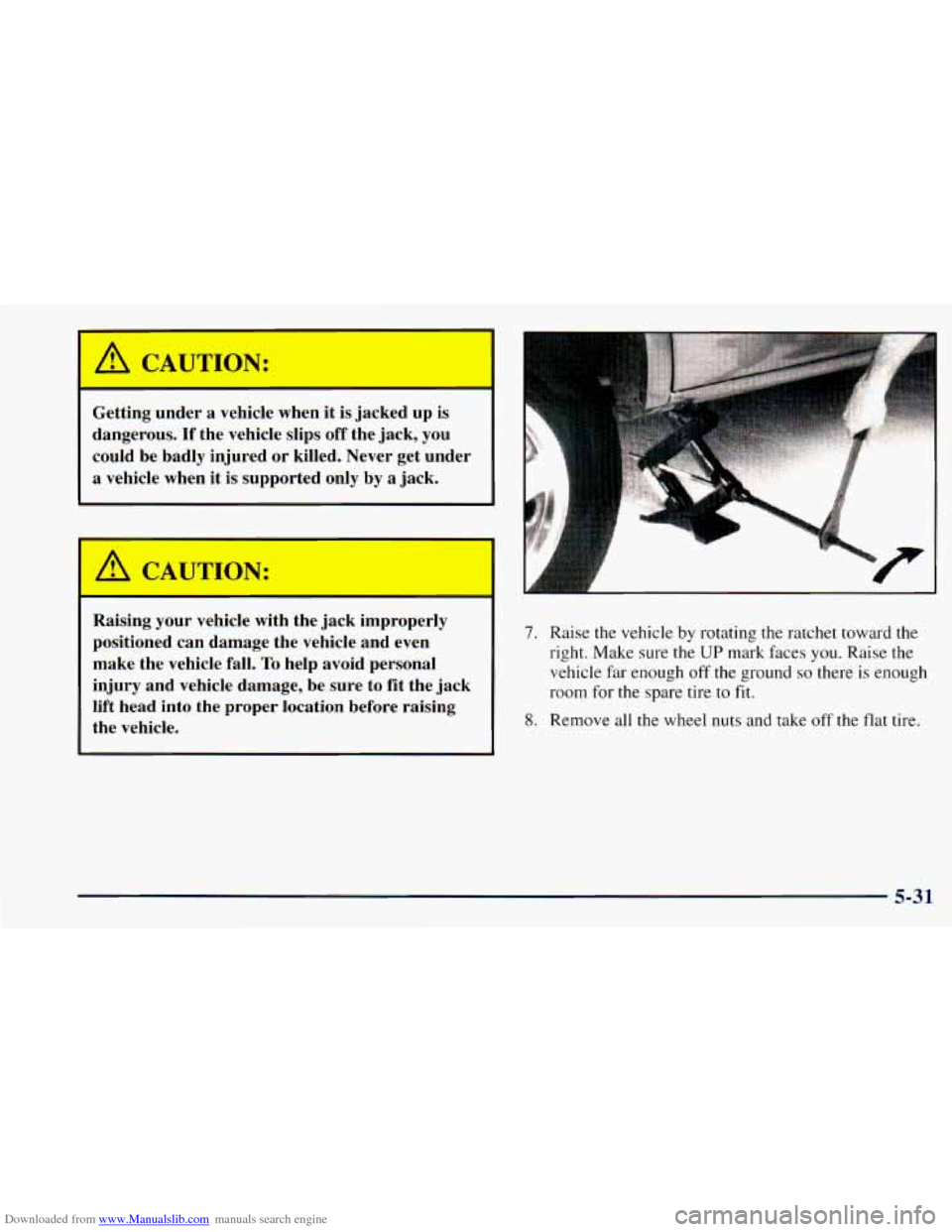

Downloaded from www.Manualslib.com manuals search engine /II CAUTION:
Getting under a vehicle when it is :ked up is
dangerous.
If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
A CAUTION:
-
Raising yUdr vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall.
To help avoid personal
injury and vehicle damage, be sure to fit the jack
lift head into the proper location before raising
the vehicle.
7. Raise the vehicle by rotating the ratchet toward the
right. Make sure the
UP mark faces you. Raise the
vehicle far enough off the ground
so there is enough
room for
the spare tire to fit.
8. Remove all the wheel nuts and take off the flat tire.
5-31

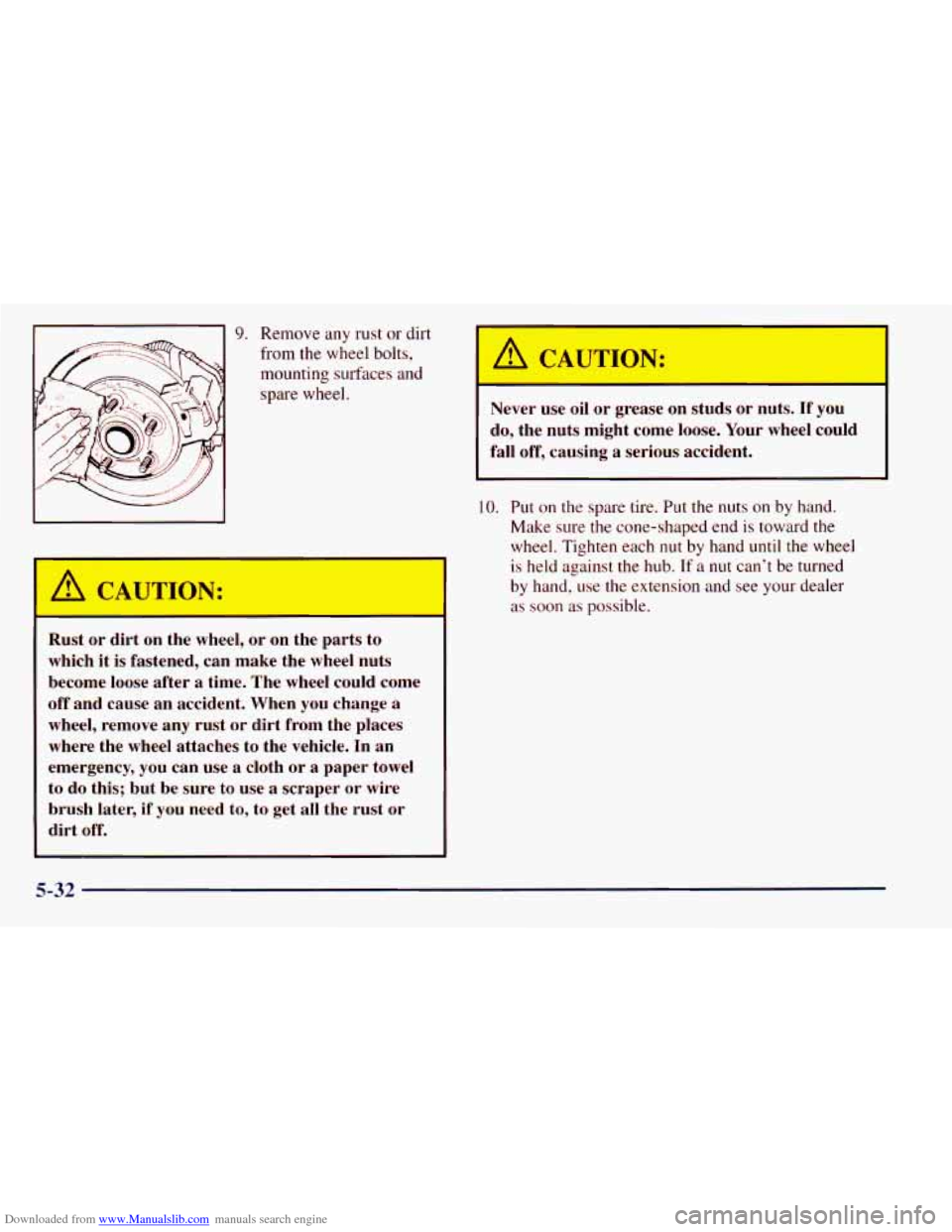

Downloaded from www.Manualslib.com manuals search engine 9. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel. I A CAUTION:
L
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after
a time. The wheel could come
off and cause
an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth or
a paper towel
to
do this; but be sure to use a scraper or wire
brush later,
if you need to, to get all the rust or
dirt off.
I1
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing
a serious accident.
10. Put on the spare tire. Put the nuts on by hand.
Make sure the cone-shaped end is toward
the
wheel. Tighten each nut by hand until the wheel
is held against the hub. If a nut can’t be turned
by hand, use the extension and see your dealer
as
soon as possible.
5-32

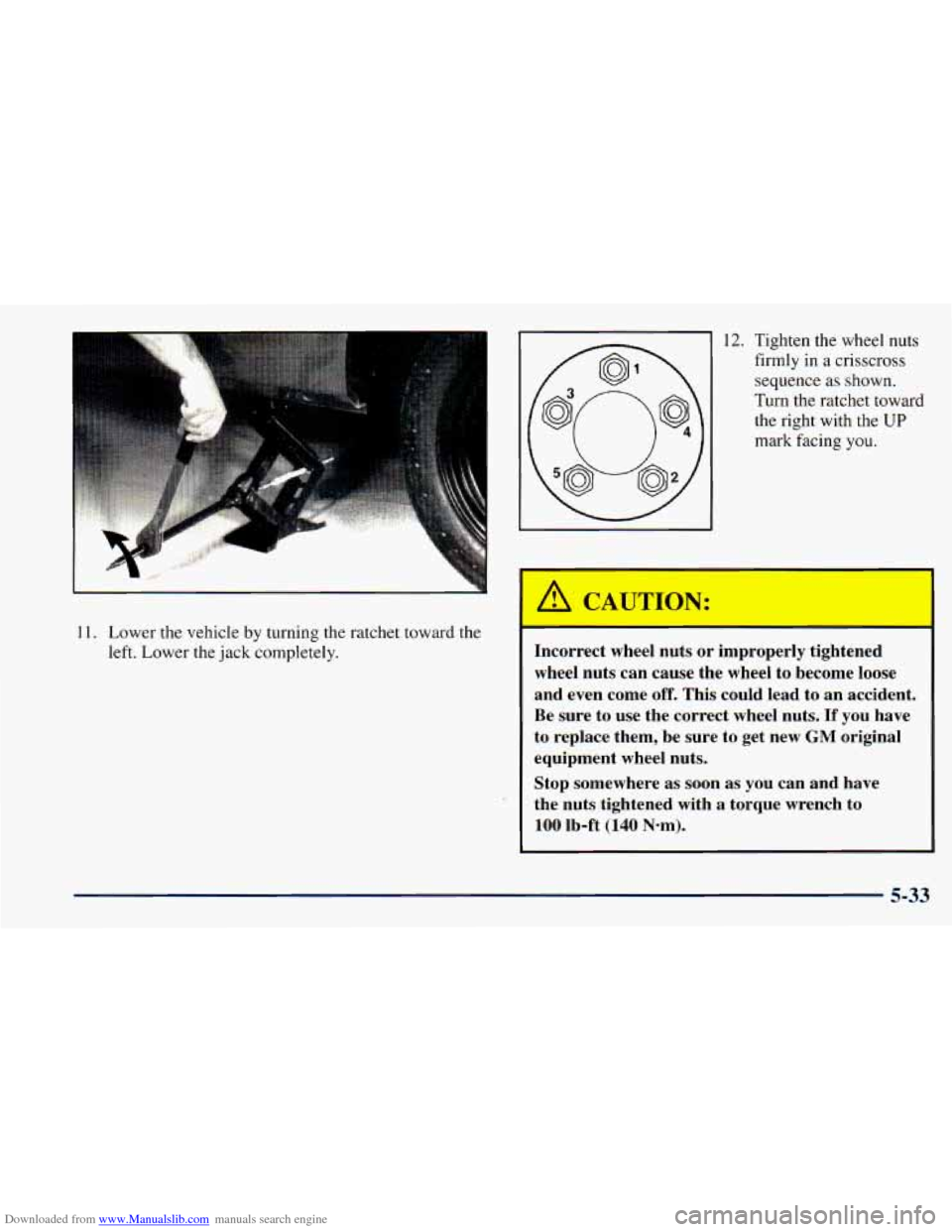

Downloaded from www.Manualslib.com manuals search engine 11. Lower the vehicle by turning the ratchet toward the
left. Lower the jack completely.
12. Tighten the wheel nuts
firmly in a crisscross
sequence as shown.
Turn the ratchet toward the right with the
UP
mark facing you.
A CAUTION:
___ -- I
In1 *rect lee1 nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come
off. This could lead to an accident.
Be sure to use the correct wheel nuts. If you have
to replace them, be
sure to get new GM original
equipment wheel nuts.
Stop somewhere
as soon as you can and have
the nuts tightened with
a torque wrench to
100 lb-ft (140 N-m).
5-33

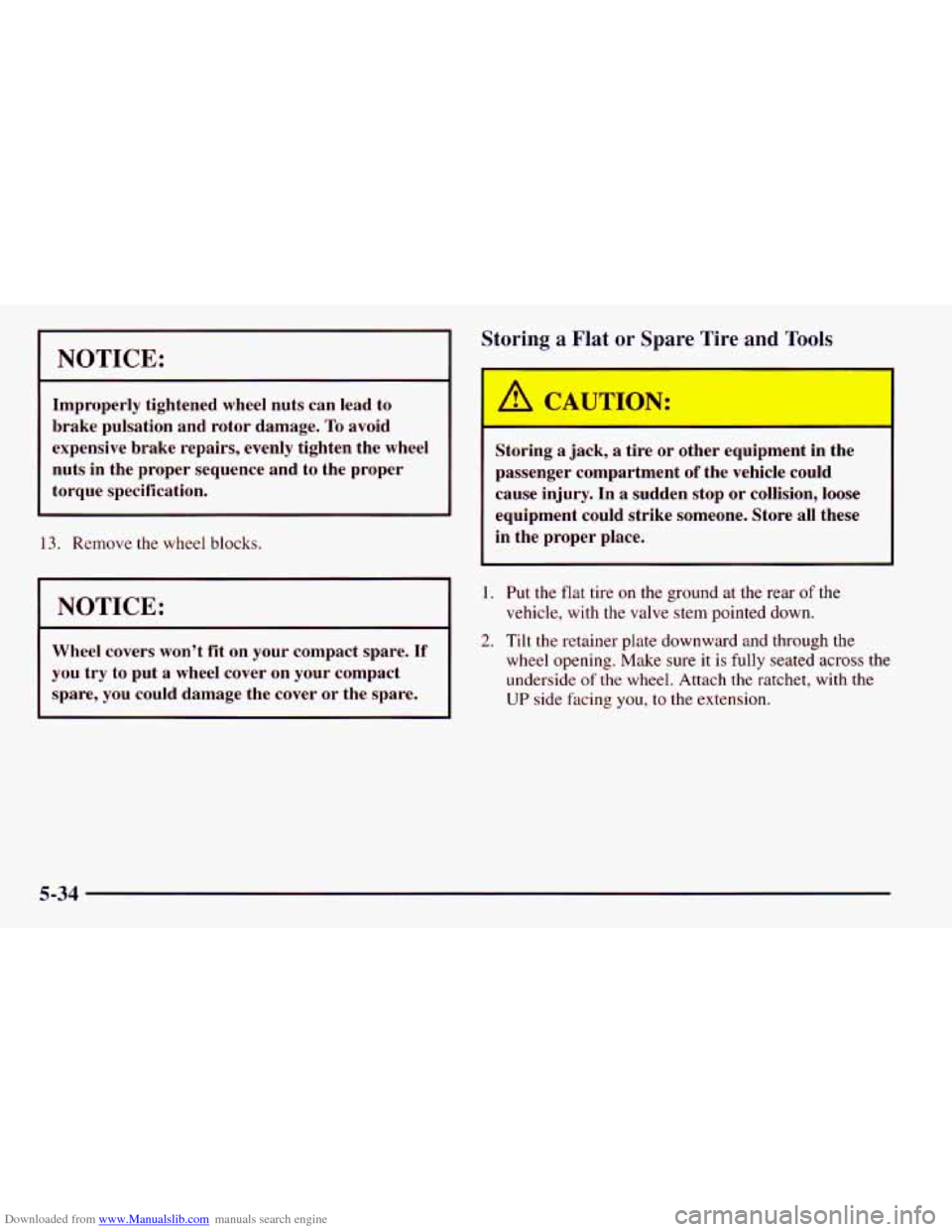

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage.
To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
13. Remove the wheel blocks.
I NOTICE:
Wheel covers won’t fit on your compact spare. If
you try to put a wheel cover on your compact
spare, you could damage the cover or the spare.
Storing a Flat or Spare Tire and Tools
I
A CdJTdN:
Storing a jack, a tire or other equipment in the
passenger compartment
of the vehicle could
cause injury. In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
1. Put the flat tire on the ground at the rear of the
vehicle, with the valve stem pointed down.
2. Tilt the retainer plate downward and through the
wheel opening. Make sure it is fully seated across the
underside
of the wheel. Attach the ratchet, with the
UP side facing you, to the extension.
5-34
