1998 CHEVROLET ASTRO Owners Manual

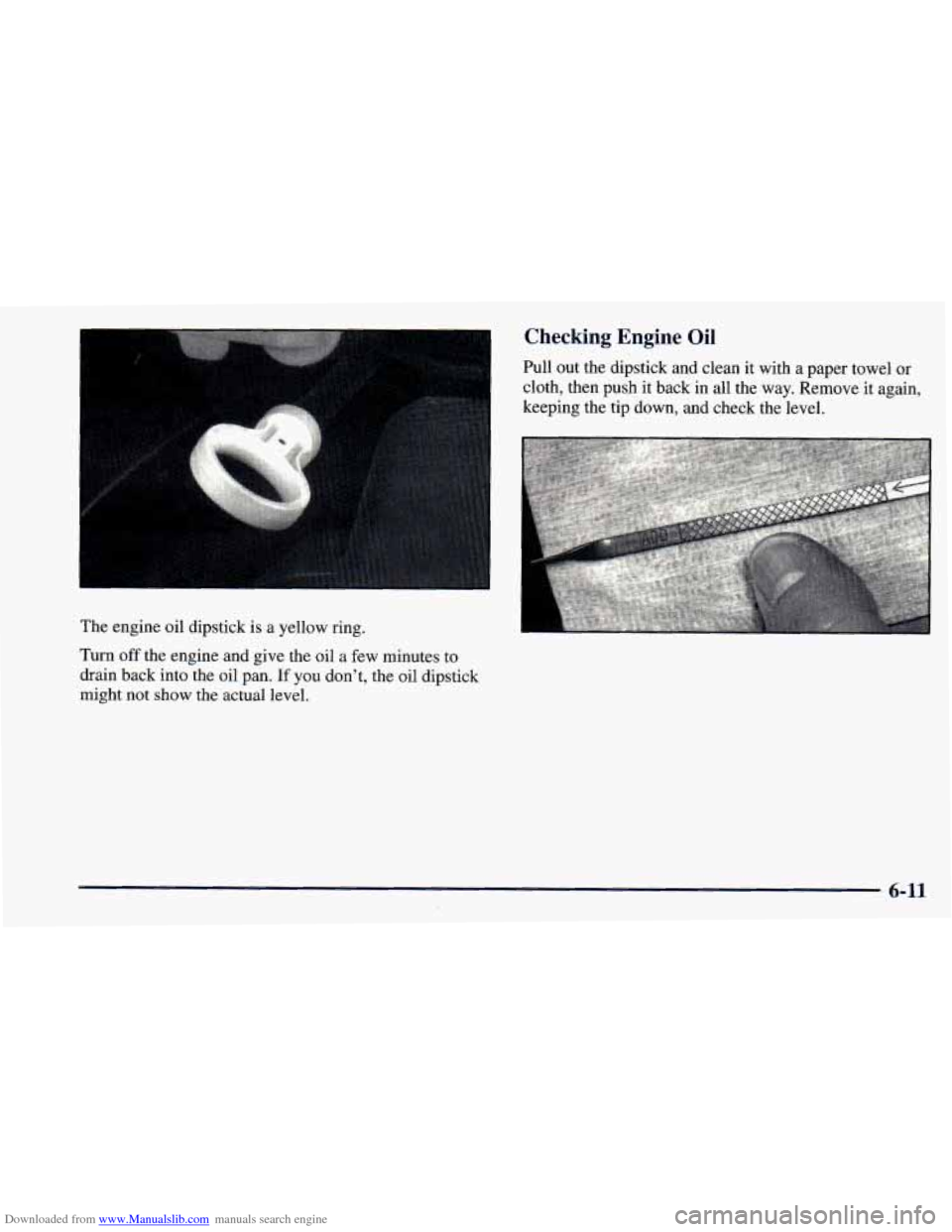

Downloaded from www.Manualslib.com manuals search engine The engine oil dipstick is a yellow ring.
Turn
off the engine and give the oil a few minutes to
drain back into the oil pan.
If you don’t, the oil dipstick
might not show the actual level.
6-11

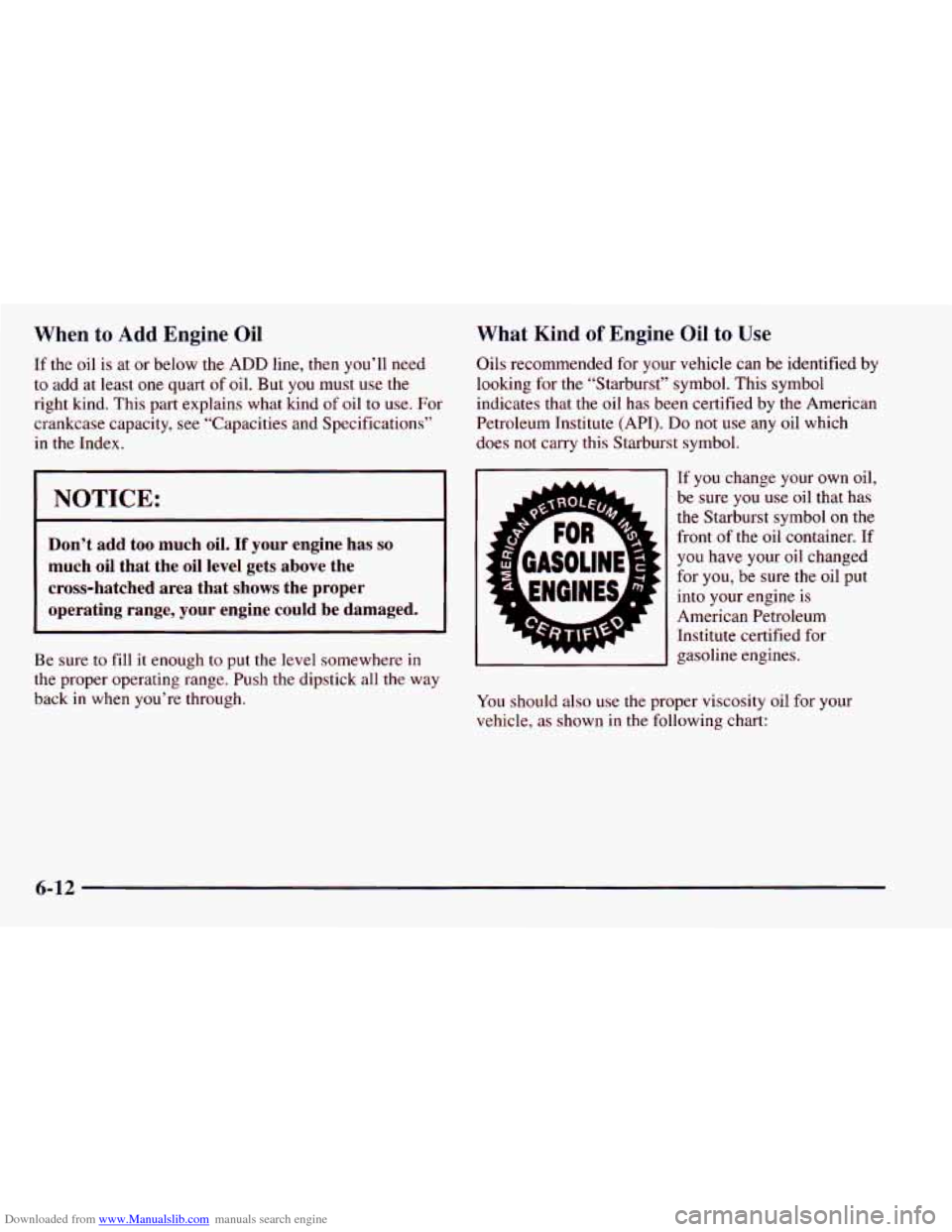

Downloaded from www.Manualslib.com manuals search engine When to Add Engine Oil
If the oil is at or below the ADD line, then you’ll need
to add at least one quart of oil. But you must use the
right kind. This part explains what kind
of oil to use. For
crankcase capacity, see “Capacities and Specifications’’
in the Index.
I NOTICE:
Don’t add too much oil. If your engine has so
much oil that the oil level gets above the
cross-hatched area that
shows the proper
operating range, your engine could be damaged.
Be sure to fill it enough to put the level somewhere in
the proper operating range. Push the dipstick all the way
back in when you’re through.
What Kind of Engine Oil to Use
Oils recommended for your vehicle can be identified by
looking for the “Starburst” symbol. This symbol
indicates that the oil has been certified by the American
Petroleum Institute (API).
Do not use any oil which
does
not carry this Starburst symbol.
If you change your own oil,
be sure you use oil that has
the Starburst symbol
on the
front
of the oil container. If
you have your oil changed
for you, be sure the oil put
into your engine is
American Petroleum
Institute certified for
gasoline engines.
You should also use the proper viscosity oil for your
vehicle, as shown
in the following chart:
6-12

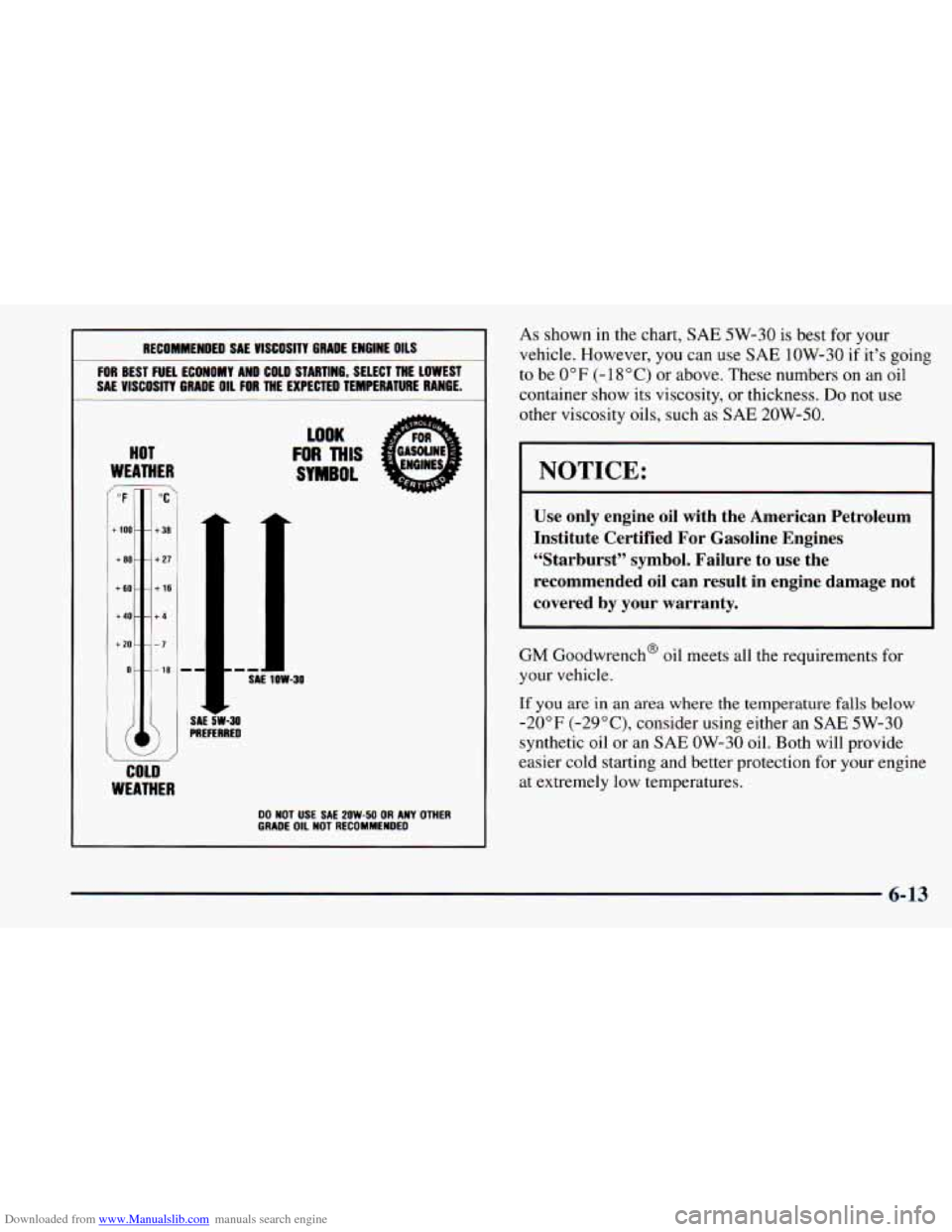

Downloaded from www.Manualslib.com manuals search engine I RECOMMENDED SAE VISCOSITY GRADE ENGINE OILS
FOR BEST FUEL ECONOMY AND COLD STARTING, SELECT THE LOWEST
I SAE VlSCOSlTT GRADE OIL FOR THE EXPECTED TEMPERATURE RANGE,
L
HOT
WEATHER
/- OF OC)
+ 100 - - +38
+BO- - +27
+80- - +16
+40- - +4
+20---7
0---18
/
COLD
WEATHER
LOOK
FOR THIS
SYMBOL
r
1-30 REO
DO
NOT USE SAE 2OW-50 OR AMY OTHER
GRADE OIL NOT RECOMMENDED
As shown in the chart, SAE 5W-30 is best for your
vehicle. However,
you can use SAE low-30 if it's going
to be
0°F (- 18 "C) or above. These numbers on an oil
container show its viscosity, or thickness.
Do not use
other viscosity oils, such as
SAE 20W-50.
I NOTICE:
Use only engine oil with the American Petroleum
Institute Certified For Gasoline Engines
"Starburst" symbol. Failure to use the
recommended oil can result in engine damage not
covered by your warranty.
GM Goodwrench' oil meets all the requirements for
your vehicle.
If
you are in an area where the temperature falls below
-20°F (-29"C), consider using either an SAE 5W-30
synthetic oil or an
SAE OW-30 oil. Both will provide
easier cold starting and better protection for your engine
at extremely low temperatures.
6-13

Downloaded from www.Manualslib.com manuals search engine Engine Oil Additives
Don't add anything to your oil, Your dealer is ready to
advise if you think something should be added.
When to Change Engine Oil
If any one of these is true for you, use the short trip/city
maintenance schedule:
0
0
0
e
0
Most trips are less than 5 to 10 miles (8 to 16 km).
This
is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving in stop-and-go traffic).
Most trips are through dusty areas.
You frequently tow a trailer or use a carrier on top of
your vehicle.
The vehicle is used for delivery service, police, taxi
or other commercial apl :ation.
Driving under these conc'"ions c
Ses engine oil to
break down sooner. If any one oi rnese is true for your
vehicle, then you need to change your oil and filter
every
3,000 miles (5 000 km) or 3 months -- whichever
occurs first. If
none
of them is true, use the long trip/highway
maintenance schedule. Change the oil and filter every
7,500 miles (12 500 km) or 12 months -- whichever
occurs first. Driving a vehicle with a fully warmed
engine under highway conditions causes engine oil
to
break down slower.
What to Do with Used Oil
Did you know that used engine oil contains certain
elements that may be unhealthy for your skin and could
even cause cancer? Don't
let used oil stay on your skin
for very long. Clean your skin and nails with soap and
water, or a good hand cleaner. Wash or properly throw
away clothing or rags containing used engine oil. (See
the manufacturer's warnings about the use and disposal
of oil products.)
Used oil can be a real threat to the environment. If you
change your own oil, be sure
to drain all free-flowing oil
from the filter before disposal. Don't ever dispose
of oil
by putting it
in the trash, pouring it on the ground, into
sewers,
or into streams or bodies of water. Instead,
recycle
it by taking it to a place that collects used oil. If
you have a problem properly disposing of your used
oil,
ask your dealer, a service station or a local recycling
center for help.
6-14

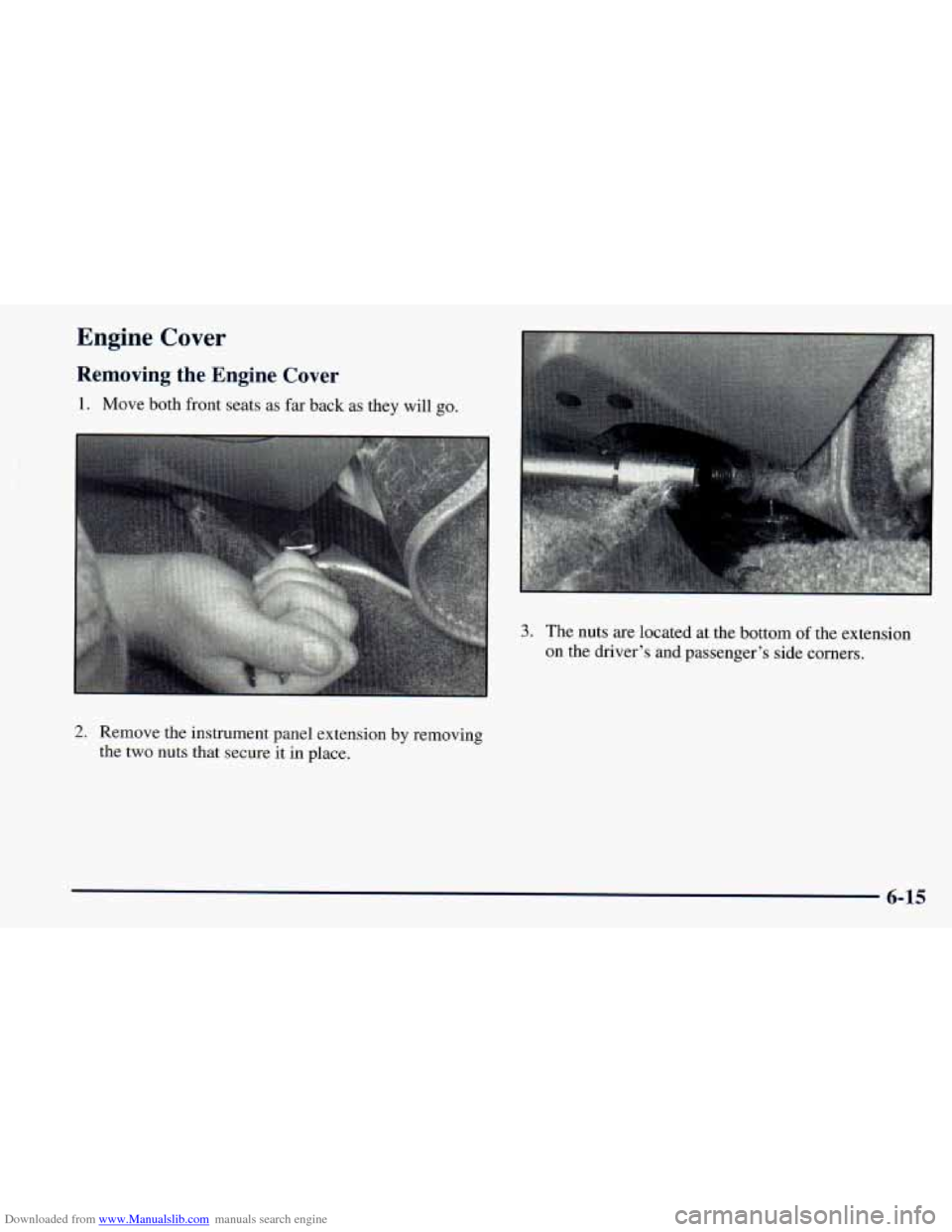

Downloaded from www.Manualslib.com manuals search engine Engine Cover
Removing the Engine Cover
1. Move both front seats as far back as they will go.
2. Remove the instrument panel extension by removing
the two nuts that secure it in place.
3. The nuts are located at the bottom of the extension
on the driver’s and passenger’s side corners.
6-15

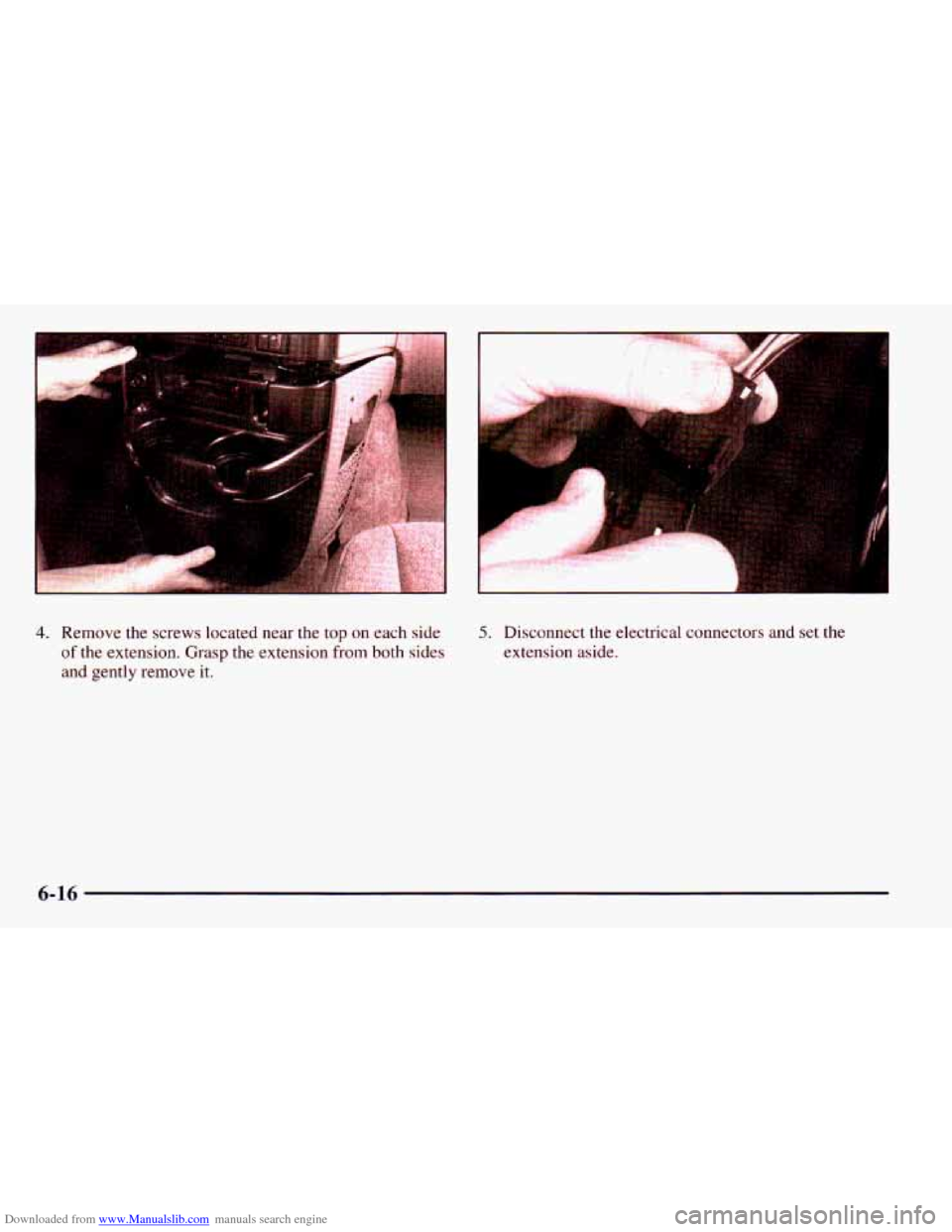

Downloaded from www.Manualslib.com manuals search engine 4. Remove the screws located near the top on each side
of the extension. Grasp the extension from both sides
and gently remove it.
5. Disconnect the electrical connectors and set the
extension aside.
6-16

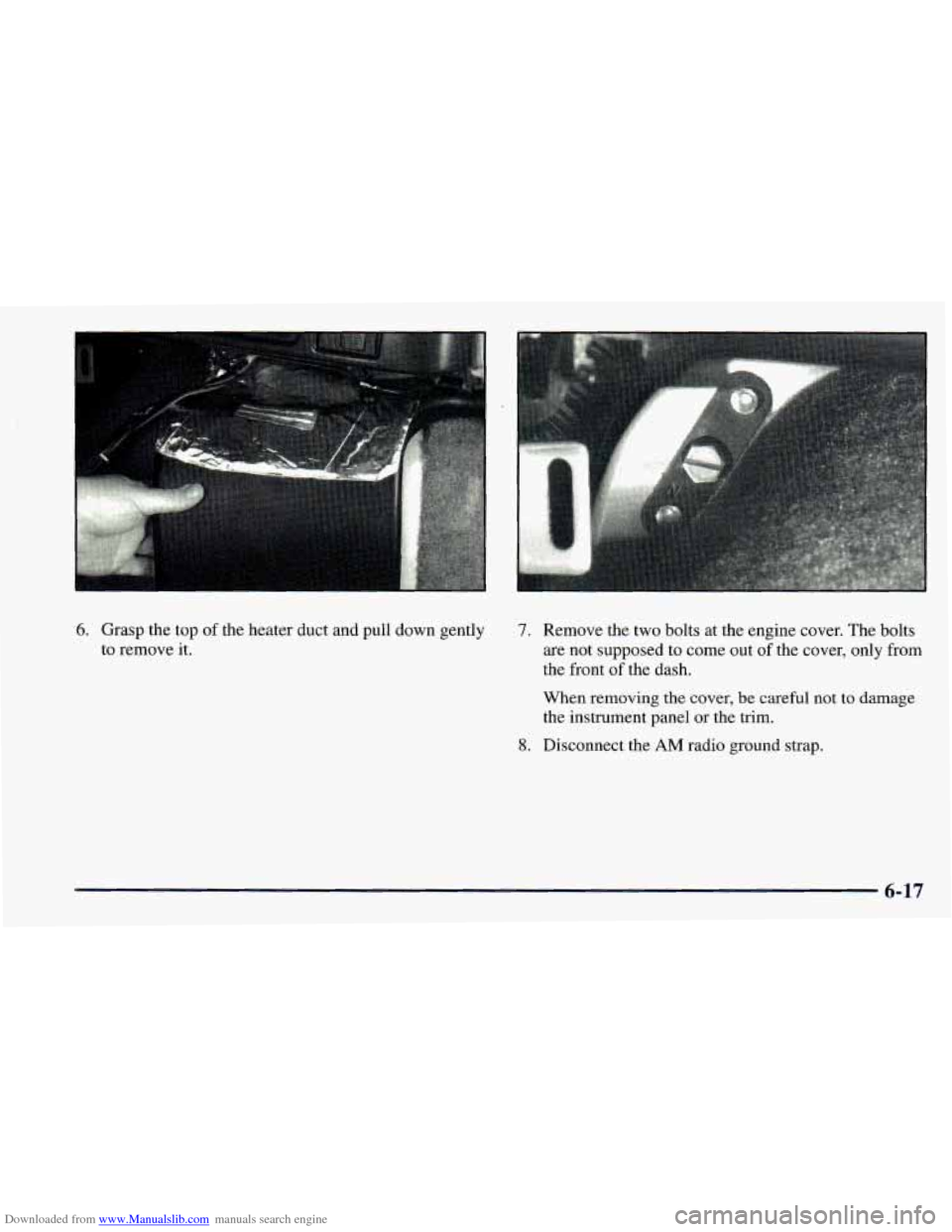

Downloaded from www.Manualslib.com manuals search engine 6. Grasp the top of the heater duct and pull down gently
to remove it. 7. Remove the two bolts at the engine cover. The bolts
are not supposed to come out of the cover, only from
the front of the dash.
When removing the cover, be careful not
to damage
the instrument panel or the trim.
8. Disconnect the AM radio ground strap.
6-17

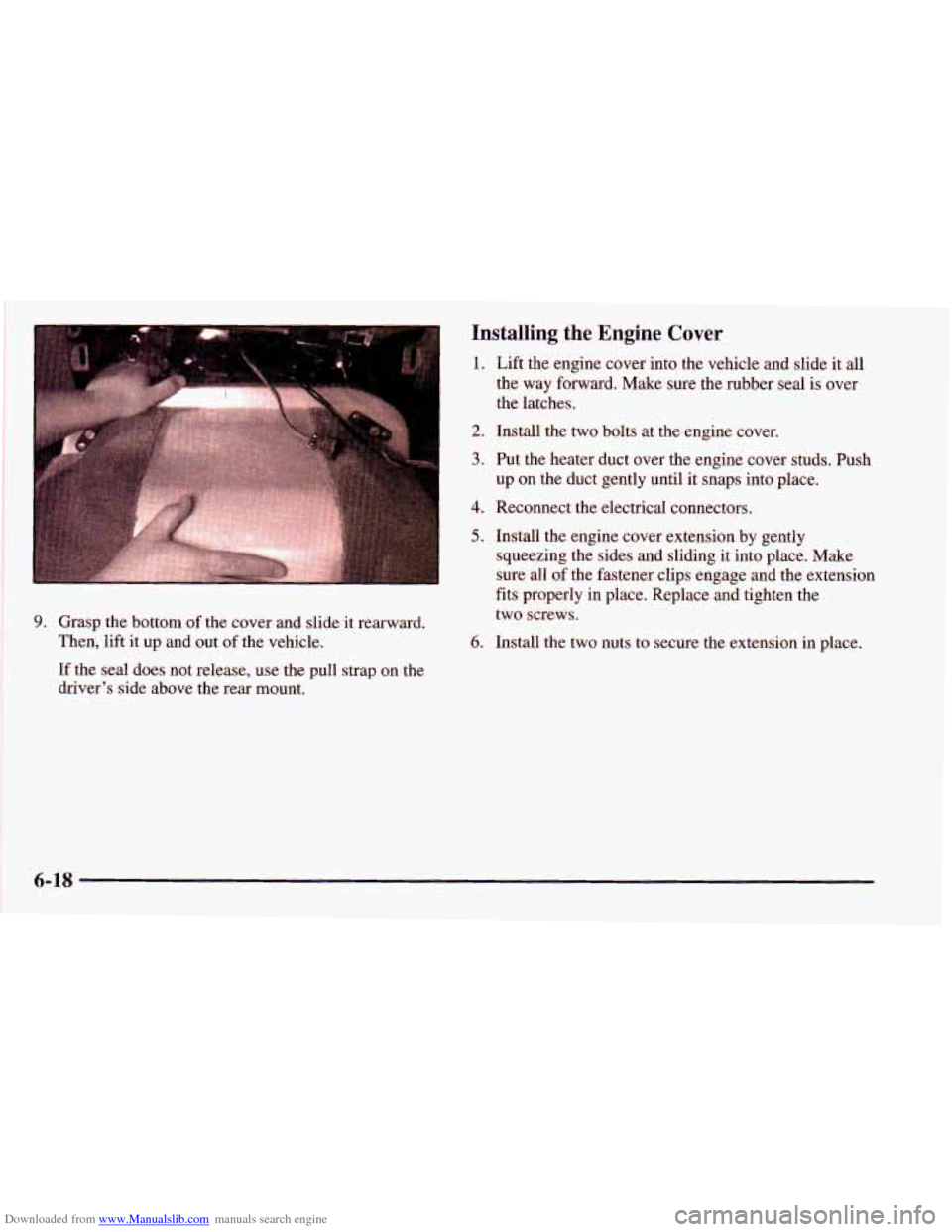

Downloaded from www.Manualslib.com manuals search engine 9. Grasp the bottom of the cover and slide it rearward.
Then, lift it up and out of the vehicle.
If the seal does not release, use the pull strap on the
driver’s side above the rear mount.
Installing the Engine Cover
1.
2.
3.
4.
5.
6.
Lift the engine cover into the vehicle and slide it all
the way forward. Make sure the rubber seal
is over
the latches.
Install the two bolts at the engine cover.
Put the heater duct over the engine cover studs. Push
up on the duct gently until it snaps into place.
Reconnect the electrical connectors.
Install the engine cover extension by gently
squeezing the sides and sliding it into place.
Make
sure all of the fastener clips engage and the extension
fits properly in place. Replace and tighten the
two screws.
Install the two nuts to secure the extension in place.
6-18
