1997 TOYOTA TACOMA Owners Manual

Part 1Keys
9
OPERATION OF INSTRUMENTS ANDCONTROLSÐ
Chapter 1-2 Keys and Doors
Keys
Side doors
Power windows
Quarter windows
Rear windows
Tailgate
Hood
Fuel tank cap
Detachable moon roof
Detachable sun shade
KEY PLATE This key works in every lock.
Since the doors can be locked without a
key, you should always carry a spare key
in case you accidentally lock your keys in-
side the vehicle.
KEY NUMBER PLATE
Your key number is shown on the
plate. Keep the plate in a safe place
such as your wallet, not in the vehicle.
If you should lose your keys or if you need
additional keys, duplicates can be made
by a Toyota dealer using the key number.
You should also put a copy of the key
number with your important papers.

10
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock sys-
temÐBoth doors lock and unlock simulta-
neously with either door. In the driver's
door l ock, turning the key once will unlock
the driver's door and twice in succession
will unlock the driver's door and passen-
ger's door simultaneously.LOCKING AND UNLOCKING WITH IN-
SIDE LOCK BUTTON Move the lock button.
To lock: Push the button downward.
To unlock: Pull the button upward.
Closing the door with the lock button
pushed in w ill also lock the door. Be care-
ful not to lock your keys in the vehicle.
Vehicles with power door lock systemÐ
The door cannot be locked if you leave thekey in the ignition switch.Driver's side
Passenger 's side
Side doors

11
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH Push the switch.
To lock: Push the switch on the front side.
To unlock: Push the switch on the rear side
Both doors lock or unlock simultaneously.
CAUTION!
Before driving, be sure that the
doors are closed and locked, espe-
cially when small children are in the
vehicle. A long with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also
helps prevent the doors from being
opened unintentionally.
The windows can be operated with the
switch on each door.
The power windows work when the igni- tion switch is in the ONº position. Howev-
er, if both doors are closed, they work for 60 seconds even after the ignition switch
is turned off. They stop working when ei-ther door is opened.
OPERATING THE DRIVER'S WINDOW
Use the switch on the driver's door.
Normal operation: The window moves
as long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.Automatic operation (to open only):
Push the switch completely down and
then rel ease it. The window will fully open.
To stop the window partway, lightly pull the
switch up and then release it.
Power windows

12
OPERATING THE PASSENGERS' WIN-
DOW
Use the switch on the passenger's
door or the switch on the driver's door
that controls the passenger's window.
The windows moves as long as you hold the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the WINDOWS LOCKº
button on the driver's door, the passen-
ger's windows cannot be operated.

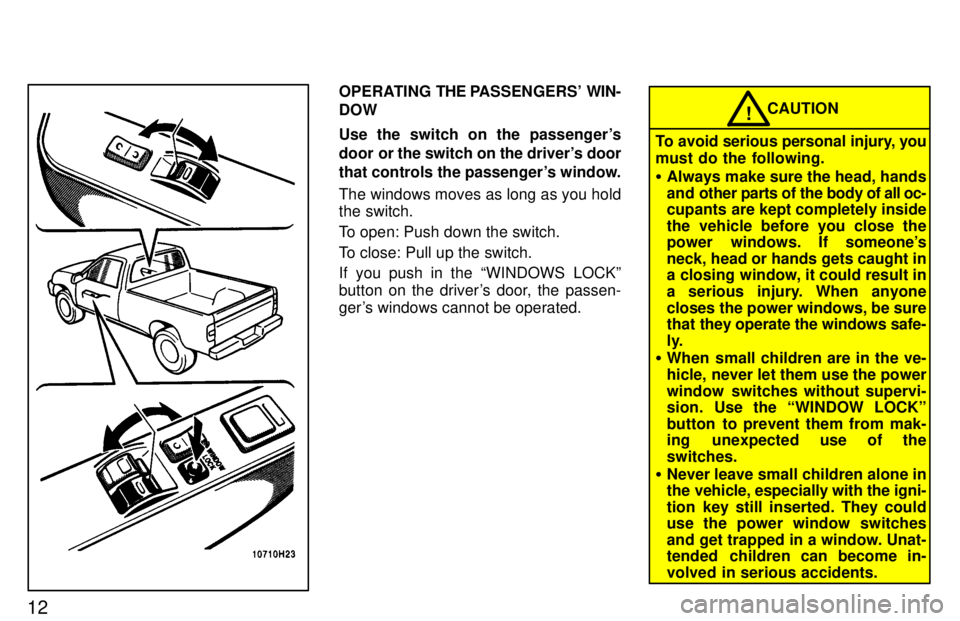

CAUTION!
To avoid serious personal injury, you
must do the following. Always make sure the head, hands
and other parts of the body of all oc-
cupants are kept completely inside
the vehicle before you close the
power windows. If someone's
neck, head or hands gets caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, be sure
that they operate the windows safe-
ly.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the WINDOW LOCKº
button to prevent them from mak-
ing unexpected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches
and get trapped in a window. Unat-
tended children can become in-
volved in serious accidents.

13
To open the quarter window, pull the
latch handle toward you and swing it
fully out.
When closing the window, make sure it is completely closed.To unlock the rear window, pull the left
end of the latch handle toward you and
disengage the right end from thecatch.
When closing the window, make sure it is completely closed.To open the tailgate, pull the handle up.
The support cables will hold the tailgate horizontal. See Luggage stowage precautionsº in
part 2 for precautions to observe in load- ing luggage.
After closing the tailgate, try pulling it to-
ward you to make sure it is securely locked.
Avoid driving with the tailgate open.
NOTICE
Tailgate
Quarter windows Xtra-cab models)
Rear window

14
To lower the tailgate fully, release the
support brackets from the lugs as shown.
Make sure the tailgate is securelycaught by the support brackets
before closing the tailgate.
NOTICE
To open the hood, do the following.
1. Pull the hood lock release lever. The hood will spring up slightly.
Before driving, be sure that the hood
is securely locked. Otherwise, the
hood may open unexpectedly while
driving and an accident may occur.
CAUTION!
2. In front of the vehicle, pull up on the auxiliary catch lever and lift the hood.
Hood

15
3. Hold the hood open by insertingthe support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its clip-
this prevents rattles. Then lower the hood
and make sure it locks into place. If neces-
sary, press down gently on front edge to lock it.
After inserting the support rod into
the slot, make sure the rod supports
the hood security.
CAUTION!
1. To open the fuel filler door, pull the
lever up.
CAUTION!
Do not smoke, cause sparks or al-
low open flames when refuelling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re- moved.
Do not fill a fuel container on a plas-
tic truck bed liner, a rubber truck
bed mat, or any other insulating
material. A static electricity charge
could cause a spark and fire haz-
ard. The proper procedure is to
place an approved fuel container
on the ground away from the truckfor filling.
Fuel tank cap

162. To remove the fuel tank cap, turn
the cap slowly counterclockwise,
then pause slightly before remov-
ing it. after removing the cap, hang
it on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When installing,
turn the cap clockwise till you hear a click.
If the cap is not tightened securely, the malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving several times. If the indicator lamp does
not go off, contact your Toyota dealer as soon as possible.
CAUTION!
Make sure the cap is tightened se-
curely to prevent fuel spillage in
case of an accident.
Use only a genuine Toyota fuel tankcap for replacement. It has a built incheck valve to reduce fuel tank vac- uum.
CAUTION!
To avoid serious personal injury, you
must do the following. While the vehicle is moving, always
keep the head, hands and other
parts of the body of all occupants away from the roof opening. Other-
wise, you could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an ac- cident.
Never sit on top of the vehicle
around the roof opening.
Never attempt to remove the moon
roof panel while driving. Other-
wise, the panel may become a haz-ard by falling into or flying off the vehicle.
After installing the moon roof pan-
el, make sure they are firmly se-
cured by pushing up on the under-
side of the panel.
Never put your hands between the
moon roof panel and the surround-
ing roof.
To tilt up the moon roof , first pull
down on the handle while pushing in
one of the lock buttons. Then push up
the moon roof until it locks. After tilting up the moon roof, make sure the handle is securely in place.
When closing the moon roof, slowly pull
down the handle while supporting the roof
with your hand. Close and lock the moon
roof by pushing the handle. Be sure to use
your palm to push the handle. After clos-
ing the moon roof, make sure it is securely locked. ÐTilting up and closing
Detachable moon roofÐ ÐMoon roof precautions
