3. RELATED PARTS
1) Install valve rocker assembly.

B2M0418B
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 5±1 (0.5±0.1, 3.6±0.7)
T2: 12±1 (1.2±0.1, 8.7±0.7)
2) Install timing belt, camshaft sprockets and related parts.

6. Cylinder Head
A: REMOVAL
1. INTAKE MANIFOLD
1) Release fuel pressure.
2) Drain engine coolant.
3) Remove intake manifold.
4) Remove engine coolant pipe.
38
2-3SERVICE PROCEDURE
5. Camshaft - 6. Cylinder Head

3. RELATED PARTS
1) Install valve rocker assembly.

B2M0418B
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 5±1 (0.5±0.1, 3.6±0.7)
T2: 12±1 (1.2±0.1, 8.7±0.7)
2) Install timing belt, camshaft sprockets and related parts.

6. Cylinder Head
A: REMOVAL
1. INTAKE MANIFOLD
1) Release fuel pressure.
2) Drain engine coolant.
3) Remove intake manifold.
4) Remove engine coolant pipe.
38
2-3SERVICE PROCEDURE
5. Camshaft - 6. Cylinder Head

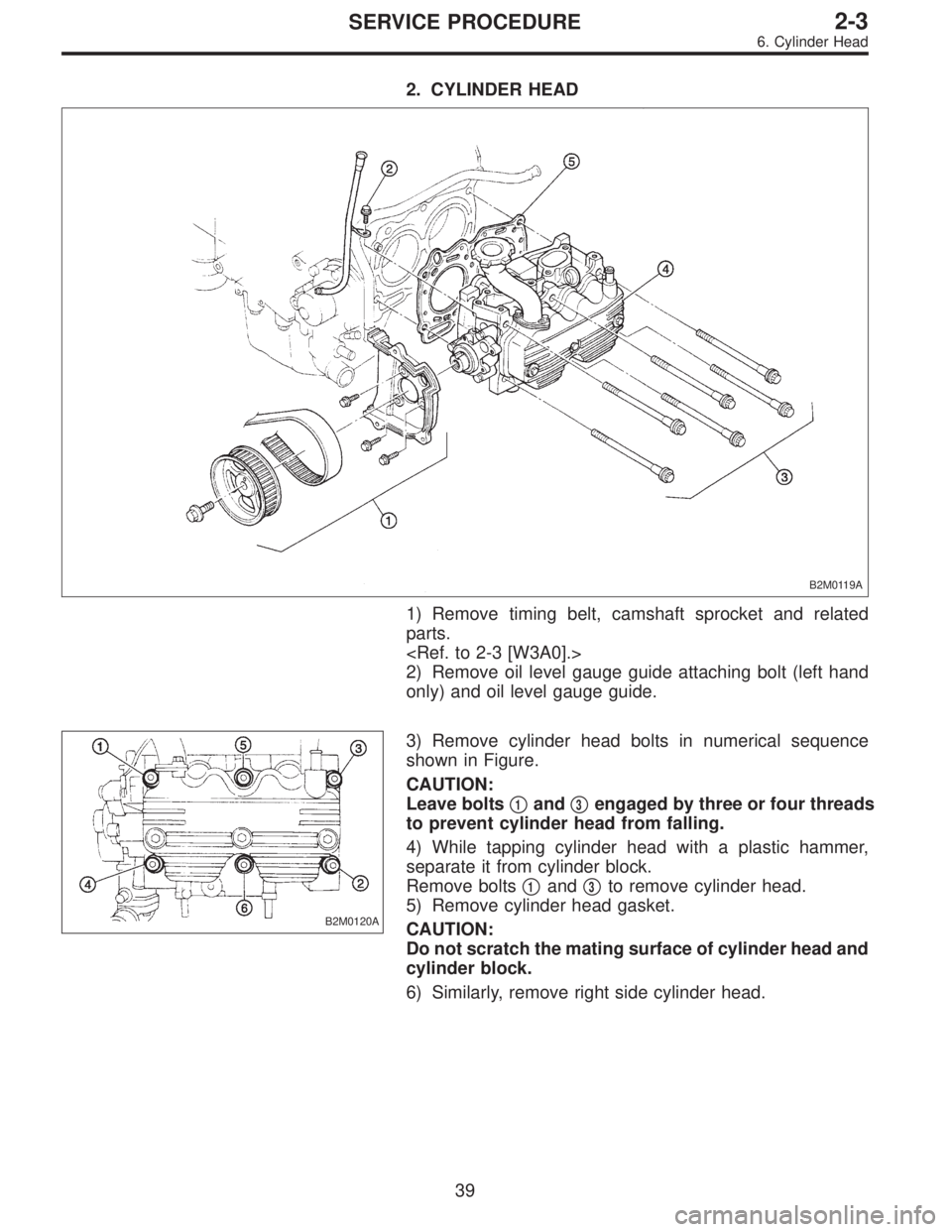

2. CYLINDER HEAD
B2M0119A
1) Remove timing belt, camshaft sprocket and related
parts.

2) Remove oil level gauge guide attaching bolt (left hand
only) and oil level gauge guide.
B2M0120A
3) Remove cylinder head bolts in numerical sequence
shown in Figure.
CAUTION:
Leave bolts

1and
3engaged by three or four threads
to prevent cylinder head from falling.
4) While tapping cylinder head with a plastic hammer,
separate it from cylinder block.
Remove bolts

1and
3to remove cylinder head.
5) Remove cylinder head gasket.
CAUTION:
Do not scratch the mating surface of cylinder head and
cylinder block.
6) Similarly, remove right side cylinder head.
39
2-3SERVICE PROCEDURE
6. Cylinder Head

(7) Further tighten all bolts by 80 to 90°in numerical
sequence.
CAUTION:
Ensure that the total“re-tightening angle”[steps (6)
and (7) above] do not exceed 180°.
3) Install oil level gauge guide attaching bolt (left side
only).
4) Install timing belt, camshaft sprocket and related parts.

2. INTAKE MANIFOLD
CAUTION:
Use dry compressed air to remove foreign particles
before installing each solenoid valve and sensor.
1) Install engine coolant pipe.
2) Install intake manifold.
3) Remove ENGINE STAND (ST).
49
2-3SERVICE PROCEDURE
6. Cylinder Head

7. Cylinder Block
A: REMOVAL
1. RELATED PARTS
1) Remove timing belt, camshaft sprocket and related
parts.

2) Remove intake manifold and cylinder head.

2. OIL PUMP AND ENGINE COOLANT PUMP
B2M0124A
50
2-3SERVICE PROCEDURE
7. Cylinder Block

B2M0390A
(2) Apply fluid packing to matching surface of oil pump.
Fluid packing:
THREE BOND 1215 or equivalent
(3) Install oil pump on cylinder block. Be careful not to
damage oil seal during installation.
CAUTION:
Do not forget to install O-ring and seal when install-
ing oil pump.
Align flat surface of oil pump’s inner rotor with
crankshaft before installation.
G2M0628
9) Install engine coolant pump and gasket.
CAUTION:
Be sure to use a new gasket.
When installing engine coolant pump, tighten bolts
in two stages in numerical sequence as shown in Fig-
ure.
10) Install engine coolant pipe.
11) Install oil filter.
2. RELATED PARTS
1) Install cylinder head and intake manifold.

2) Install timing belt, camshaft sprocket and related parts.

74
2-3SERVICE PROCEDURE
7. Cylinder Block

TROUBLE
Engine will not start.
Rough idle and engine stall
Low output, hesitation and poor acceleration
Surging
Engine does not return to idle.
Dieseling (Run-on)
After burning in exhaust system
Knocking
Excessive engine oil consumption
Excessive fuel consumption Starter does not turn.
Initial combustion does not occur.
Initial combustion occurs.
Engine stalls after initial combustion.
INTAKE SYSTEM
2111 3Loosened or cracked intake air pipe
3111 3 1Loosened or cracked blow-by hose
31211 2Loosened or cracked vacuum hose
22222Defective intake manifold gasket
22222Defective throttle body gasket
322 2 2Defective PCV valve
222 323Loosened oil filler cap
3312 1Dirty air cleaner element
FUEL LINE
13 322Defective fuel pump and relay
33322Clogged fuel line
222233Lack of or insufficient fuel
BELT
222Defective
222322 22 2Defective timing
FRICTION
3Seizure of crankshaft and connecting rod bearing
3Seized camshaft
3Seized or stuck piston and cylinder
COMPRESSION
333222 23 2Incorrect valve clearance
333223 3 3Loosened spark plugs or defective gasket
333223 3 3Loosened cylinder head bolts or defective gasket
333223 2 2Improper valve seating
333333 3 13Defective valve stem
222223 3 3Worn or broken valve spring
333233 3 12Worn or stuck piston rings, cylinder and piston
222111 12 2Incorrect valve timing
222222Improper engine oil (low viscosity)
76
2-3DIAGNOSTICS
1. Engine Trouble in General

2. Engine Noise
Type of sound Condition Possible cause
Regular clicking soundSound increases as engine
speed increases.Valve mechanism is defective.
Incorrect valve clearance
Worn valve rocker
Worn camshaft
Broken valve spring
Heavy and dull clankOil pressure is low.Worn crankshaft main bearing
Worn connecting rod bearing (big end)
Oil pressure is normal.Loose flywheel mounting bolts
Damaged engine mounting
High-pitched clank
(Spark knock)Sound is noticeable when
accelerating with an overload.Ignition timing advanced
Accumulation of carbon inside combustion chamber
Wrong spark plug
Improper gasoline
Clank when engine speed is
medium (1,000 to 2,000 rpm).Sound is reduced when fuel
injector connector of noisy
cylinder is disconnected.
(NOTE*)Worn crankshaft main bearing
Worn bearing at crankshaft end of connecting rod
Knocking sound when engine
is operating under idling speed
and engine is warm.Sound is reduced when fuel
injector connector of noisy
cylinder is disconnected.
(NOTE*)Worn cylinder liner and piston ring
Broken or stuck piston ring
Worn piston pin and hole at piston end of connecting rod
Sound is not reduced if each
fuel injector connector is
disconnected in turn. (NOTE*)Worn camshaft journal bore in crankcase
Squeaky sound—Insufficient generator lubrication
Rubbing sound—Defective generator brush and rotor contact
Gear scream when starting
engine—Defective ignition starter switch
Worn gear and starter pinion
Sound like polishing glass with
a dry cloth—Loose drive belt
Defective engine coolant pump shaft
Hissing sound—Loss of compression
Air leakage in air intake system, hoses, connections or
manifolds
Timing belt noise—Loose timing belt
Belt contacting case/adjacent part
Valve tappet noise—Incorrect valve clearance
NOTE*:
When disconnecting fuel injector connector, Malfunction Indicator Light (CHECK ENGINE light) illuminates and trouble code is stored in
ECM memory.
Therefore, carry out the CLEAR MEMORY MODE and INSPECTION MODE after connecting fuel injector connector. (Ref. to 2-7 On-Board
Diagnostics II System.)
78
2-3DIAGNOSTICS
2. Engine Noise
