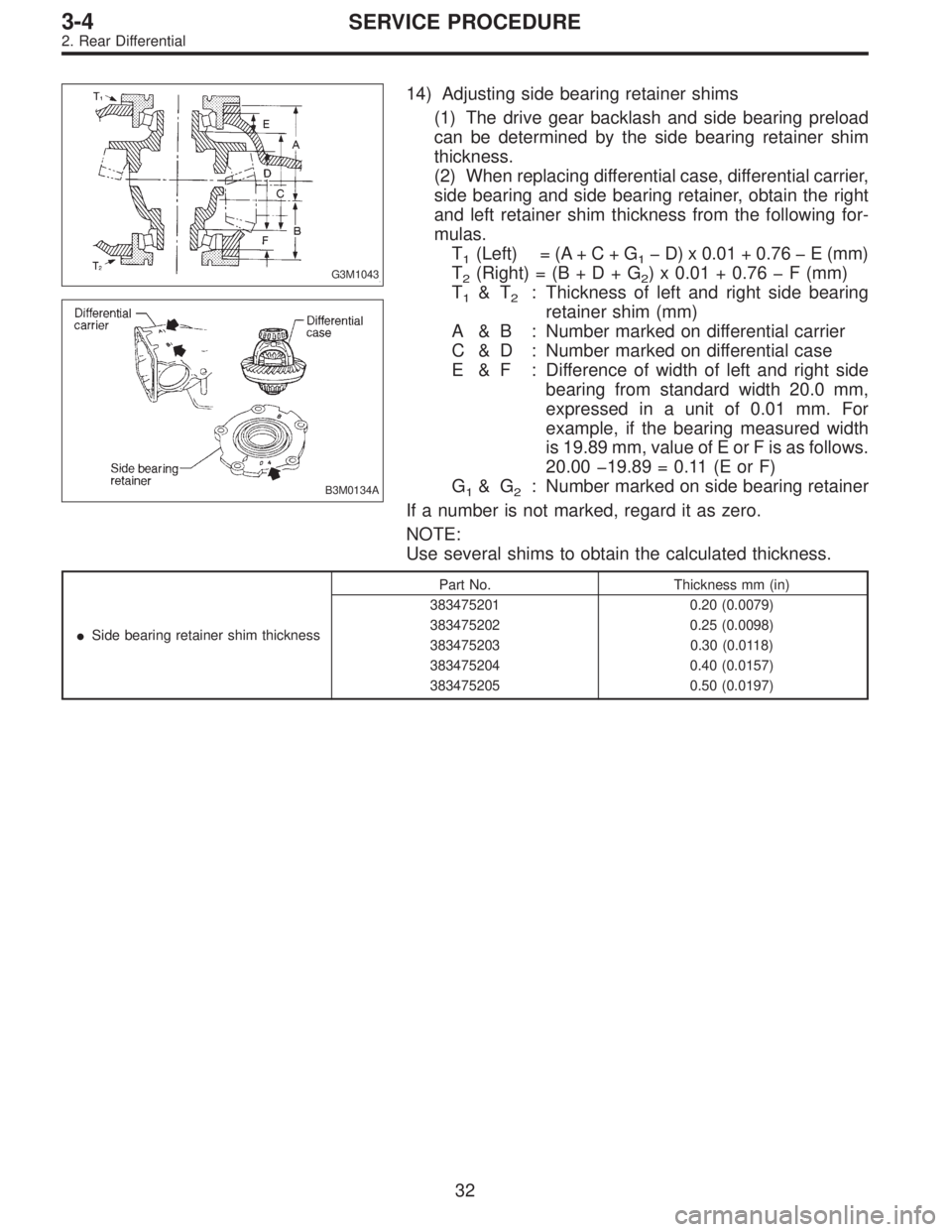

14) Adjusting side bearing retainer shims
(1) The drive gear backlash and side bearing preload
can be determined by the side bearing retainer shim
thickness.
(2) When replacing differential case, differential carrier,
side bearing and side bearing retainer, obtain the right
and left retainer shim thickness from the following for-
mulas.
T
1(Left) = (A + C + G1D) x 0.01 + 0.76E (mm)
T
2(Right) = (B+D+G2) x 0.01 + 0.76F (mm)
T
1&T2: Thickness of left and right side bearing
retainer shim (mm)
A & B : Number marked on differential carrier
C & D : Number marked on differential case
E & F : Difference of width of left and right side
bearing from standard width 20.0 mm,
expressed in a unit of 0.01 mm. For
example, if the bearing measured width
is 19.89 mm, value of E or F is as follows.
20.0019.89 = 0.11 (E or F)
G
1&G2: Number marked on side bearing retainer
If a number is not marked, regard it as zero.
NOTE:
Use several shims to obtain the calculated thickness.
Side bearing retainer shim thicknessPart No. Thickness mm (in)
383475201 0.20 (0.0079)
383475202 0.25 (0.0098)
383475203 0.30 (0.0118)
383475204 0.40 (0.0157)
383475205 0.50 (0.0197)
32
3-4SERVICE PROCEDURE
2. Rear Differential

G4M0792

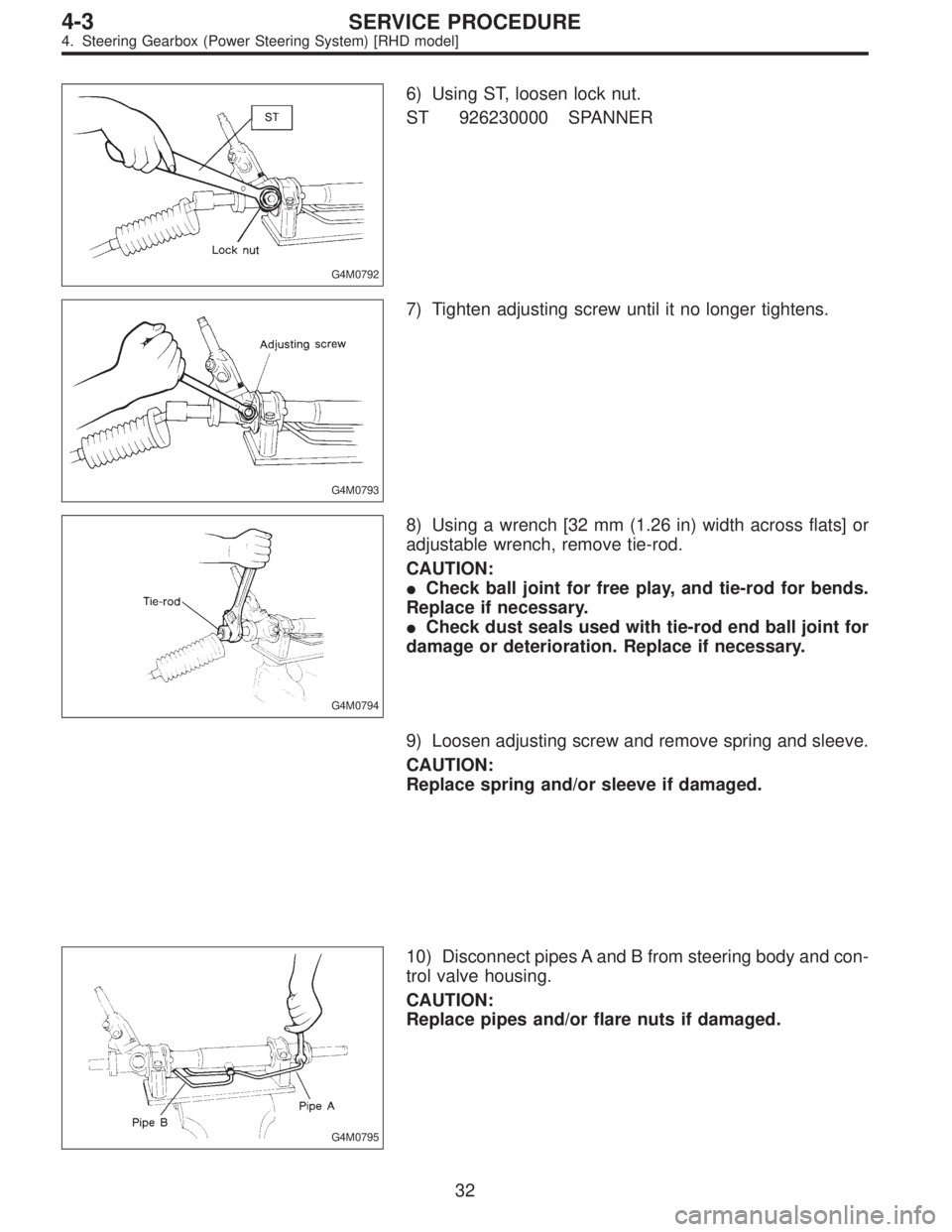

6) Using ST, loosen lock nut.
ST 926230000 SPANNER
G4M0793
7) Tighten adjusting screw until it no longer tightens.
G4M0794
8) Using a wrench [32 mm (1.26 in) width across flats] or
adjustable wrench, remove tie-rod.
CAUTION:

Check ball joint for free play, and tie-rod for bends.
Replace if necessary.

Check dust seals used with tie-rod end ball joint for
damage or deterioration. Replace if necessary.
9) Loosen adjusting screw and remove spring and sleeve.
CAUTION:
Replace spring and/or sleeve if damaged.
G4M0795
10) Disconnect pipes A and B from steering body and con-
trol valve housing.
CAUTION:
Replace pipes and/or flare nuts if damaged.
32
4-3SERVICE PROCEDURE
4. Steering Gearbox (Power Steering System) [RHD model]

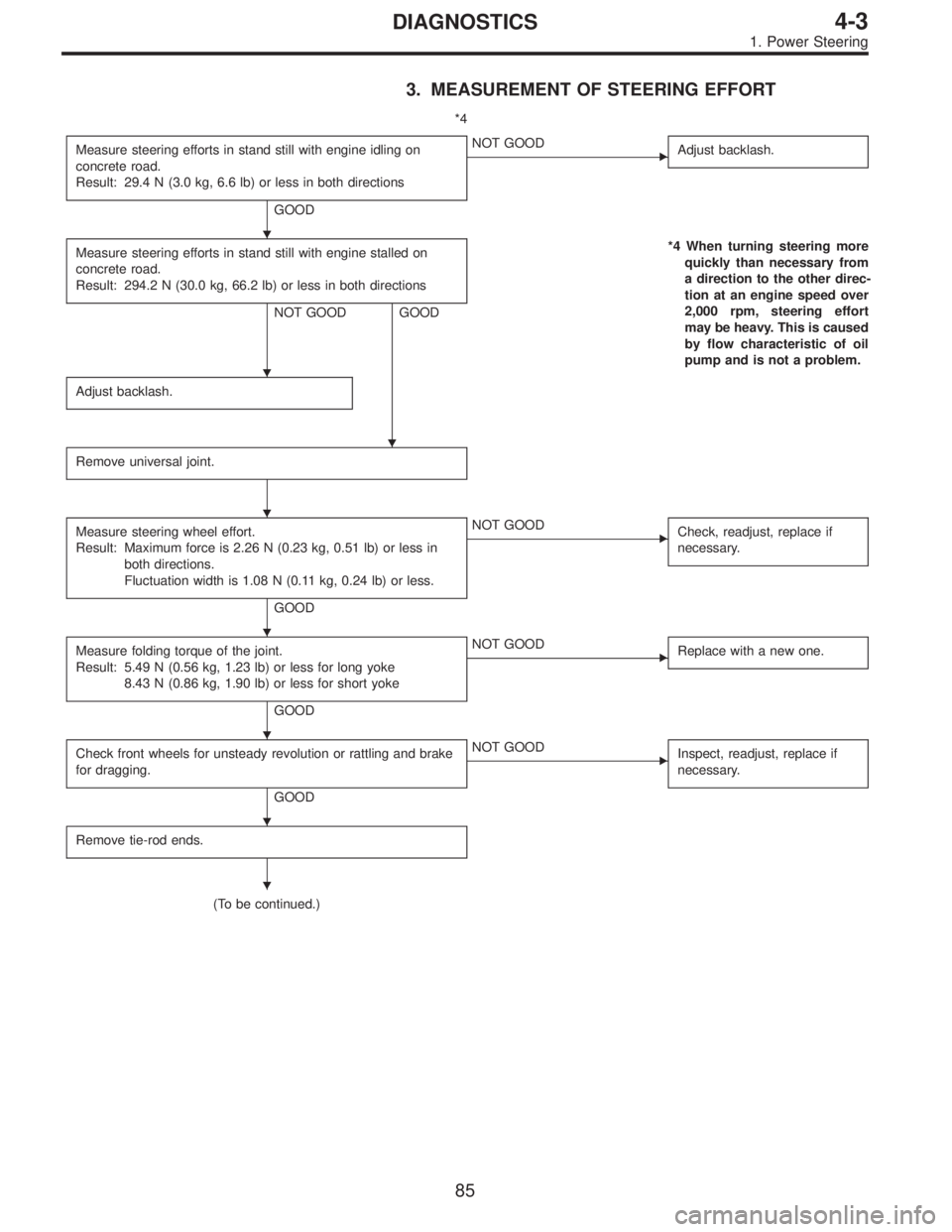

3. MEASUREMENT OF STEERING EFFORT
*4
Measure steering efforts in stand still with engine idling on
concrete road.
Result: 29.4 N (3.0 kg, 6.6 lb) or less in both directions
GOOD
NOT GOOD
Adjust backlash.
Measure steering efforts in stand still with engine stalled on
concrete road.
Result: 294.2 N (30.0 kg, 66.2 lb) or less in both directions
NOT GOOD GOOD*4 When turning steering more
quickly than necessary from
a direction to the other direc-
tion at an engine speed over
2,000 rpm, steering effort
may be heavy. This is caused
by flow characteristic of oil
pump and is not a problem.
Adjust backlash.
Remove universal joint.
Measure steering wheel effort.
Result: Maximum force is 2.26 N (0.23 kg, 0.51 lb) or less in
both directions.
Fluctuation width is 1.08 N (0.11 kg, 0.24 lb) or less.
GOOD
NOT GOOD
Check, readjust, replace if
necessary.
Measure folding torque of the joint.
Result: 5.49 N (0.56 kg, 1.23 lb) or less for long yoke
8.43 N (0.86 kg, 1.90 lb) or less for short yoke
GOOD
NOT GOOD
Replace with a new one.
Check front wheels for unsteady revolution or rattling and brake
for dragging.
GOOD
NOT GOOD
Inspect, readjust, replace if
necessary.
Remove tie-rod ends.
(To be continued.)








85
4-3DIAGNOSTICS
1. Power Steering

1. Brakes

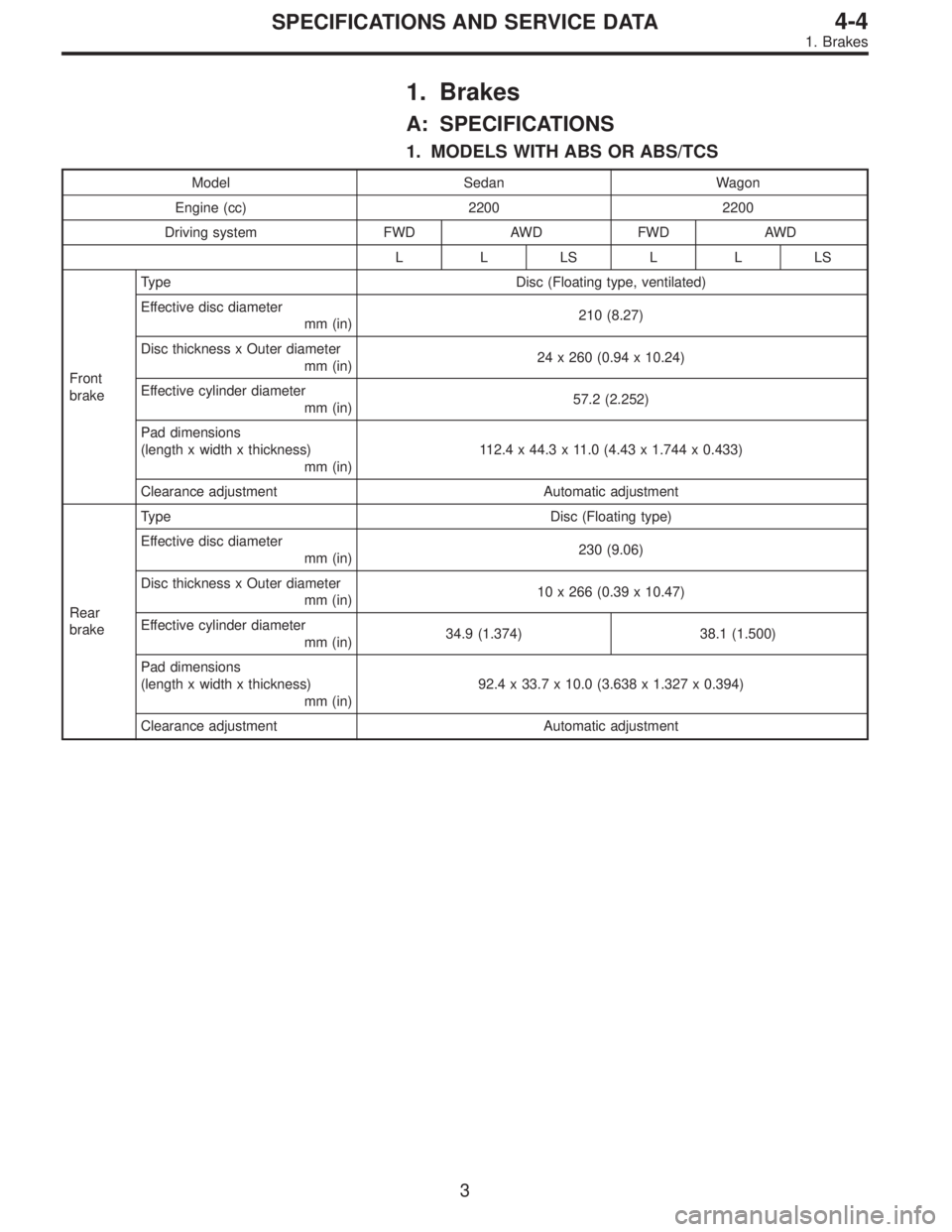

A: SPECIFICATIONS
1. MODELS WITH ABS OR ABS/TCS
Model Sedan Wagon
Engine (cc) 2200 2200
Driving system FWD AWD FWD AWD
LLLSLLLS
Front
brakeType Disc (Floating type, ventilated)
Effective disc diameter
mm (in)210 (8.27)
Disc thickness x Outer diameter
mm (in)24 x 260 (0.94 x 10.24)
Effective cylinder diameter
mm (in)57.2 (2.252)
Pad dimensions
(length x width x thickness)
mm (in)112.4 x 44.3 x 11.0 (4.43 x 1.744 x 0.433)
Clearance adjustment Automatic adjustment
Rear
brakeType Disc (Floating type)
Effective disc diameter
mm (in)230 (9.06)
Disc thickness x Outer diameter
mm (in)10 x 266 (0.39 x 10.47)
Effective cylinder diameter
mm (in)34.9 (1.374) 38.1 (1.500)
Pad dimensions
(length x width x thickness)
mm (in)92.4 x 33.7 x 10.0 (3.638 x 1.327 x 0.394)
Clearance adjustment Automatic adjustment
3
4-4SPECIFICATIONS AND SERVICE DATA
1. Brakes

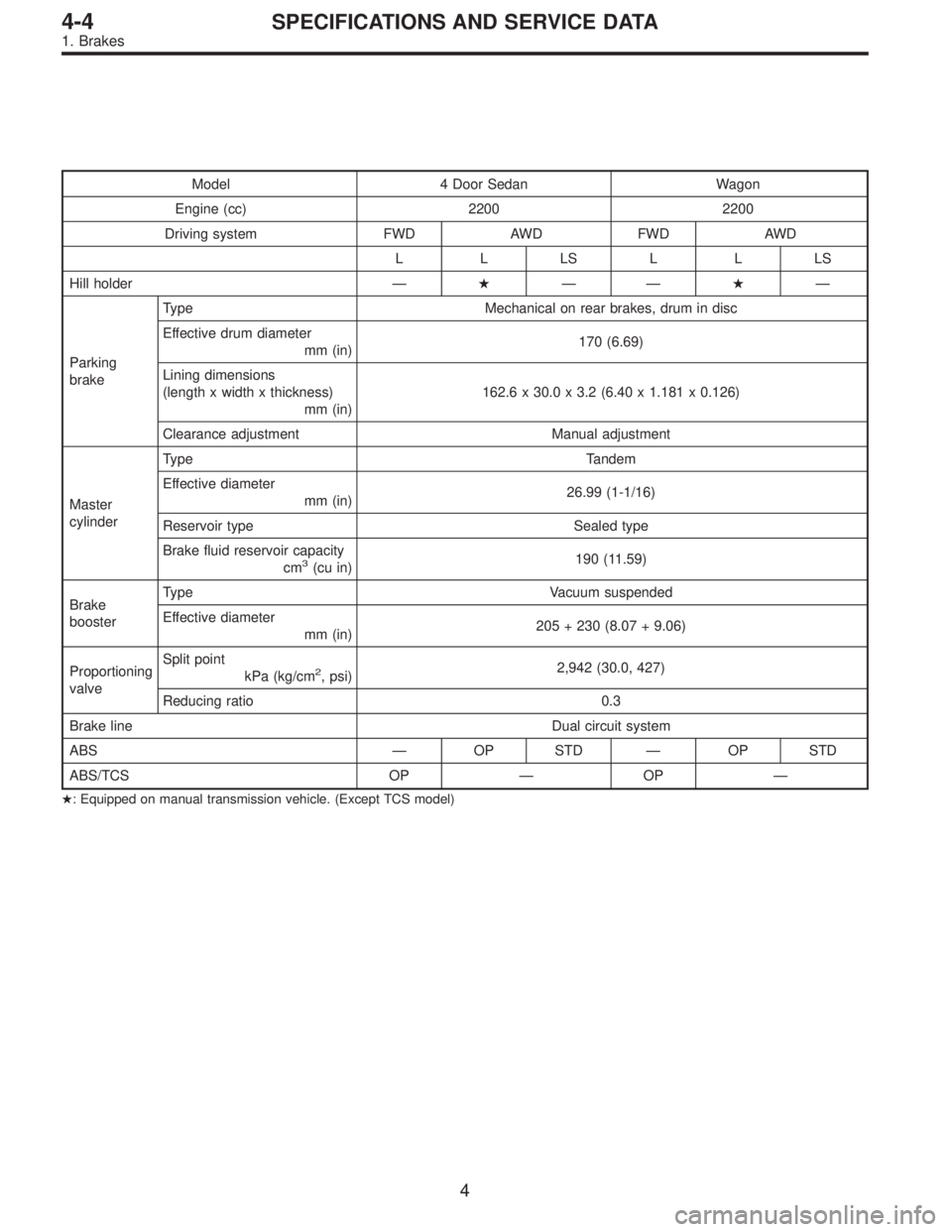

Model 4 Door Sedan Wagon
Engine (cc) 2200 2200
Driving system FWD AWD FWD AWD
LLLSLLLS
Hill holder—
——
—
Parking
brakeType Mechanical on rear brakes, drum in disc
Effective drum diameter
mm (in)170 (6.69)
Lining dimensions
(length x width x thickness)
mm (in)162.6 x 30.0 x 3.2 (6.40 x 1.181 x 0.126)
Clearance adjustment Manual adjustment
Master
cylinderType Tandem
Effective diameter
mm (in)26.99 (1-1/16)
Reservoir type Sealed type
Brake fluid reservoir capacity
cm
3(cu in)190 (11.59)
Brake
boosterType Vacuum suspended
Effective diameter
mm (in)205 + 230 (8.07 + 9.06)
Proportioning
valveSplit point
kPa (kg/cm
2, psi)2,942 (30.0, 427)
Reducing ratio 0.3
Brake line Dual circuit system
ABS—OP STD—OP STD
ABS/TCS OP—OP—

: Equipped on manual transmission vehicle. (Except TCS model)
4
4-4SPECIFICATIONS AND SERVICE DATA
1. Brakes

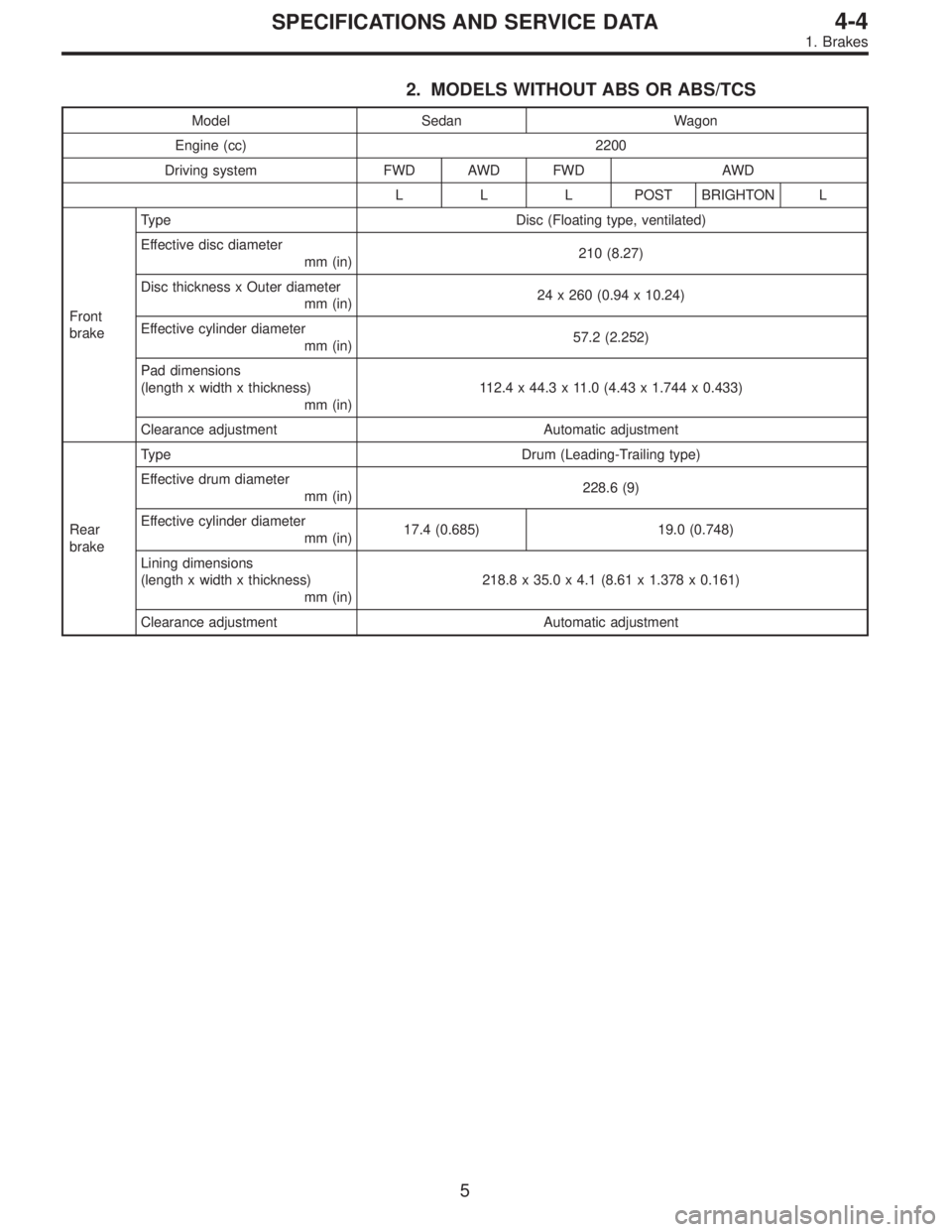

2. MODELS WITHOUT ABS OR ABS/TCS
Model Sedan Wagon
Engine (cc) 2200
Driving system FWD AWD FWD AWD
L L L POST BRIGHTON L
Front
brakeType Disc (Floating type, ventilated)
Effective disc diameter
mm (in)210 (8.27)
Disc thickness x Outer diameter
mm (in)24 x 260 (0.94 x 10.24)
Effective cylinder diameter
mm (in)57.2 (2.252)
Pad dimensions
(length x width x thickness)
mm (in)112.4 x 44.3 x 11.0 (4.43 x 1.744 x 0.433)
Clearance adjustment Automatic adjustment
Rear
brakeType Drum (Leading-Trailing type)
Effective drum diameter
mm (in)228.6 (9)
Effective cylinder diameter
mm (in)17.4 (0.685) 19.0 (0.748)
Lining dimensions
(length x width x thickness)
mm (in)218.8 x 35.0 x 4.1 (8.61 x 1.378 x 0.161)
Clearance adjustment Automatic adjustment
5
4-4SPECIFICATIONS AND SERVICE DATA
1. Brakes

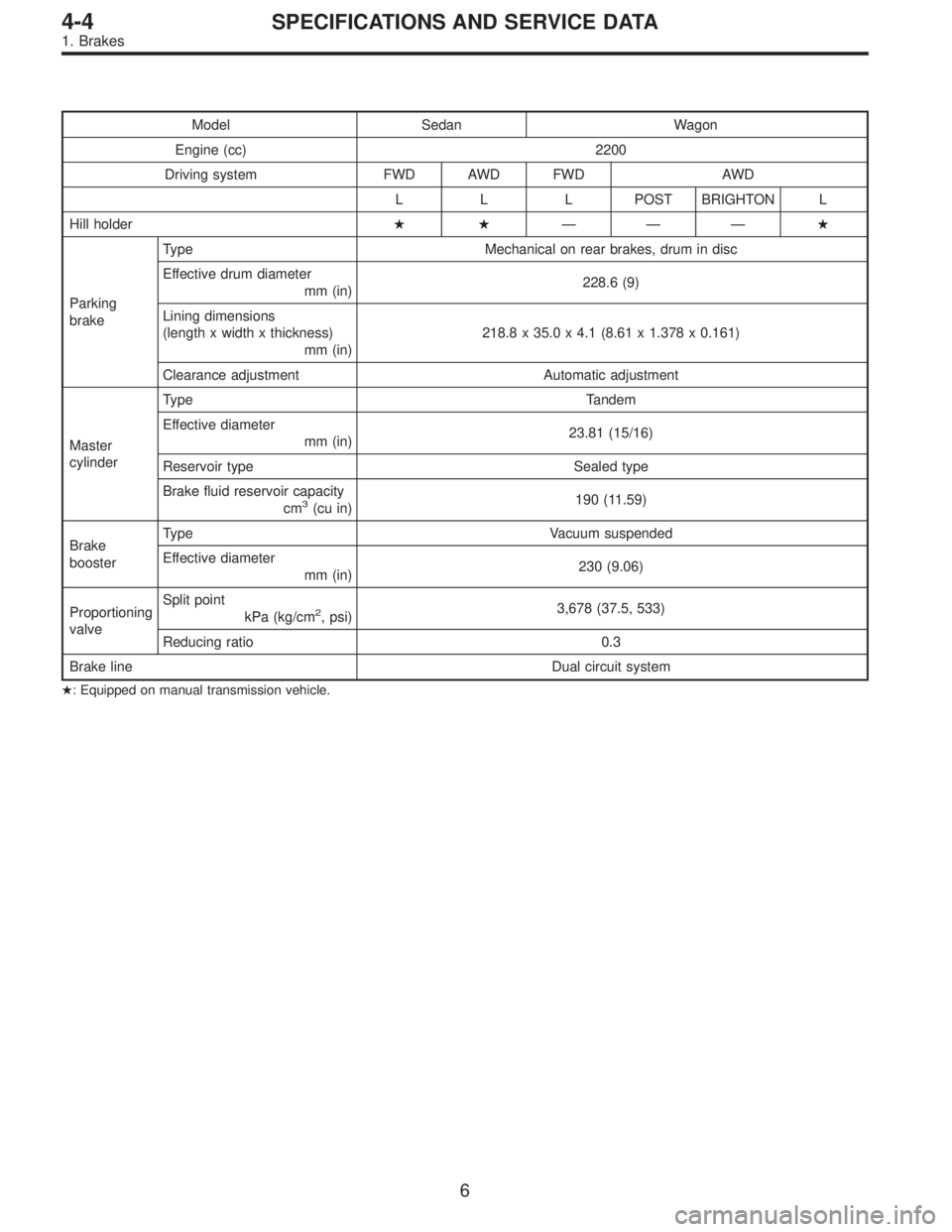

Model Sedan Wagon
Engine (cc) 2200
Driving system FWD AWD FWD AWD
L L L POST BRIGHTON L
Hill holder

———

Parking
brakeType Mechanical on rear brakes, drum in disc
Effective drum diameter
mm (in)228.6 (9)
Lining dimensions
(length x width x thickness)
mm (in)218.8 x 35.0 x 4.1 (8.61 x 1.378 x 0.161)
Clearance adjustment Automatic adjustment
Master
cylinderType Tandem
Effective diameter
mm (in)23.81 (15/16)
Reservoir type Sealed type
Brake fluid reservoir capacity
cm
3(cu in)190 (11.59)
Brake
boosterType Vacuum suspended
Effective diameter
mm (in)230 (9.06)
Proportioning
valveSplit point
kPa (kg/cm
2, psi)3,678 (37.5, 533)
Reducing ratio 0.3
Brake line Dual circuit system

: Equipped on manual transmission vehicle.
6
4-4SPECIFICATIONS AND SERVICE DATA
1. Brakes

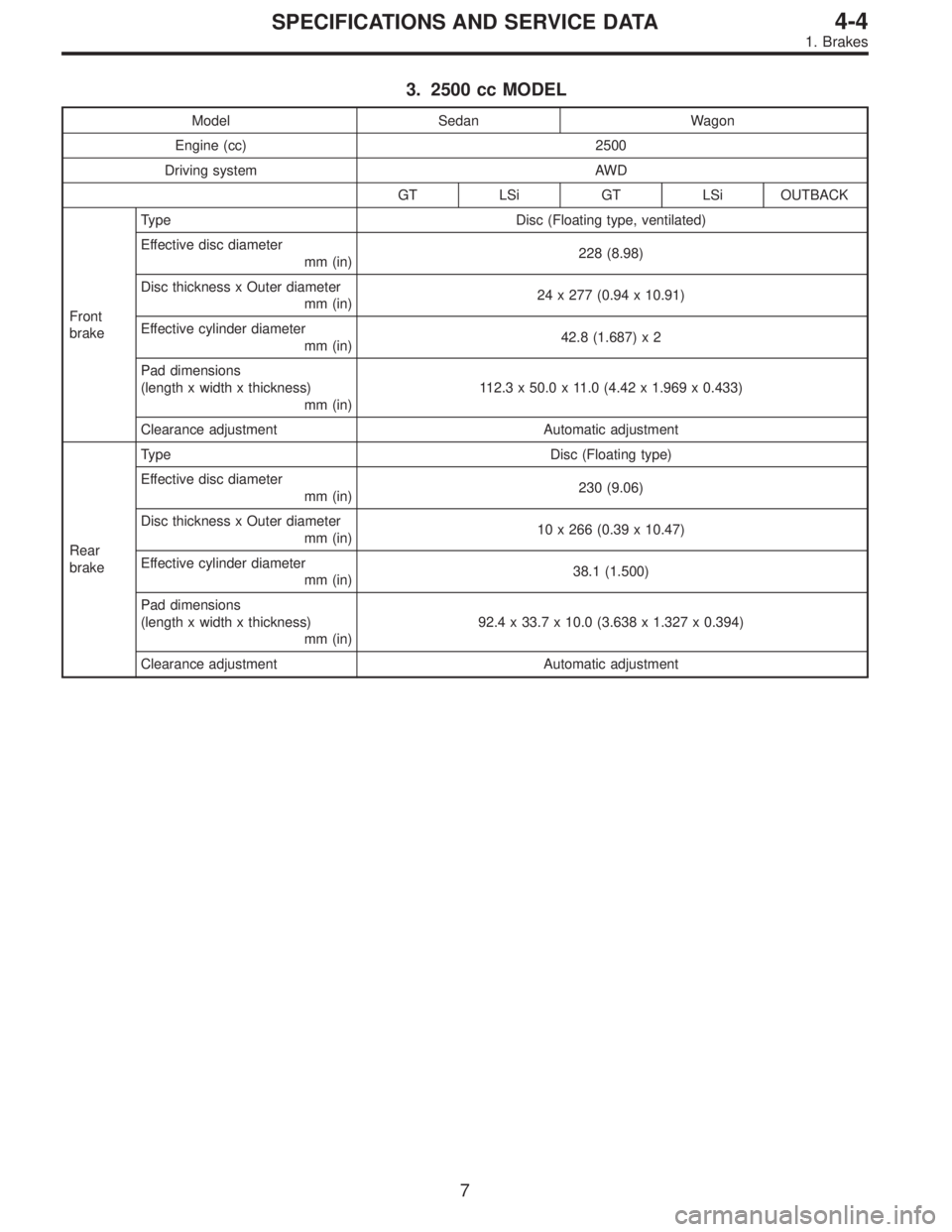

3. 2500 cc MODEL
Model Sedan Wagon
Engine (cc) 2500
Driving system AWD
GT LSi GT LSi OUTBACK
Front
brakeType Disc (Floating type, ventilated)
Effective disc diameter
mm (in)228 (8.98)
Disc thickness x Outer diameter
mm (in)24 x 277 (0.94 x 10.91)
Effective cylinder diameter
mm (in)42.8 (1.687) x 2
Pad dimensions
(length x width x thickness)
mm (in)112.3 x 50.0 x 11.0 (4.42 x 1.969 x 0.433)
Clearance adjustment Automatic adjustment
Rear
brakeType Disc (Floating type)
Effective disc diameter
mm (in)230 (9.06)
Disc thickness x Outer diameter
mm (in)10 x 266 (0.39 x 10.47)
Effective cylinder diameter
mm (in)38.1 (1.500)
Pad dimensions
(length x width x thickness)
mm (in)92.4 x 33.7 x 10.0 (3.638 x 1.327 x 0.394)
Clearance adjustment Automatic adjustment
7
4-4SPECIFICATIONS AND SERVICE DATA
1. Brakes
