Page 2009 of 3342
OBD0145A
10I1CONNECT SUBARU SELECT MONITOR
OR THE OBD-II GENERAL SCAN TOOL,
AND READ DATA.
1) Turn ignition switch to OFF.
2) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
3) Turn ignition switch to ON and Subaru Select Monitor or
OBD-II general scan tool switch to ON.
4) Start engine.
B2M0479
5) Read data on Subaru Select Monitor or OBD-II general
scan tool.
Subaru Select Monitor
Designate mode using function key.
Function mode: F04
F04: Water temperature is indicated in“°C”and“°F”.
: Is the value less than 40°Cor 40°Fin
function mode F04?
: Go to step10I3.
: Repair poor contact.
NOTE:
In this case, repair the following:
Poor contact in engine coolant temperature sensor
Poor contact in ECM
Poor contact in coupling connector (B21)
OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
OBD0618A
10I2CHECK HARNESS BETWEEN ENGINE
COOLANT TEMPERATURE SENSOR AND
ECM CONNECTOR.
1) Turn ignition switch to OFF.
2) Remove idle air control solenoid valve by-pass air hose.
3) Disconnect connector from engine coolant temperature
sensor.
OBD0696A
4) Measure voltage between engine coolant temperature
sensor connector and engine ground.
: Connector & terminal
(E8) No. 1 (+)—Engine ground ( ):
Is the voltage more than 10 V?
: Repair battery short circuit in harness between
ECM and engine coolant temperature sensor con-
nector.
: Go to next step 5).
158
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
Page 2010 of 3342
OBD0696A
5) Turn ignition switch to ON.
6) Measure voltage between engine coolant temperature
sensor connector and engine ground.
: Connector & terminal
(E8) No. 1 (+)—Engine ground ( ):
Is the voltage more than 10 V?
: Repair battery short circuit in harness between
ECM and engine coolant temperature sensor con-
nector.
: Go to step10I3.
OBD0696A
10I3CHECK HARNESS BETWEEN ENGINE
COOLANT TEMPERATURE SENSOR AND
ECM CONNECTOR.
1) Measure voltage between engine coolant temperature
sensor connector and engine ground.
: Connector & terminal
(E8) No. 1 (+)—Engine ground ( ):
Is the voltage more than 4 V?
: Go to next step 2).
: Repair harness and connector.
NOTE:
In this case, repair the following:
Open circuit in harness between ECM and engine cool-
ant temperature sensor connector
Poor contact in engine coolant temperature sensor con-
nector
Poor contact in ECM connector
Poor contact in coupling connector (B21)
OBD0697A
2) Turn ignition switch to OFF.
3) Measure resistance of harness between engine coolant
temperature sensor connector and engine ground.
: Connector & terminal
(E8) No. 2—Engine ground:
Is the resistance less than 5Ω?
: Replace engine coolant temperature sensor.
: Repair harness and connector.
NOTE:
In this case, repair the following:
Open circuit in harness between ECM and engine cool-
ant temperature sensor connector
Poor contact in engine coolant temperature sensor con-
nector
Poor contact in ECM connector
Poor contact in coupling connector (B21)
159
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
Page 2021 of 3342

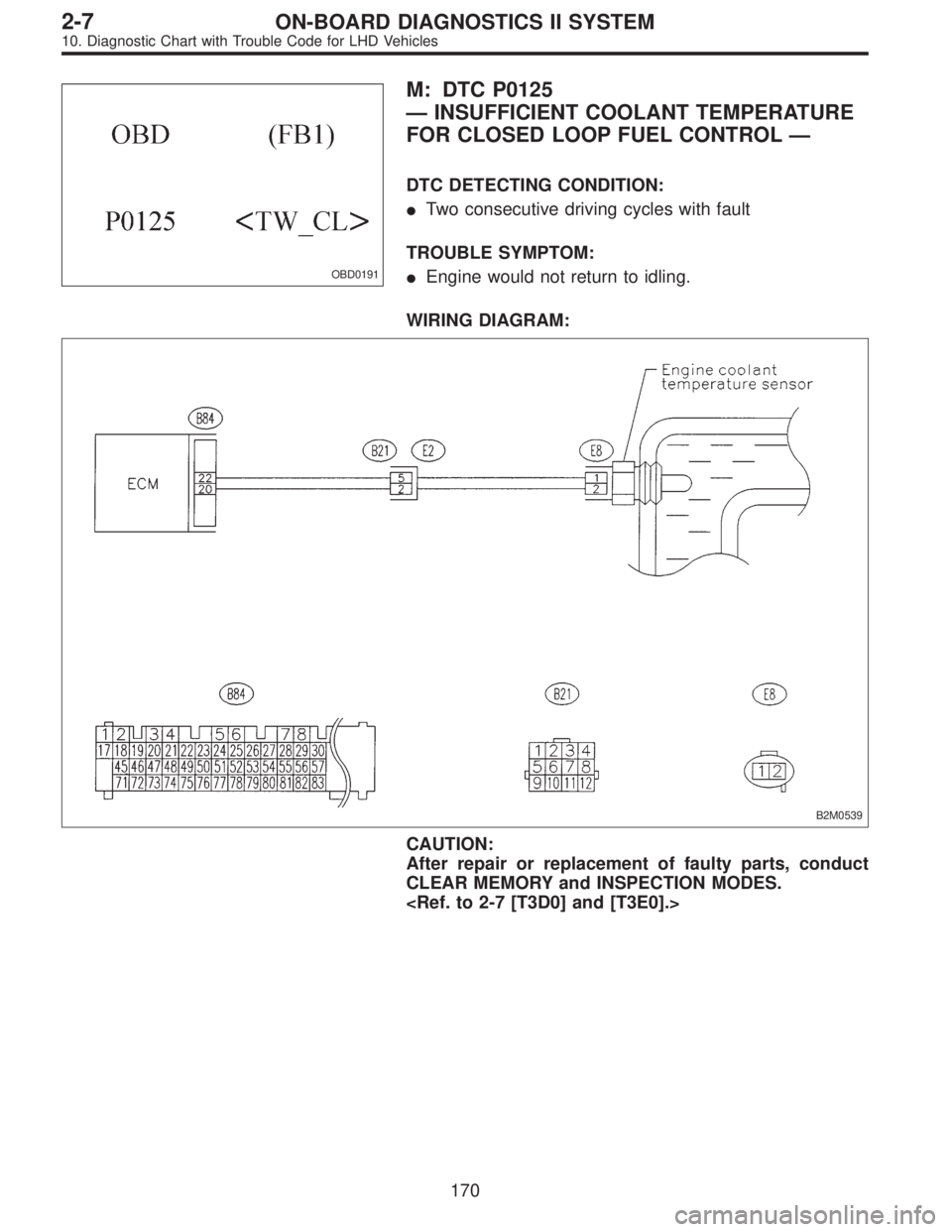

OBD0191
M: DTC P0125
—INSUFFICIENT COOLANT TEMPERATURE
FOR CLOSED LOOP FUEL CONTROL—
DTC DETECTING CONDITION:
Two consecutive driving cycles with fault
TROUBLE SYMPTOM:
Engine would not return to idling.
WIRING DIAGRAM:
B2M0539
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
170
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
Page 2022 of 3342
10M1CHECK DTC P0116 OR P0117 ON DIS-
PLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0116 or
P0117?
: Inspect DTC P0116 or P0117 using“10. Diagnos-
tics Chart with Trouble Code”.
[T10A0].>
NOTE:
In this case, it is not necessary to inspect DTC P0125.
: Replace engine coolant temperature sensor.
171
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
Page 2024 of 3342
10N1CHECK FOR OTHER CAUSES AFFECT-
ING EXHAUST GAS.
: Is CO % more than 2 % after engine warm-
up?
: Check fuel system.
NOTE:
Check for use of improper fuel.
Check if engine oil or coolant level is extremely low.
: Go to step10N2.
OBD0145A
10N2
CHECK FRONT OXYGEN SENSOR DATA.
1) Turn ignition switch to OFF.
2) Connect the Subaru Select Monitor or the OBD-II gen-
eral scan tool to data link connector.
3) Start engine and Turn the Subaru Select Monitor and
the OBD-II general scan tool switch to ON.
4) Warm-up the engine until coolant temperature is above
70°C (160°F) and keep the engine speed at 2,000 rpm to
3,000 rpm for one minute.
B2M0487
5) Read data on Subaru Select Monitor or the OBD-II gen-
eral scan tool.
Subaru Select Monitor
Designate mode using function key.
Function mode: F12
F12: Front oxygen sensor max. and min. output signals
are indicated at the same time.
: Is the difference of voltage less than 0.1 V
between the value of max. output and min.
output with function mode F12?
: Go to step10N3.
: Replace front oxygen sensor.
OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
173
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
Page 2033 of 3342
10Q1
CHECK DTC P0130 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0130?
: Go to step10Q2.
: Go to step10Q3.
10Q2
CHECK FAILURE CAUSE OF P0130.
Perform the step 1 of DTC P0130.
: Is the failure cause of P0130 in the fuel sys-
tem?
: Check fuel system.
NOTE:
In this case, it is not necessary to inspect DTC P0136.
: Go to step10Q3.
OBD0145A
10Q3
CHECK REAR OXYGEN SENSOR DATA.
1) Turn ignition switch to OFF.
2) Connect Subaru Select Monitor or OBD-II general scan
tool to data link connector.
3) Start the engine, and turn Subaru Select Monitor or
OBD-II general scan tool switch to ON.
4) Warm-up the engine until engine coolant temperature is
above 70°C (160°F), and keep the engine speed at 2,000
rpm to 3,000 rpm for two minutes.
B2M0488
5) Read data on Subaru Select Monitor or OBD-II general
scan tool.
Subaru Select Monitor
Designate mode using function key.
Function mode: F13
F13: Rear oxygen sensor output signal is indicated.
: Does the value fluctuate in function mode
F13?
: Go to step10Q5.
: Go to next.
182
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
Page 2043 of 3342
6) After connecting pressure regulator vacuum hose, mea-
sure fuel pressure.
: Is fuel pressure between 157 and 206 kPa
(1.6—2.1 kg/cm2,23—30 psi)?
: Go to step10T4.
: Repair the following items.
Fuel pressure too highFaulty pressure regulator
Clogged fuel return line or bent
hose
Fuel pressure too lowFaulty pressure regulator
Improper fuel pump discharge
Clogged fuel supply line
WARNING:
Before removing fuel pressure gauge, release fuel
pressure.
NOTE:
If fuel pressure does not increase, squeeze fuel return
hose 2 to 3 times, then measure fuel pressure again.
If out of specification as measured at this step, check or
replace pressure regulator and pressure regulator vacuum
hose.
OBD0145A
10T4CHECK ENGINE COOLANT TEMPERA-
TURE SENSOR.
DTC P0117 [T10I0].>
1) Turn ignition switch to OFF.
2) Connect the Subaru Select Monitor or the OBD-II gen-
eral scan tool to data link connector.
3) Start the engine and warm-up completely.
192
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
Page 2044 of 3342
B2M0479
4) Read data on Subaru Select Monitor or the OBD-II gen-
eral scan tool.
Subaru Select Monitor
Designate mode using function key.
Function mode: F04
F04: Water temperature is indicated in“°C”and“°F”.
: Is temperature greater than 60°Cor140°Fin
function mode F04?
: Go to step10T5.
: Replace engine coolant temperature sensor.
OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
OBD0145A
10T5
CHECK MASS AIR FLOW SENSOR.
1) Turn ignition switch to OFF.
2) Connect the Subaru Select Monitor or the OBD-II gen-
eral scan tool to data link connector.
3) Start the engine and warm-up engine until coolant tem-
perature is greater than 60°C (140°F).
4) Place the selector lever in“N”or“P”position.
5) Turn A/C switch to OFF.
6) Turn all accessory switches to OFF.
193
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
