1997 SSANGYONG KORANDO engine

M161 ENGINE ELECTRICAL 1E 2 -- 7
D AEW OO M Y_2000

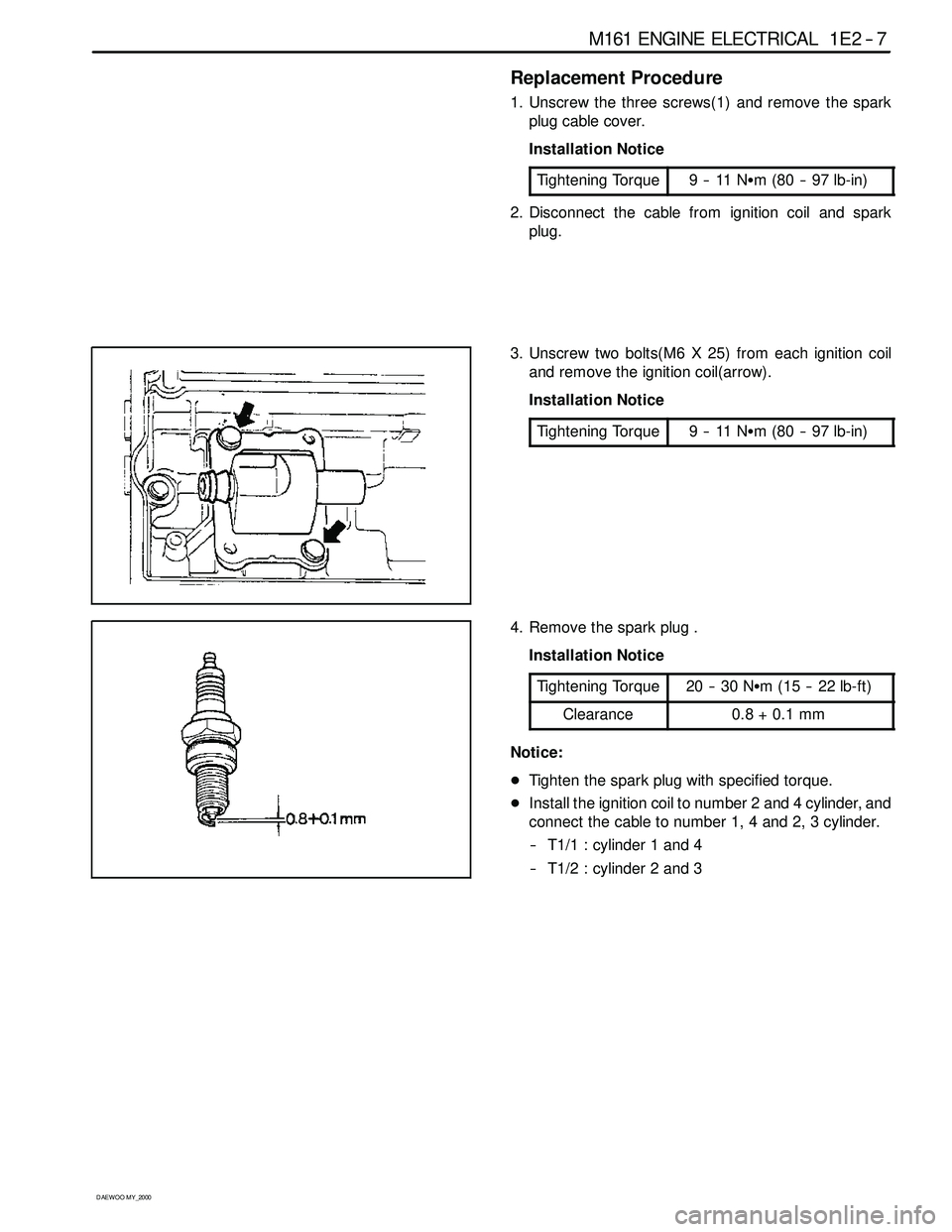

Replacement Procedure
1. Unscrew the three screws(1) and remove the spark
plug cable cover.
Installation Notice
Tightening Torque
9--11NSm (80 -- 97 lb-in)
2. Disconnect the cable from ignition coil and spark
plug.
3. Unscrew two bolts(M6 X 25) from each ignition coil
and remove the ignition coil(arrow).
Installation Notice
Tightening Torque
9--11NSm (80 -- 97 lb-in)
4. Remove the spark plug .
Installation Notice
Tightening Torque
20 -- 30 NSm (15 -- 22 lb-ft)
Clearance0.8+0.1mm
Notice:
DTighten the spark plug with specified torque.
DInstall the ignition coil to number 2 and 4 cylinder, and
connect the cable to number 1, 4 and 2, 3 cylinder.
-- T1/1 : cylinder 1 and 4
-- T1/2 : cylinder 2 and 3

1E 2 -- 8 M161 ENGINE ELECTRICAL
D AEW OO M Y_2000
IGNITION CABLE
Preceding Work: Removal of intake air duct
1 Control Cable Connection
2 Ignition Cable
3 Spark Plug Connector
4 Coupling Plug5a, 5b Secondary Voltage Connection
EIronCore
L1 Secondary Ignition Coil
L2 Primary Ignition Coil

M161 ENGINE ELECTRICAL 1E 2 -- 9
D AEW OO M Y_2000
Removal & Installation Procedure
1. Disconnect the battery negative cable.
2. Unscrew the 3 screws and remove the ignition cable
duct cover.
Installation Notice
Tightening Torque
9--11NSm (80 -- 97 lb-in)
3. Seperate the cable from the ignition cable and the
spark plug.
4. Remove the 2 bolts from each ignition cable and re-
move the ignition cables.
Installation Notice
Tightening Torque
9--11NSm (80 -- 97 lb-in)
Install the ignition cable to the cylinder 2 and 4 and
connect the cable from 1 to 4, and from 2 to 3.
-- T1/1 : Cylinder 1 and 4
-- T1/2 : Cylinder 2 and 3
5. Installation should follow the removal procedure in
the reverse order.
Ignition Cable and Cable Lay- out
1. Firing Order : 1 -- 3 -- 4 -- 2
2. T1/1 : Connect the cylinder 1 + 4
3. T1/2 : Connect the cylinder 2 + 3
Inspection & Maintenance (for E2.3 MSE)
1. Measure the primary resistance between the cable
terminals 1 and 15 after removing the ignition cable
wiring connector (1 and 15) with ignition switch OFF.
Notice:Replace the ignition coil if out of the specified
resistance.
Specified Value
0.9 -- 1.6Ω
2. Measure the primary voltage(T1/1) between the ECU
terminals No.72 and No.69 during the engine crank-
ing (starter motor activated).
Specified Value
200 -- 350 v

1E 2 -- 10 M161 ENGINE ELECTRICAL
D AEW OO M Y_2000
DT1/2 : between No.71 and No.69
Notice:Check the ignition cable and the ECU if out of
the specified value.
3. Measure the secondary cable resistance between the
ignition coil 5a and 5b using a multimeter.
Specified Value
6--8.5kΩ

M161 ENGINE ELECTRICAL 1E 2 -- 11
D AEW OO M Y_2000
UNIT REPAIR
BATTERY
Inspection
Notice
DWhen charging the battery, do not leave the inflam-
mable objects around it.
DWhen checking the electrolyte of battery, put on an
eye protector and gloves.
1. Inspect the surface of the battery and replace if any
defects were found on it.
2. Check if the specific gravity of the electrolyte is within
the specified value.
Battery capacity(Ah)
90
Battery specific gravity≥1.24
Max. tolerance between cells≥0.04
Notice
DReplace the battery if the maximum tolerance of the
electrolyte between cells is out of the specified value.
DMeasure the specific gravity in the approx. 20°Cof
ambient temperature
3. Replenish the electrolyte if necessary.

D AEW OO M Y_2000
SECTION 1F2
ENGINE CONTROLS
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless other -
wise noted.
TABLE OF CONTENTS
Engine and ECM Problem Check Report 1F2 -- 2....
Specifications 1F2 -- 3............................
Engine Data Display Table 1F2 -- 3.................
Fastener Tightening Specifications 1F2 -- 4..........
Fuel System Specification 1F2 -- 5.................
Temperature vs Resistance 1F2 -- 5................
Special Tools and Equipment 1F2 -- 6..............
Special Tools Table 1F2 -- 6.......................
Schematic and Routing Diagrams 1F2 -- 7..........
ECM Wiring Diagram
(2.3L DOHC -- MSE 3.53S) 1F2 -- 7..............
Diagnosis 1F2 -- 14................................
Failure Code Diagnosis 1F2 -- 14.....................
Clearing Failure Codes 1F2 -- 14...................
Failure Codes Table 1F2 -- 14.....................
Ignition System 1F2 -- 18...........................
Ignition Coil 1F2 -- 20.............................
Crankshaft Position (CKP) Sensor 1F2 -- 22.........
Camshaft Position (CMP) Sensor 1F2 -- 26..........
Camshaft Actuator 1F2 -- 30......................
Knock Sensor (KS) 1F2 -- 32......................
Spark Plug 1F2 -- 34.............................
System Voltage 1F2 -- 38.........................
Ignition Switch 1F2 -- 39..........................
Fuel System 1F2 -- 40..............................
Fuel Pump 1F2 -- 42.............................
Fuel Injector 1F2 -- 46............................
Purge Control Valve 1F2 -- 50.....................
Fuel Rail 1F2 -- 52...............................
Fuel Pressure Regulator 1F2 -- 54.................
Induction System 1F2 -- 56..........................
Throttle Valve Actuator 1F2 -- 56...................
Hot Film Air Mass (HFM) Sensor 1F2 -- 60..........
Engine Coolant Temperature (ECT) Sensor 1F2 -- 64.
Accelerator Pedal Module 1F2 -- 68................Cooling Fan 1F2 -- 72............................
A/C Compressor Relay 1F2 -- 73...................
Cruise Control Switch 1F2 -- 74....................
Traction Control System (TCS) 1F2 -- 75............
Stop Lamp Switch 1F2 -- 76.......................
Engine RPM 1F2 -- 77............................
Exhaust System 1F2 -- 78...........................
Catalytic Converter 1F2 -- 78......................
Oxygen Sensor 1F2 -- 80.........................
Engine Control Module 1F2 -- 86.....................
Serial Data Communication 1F2--88...............
Internal Failure 1F2 -- 90..........................
Electronic Throttle Controller Safety
Malfunction 1F2 -- 92...........................
Immobilizer 1F2 -- 94.............................
Maintenance and Repair 1F2 -- 95..................
On -- Vehicle Service 1F2 -- 95........................
Discharging the Pressure in Fuel System 1F2 -- 95...
Fuel Pump 1F2 -- 95.............................
Fuel Filter 1F2 -- 96..............................
Fuel Tank 1F2 -- 97..............................
Fuel Pressure Regulator 1F2 -- 98.................
Fuel Rail and Injector 1F2 -- 99....................
Engine Coolant Temperature Sensor 1F2 -- 100......
Throttle Body (Integrated with the
Actuator) 1F2 -- 101............................
Hot Film Air Mass (HFM) Sensor 1F2 -- 102.........
Knock Sensor 1F2 -- 102..........................
Pedal Position Sensor 1F2 -- 103...................
Oxygen Sensor 1F2 -- 103........................
Purge Control Valve 1F2 -- 104....................
Canister 1F2 -- 104...............................
Camshaft Position Sensor 1F2 -- 104...............
Crankshaft Position Sensor 1F2 -- 105..............
Engine Control Module 1F2 -- 105..................

1F2 -- 2 M161 ENGINE CONTROLS
D AEW OO M Y_2000
ENGINE AND ECM PROBLEM CHECK REPORT
VEHICLE AND CUSTOMER INFORMATION
Date problem Occurred
Customer NameVehicle Model
Driver NameVIN
Purchase dateEngine Model
License No.MileageKm
miles
MIL INFORMATION
Condition of MILjRemains onjSometimes illuminatesjDoes not illuminate
DTC inspection
(if available)jNormaljMalfunction code(s) (code )
jFreezed frame data ( )
PROBLEM DESCRIPTION
jEngine Does Not StartjNo crankingjNo initial combustionjNo complete combustion
jHard to StartjSlow cranking
jOthers
jPoor IdlingjIncorrect first IdlejAbnormal idle rpmjHigh (rpm)jLow (rpm)
jIdling UnstablejOthers
jPoor DriveabilityjHesitationjBack firejMuffler explosion (after-burning)
jSurgingjKnockingjPoor performancejOther
jEngine StalljSoon after startingjAfter accelerator pedal depressed
jAfter accelerator pedal releasedjDuring A/C operation
jShifting from N to D or D to N
jAt full steeringjOthers
jOthers
CONDITION WHEN PROBLEM OCCURS
Problem FrequencyjConstantjIntermittent (times per day/month)jOnce onlyjOthers
WeatherjFinejCloudyjRainyjSnowyjVarious/Others
Ambient TemperaturejHotjWar mjCooljCold (approx.____°F/____°C)
PlacejHighwayjSuburbsjInner CityjUphilljDownhill
jRough RoadjOthers
Engine TemperaturejColdjWarming UpjBefore warming upjAfter warm-up
jAny temp.jOthers
Engine OperationjStartingjJust after starting (min.)jIdlingjRacingjDriving
jConstant speedjAccelerationjDeceleration
jA/C switch ON/OFFjOther

M161 ENGINE CONTROLS 1F2 -- 3
D AEW OO M Y_2000
SPECIFICATIONS
ENGINE DATA DISPLAY TABLE
ParameterUnitVa l u e
Engine Coolant Temp.°Cgreater than 95_Cafterwarmup
Intake Air Temp.°C-- 40 ~ 130_C (varies with ambient
temp. or engine mode)
Engine RPMrpm700±50 (P/N), 600±50 (D)
Regular RPMrpm700±50 (P/N), 600±50 (D)
Engine Load%18 ~ 25 %
Mass Air Flow MeterKg/h16 ~ 25 Kg/h
Throttle Position Angle_TA0_TA(upto100_TA at the wide
open throttle)
Spark Advance_CA8_CA (6 ~ 9_CA)
Indicated Engine TorqueNmVaries with engine condition
Injection Timems3~5ms
Battery VoltageV13.5 ~ 14.1 v (engine running)
Front Axle SpeedKm/h0~265Km/h
Rear Axle SpeedKm/h0~265Km/h
Accel. Pedal Position 1V0.4~4.8V
Accel. Pedal Position 2V0.2~2.4V
Throttle Position 1V0.3~4.6V
Throttle Position 2V0.3~4.6V
Fuel Integrator0.8 ~ 1.2
Oxygen Sensormv100 ~ 900 mv
A/C S/W Condition1=ON/0=OFF--
Full Load State1=ON/0=OFF--
Shift Gear State (A/T)1=ON/0=OFF--
A/CControlState1=ON/0=OFF--
Clutch Switch (M/T)1=ON/0=OFF--
Cam Actuator State1=ON/0=OFF--
Knocking Control1=ON/0=OFF--
Protect Mission1=ON/0=OFF--
Purge Control Valve1=ON/0=OFF--
Lambda Function1=ON/0=OFF--
Catalyst Heating1=ON/0=OFF--
Overrun Fuel Cut1=ON/0=OFF--
Full Fuel Cut1=ON/0=OFF--
Brake Switch1=ON/0=OFF--
Cruise Control Status1=ON/0=OFF--
* Condition : Warmed up, idle, P/N or neutral
