Page 306 of 2053
M161 ENGINE MECHANICAL 1B2 -- 13
D AEW OO M Y_2000
27. Remove the exhaust manifold and exhaust pipe.
Installation Notice
Tightening Torque
30 NSm (22 lb-ft)
28. Remove the transmission. Refer toSection 5A, Au -
tomatic Transmission.
29. Install a chain to the bracket of engine, by using a
hoist or crane.
30. Remove the engine mount nuts.
Installation Notice
Tightening Torque
70 NSm (52 lb-ft)
31. Carefully separate the engine assembly from the ve-
hicle.
32. Installation should follow the removal procedure in
the reverse order.
Page 318 of 2053
M161 ENGINE MECHANICAL 1B2 -- 25
D AEW OO M Y_2000
7. Rib detached from the base of belt.
8. Splits across the rib.
9. Sections of rib torn out.
10. Splits across several ribs.
11. Splits across the back of the belt.
Page 346 of 2053
M161 ENGINE MECHANICAL 1B2 -- 53
D AEW OO M Y_2000
Sectional View
1OilPan
2 Cover
3 Radial Seal
4Bolt
5 Crankshaft
6 Dowel Pin
7 Washer (Thickness : 3.5 mm)8Washer
9Bolt
10 Front Drive Plate
11 Rear Drive Plate
12 Rivet
13 Segment
14 Ring Gear
Page 364 of 2053
M161 ENGINE MECHANICAL 1B2 -- 71
D AEW OO M Y_2000
Sectional View
1 Screw Plug
2 Ball (Nonreturn Valve)
3 Compression Spring
4 Ball Guide
5 Seal (Aluminum)
6 Filler Pin
7 Compression Spring
8 Snap Ring
9 Thrust Pin
10 Ball (Nonreturn Valve)
11 Compression Spring
12 Thrust Piece13 Chain Tensioner Housing
14 Seal
15 Timing Gear Case Cover
16 Cylinder Head
17 Bolt / Washer
18 Tensioning Rail
19 Cylinder Head Gasket
20 Timing Chain
21 Tensioning Rail Base (Sliding Surface)
A Oil Supply Hole
B Chain Tensioner Oil Storage Hole
Page 396 of 2053

D AEW OO M Y_2000
SECTION 1D2
M161 ENGINE COOLING
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless other -
wise noted.
TABLE OF CONTENTS
Specifications 1D2 -- 2............................
General Specifications 1D2-- 2....................
Fastener Tightening Specifications 1D2 -- 2..........
Special Tools 1D2 -- 3.............................
Special Tools Table 1D2-- 3.......................
Diagnosis 1D2 -- 4.................................
System Leakage Test 1D2-- 4.....................
Maintenance and Repair 1D2 -- 5...................
On-- Vehicle Service 1D2-- 5.........................Coolant Drain and Fill Up 1D2 -- 5..................
Cooling Fan and Viscous Clutch 1D2 -- 7............
Wat er Pum p 1D2 -- 9.............................
Thermostat 1D2 -- 11.............................
Thermostat Housing Assembly 1D2 -- 12............
Removal and Installation of Cooling
Fan Shroud 1D2 -- 14...........................
Removal and Installation of Radiator 1D2-- 15.......
Page 412 of 2053

D AEW OO M Y_2000

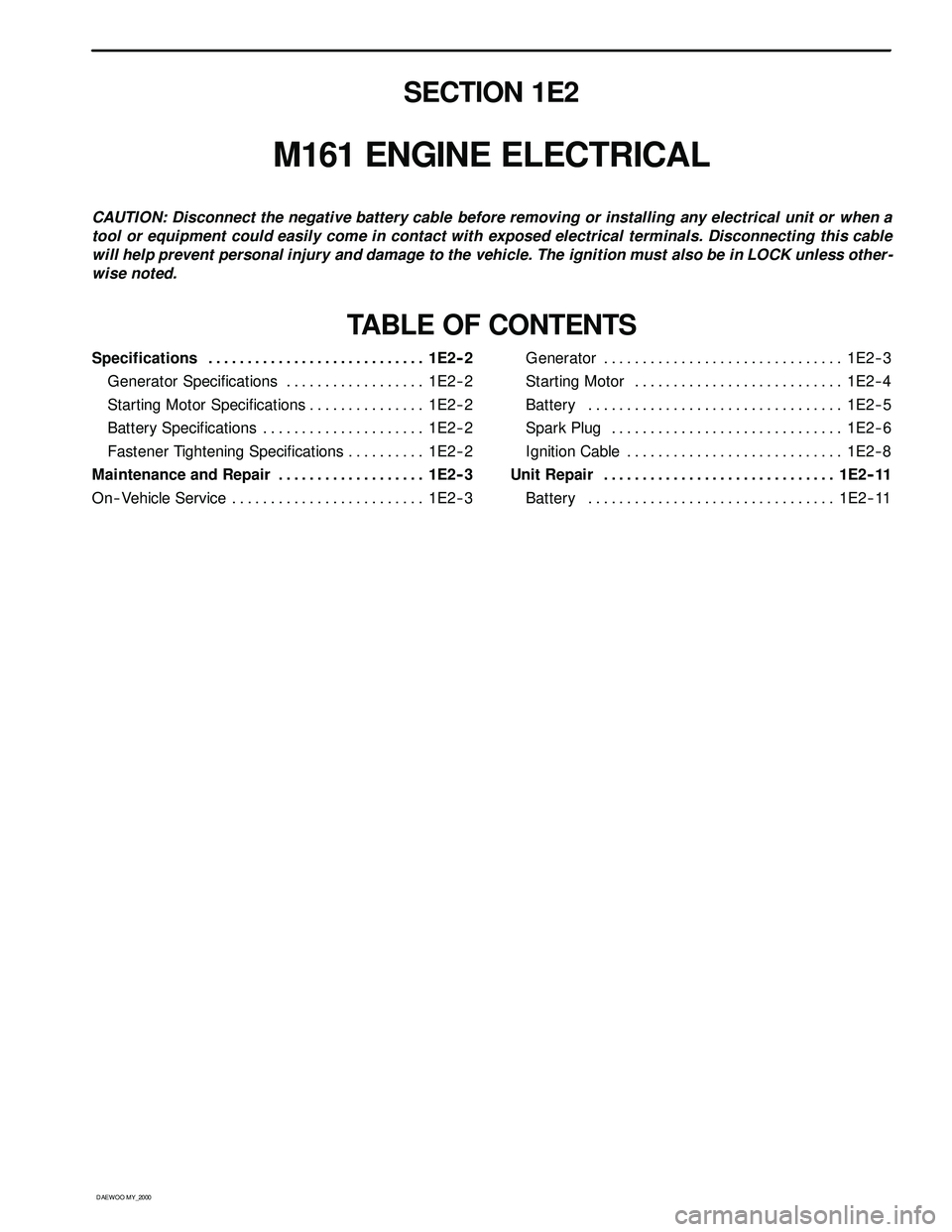

SECTION 1E2
M161 ENGINE ELECTRICAL
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless other -
wise noted.
TABLE OF CONTENTS
Specifications 1E2 -- 2............................
Generator Specifications 1E2-- 2..................
Starting Motor Specifications 1E2-- 2...............
Battery Specifications 1E2-- 2.....................
Fastener Tightening Specifications 1E2 -- 2..........
Maintenance and Repair 1E2 -- 3...................
On-- Vehicle Service 1E2-- 3.........................Generator 1E2-- 3...............................
Starting Motor 1E2--4...........................
Battery 1E2--5.................................
Spark Plug 1E2 -- 6..............................
Ignition Cable 1E2-- 8............................
Unit Repair 1E2 -- 11..............................
Battery 1E2--11................................
Page 423 of 2053

D AEW OO M Y_2000
SECTION 1F2
ENGINE CONTROLS
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless other -
wise noted.
TABLE OF CONTENTS
Engine and ECM Problem Check Report 1F2 -- 2....
Specifications 1F2 -- 3............................
Engine Data Display Table 1F2 -- 3.................
Fastener Tightening Specifications 1F2 -- 4..........
Fuel System Specification 1F2 -- 5.................
Temperature vs Resistance 1F2 -- 5................
Special Tools and Equipment 1F2 -- 6..............
Special Tools Table 1F2 -- 6.......................
Schematic and Routing Diagrams 1F2 -- 7..........
ECM Wiring Diagram
(2.3L DOHC -- MSE 3.53S) 1F2 -- 7..............
Diagnosis 1F2 -- 14................................
Failure Code Diagnosis 1F2 -- 14.....................
Clearing Failure Codes 1F2 -- 14...................
Failure Codes Table 1F2 -- 14.....................
Ignition System 1F2 -- 18...........................
Ignition Coil 1F2 -- 20.............................
Crankshaft Position (CKP) Sensor 1F2 -- 22.........
Camshaft Position (CMP) Sensor 1F2 -- 26..........
Camshaft Actuator 1F2 -- 30......................
Knock Sensor (KS) 1F2 -- 32......................
Spark Plug 1F2 -- 34.............................
System Voltage 1F2 -- 38.........................
Ignition Switch 1F2 -- 39..........................
Fuel System 1F2 -- 40..............................
Fuel Pump 1F2 -- 42.............................
Fuel Injector 1F2 -- 46............................
Purge Control Valve 1F2 -- 50.....................
Fuel Rail 1F2 -- 52...............................
Fuel Pressure Regulator 1F2 -- 54.................
Induction System 1F2 -- 56..........................
Throttle Valve Actuator 1F2 -- 56...................
Hot Film Air Mass (HFM) Sensor 1F2 -- 60..........
Engine Coolant Temperature (ECT) Sensor 1F2 -- 64.
Accelerator Pedal Module 1F2 -- 68................Cooling Fan 1F2 -- 72............................
A/C Compressor Relay 1F2 -- 73...................
Cruise Control Switch 1F2 -- 74....................
Traction Control System (TCS) 1F2 -- 75............
Stop Lamp Switch 1F2 -- 76.......................
Engine RPM 1F2 -- 77............................
Exhaust System 1F2 -- 78...........................
Catalytic Converter 1F2 -- 78......................
Oxygen Sensor 1F2 -- 80.........................
Engine Control Module 1F2 -- 86.....................
Serial Data Communication 1F2--88...............
Internal Failure 1F2 -- 90..........................
Electronic Throttle Controller Safety
Malfunction 1F2 -- 92...........................
Immobilizer 1F2 -- 94.............................
Maintenance and Repair 1F2 -- 95..................
On -- Vehicle Service 1F2 -- 95........................
Discharging the Pressure in Fuel System 1F2 -- 95...
Fuel Pump 1F2 -- 95.............................
Fuel Filter 1F2 -- 96..............................
Fuel Tank 1F2 -- 97..............................
Fuel Pressure Regulator 1F2 -- 98.................
Fuel Rail and Injector 1F2 -- 99....................
Engine Coolant Temperature Sensor 1F2 -- 100......
Throttle Body (Integrated with the
Actuator) 1F2 -- 101............................
Hot Film Air Mass (HFM) Sensor 1F2 -- 102.........
Knock Sensor 1F2 -- 102..........................
Pedal Position Sensor 1F2 -- 103...................
Oxygen Sensor 1F2 -- 103........................
Purge Control Valve 1F2 -- 104....................
Canister 1F2 -- 104...............................
Camshaft Position Sensor 1F2 -- 104...............
Crankshaft Position Sensor 1F2 -- 105..............
Engine Control Module 1F2 -- 105..................
Page 454 of 2053
1F2 -- 36 M161 ENGINE CONTROLS
D AEW OO M Y_2000
Spark Plug Cable Resistance Inspection
1. Turn the ignition switch “OFF” position.
2. Disconnect the spark plug cables Refer toSection 1E1, Engine electrical.
3. Measure the spark plug resistance using a multimeter.
Specified Value
1.8 ~ 2.2 kΩ
Notice:Replace the spark plug cable if the measured values is out of the specified values.
