Manufacturer’s Plate
1 Type Approval No.
2 ehicle Identification Number.
Manufacturer’s Plate Location
Diesel EngineGasoline Engine

GENERAL INFORMATION 0B -- 19
D AEW OO M Y_2000
Gasolind Engine NumberDiesel Engine Number
Engine Number Location
Diesel Engine
The engine number is stamped on the cylinder block in
front of injection pump.
IL6 3200 Gasolind Engine
The engine number is stamped on the lower rear side of
the alternator.

0B -- 20 GENERAL INFORMATION
D AEW OO M Y_2000
2300 DOHC Gasolind Engine
The engine number is stamped on the upper rear left --
hand side of the cylinder block.
VEHICLE LIFTING PROCEDURES
To raise the vehicle, place the lifting equipment only at
the points indicated. Failure to use these precise posi-
tions may result in permanent vehicle body deformation.
Many dealer service facilities and service stations are
equipped with automative hoists that bear upon some
parts of the frame in order to lift the vehicle. If any other
hoist method is used, take special care to avoid damag-
ing the fuel tank, the filter neck, the exhaust system, or
the underbody.
Vehicle Lifting Points
Using Jack
(Rearward of Front Tire)
Using Jack
(Forward of Rear Tire)

D AEW OO M Y_2000
SECTION 1
ENGINE
SECTION 1A1 (M162 ENGINE)
GENERAL ENGINE INFORMATION
TABLE OF CONTENTS
Specifications 1A1 -- 2............................
Engine Specifications 1A1-- 2.....................
Component Locator 1A1 -- 3.......................
Front View 1A1 -- 3...............................
Side View 1A1-- 4...............................
Performance Curve 1A1-- 5........................
E32 Engine 1A1-- 5..............................
Diagnosis 1A1 -- 6.................................
Oil Leak Diagnosis 1A1-- 6........................Engine Cranking at The
FrontofCrankshaft 1A1--7.....................
Compression Pressure Test 1A1-- 8...............
Cylinder Pressure Leakage Test 1A1-- 10...........
General Information 1A1 -- 12......................
Cleanliness and Care 1A1 -- 12....................
On-- Engine Service 1A1-- 12......................

1A1 -- 2 GENERAL ENGINE INFORMATION
D AEW OO M Y_2000

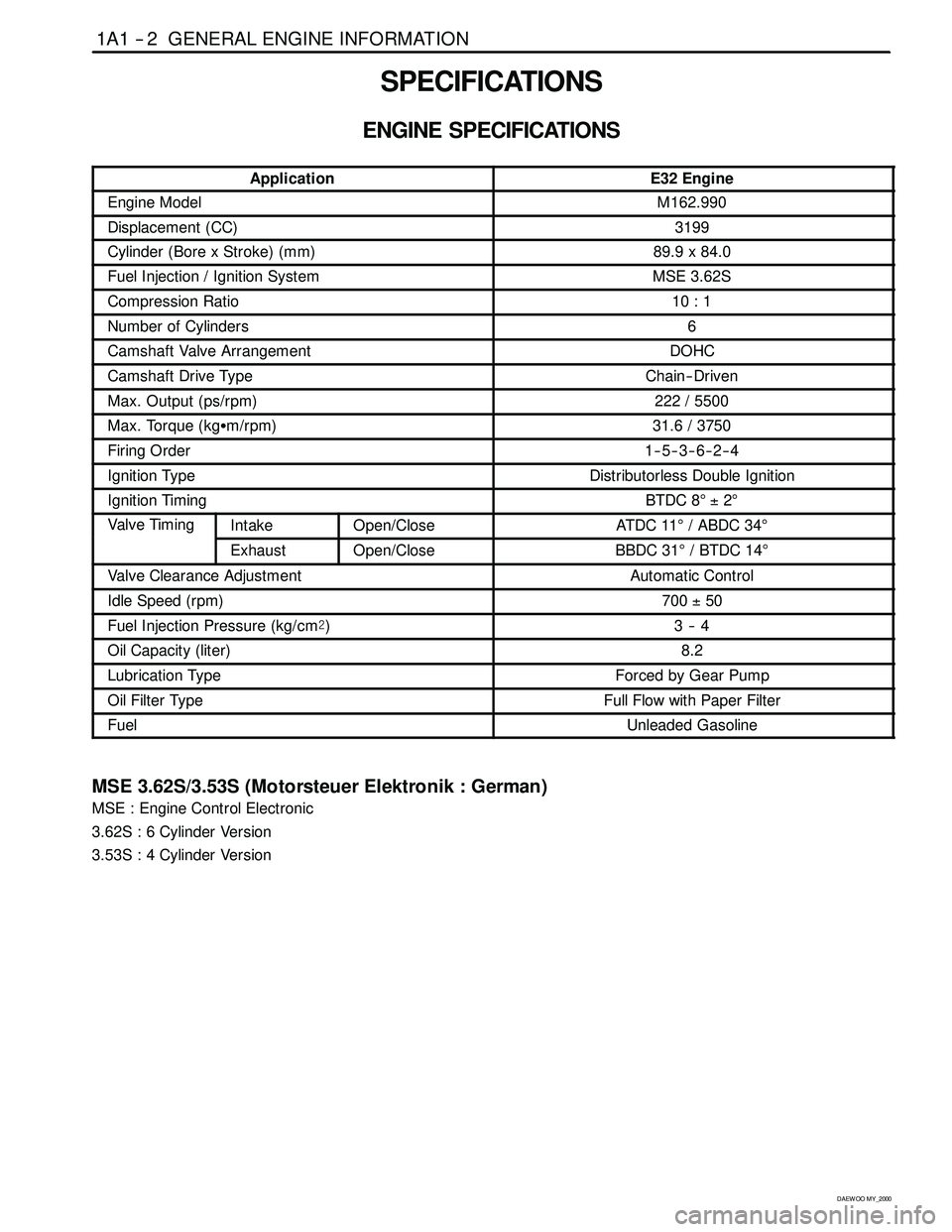

SPECIFICATIONS
ENGINE SPECIFICATIONS
ApplicationE32 Engine
Engine ModelM162.990
Displacement (CC)3199
Cylinder (Bore x Stroke)(mm)89.9 x 84.0
Fuel Injection / Ignition SystemMSE 3.62S
Compression Ratio10 : 1
Number of Cylinders6
Camshaft Valve ArrangementDOHC
Camshaft Drive TypeChain-- Driven
Max. Output (ps/rpm)222 / 5500
Max. Torque (kgSm/rpm)31.6 / 3750
Firing Order1--5--3--6--2--4
Ignition TypeDistributorless Double Ignition
Ignition TimingBTDC 8°±2°
Valve TimingIntakeOpen/CloseAT DC 11°/ ABDC 34°g
ExhaustOpen/CloseBBDC 31°/BTDC14°
Valve Clearance AdjustmentAutomatic Control
Idle Speed (rpm)700±50
Fuel Injection Pressure (kg/cm@)3--4
Oil Capacity (liter)8.2
Lubrication TypeForced by Gear Pump
Oil Filter TypeFull Flow with Paper Filter
FuelUnleaded Gasoline
MSE 3.62S/3.53S (Motorsteuer Elektronik : German)
MSE : Engine Control Electronic
3.62S : 6 Cylinder Version
3.53S : 4 Cylinder Version

GENERAL ENGINE INFORMATION 1A1 -- 3
D AEW OO M Y_2000
COMPONENT LOCATOR
FRONT VIEW
1 HFM Sensor
2 Intake Air Duct
3 Resonance Flap
4 Cylinder Head Cover
5 Exhaust Camshaft
6 Intake Camshaft
7 Cylinder Head
8 Spark Plug Connector
9 Valve Tappet
10 Injector
11 Exhaust Valve12 Intake Manifold
13 Connecting Rod
14 Exhaust Manifold
15 Crankshaft
16 Engine Mounting Bracket
17 Starter
18 Crankcase
19 Oil Pump Sprocket
20 Oil Strainer
21 Oil Pan
22 Drain Plug

1A1 -- 4 GENERAL ENGINE INFORMATION
D AEW OO M Y_2000
SIDE VIEW
23 Camshaft Adjuster
24 Cooling Fan and Viscous Clutch
25 Piston
26 Flywheel of Drive Plate27 Oil Pump Drive Chain
28 Oil Return Pipe
29 Timing Chain
30 Oil Pump

GENERAL ENGINE INFORMATION 1A1 -- 5
D AEW OO M Y_2000
PERFORMANCE CURVE
E32 ENGINE
