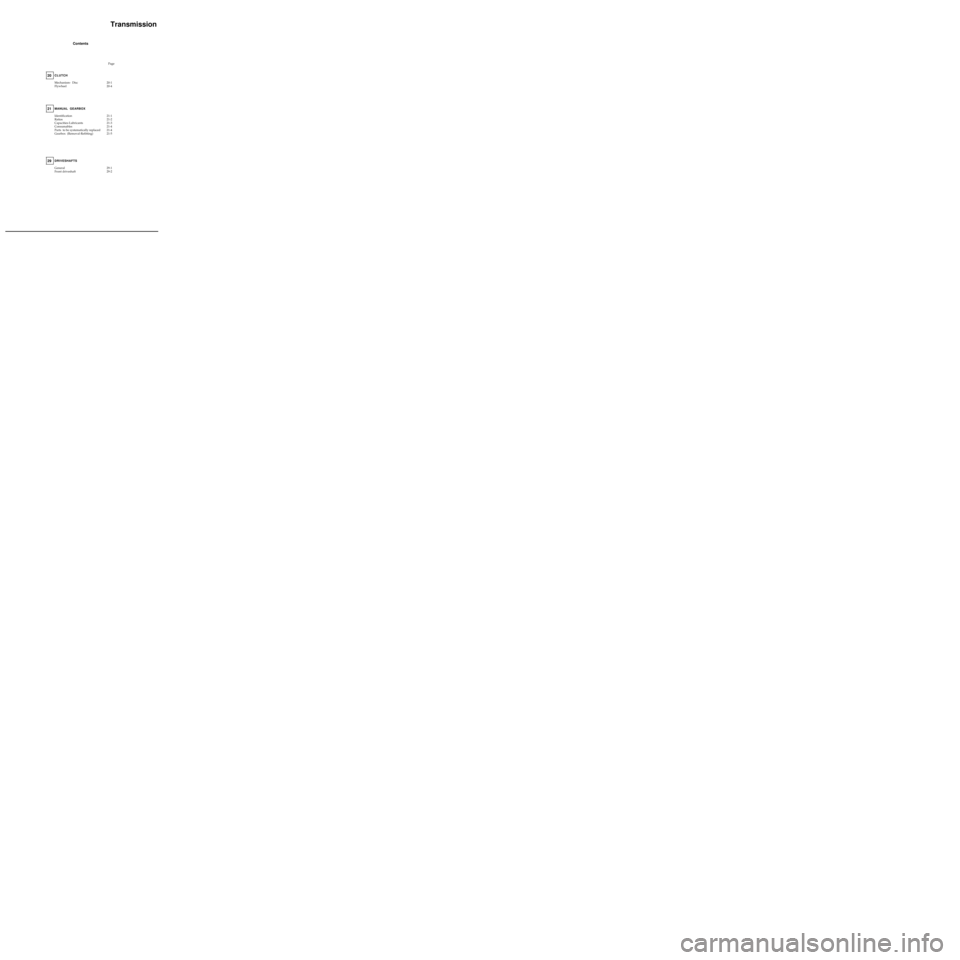

Contents
Page
Transmission
CLUTCH
Mechanism- Disc
Flywheel20
20-1
20-4
ENSEMBLE MOTEUR ET BAS
Identification
Ratios
Capacities-Lubricants
Consumables
Parts to be systematically replaced
Gearbox (Removal-Refitting)MANUAL GEARBOX21
29-1
29-2General
Front driveshaft
DRIVESHAFTS29
Page 4 of 22
CLUTCH
Mechanism - Disc
20
Cable-controlled dry-operating single disc clutch.
Constant pressure clutch thrust bearing.
Vehicle
TypeEngine
TypeMechanism Disc
F/K C0A
F/K C0CD7F
E7J
180 CP330026 splinesGA : Grey Silver
D = 181.5 mm VR : Violet Red
E = 6.7 mm
F/K C0D
F/K C0EF8Q
200 CPOV 325026 splinesRR : Red Ruby
D = 242 mm GB : Grey Blue
E = 6.8 mm
85873S
76906R
85873S
76906R 90693R9 90693R8
20-1
Page 5 of 22
CLUTCH
Mechanism - Disc
REFITTING
Clean the splines of the clutch shaft and refit the
assembly without lubricant.
Fit the disc (with the offset on the hub on the
gearbox side).
Centre using the tool supplied in the kit.
20
REMOVAL
Fit the locking sector tool Mot. 582 or
Mot. 582-01.
Remove the mounting bolts from the mechanism
and remove the friction plate.
Check and replace any faulty parts.
99055R
SPECIAL TOOLING REQUIRED
Mot. 582
or Locking tool
Mot. 582-01
Mechanism mounting bolt 2
TIGHTENING TORQUES (in daN.m)
REPLACEMENT (after removal of the gearbox)
95414S
Tighten progressively in a star pattern, then tigh-
tenthe mounting bolts to the correct torque.
Remove the locking sector tool Mot. 582 or
Mot. 582-01.
Coat with
MOLYKOTE BR2 grease:
- the guide tube,
- the fork pads.
20-2
Page 6 of 22
CLUTCH
Mechanism - Disc
20
After refitting the gearbox, place the cable onto
the clutch fork, reset the notched sector and
check that the play compensation is in working or-
der.
Check the travel of the clutch.
The travel of the fork must be:
X = 27.4 to 30.7 mm
97758-1R
NOTE : in the case of any intervention not requi-
ring the removal of the gearbox or after the fit-
ting of the gearbox,
DO NOT LIFT the fork, as it
would risk releasing itself from the slot (A) of the
clutch thrust bearing.
99054R
20-3
Page 7 of 22
CLUTCH
Flywheel
20
REMOVAL
After removing the friction plate, remove the
mounting bolts of the flywheel (must not be
re-used).
Regrinding of the friction face is not permitted.
REFITTING
Clean the threads of the mounting bolts of the fly-
wheel on the crankshaft.
Remove the grease from the bearing face of the
flywheel on the crankshaft.
Refit the flywheel by immobilising it with tool
Mot. 582 or Mot. 582-01.
NOTE: the flywheel mounting bolts are to be sys-
tematically replaced.
SPECIAL TOOLING REQUIRED
Mot. 582
or Locking tool
Mot. 582-01
Flywheel bolt 2 + 60°
TIGHTENING TORQUES (In daN.m)
REPLACEMENT of the flywheel
20-4
Page 8 of 22
MANUAL GEARBOX
Identification
All KANGOO vehicles are fitted with JB type gearboxes.
The Workshop Repair Manual "
B.V. JB. JC" deals with the complete repair of this component.
IDENTIFICATION PLATE
At A : the gearbox type
At B : the gearbox suffix
At C : the fabrication number
At D : the factory of manufacture
At E : a slot if the gearbox is assembled with an E
type engine
At F : the letter preceding all fabrication numbers
greater than 999999
21
X
000JB0BA
E
DCX0 0000
87227G
F
21-1
