1997 PONTIAC PONTIAC key

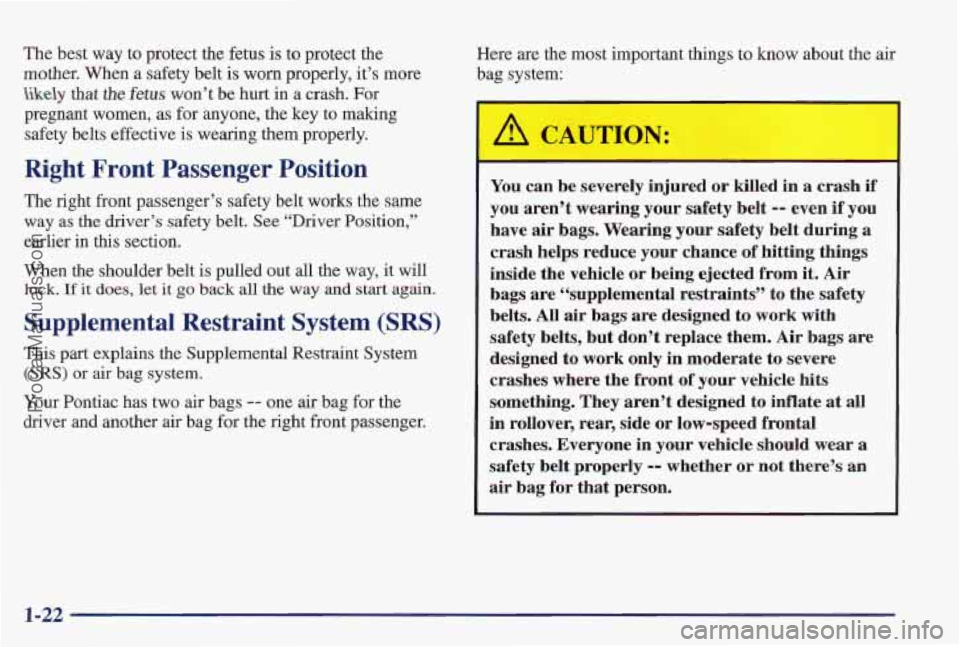

The best way to protect the fetus is to protect the
mother. When
a safety belt is worn properly, it’s more
likely khat the fetus won’t be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position
The right front passenger’s safety belt works the sarne
way a,s the driver’s safety belt. See “Driver Position,”
earlies in this section.
When the shoulder belt is pulled out all the way,
it will
lock.
If it does, let it go back all the way and start again.
supplemental Restraint System (SRS)
This part explains the Supplemental Restraint System
(SRS) or air bag system.
Your Pontiac has two air bags -- one air bag for the
driver and another air bag for the right front passenger. Here are the most important things
to know about the
air
bag system:
A CAUTION:
You can be s’everely injured or killed in a crash if
you aren’t wearing your safety belt -- even if you
have
air bags. Wearing your safety belt during a
crash helps reduce your chance of hitting things
inside the vehicle or being ejected from
it. Air
bags are “supplemental restraints” to the safety
belts. All
air bags are designed to work with
safety belts, but don’t replace them. Air bags are
1 designed to work only in moderate to severe
crashes where the front
of your vehicle hits
something. They aren’t designed to inflate at all
in rollover,
rear, side or low-speed frontal
crashes. Everyone in your vehicle should wear
a
safety belt properly -- whether or not there’s an
air bag for that person.
1-22
ProCarManuals.com

v Section 2 Features and Controls
Here you can learn about the many standard and optional features on your Pontiac, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2-2
2-4
2-8
2- 10
2-12
2-15
2-15
2- 16
2-18
2-19
2-24
2-29
2-30
2-3 1
Important Information About Keys
Door Locks
Remote Keyless Entry Battery Replacement for RKE
Preventing Theft
of Your Vehicle
New Vehicle “Break-In”
Ignition Positions
Tips on Starting Your Engine
Using the Engine Coolant Heater
Automatic Transaxle Operation
Parking Brake Guidelines
Important Information on Engine Exhaust
Operation of Your Windows
Adjusting the Tilt Steering Wheel 2-32
2-33
2-33
2-35
2-3 8
2-39
2-40
2-5 3
2-54
2-62
2-64
2-78
2-83
Functions of the Multifunction Lever
How to Use the HighLow Beam
Headlamp Changer
Windshield Wipers and Fluid
Using Cruise Control
Exterior Lamps
Daytime Running Lamps
(DRL)
Interior Lamps
Rearview Mirrors
Storage Compartments
Instrument Panel Overview
All About Your Warning Lights and Gages
Driver Information Center
Head-Up Display
2-1
ProCarManuals.com

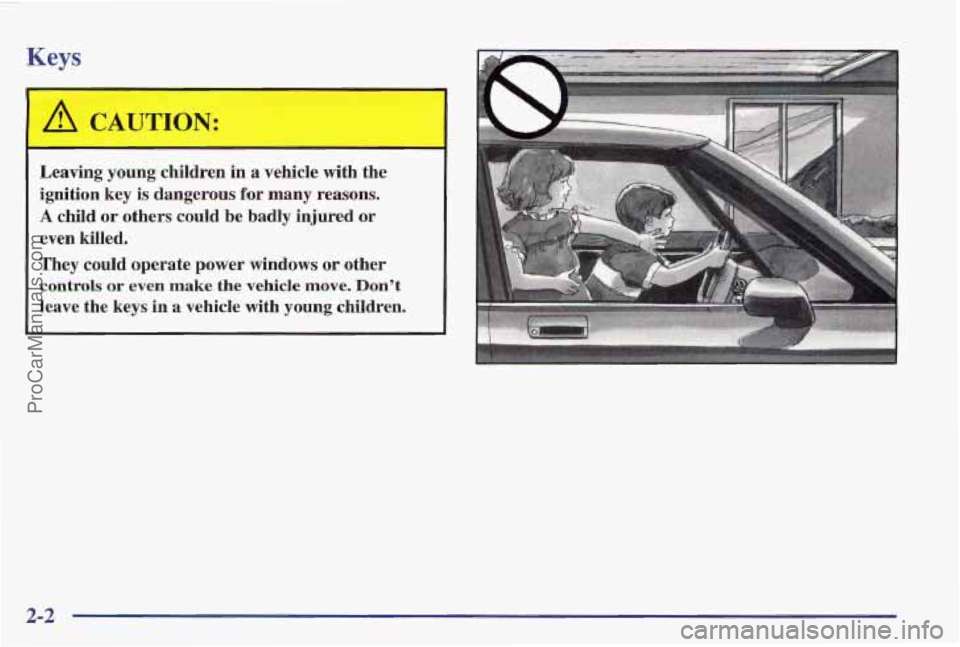

Keys
Leaving young children in a vehicle with the
ignition key
is dangerous for many reasons.
A child or others could be badly injured or
even killed.
They could operate power windows or other
controls or even make the vehicle move. Don’t
leave the keys in a vehicle with young children.
2-2
ProCarManuals.com

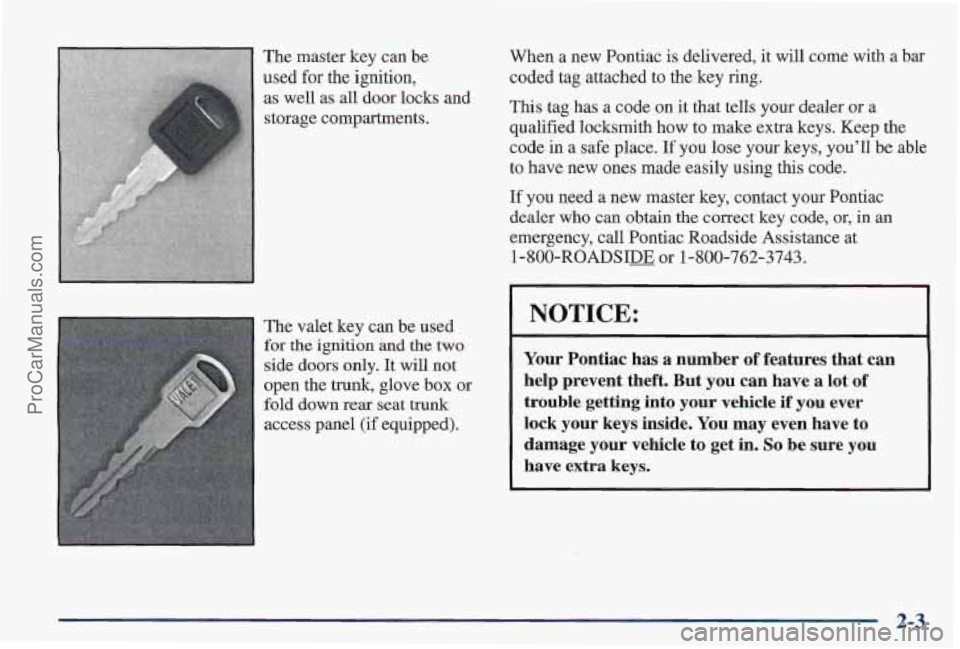

The master key can be
used for the ignition,
as well as all door locks and
storage compartments.
The valet key can be used
for the ignition and the two
side doors only. It will not
open the trunk, glove box or
fold down
rear seat trunk
access panel (if equipped). When
a new Pontiac is delivered, it will come with a bar
coded tag attached to the key ring.
This tag has a code
on it that tells your dealer or a
qualified locksmith how
to make extra keys. Keep the
code in a safe place. If you lose your keys, you’ll be able
to have new ones made easily using this code.
If you need a new master key, contact your Pontiac
dealer who can obtain the correct key code,
or, in an
emergency, call Pontiac Roadside Assistance at
1-800-ROADSIB or 1-800-762-3743.
I I
I NOTICE: I
Your Pontiac has a number of features that can
help prevent theft. But
you can have a lot of
trouble getting into your vehicle if you ever
lock your
keys inside. You may even have to
damage your vehicle to get in.
So be sure you
have extra keys.
2-3
ProCarManuals.com

Door Locks Front Door
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and fall
out. When a door is
locked, the inside handle won’t open
it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not
be so obvious: You increase the
chance of being thrown
out of the vehicle in a
crash if the doors aren’t locked. Wear safety belt:
properly, lock your
doors, and you will be far
better off whenever you drive your vehicle.
To unlock either front door from outside the vehicle
with your key, insert it fully into the door key cylinder
and turn it toward the front.
You can lock either front door from outside the vehicle
with your key by inserting it fully into the rear door key
cylinder and turning it toward the rear.
There are several ways to lock and unlock your vehicle.
To unlock either front door from inside the vehicle,
rotate the lock
lever back.
To lock either front door from inside the vehicle, slide
the
lock lever forward.
2-4
ProCarManuals.com

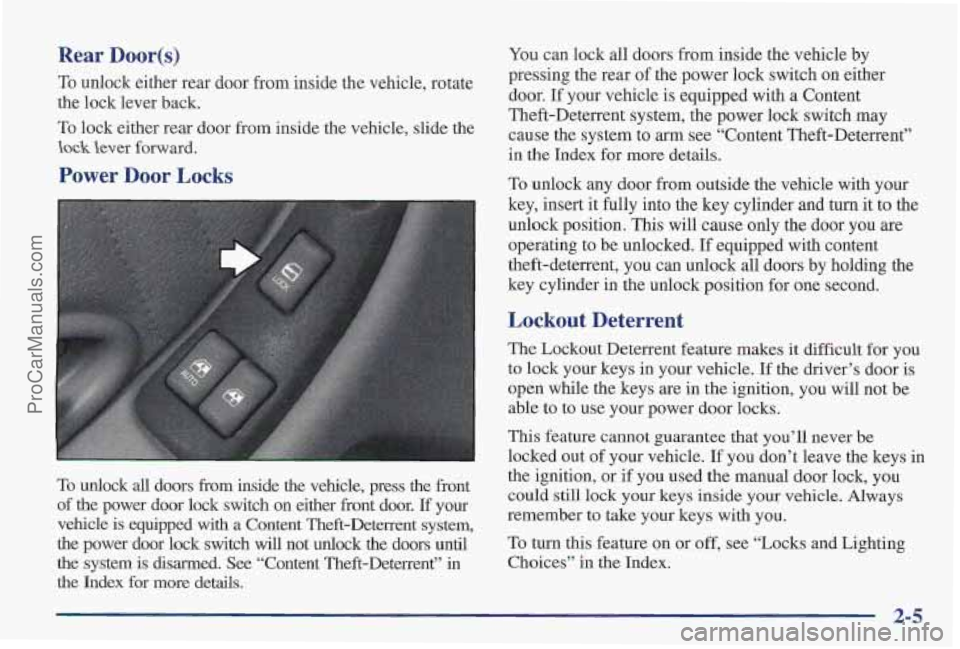

Rear Door(s)
To unlock either rear door from inside the vehicle, rotate
the lock lever back.
To lock either rear door from inside the vehicle, slide the
lock lever forward.
Power Door Locks
To unlock all doors from inside the vehicle, press the fiont
of
the power door lock switch on either front door. If your
vehicle is equipped with a Content Theft-Deterrent system,
the power door lock switch will not unlock
the doors until
the system
is disarmed. See “Content Theft-Deterrent” in
the Index for more details.
You can lock all doors from inside the vehicle by
pressing the rear
of the power lock switch on either
door. If your vehicle is equipped with
a Content
Theft-Deterrent system, the power lock switch may
cause the system
to arm see “Content Theft-Deterrent”
in the Index for more details.
To unlock any door from outside the vehicle with your
key, insert it fully into the key cylinder and turn it to the
unlock position. This will cause only the door you
are
operating to be unlocked. If equipped with content
theft-deterrent, you can unlock all doors by holding the
key cylinder in the unlock position for one second.
Lockout Deterrent
The Lockout Deterrent feature makes it difficult for you
to lock your keys in your vehicle. If the driver’s door is
open while the keys are in the ignition, you will not be
able to to use your power door locks.
This feature cannot guarantee that you’ll never be
locked out of your vehicle.
If you don’t leave the keys in
the ignition, or if you used the manual door lock, you
could still lock your keys inside your vehicle. Always
remember to take your keys with you.
To turn this feature on or off, see “Locks and Lighting
Choices” in the Index.
2-5
ProCarManuals.com

Last Door Closed Locking
The Last Door Closed Locking makes it more
convenient €or you to use your power door lo’cks to lock
all doors when leaving your vehicle. When any door
is
open, the first time you attempt to lock the doors using
the power
door lock switch or key chain transmitter will
result in three chimes to signal that Last
Door Closed
Locking is being used. All doors can be opened for any
reason for five seconds from the time the last door has
been closed. Five seconds after the last door is closed,
all doors will lock. You can lock the doors immediately
by using the power door lock switch or the key chain
transmitter
to lock again.
The Last Door Closed
Locking feature will not
occur and d’oors will not
be locked as a result of this
feature when
the ignition switch is in the RUN or
ACCESSORY position. The Last Door Closed Locking
feature
is not enabled from the factory.
Automatic Door Locks
I
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When
a door is
locked, the inside handle won’t open
it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This
may not be so obvious: You increase the
chance
of being thrown out of the vehicle in a
crash
if the doors aren’t locked. Wear safety belts
properly, lock your doors, and you will
be far
better off whenever you drive your vehicle.
To turn the Last Door Closed Locking feature on or off,
see “Locks and Lighting Choices” in the Index. All of the
doors will lock automatically when you move
your shift lever
out of PARK (P). All doors will. unl’ock
automatically when the ignition
is turned off while the
shift lever
is in PARK (P). If you prefer to have your
doors unlocked automatically at any time, see “Locks
and Lighting Choices” in the Index.
2-6
ProCarManuals.com

It can be dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don’t leave your vehicle when the engine
is
running unless you have to. If you’ve left the
engine running, the vehicle can move suddenly.
You or others could be injured.
To be sure your
vehicle won’t move, even when you’re on fairly
level ground, always set your parking brake and
move the shift lever to PARK
(P).
If someone needs to get in or out of the vehicle after
the doors have been automatically locked, place the shift
lever into PARK (P). Unlock all doors by using the
power door lock switch or unlock just the door you want
by using the inside lever.
If you have programmed your
automatic door locks (see ”Locks and Lighting choices”
in the Index.) to unlock the doors when the shift lever
is shifted into
PARK (P), the doors will be automatically
unlocked for you. The doors will be automatically
locked when you move your shift lever out of
PARK (P)
with the ignition on. If
you don’t want the doors to unlock automatically
when you turn
the ignition off, see “Locks and Lighting
Choices” in
the Index.
Rear Door Security Locks (4-DoOr Models)
A
1
Your Pontiac is equipped with rear door security locks that
help prevent passengers
from opening the rear doors of
your vehicle from the inside.
To use one of these locks:
1. Open one of the rear doors.
2. On the inside of the rear door will be a lock. Insert
your master key into this lock and rotate it upward.
This will engage the safety lock.
2-7
