1997 PONTIAC PONTIAC key

OFF (C): This position lets you turn off the engine but
still
turn the steering wheel. It doesn’t lock the steering
wheel like LOCK. Use OFF if you must have your
vehicle
pushed or towed.
RUN (D): This position is where the key returns
after
you start your vehicle. With the engine off, you
can use RUN to display some of your warning and
indicator lights.
START (E): This position starts your engine.
A warning chime will sound if you open the driver’s
door when the ignition is in OFF, LOCK or
ACCESSORY and the key is in the ignition,
~
NOTICE:
~~
If your key seems stuck in LOCK and you can’t
turn it, be sure your are using the correct key; if
so is it all the way in? If it is, then turn the
steering wheel left and right while yon turn the
key hard.
But turn the key only with your hand.
Using
a tool to force it could break the key or the
ignition
switch. If none of this works, then your
vehicle needs service.
Starting Your Engine
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine won’t start in any other position -- that’s a
safety feature. To restart when you’re already moving,
use NEUTRAL
(N) only.
NOTICE:
Don’t try to shift to PARK (P) if your Pontiac is
moving. If you do, you could, damage the
transaxle. Shift to
PARK (P) only when your
vehicle
is stopped.
1. Without pushing the accelerator pedal, turn your
ignition key to
START. When the engine starts, let
go of the key. The idle speed will go down as your
engine gets warm.
2-16
ProCarManuals.com

NOTICE:
Holding your key in START for longer than
15 seconds at a time will cause your battery to be
drained much sooner. And the excessive heat can
damage your starter motor.
2. If it doesn’t start right away, hold your key in
START for about three to five seconds at a time until
your engine starts. Wait about
15 seconds between
each
try to help avoid draining your battery.
3. If your engine still won’t start (or starts but then
stops), it could be flooded with too much gasoline.
Try pushing
your accelerator pedal all the way to the
floor and holding it there as you hold the key in
START for about three seconds.
If the vehicle starts
briefly but then stops again, do the same thing, but
this time keep the pedal down for five or six seconds.
This clears the extra gasoline from the engine.
After waiting about
15 seconds, repeat the normal
starting procedure.
NOTICE:
Your engine is designed to work with the
electronics
in your vehicle. If you add electrical
parts or accessories, you could change the way
the engine operates. Before adding electrical
equipment, check with your dealer.
If you don’t,
your engine might not perform properly.
If you ever have to have your vehicle towed, see
the part of this manual that tells how to
do it
without damaging your vehicle. See “Towing
Your Vehicle” in the Index.
2-17
ProCarManuals.com

FIRST (1): This position gives you even more power,
but lower fuel economy than
SECOND (2). You can use
it on very steep hills, or in deep snow or mud. If the shift
lever
is put in FIRST (1)’ the transaxle won’t shift into
first gear until the vehicle is going slowly enough.
NOTICE:
~~~~~~ ~
If your front wheels can’t rotate, don’t try to
drive. This might happen if you were stuck in
very deep sand or mud or were up against a solid
object. You could damage your transaxle.
Also, if you stop when going uphill, don’t hold
your vehicle there with only the accelerator
pedal. This could overheat and damage the
transaxle. Use
your brakes or shift into PARK (P)
to hold your vehicle in position on a hill.
Shift Lock Release (Console Shift)
If your vehicle’s battery should go dead, there are two override
access slots that will allow you to override
park lock.
The first is located
underneath the steering
column below the lock
cylinder.
To use this slot,
first remove the trim
cap.
Insert a key or screwdriver
into the access slot and
press
the lock cylinder.
You will now be able to remove your key from the
ignition. Be sure
to replace the trim cap after use.
If the car has a column mounted gear shift lever,
you will now also
be able to shift your vehicle out
of PARK (P).
2-22
ProCarManuals.com

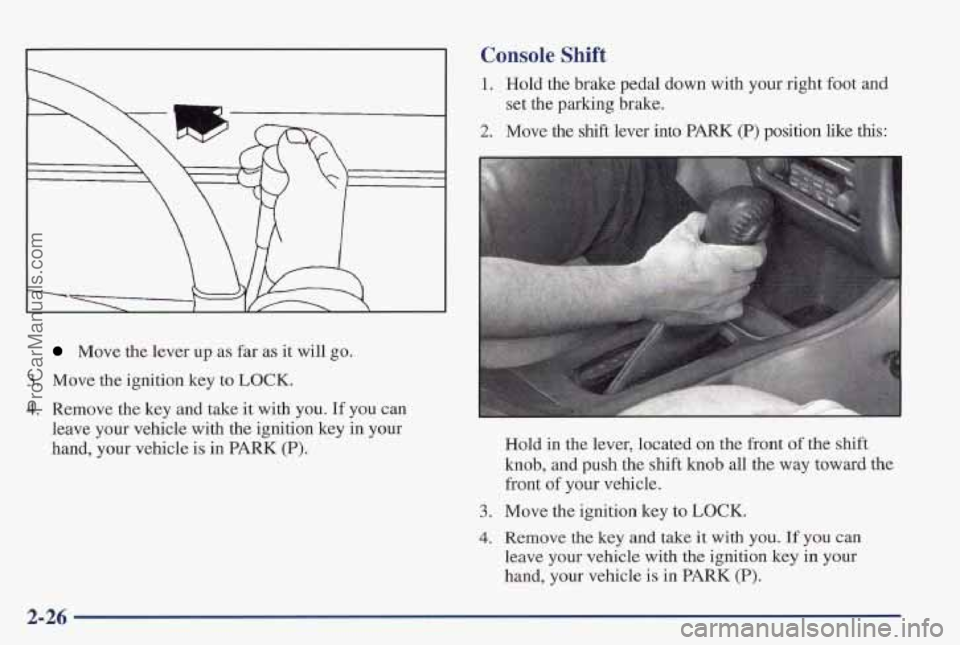

Move the lever up as far as it will go.
3, Move the ignition key to LOCK.
4. Remove the key and take it with you. If you can
leave your vehicle with the ignition key in your
hand, your vehicle is in
PARK (P).
Console Shift
I. Hold the brake pedal down with your right foot and
2, Move the shift lever into PARK (P) position like this:
set the parking brake.
3.
4.
Hold in the lever, located on the front of the shift
knob, and push the shift knob all the way toward the
front of your vehicle.
Move the ignition key
to LOCK.
Remove the key and take it with you. If you can
leave your vehicle with the ignition key in your
hand, your vehicle is in PARK (P).
2-26
ProCarManuals.com

Shifting Out of PARK (P)
Your Pontiac has a Brake-Transaxle Shift Interlock.
You must fully apply your regular brakes before
you can
shift from
PARK (P) when the ignition is in RUN. See
“Automatic Transaxle Operation” in the Index.
If
you cannot shift out of PARK (P), ease pressure on
the shift lever by pushing it all the way into PARK
(P)
while keeping the brake pedal pushed down. Release the
shift lever button if you have
a console shift. Then move
the shift lever out of PARK (P), being sure to press the
shift lever button if you have a console shift.
If you ever hold the brake pedal down but still can’t
shift out of PARK
(P) with column shift, try this:
1. Turn the key to OFF.
2. Apply and hold the brake until the end of Step 4.
3. Shift to NEUTRAL (N).
4. Start the engine and shift to the drive gear you want.
5. Have the vehicle fixed as soon as you can.
With Console Shift
see “Shift Lock Release” section.
Parking Over Things That Burn
r
Things that can burn could touch hot exhaust
parts under your vehicle
and ignite. Don’t park
over papers, leaves, dry grass or other things that
can burn.
2-28
ProCarManuals.com

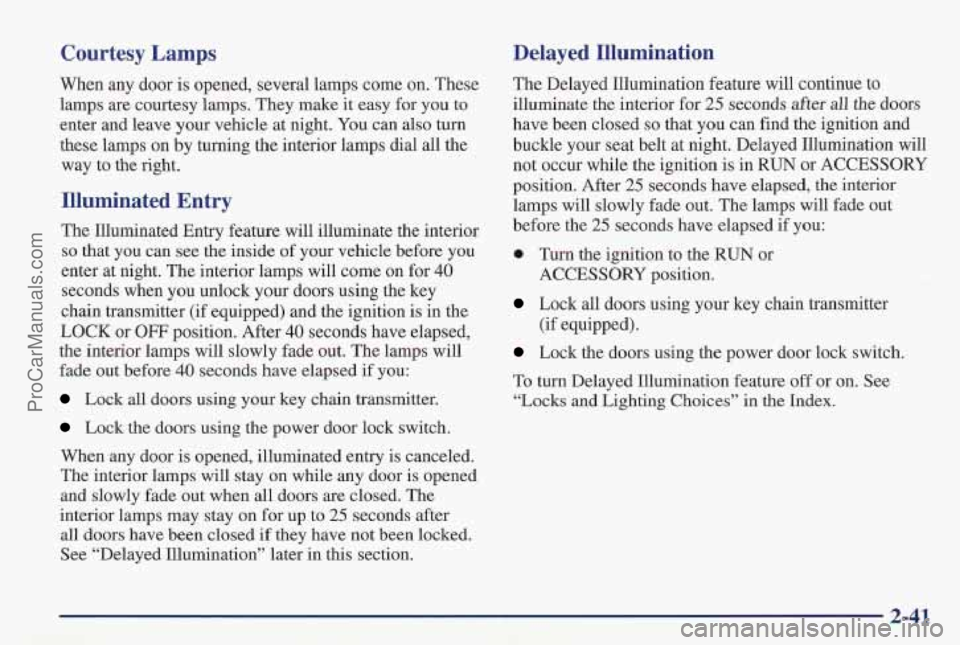

Courtesy Lamps
When any door is opened, several lamps come on. These
lamps are courtesy lamps. They make
it easy for you to
enter and leave your vehicle at night. You can also turn
these lamps
on by turning the interior lamps dial all the
way to the right.
Illuminated Entry
The Illuminated Entry feature will illuminate the interior
so that you can see the inside of your vehicle before you
enter at night. The interior lamps will come on for
40
seconds when you unlock your doors using the key
chain transmitter (if equipped) and the ignition is in the
LOCK or
OFF position. After 40 seconds have elapsed,
the interior lamps will slowly fade out. The lamps will
fade out before
40 seconds have elapsed if you:
Lock all doors using your key chain transmitter.
Lock the doors using the power door lock switch.
When any door is opened, illuminated entry is canceled.
The interior lamps will stay on while any door is opened
and slowly fade out when all doors are closed. The
interior lamps may stay on for up to
25 seconds after
all
doors have been closed if they have not been locked.
See “Delayed Illumination” later in this section.
Delayed Illumination
The Delayed Illumination feature will continue to
illuminate the interior for
25 seconds after all the doors
have been closed so that you can find the ignition and
buckle your seat belt at night. Delayed Illumination will
not occur while the ignition is in RUN or ACCESSORY
position. After
25 seconds have elapsed, the interior
lamps will slowly fade out. The lamps will fade out
before the
25 seconds have elapsed if you:
0 Turn the ignition to the RUN or
Lock all doors using your key chain transmitter
Lock the doors using the power door lock switch.
To turn Delayed Illumination feature off or on. See
“Locks and Lighting Choices” in the Index.
ACCESSORY
position.
(if equipped).
2-41
ProCarManuals.com

Exit Lighting Battery Saver
Your vehicle has a feature to help prevent you from
draining the battery
in case you accidentally leave the
interior, trunk or underhood lamps on.
If YOU leave any
of these lamps on while the ignition
is in LOCK or
OFF position, they will automatically turn off after
10 minutes. The lamps won’t come back on again until
you do one of the following:
So that you can see to exit the vehicle at wight, your
vehicle
is equipped with the Exit Lighting feature. The
interior lamps will illuminate for up to 25 seconds when
you remove your
key from the ignition. After 25 seconds
have elapsed, the interior lamps will slowly fade out. The
lamps will fade out before
the 25 seconds have elapsed
if you:
Turn the ignition to the RUN or
ACCESSORY position.
(if equipped).
Lock all doors using your key chain transmitter
0 Lock the doors using the power door lo’ck switch.
When any door is opened, Exit Lighting is canceled.
The
interior lamps will stay on while any ‘door is opened and
will slowly fade out when all the
doors are closed. The
interior lamps may stay on €or
up to 25 seconds after all
the doors have been closed if they have not been locked.
See“De1ayed Illumination” earlier in this section.
To turn the Exit Lighting feature
off or on, see “Locks
and Lighting Choices” in the Index.
Turn the ignition to the RUN or
ACCESSORY position;
Turn the interior lamp dial all the way to the right,
then back slightly to the left;
Open (or close and reopen) a door that is closed.
Note that if your vehicle has less than
15 miles (25 Pun)
on the odometer, the battery saver will turn off the lamps
after only three minutes.
Retained Accessory Power
With retained accessory power, your power windows,
audio system and sunroof will continue to
work up to
10 minutes after the ignition key is turned to the OFF
position and 4, of the doors are opened.
2-42
ProCarManuals.com

Entering Programming Mode
To program features, your vehicle must be in this
programming mode. Follow these steps:
FUSE USA
CIRCUIT
BREAKERS STR WHL
piq ILUM
RAP
0 ’ ECM CRUISE
CIG LTR
INT LAMP
0 PWR WDO
SE CHART
MALLPGM I MALL I WIPER
‘TT:FL I SUNROOF I RADIO I I PWR LOCK HSEATILUM
HAZARD PWR MIR
STOP LAMP AUWCNSL
I/P - IGN SIR
ABS
HVAC CTRL
ABS IGN
R DEFOG
HVAC
HI
CD CHG
TURN BTSI
DIC/HVAC DRL
I Printed in USA. I
1. The Content Theft-Deterrent system (if equipped)
must be disarmed.
2. Remove the MALL PGM fuse from the instrument
panel fuse block.
3. Turn the ignition switch to ACCESSORY.
4. You will hear one to four chimes, depending upon
the features that you have.
You can now program your choices.
Leaving Programming Mode
To get out of the programming mode, just turn the key
from the ACCESSORY position to the OFF position and
put the MALL PGM fuse back into the instrument panel
fuse block.
Delayed IlluminatiodExit Lighting
Your vehicle comes with this feature set in Mode 4. This
means that:
The interior lamps will stay on for awhile after all
the doors are closed and
The interior lamps will come on and stay on for a while
whenever you remove the keys from the ignition.
2-45
ProCarManuals.com
