1997 PONTIAC FIREBIRD Owners Manual

Air Filter Replacement
To remove the air filter:
I
1. Remove the plastic pin by pulling it straight up.
2. Disconnect the plastic clamp on the duct. Pull apart
the connection.
6-20

3. Pull the air cleaner straight up. Unclamp the
metal clips.
4. Open the air cleaner and remove the filter.
6-21

1 Vf a I IJ
If you have the 5.7L LT1 engine (with the WS6 option),
your air cleaner will be located over the radiator near the
front
of the engine.
To remove the filter, remove the screws (located on the
rear edge of the air cleaner), lift the air cleaner and
remove
the filter.
Automatic Transmission Fluid
When to Check and Change
A good time to check your automatic transmission fluid
level is when the engine oil is changed.
Change both the fluid and filter every 15,000 miles
(25 000 km) if the vehicle is mainly driven under one
or more of these conditions:
In heavy city traffic where the outside temperature
0 In hilly or mountainous terrain.
regularly reaches
90” F (32” C) or higher.
0 Uses such as high
performance operation.
When doing frequent trailer towing.
Uses such as found in taxi, police or delivery service.
If you do
not use your vehicle under any of these
conditions, change the fluid and filter every
100,000 miles ( 166 000 km),
See “Scheduled Maintenance Services” in the Index.
6-22

HQW to Check
Because this operation can be a little difficult, you may
choose to have this done at your Pontiac dealership
Service Department.
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading
on the dipstick.
NOTICE:
Too much or too little fluid can damage your
transmission.
Too much can mean that some of
the fluid could come out and fall on hot engine
parts or exhaust system parts, starting a fire. Be
sure to get an accurate reading if you check your
transmission fluid.
Wait at least 30 minutes before checking the
transmission fluid level if you have been driving:
When outside temperatures are above 90 OF (32 O C).
At high speed for quite a while.
In heavy traffic -- especially in hot weather.
While pulling a trailer.
To get the right reading, the fluid should be at
normal operating temperature, which
is 180°F to
200°F (82OC to 93°C).
Checking Transmission Fluid Hot
Get the vehicle warmed up by driving about 15 miles
(24 km) when outside temperatures are above 50°F
(10°C). If it's colder than 50°F (lO"C), drive the
vehicle in DRIVE (D) until the engine temperature gage
moves and then remains steady for
10 minutes. Then
follow the hot check procedures.
Checking Transmission Fluid Cold
A cold check is made after the vehicle has been sitting
for eight hours or more with the engine off and is d
only as a reference. Let the engine run at idle for five
minutes if outside temperatures are
50°F (10OC) or
more. If it's colder than
50°F (lO"C), you may have to
idle the engine longer. Should the fluid level be low
during a cold check,
you must perform a hot check
before adding fluid. This will give you a more accurate
reading
of the fluid level.
6-23

Checking the Fluid Hot or Cold
I) Park your vehicle on a level place. Keep the
0 With the parking brake applied, place the shift lever
engine running.
in PARK (P).
With your foot on the brake pedal, move the shift
lever through each gear range, pausing for about
three seconds in each range. Then, position the shift
lever in
PARK (P).
Let the engine run at idle for three minutes or more.
Then, without shutting off the engine, follow these steps:
3800 Engine Transmission Dipstick
6-24

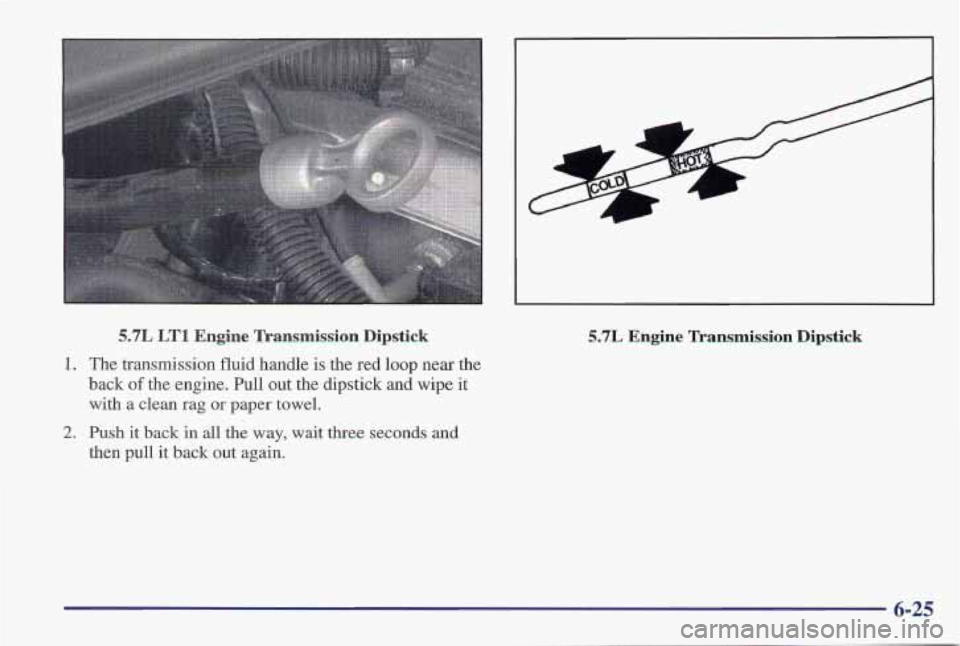

5.7L LTl Engine Transmission Dipstick
I
5.7L Engine Transmission Dipstick
1. The transmission fluid handle is the red loop near the
back
of the engine. Pull out the dipstick and wipe it
with a clean rag
or paper towel.
2. Push it back in all the way, wait three seconds and
then pull it back out again.

3800 Transmission Dipstick
3. Check both sides of the dipstick, and read the lower
level, The fluid level must be in the
COLD area for a
cold check or in the
HOT area or ‘cross-hatched area
for a hot check.
4, If the fluid level is in the acceptable range, push the
dipstick back in all the way.
How to Add Fluid
Refer to the Maintenance Schedule to determine what
kind
of transmission fluid to use. See “Recommended
Fluids and Lubricants” in the Index.
Add fluid only after checking the transmission fluid
HOT. (A COLD check is used only as a reference.) If
the fluid level
is low, add only enough of the proper fluid
to bring the level
up to the HOT area for a hot check. It
doesn’t take much fluid, generally
less than one pint
(0.5 L). Dm ’t ove 111. We reconramend you use only fluid
labeled
BEXRON -111, because fluid with that label is
made especially for your automatic transmission, Damage
caused by fluid other than DEXRON-I11 is not covered
by your
new vehicle warranty.
?l
After adding fluid, recheck the fluid level as
described under
“How to Check.”
When the correct fluid level is obtained, push the
dipstick back in all the way.
6-26

Manual Transmission Fluid
When to Check
A good time to have it checked is when the engine oil is
changed. However, the fluid in your manual
transmission doesn’t require changing.
How to Check
Because this operation can be difficult, you may
choose to have this done at your Pontiac dealership
Service Department.
If you do it yourself, be sure to follow all the
instructions here, or
you could get a false reading.
NOTICE:
Too much or too little fluid can damage your
transmission.
Too much ‘can mean that some of
the fluid could come out and fall on hot engine parts
or exhaust system parts, starting a fire. Be
: sure to get an accurate reading if you check your
I transmission fluid.
Check the fluid level only when your engine is off, the
vehicle is parked on a level place and the transmission is
cool
enough for you to rest your fingers on the
transmission case.
Then, follow these steps:
1. Remove the filler plug.
2. Check that the lubricant level is up to the bottom
of the filler plug hole.
3. If the fluid level is good, install the plug and be sure
it is fully seated. If the fluid level
is low, add more
fluid as described in the next steps.
How to Add Fluid
Here’s how to add fluid. Refer to the Maintenance
Schedule to determine what kind of fluid to use. See
“Recommended Fluids and Lubricants” in the Index.
1. Remove the filler plug.
2. Add fluid at the filler plug hole. Add only enough
fluid to bring the fluid level up to the bottom of
the filler plug hole.
3. Install the filler plug. Be sure the plug is fully seated.
6-27
