1997 PONTIAC BONNEVILLE Owners Manual

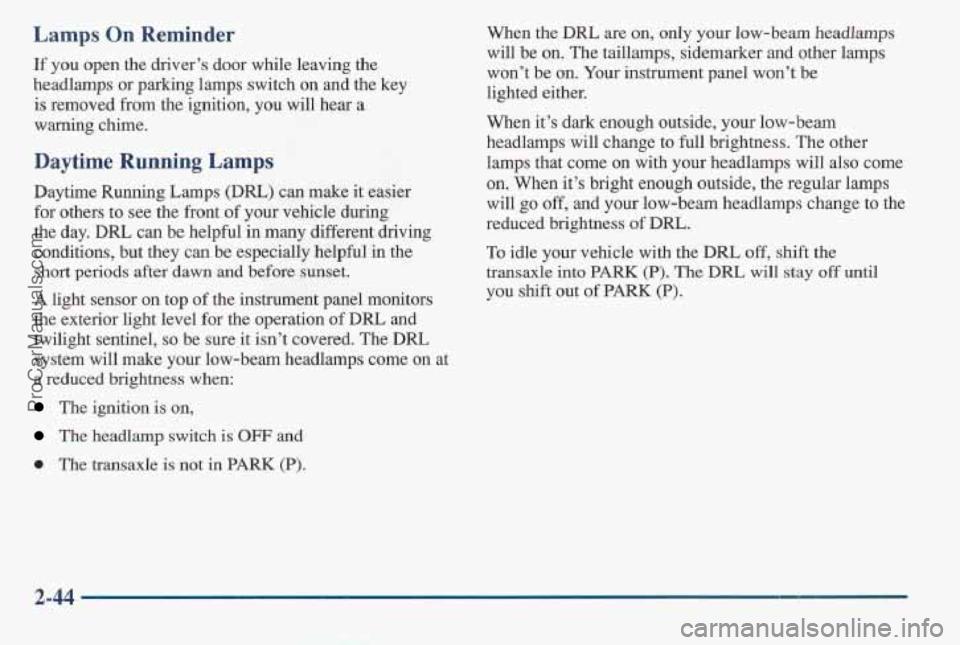

Lamps On Reminder
If you open the driver’s door while leaving the
headlamps or
parking lamps switch! on and the key
is removed from the ignition, you will hear a
warning chime.
Daytime Running Lamps
Daytime Running Lamps (Dm) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.
A light sensor on top of the instrument panel monitors
the exterior light level for the operation
of DRL and
twilight sentinel,
so be sure it isn’t covered. The DlU
system will make your low-beam headlamps come on at
a reduced brightness when:
The ignition is on,
The headlamp switch is OFF and
0 The transaxle is not in PARK (P).
When the DRL are on, only your low-beam headlamps
will be
on. The taillamps, sidemarker and other lamps
won’t be on. Your instrument panel won’t be
lighted either.
When it’s dark enough outside, your low-beam
headlamps will change
to full brightness. The other
lamps that
come on with your headlamps will also come
on. When it’s bright enough outside, the regular lamps
will go
off, and your low-beam headlamps change to the
reduced brightness
of DRL.
To idle your vehicle with the DRL off, shift the
transaxle into
PARK (P). The DRL will stay off until
you shift out of
PARK (P).
2-44
ProCarManuals.com

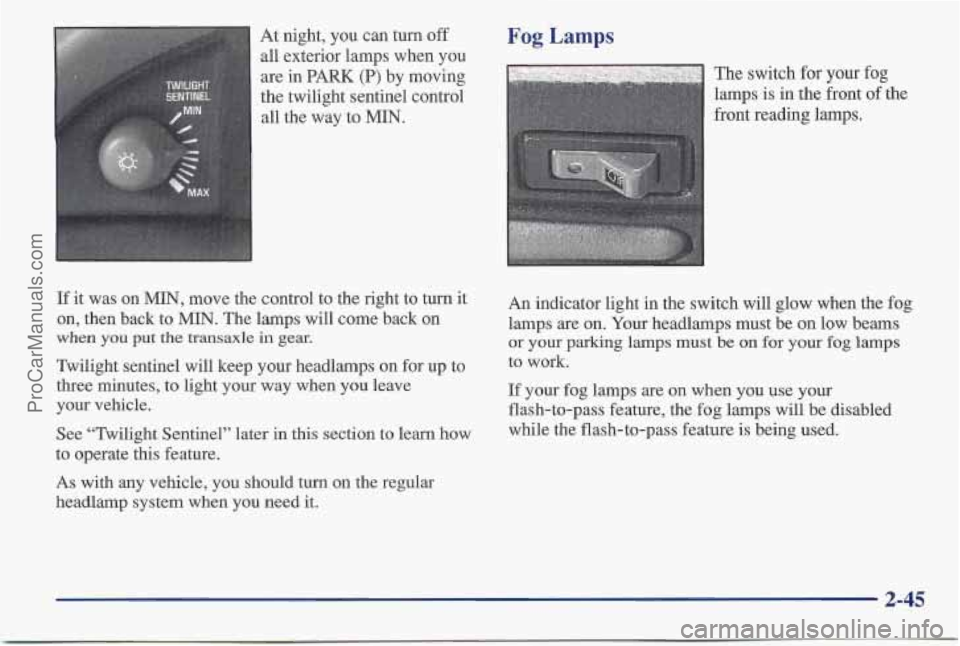

At night, you can turn off
all exterior lamps when you
are in PARK (P) by moving
the twilight sentinel control
all the way to MIN. Fog Lamps
The switch for your fog
lamps is in the front of the
front reading lamps.
If it Was On Mm, move the control to the right to tUlTl it
An indicator light in the switch will glow when the fog
on, then back to MIN. The lamps will come back on
lamps are on. Your headlamps must be on low beams
when you put the transaxle in gear. or your parking lamps must be on for your fog lamps
Twilight sentinel will keep your headlamps on for up to to
Work-
three minutes, to light
your way when you leave If your fog lamps are on when you use your
your vehicle. flash-to-pass feature, the
fog lamps will be disabled
to operate this feature. See
‘‘Twilight Sentinel” later in this section to learn how while the flash-to-pass feature is being used.
As with any vehicle, you should turn on the regular
headlamp system when you need
it.
2-45
ProCarManuals.com

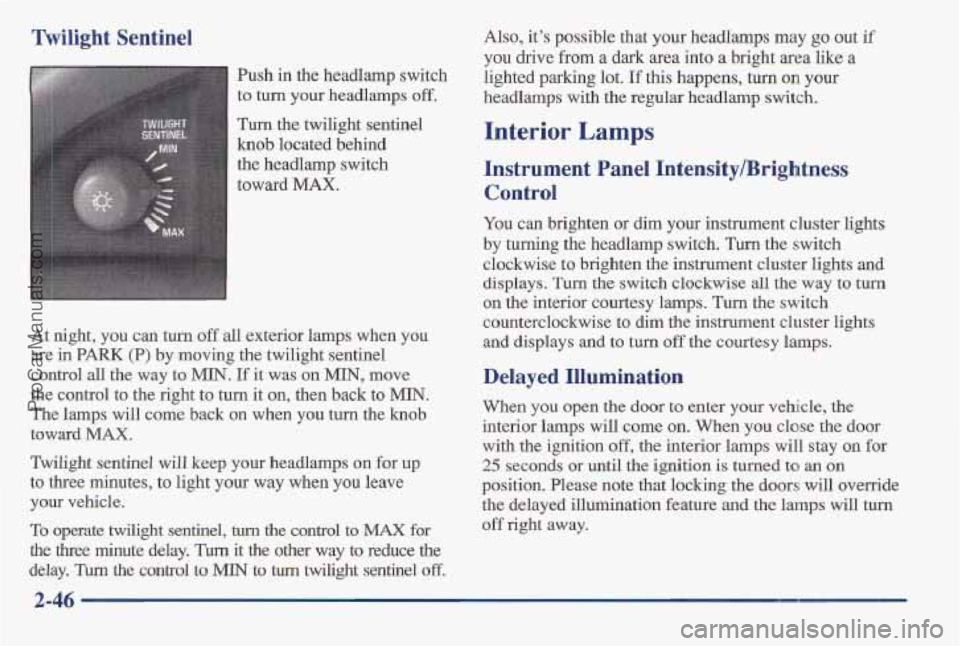

Twilight Sentinel Also, it's possible that your headlamps may go out if
you drive from a dark area into a bright area like a
fish in the headlamp switch
lighted parking lot.
If this happens, turn on your
to turn your headlamps
off. headlamps with the regular headlamp switch,
Turn the twilight sentinel
knob located behind
the headlamp switch
Instrument Panel Intensity/Brightness
toward MAX.
Interior Lamps
Control
You can brighten or dim your instrument cluster lights
by turning the headlamp switch. Turn the switch
clockwise to brighten the instrument cluster lights
and
displays. Turn the switch clockwise all the way to turn
on the interior courtesy lamps. Turn the switch
counterclockwise to dim the instrument cluster lights
and displays and
to turn off the courtesy lamps.
At
night, you can turn off all exterior lamps when you
are in PARK (P) by moving the twilight sentinel
control
all the way to MIN. If it was on MIN, move
the control to the right to turn it on, then back to MIN.
The lamps will come back on when you turn the knob
toward MAX.
Twilight sentinel will keep your headlamps on for up
to three minutes, to light your way when you leave
your vehicle.
To operate twilight sentinel, turn the control to MAX for
the three minute delay. Tm it the other way to reduce the
delay.
Turn the control to MIN to turn twilight sentinel off.
Delayed Illumination
When you open the door to enter your vehicle, the
interior lamps will corne on. When you close the door
with the ignition
off, the interior lamps will stay on for
25 seconds or until the ignition is turned to an on
position. Pleas'e note that locking the doors will override
the delayed illumination feature and
the lamps will turn
off right away.
2-46
ProCarManuals.com

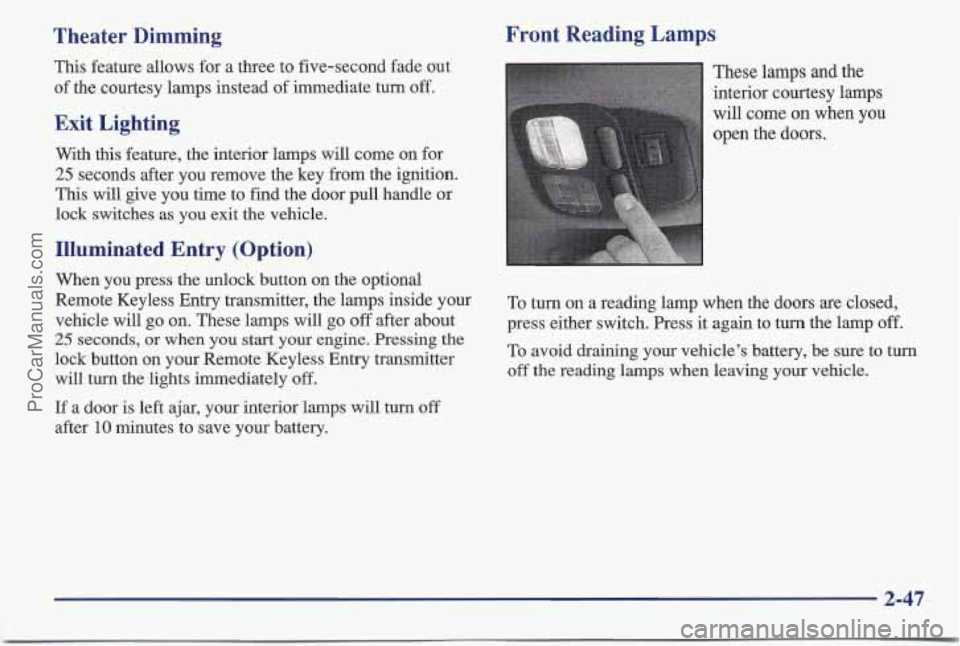

Theater Dimming
This feature allows for a three to five-second fade out
of the courtesy lamps instead
of immediate turn off.
Exit Lighting
With this feature, the interior lamps will come on for
25 seconds after you remove the key from the ignition.
This will give you time to find the door pull handle
or
lock switches as you exit the vehicle.
Illuminated Entry (Option) Front Reading Lamps
These lamps and
the
interior courtesy lamps
will come
on when you
open the doors.
When you press the unlock button on the optional
Remote Keyless Entry transmitter, the lamps inside your
TO turn on a reading lamp when the doors are closed,
vehicle will go
on. These lamps will go off after about press either switch. Press it again to turn the lamp off.
25 seconds, or when you start your engine. Pressing the
lock button on your Remote Keyless Entry transmitter
will turn the lights immediately off.
If a door is left ajar, your interior lamps will turn off
after
10 minutes to save your battery.
To avoid draining your vehicle’s battery, be sure to turn
off the reading lamps when leaving your vehicle.
2-47
ProCarManuals.com

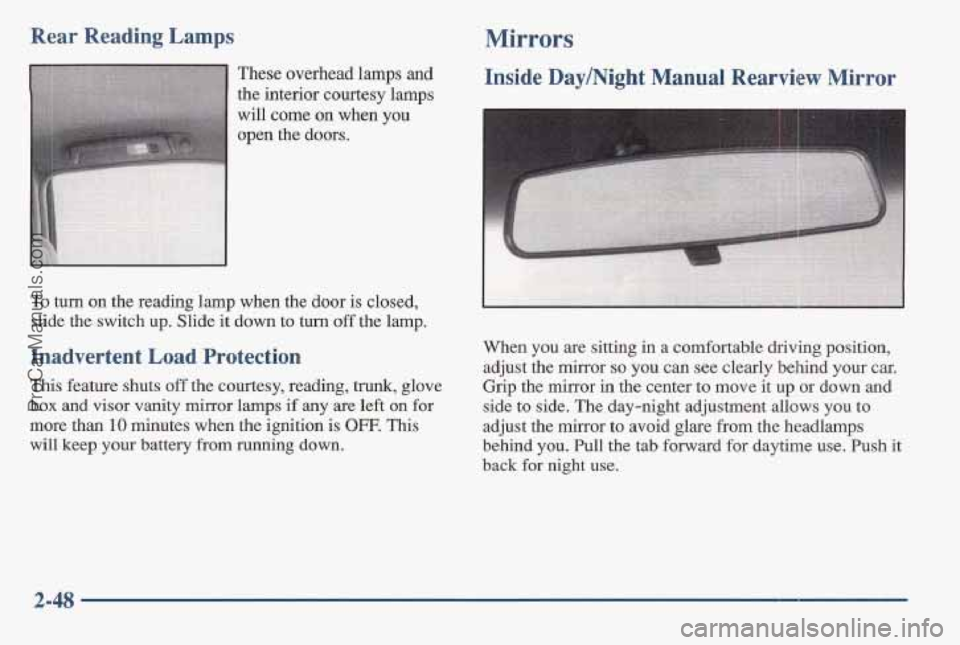

Rear Reading Lamps Mirrors
To turn on the reading lamp when the door is closed,
slide the switch up. Slide it down to turn
off the lamp.
Inadvertent Load Protection
This feature shuts off the courtesy, reading, trunk, glove
box and visor vanity mirror lamps if any are left
on for
more than
10 minutes when the ignition is OFF. This
will keep your battery from running
down.
Inside Day/Night Manual Rearview Mirror
When you are sitting in a comfortable driving position,
adjust the mirror
so you can see clearly behind your car.
Grip the mirror in the center to move
it up or down and
side to side. The day-night adjustment allows you to
adjust the mirror to avoid glare from the headlamps
behind you. Pull the tab forward for daytime use. Push
it
back for night use.
ProCarManuals.com

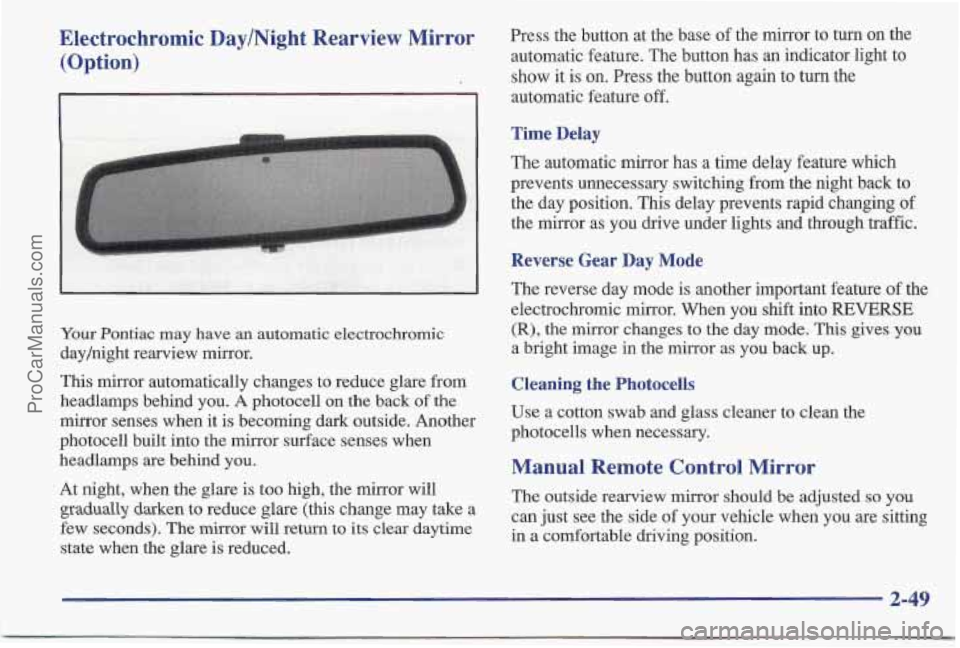

Electrochromic DaylNight Rearview Mirror (Option)
Your Pontiac may have an automatic electrochromic
dayjnight rearview mirror.
This mirror automatically changes
to reduce glare from
headlamps behind you. A photocell on the back of the
mirror senses when it is becoming dark outside. Another
photocell built into the mirror surface senses when
headlamps are behind you.
At night, when the glare is too high, the mirror will
gradually darken to reduce glare (this change may take a
few seconds). The mirror
will return to its clear daytime
state when the glare is reduced. Press the button at the base
of the mirror to turn on the
automatic feature. The button has an indicator light to
show it is on. Press the button
again to turn the
automatic feature
off.
Time Delay
The automatic mirror has a time delay feature which
prevents unnecessary switching from the night back to
the day position. This delay prevents rapid changing of
the mirror as you drive under lights and through traffic.
Reverse Gear Day Mode
The reverse day mode is another important feature of the
electrochromic mirror. When you shift into
REVERSE
(R), the mirror changes to the day mode. This gives you
a bright image in the mirror as you back
up.
Cleaning the Photocells
Use a cotton swab and glass cleaner to clean the
photocells when necessary.
Manual Remote Control Mirror
The outside rearview mirror should be adjusted so you
can just see the side of your vehicle when you
are sitting
in
a comfortable driving position.
2-49
ProCarManuals.com

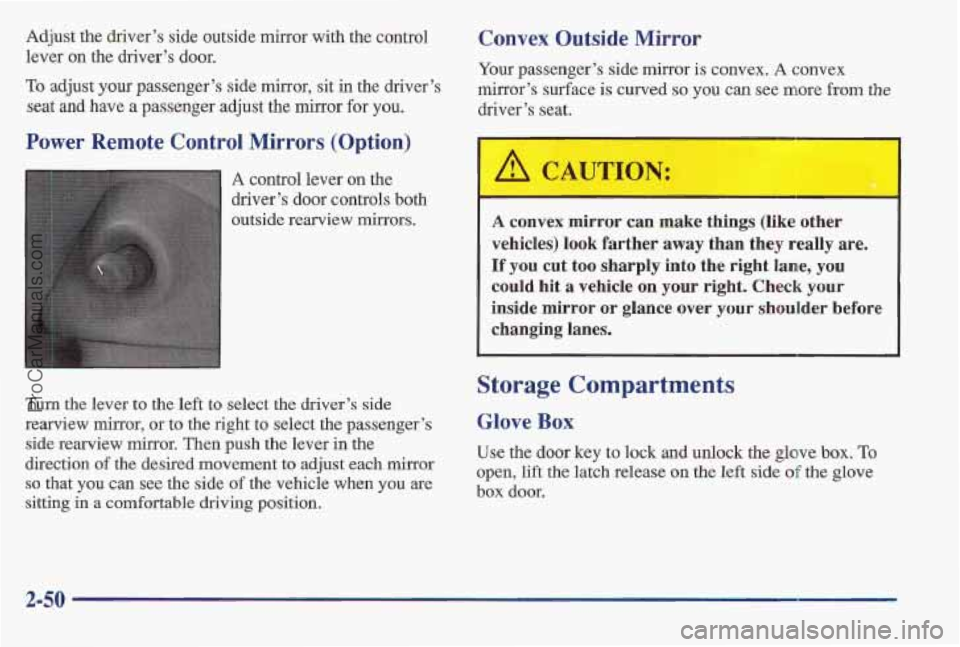

Adjust the driver’s side outside mirror with the control
lever on the drives’s door.
To adjust your passenger’s side mirror, sit in the driver’s
seat and have a passenger adjust the mirror for you.
Power Remote Control Mirrors (Option)
A control lever on the
driver’s door controls both
outside rearview mirrors.
Turn the lever to the left to select the driver’s side
rearview mirror,
or to the right to select the passenger’s
side rearview
mirror. Then push the lever in the
direction of
the desired movement to adjust each mirror
so that you can see the side of the vehicle when you are
sitting in
a comfortable driving position.
Convex Outside Mirror
Your passenger’s side mirror is convex. A convex
mirror’s surface is curved so you can see more from the
driver’s seat.
A CAUTION:
-
A convex mirror can make things (like other
vehicles)
look farther away than they really are.
If you cut too sharply into the right lane, you
could
hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Glove Box
Use the door key to lock and unlock the glove box. To
open, lift the latch release on the left side of the glove
box door.
2-50
ProCarManuals.com

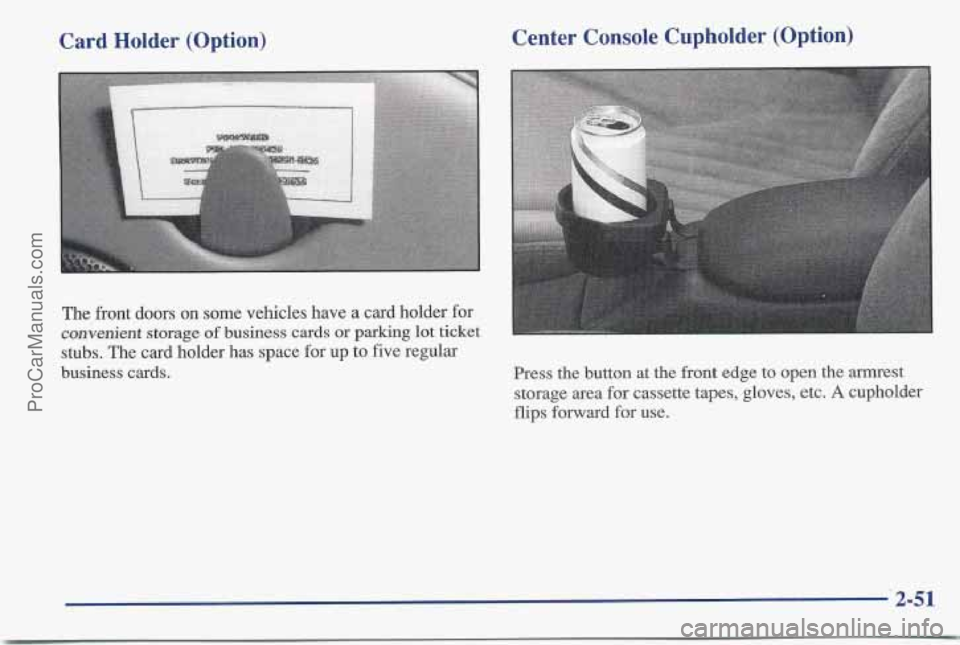

Card Holder (Option) Center Console Cupholder (Option)
The
front doors on some vehicles have a card holder for
convenient storage of business cards or parking lot ticket
stubs. The card holder has space
for up to five regular
business cards. Press the button at the front edge to open the armrest
storage area
for cassette tapes, gloves, etc. A cupholder
flips forward for use.
2-51
