1997 PONTIAC BONNEVILLE Owners Manual

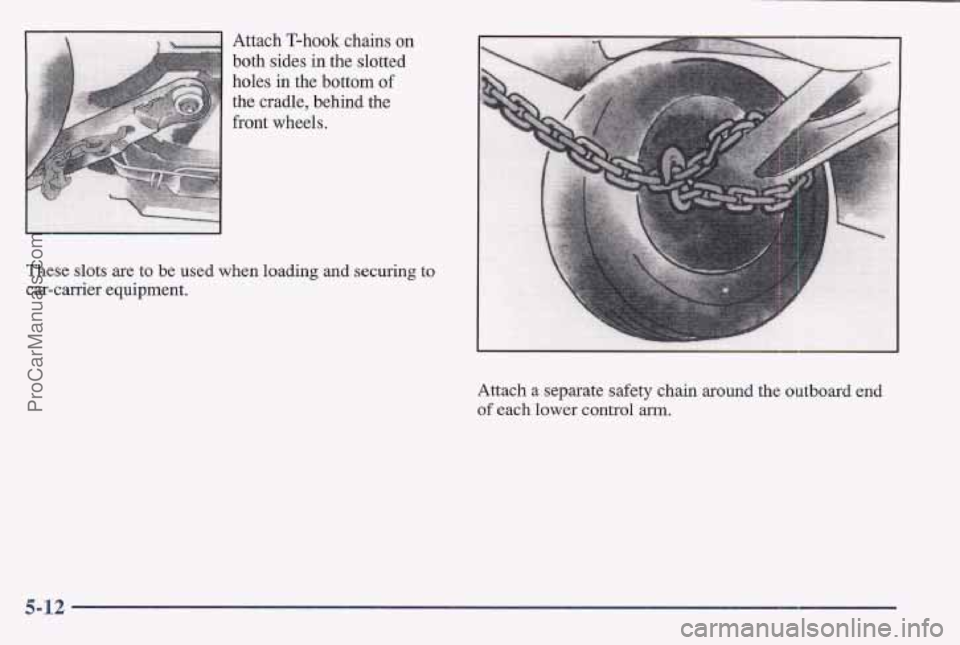

Attach T-hook chains on
both sides in the slotted
holes in the bottom of
the cradle, behind the
front wheels.
These slots are to be used when loading and securing to
car-carrier equipment.
Attach a separate safety chain around the outboard end
of each lower control arm.
5-12
ProCarManuals.com

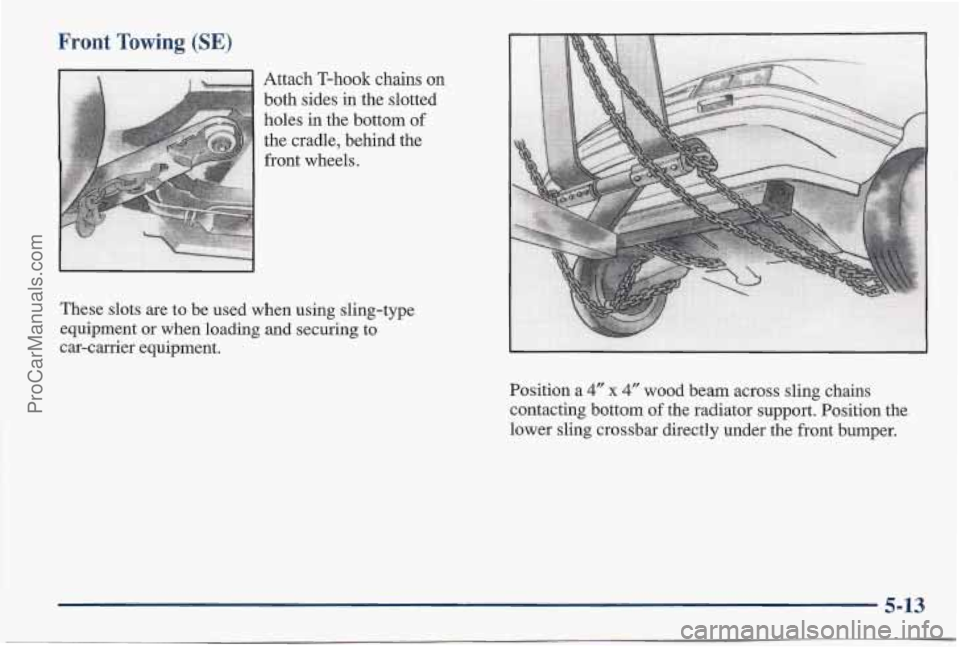

Front Towing (SE)
Attach T-hook chains on
both sides in the slotted
holes in the bottom of
the cradle, behind the
front wheels.
These slots are to be used when using sling-type
equipment
or when loading and securing to
car-carrier equipment.
Position a
4” x 4” wood beam across sling chains
contacting bottom
of the radiator support. Position the
lower sling crossbar directly under the fiont bumper.
5-13
ProCarManuals.com

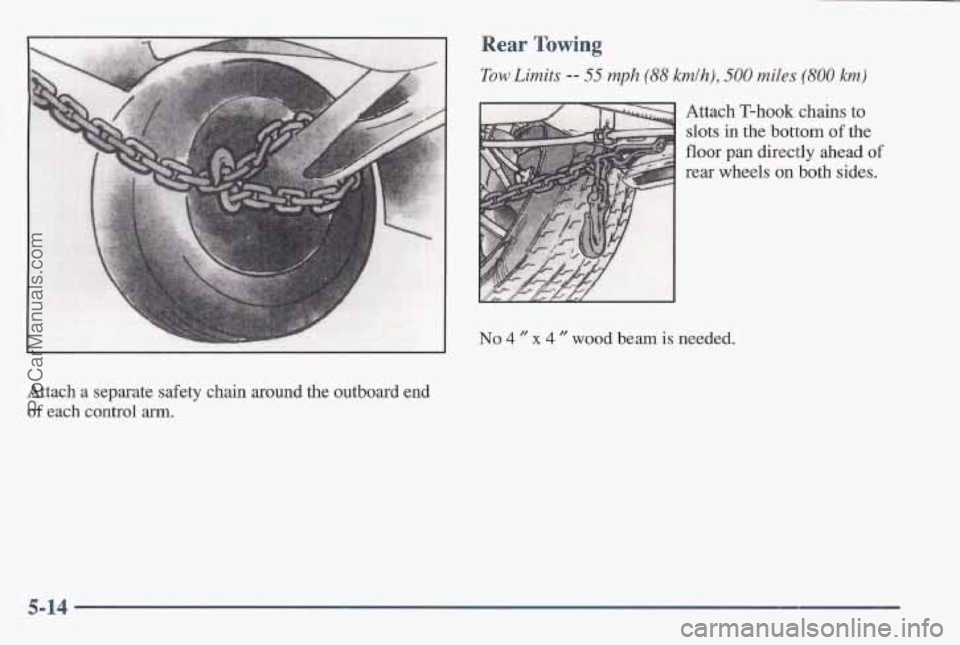

Attach a separate safety chain around the outboard end
of each control am.
Rear Towing
Tow Limits -- 55 mph (88 kmlh), 500 miles (800 km)
Attach T-hook chains to
~ slots in the bottom of the
floor pan directly ahead of
rear wheels on both sides.
No 4 ” x 4 I’ wood beam is needed.
5-14
ProCarManuals.com

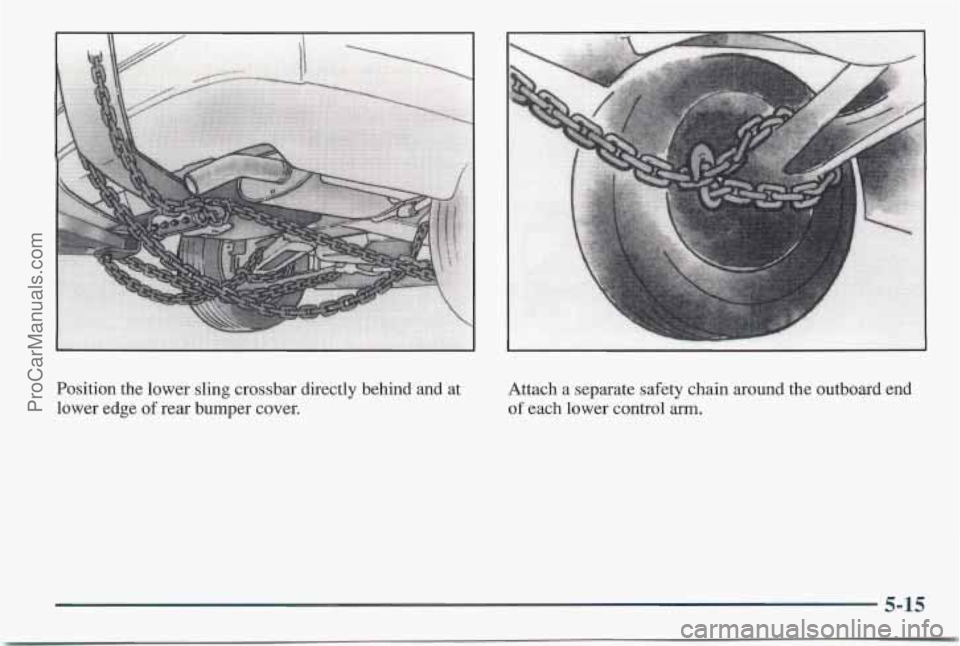

Position the lower sling crossbar directly behind and at
lower edge
of rear bumper cover. Attach
a separate
safety chain around the outboard end
of each lower control arm.
5-15
ProCarManuals.com

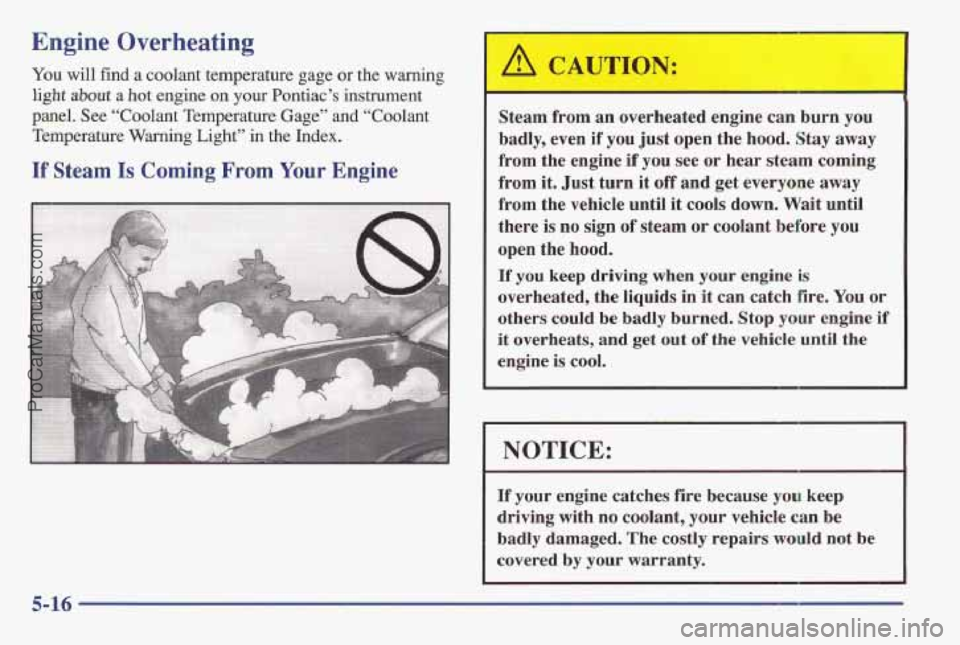

Engine Overheating
You will find a coolant temperature gage or the warning
light about a hot engine on your Pontiac’s instrument
panel. See “Coolant Temperature
G’age” and “Coolant
Temperature Warning Light” in the Index.
If Steam Is Coming From Your Engine
Steam from an overheated engine can burn you
badly, even if you just open the hood. Stay away
from the engine if
you see or hear steam coming
from it. Just turn it off and get everyone away
fro’m the vehicle until it cools down. Wait until
there
is no sign of steam or coolant before you
open
the ho’od.
If you keep driving when your engine is
overheated, the liquids in it can catch fire. You
or
others could be badly burned. Stop your engine if
it overheats, and get out of the vehicle until the
engine
is cool.
NOTICE:
If your engine catches fire because you keep
driving with no coolant, your vehicle can be
badly damaged. The costly repairs would not be ~
covered by your warranty.
5-16
ProCarManuals.com

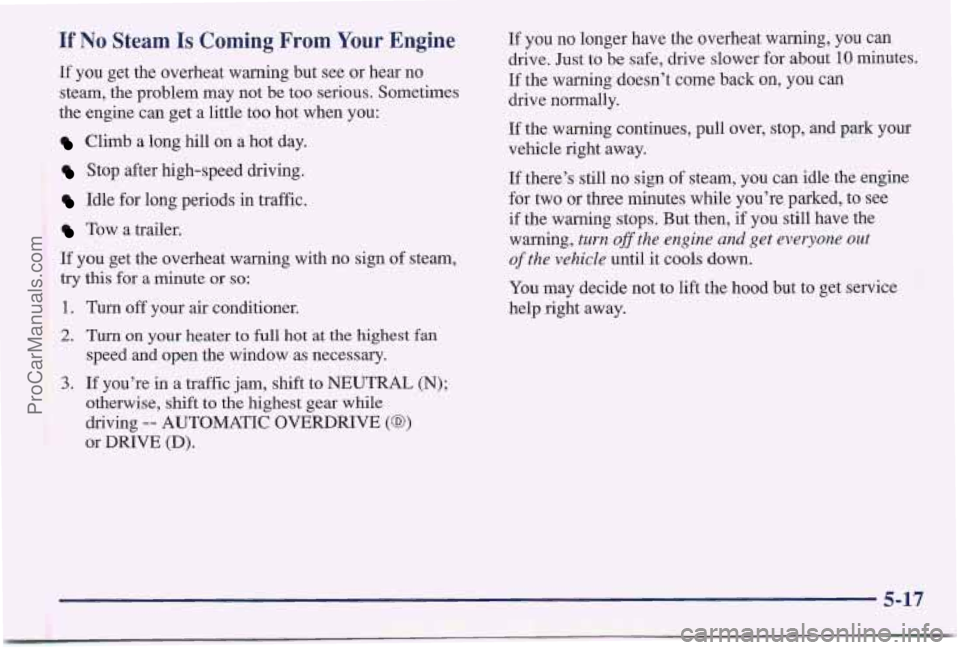

If No Steam Is Coming From Your Engine
If you get the overheat warning but see or hear no
steam, the problem may not be
too serious. Sometimes
the engine can get a little too hot when you:
Climb a long hill on a hot day.
Stop after high-speed driving.
Idle for long periods in traffic.
Tow a trailer.
If you get the overheat warning with no sign of steam,
try this
for a minute or so:
1. Turn off your air conditioner.
2. Turn on your heater to full hot at the highest fan
speed and open the window as necessary.
3. If you’re in a traffic jam, shift to NEUTRAL (N);
otherwise, shift to the highest gear while
driving
-- AUTOMATIC OVERDRIVE (@)
or DRIVE (D).
If you no longer have the overheat warning, you can
drive. Just to be safe, drive slower for about 10 minutes.
If the warning doesn’t come back on, you can
drive normally.
If the warning continues, pull over, stop, and park your
vehicle right away.
If there’s still no sign of steam, you can idle the engine
for two or three minutes while you’re parked, to see
if the warning stops. But then, if you still have the
warning,
turn off the engine and get everyone out
of the vehicle until it cools down.
You may decide not to lift the hood but to get service
help right away.
5-17
ProCarManuals.com

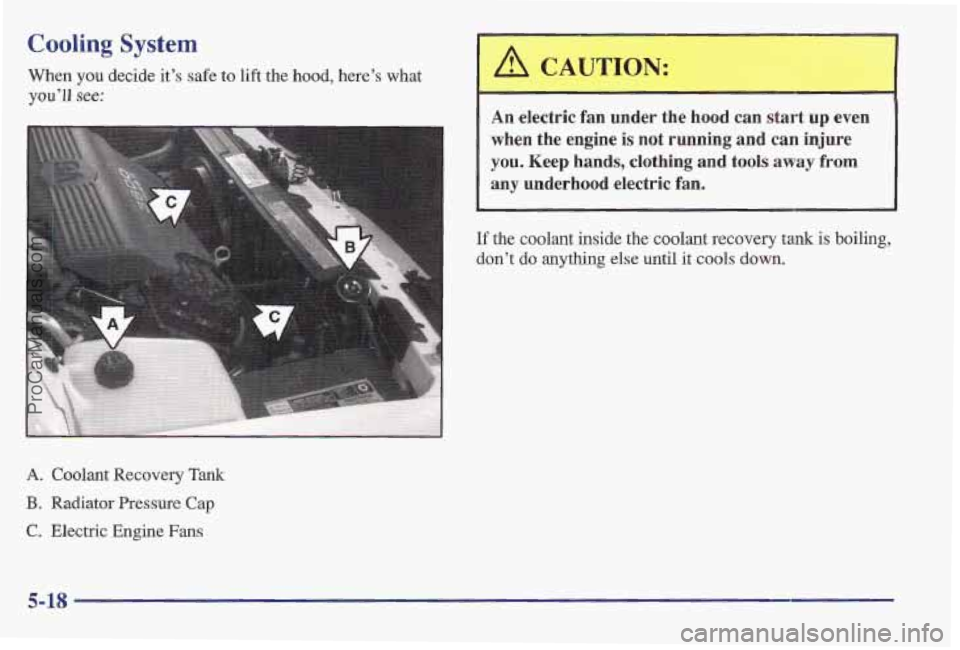

Cooling System
you’ll see:
When you decide it’s safe to lift the hood, here’s what
A. Coolant Recovery Tank
E. Radiator Pressure Cap
C. Electric Engine Fans
1
’ A CAUTION:
r
An electric fan under the hood can start up even
when the engine
is not running and can injure
you. Keep hands, clothing and tools away from
any underhood electric fan.
If the coolant inside the coolant recovery tank is boiling,
don’t do anything
else until it cools down.
5-18
ProCarManuals.com

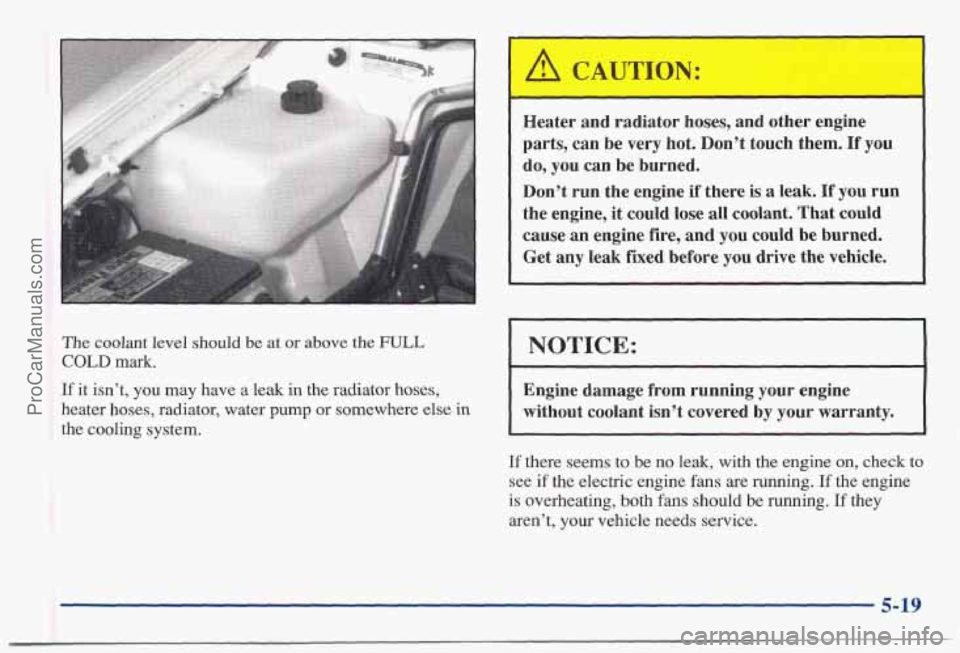

The coolant level should be at or above the FULL
COLD mark.
If it isn’t, you may have a leak in the radiator hoses,
heater hoses, radiator, water
pump or somewhere else in
the cooling system. Heater and radiator
hoses, and other engine
parts, can be
very hot. Don’t touch them. If you
do, you can be burned.
Don’t run the engine if there is
a leak. If you run
the engine, it could lose all coolant. That could
cause an engine fire, and you could be burned.
Get any leak fixed before you drive the vehicle.
I NOTICE: I
Engine damage from running your engine
without coolant isn’t covered by your warranty.
If there seems to
be no leak, with the engine on, check to
see if the electric engine fans are running. If the engine
is overheating, both
fans should be running. If they
aren’t, your vehicle needs service.
5-19
