1997 OLDSMOBILE CUTLASS Owners Manual

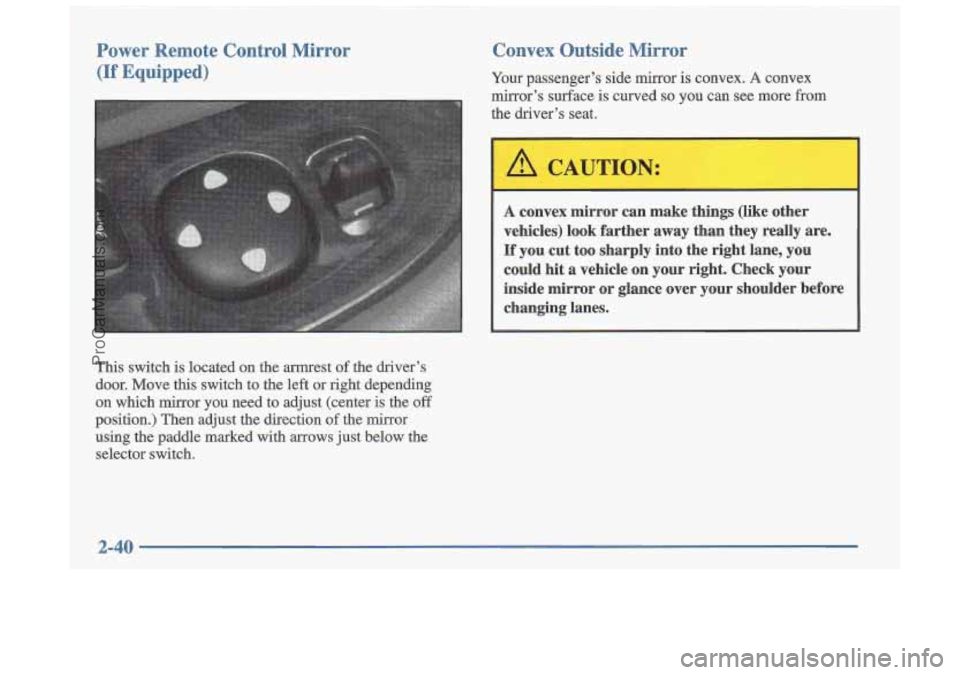

Convex Outside Mirror Power Remote Control Mirror
(If Equipped) Your passenger’s side mirror is convex. A convex
mirror’s surface is curved so you can see more from
the driver’s seat.
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before changing lanes.
This switch is located on the armrest of the driver’s
door. Move this switch to the left or right depending
on which mirror you need to adjust (center is the
off
position.) Then adjust the direction of the mirror
using the paddle marked with arrows just below the
selector switch.
2-40
ProCarManuals.com

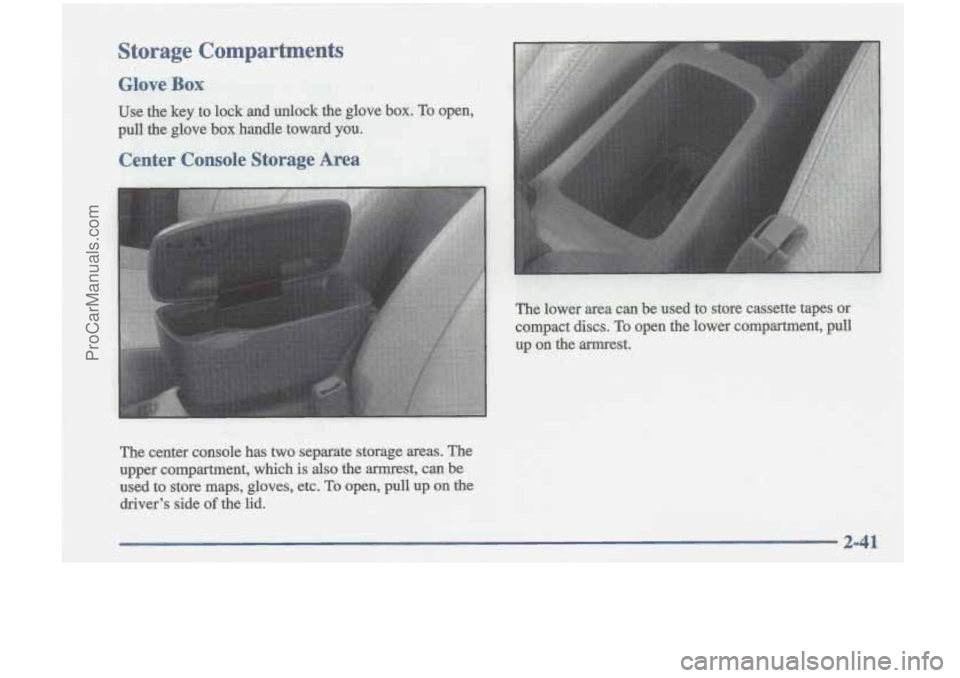

Storage Compartments I
ProCarManuals.com

ProCarManuals.com

Convenience Net (If Equipped)
Your vehicle may have a convenience net. You'll see it
just inside the back wall of the trunk.
Put small loads, like grocery bags, behind the net. It can
help keep them from falling over during sharp
turns or
quick starts and stops.
The net isn't for larger, heavier loads. Store them in the
trunk as far forward as you can.
You can unhook the net so that it will lie flat when
you're not using it.
Sunvisors
To block out glare, you can swing down the visors. You
can also swing them to the side.
-Esor Vanity Mirror
Lift the cover to expose the visor vanity mirror.
~~ 2-43
ProCarManuals.com

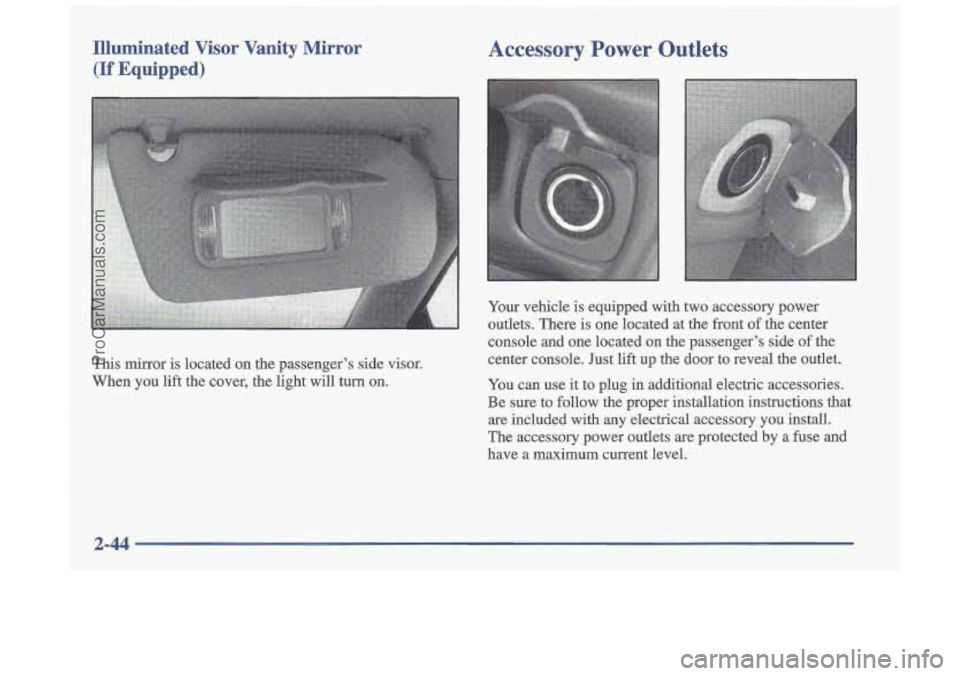

Illuminated Visor Vanity Mirror Accessory Power Outlets
(If Equipped)
This mirror is located on the passenger’s side visor.
When you lift the cover, the light will turn
on.
Your vehicle is equipped with two accessory power
outlets. There is one located at the front of the center
console and one located on the passenger’s side of the
center console. Just lift up the door to reveal the outlet.
You can use it to plug in additional electric accessories.
Be sure to follow the proper installation instructions that
are included with any electrical accessory you install.
The accessory power outlets
are protected by a fuse and
have a maximum current level.
2-44
ProCarManuals.com

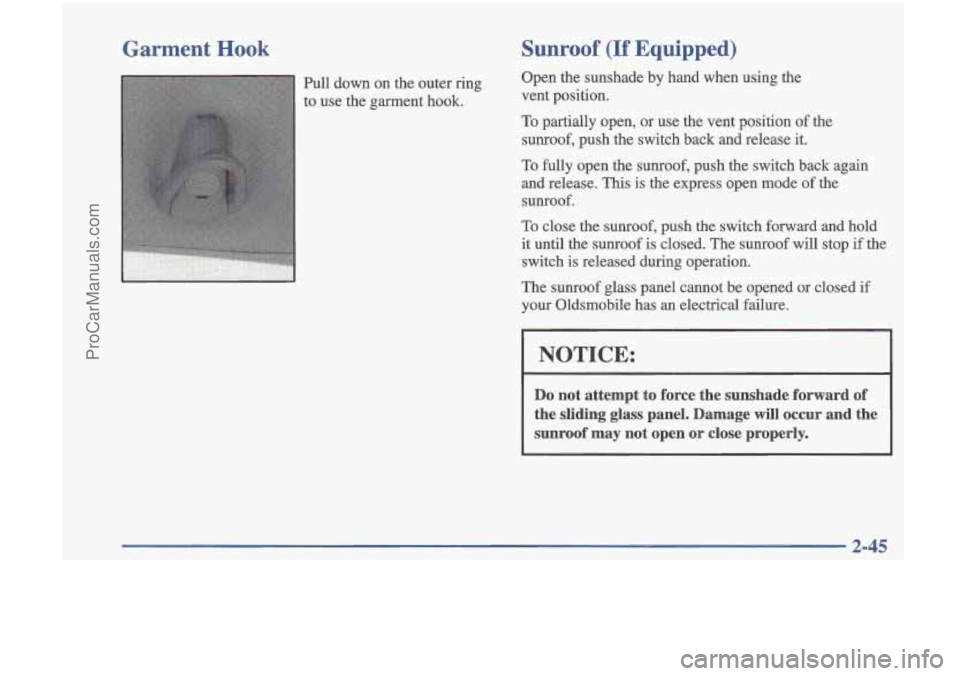

Garment Hook
Pull down on the outer ring
to use the garment hook.
Sunroof (If Equipped)
Open the sunshade by hand when using the
vent position.
To partially open, or use the vent position of the
sunroof, push the switch back and release it.
To fully open the sunroof, push the switch back again
and release. This is the express open mode of the
sunroof.
To close the sunroof, push the switch forward and hold
it until the sunroof is closed. The sunroof will stop
if the
switch is released during operation.
The sunroof glass panel cannot be opened or closed
if
your Oldsmobile has an electrical failure.
NOTICE:
Do not attempt to force the sunshade forward of
the sliding glass panel. Damage will occur and the
sunroof may not open or close properly.
2-45
ProCarManuals.com

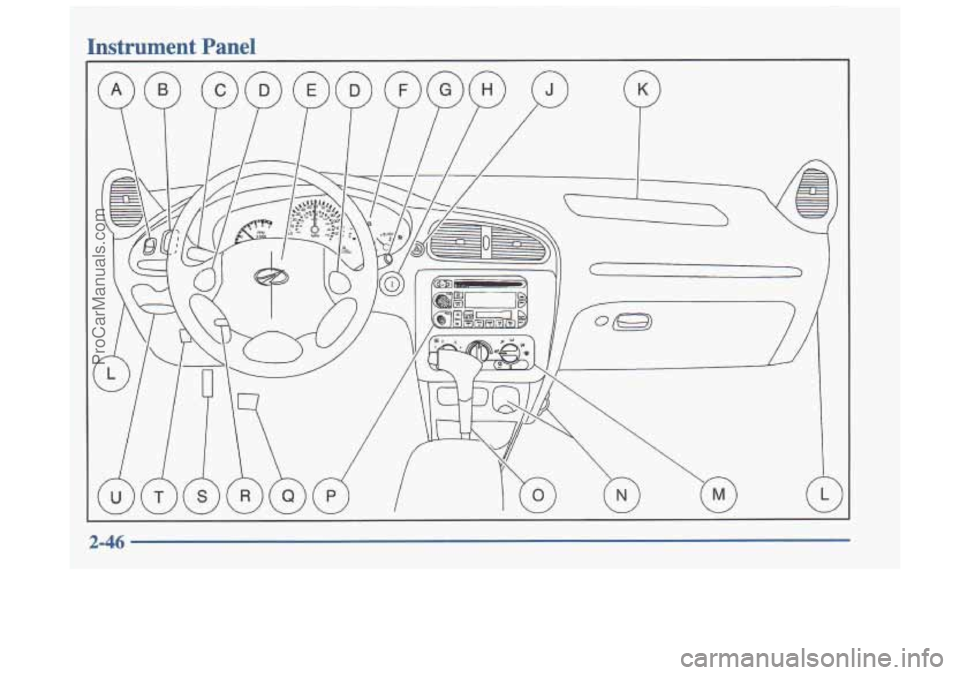

Instrument Panel
I
2-46
ProCarManuals.com

Your instrument panel is designed to let you know at a
glance how your vehicle is running. You’ll know how
fast you’re going, how much fuel you’re using, and
many other things you’ll need to drive safely and
economically.
The main components of your instrument panel are:
A. Fog Lamp Switch
B. Instrument Panel intensity Control
C. Turn SignalMultifunction Lever
D. Cruise Control Switches (If Equipped)
E. Supplemental Restraint System (SRS) and Horn
F. Instrument Panel Cluster
G. Windshield Wipermasher Lever
H. Ignition Switch
J. Hazard Warning Flashers Switch
K. Supplemental Restraint System (SRS)
L. Fuse Panels
M. Climate Control System
N. Accessory Power Outlets
0. Gear Shift Lever
P. Audio System
Q. Park Brake Pedal
R. Tilt Wheel Lever
S. Hood Release Lever
T. Trunk Release Button
U. Instrument Panel Cupholder
2-47
-
