1997 MERCEDES-BENZ ML500 trip computer

340 IndexUseful features 164
Ashtrays and cigarette lighter 168
Cup holder 166
Electrical outlet 170
Garage door opener 180
Interior storage spaces 164
Programming or reprogramming the in-
tegrated remote control 182
Tele Aid* 171
Telephone* 170
Trip computer* 186
V
Vehicle
Locking 28
Locking in an emergency 262
Lowering 276
Proper use of 17
Service battery 278
Towing 283
Unlocking 28
Unlocking in an emergency 261
Vehicle and trailer weights and
ratings 207
Vehicle battery 278Vehicle care
Cup holder 238
Engine cleaning 236
Gear selector lever 238
Hard plastic trim items 238
Headlamps 236
Instrument cluster 238
Leather upholstery 239
Light alloy wheels 238
MB Tex upholstery 239
Ornamental moldings 236
Paintwork 235
Parktronic* system sensor 237
Plastic and rubber parts 239
Power washer 235
Seat belts 238
Steering wheel 238
Tail lamps 236
Tar stains 235
Turn signals 236
Upholstery 239
Vehicle washing 236
Window cleaning 237
Wiper blades 237Vehicle identification number (VIN) 292
Vehicle jack 258
Vehicle lighting
Checking 216
Vehicle tool kit 257
Vehicle with CD-changer* 258
Vehicle washing 236
VIN (Vehicle Identification Number) 292,
315
Voice control system* 315
W
Warning indicators
Parktronic* 155
Warning sounds
Drivers seat belts 64
Parking brake 48
Warranty coverage 291
Washer fluid see Windshield washer fluid
Washing the vehicle 234

Fig. 176: Identifying Hooked Extraction Tool (140 589 02 33 00)
REMOVING AND INSTALLING WIPER ARM - AR82.30-P-6100GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
below garage door opener
flap (1) and glass covers
(4)
5Unclip clips (black) (7)
next to the light switches Installation:
Counterhold mounting
plate with puller hooks
inside of headliner.
Hooked extraction
toolFig. 168
6Press both retaining clips
(6) to rear and
simultaneously press
overhead control panel (2)
to front Position narrow
plastic wedge or
screwdriver in front of
retaining lugs.
7Remove overhead control
panel (2) downward
8Remove sliding/tilting
roof switch (S13/2) AR77.20-P-0001GH
9.1Remove trip computer
control module (TRIP)
(N41) With code 245, trip
computer, only.AR54.50-P-0001GH
10Detach interior/roof
connector (X18/2) from
overhead control panel (2)
11Remove overhead control
panel (2)
12Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:09 PMPage 275 © 2006 Mitchell Repair Information Company, LLC.

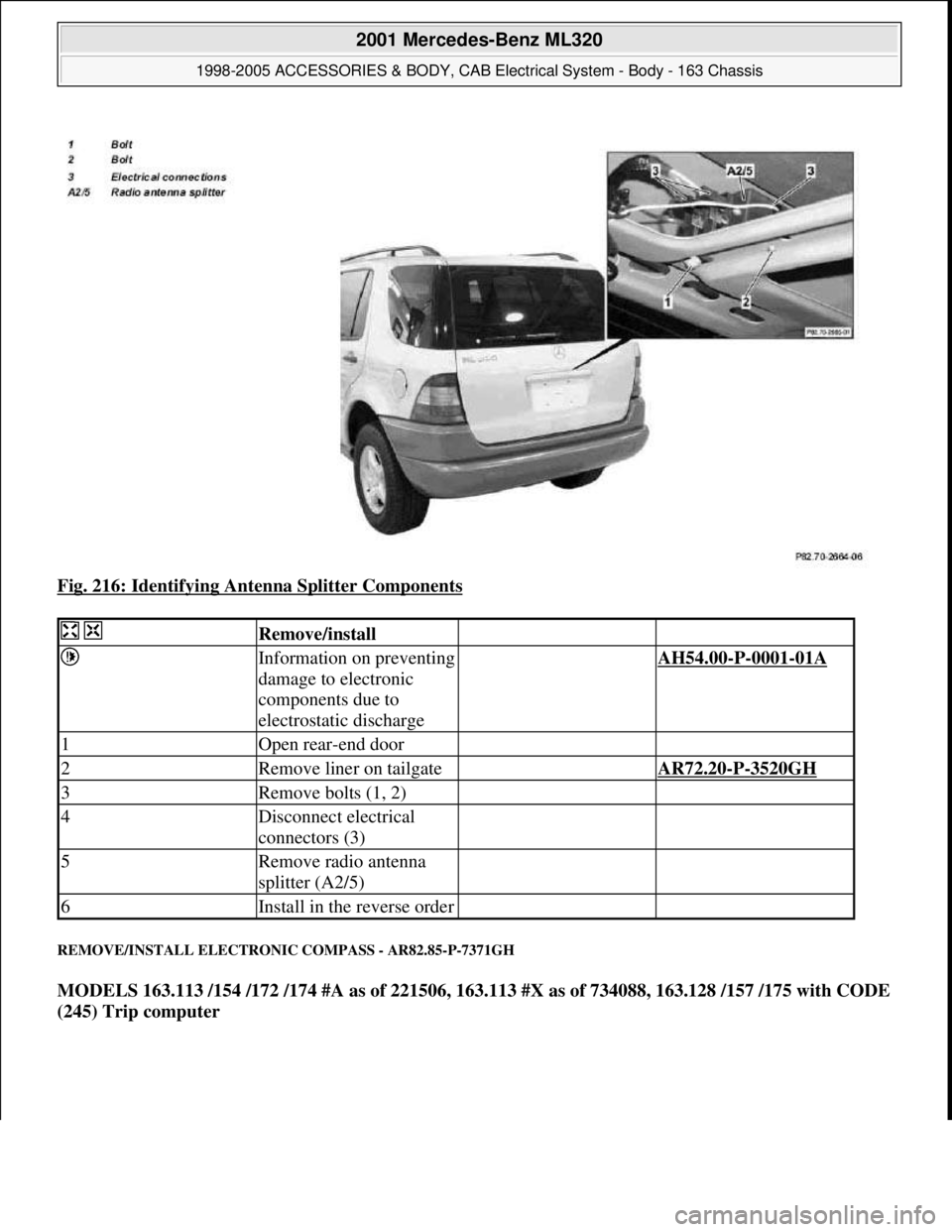

Fig. 216: Identifying Antenna Splitter Components
REMOVE/INSTALL ELECTRONIC COMPASS - AR82.85-P-7371GH
MODELS 163.113 /154 /172 /174 #A as of 221506, 163.113 #X as of 734088, 163.128 /157 /175 with CODE
(245) Trip computer
Remove/install
Information on preventing
damage to electronic
components due to
electrostatic discharge AH54.00-P-0001-01A
1Open rear-end door
2Remove liner on tailgate AR72.20-P-3520GH
3Remove bolts (1, 2)
4Disconnect electrical
connectors (3)
5Remove radio antenna
splitter (A2/5)
6Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:10 PMPage 316 © 2006 Mitchell Repair Information Company, LLC.

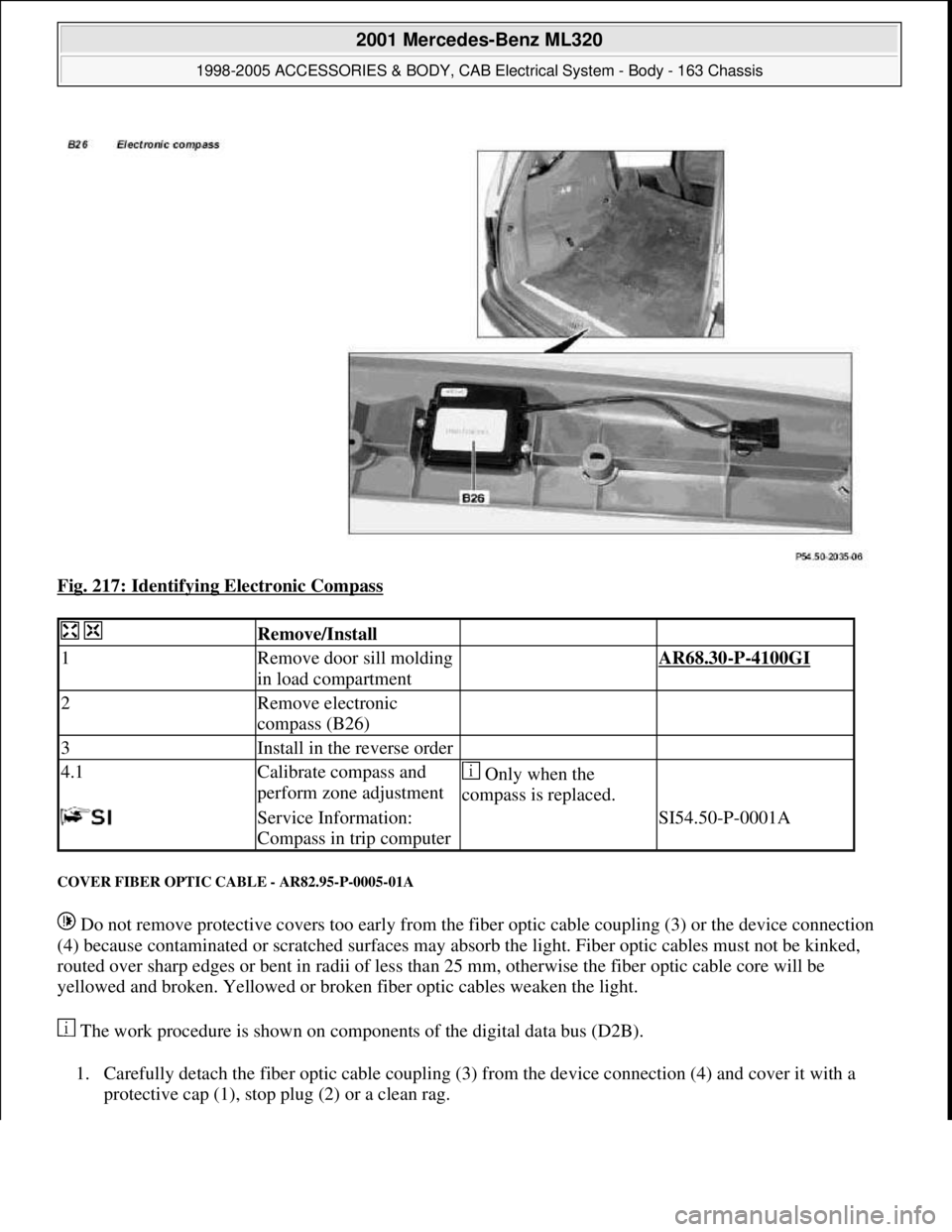

Fig. 217: Identifying Electronic Compass
COVER FIBER OPTIC CABLE - AR82.95-P-0005-01A
Do not remove protective covers too early from the fiber optic cable coupling (3) or the device connection
(4) because contaminated or scratched surfaces may absorb the light. Fiber optic cables must not be kinked,
routed over sharp edges or bent in radii of less than 25 mm, otherwise the fiber optic cable core will be
yellowed and broken. Yellowed or broken fiber optic cables weaken the light.
The work procedure is shown on components of the digital data bus (D2B).
1. Carefully detach the fiber optic cable coupling (3) from the device connection (4) and cover it with a
protective cap (1), stop plug (2) or a clean rag.
Remove/Install
1Remove door sill molding
in load compartment AR68.30-P-4100GI
2Remove electronic
compass (B26)
3Install in the reverse order
4.1Calibrate compass and
perform zone adjustment Only when the
compass is replaced.
Service Information:
Compass in trip computer SI54.50-P-0001A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:10 PMPage 317 © 2006 Mitchell Repair Information Company, LLC.

SI54.50-P-0001A
Service Information: Compass in trip computer
22.10.00

MODELS
163.113 /154 /172 as of 1.9.00,

163.128 /157 /174 /175 with CODE (245) Trip computer

The compass is calibrated in the factory in order to compensate

for deviations caused by magnetic field intensity of the vehicle and

magnetic interference when operating the heated rear window.

Once the compass is calibrated, it never needs to be recalibrated

under normal operating conditions. If a strong deviation in magnetic

field intensity is detected, the compass automatically recalibrates

itself.

A calibration must be carried out if the compass is replaced.
Additionally, the user can fine tune the compass in order to adapt

it to the vehicle's surrounding area. By setting the respective

compass zone, the compass compensates for deviations in the

earth's magnetic field.

The calibration should take place at least 10 m from any source of
interference such as power lines, buildings and parked vehicles.

Zone setting

1
Press the MODE button on the trip computer

until the compass direction is displayed

2
Press the RESET button once

The current compass zone is displayed

3
Press the RESET button until the desired

compass zone is displayed

The maps for determining the correct

compass zone can be found in the owner's

manual. If the RESET button is not pressed

within 5 seconds, the point of the compass is

displayed again.

Compass calibration

4
Bring the compass to the compass zone

display mode

5
Press the MODE button once

Display shows
CAL-
on.

6
Press the RESET button for at least 2 seconds

The hyphen (
-
) in the display disappears.

The calibration mode is active and remains

active until the calibration process has

concluded. If the ignition is switched off and

on, calibration mode remains active, even if
CAL
no longer is displayed.

7
Drive two complete circles at a speed of

between 5 - 10 km/h

Heated rear window switched off.

8
Switch heated rear window on

9
Drive three full circles at a speed from 5 - 10

km/h.

Calibration process concluded.

Although the display can change from
CAL
to

the point of the compass before the

calibration drive has been concluded, the

calibration process is still active and must be

carried out exactly as described.

Copyright DaimlerChrysler AG 18.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

AR68.30-P-4100GI
Remove/install door sill molding
20.4.01

MODEL
163.113 /128 /136 /154 /157 /172 /174 /175

Door sill molding in cargo space

P68.30-2393-11

1
Caps

2
Door sill molding


Remove/install

1
Remove cover caps (1)

Do not scratch door sill molding.

2
Remove screws below caps

3
Remove door sill molding (2)


Installation:
Ensure that sealing rubber is

positioned correctly.

4.1
Disconnect connector from electronic compass

Only as of 01.09.00 and with code (245),

trip computer.

5
Install in the reverse order

Copyright DaimlerChrysler AG 17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

AR68.30-P-4100GI
Remove/install door sill molding
20.4.01

MODEL
163.113 /128 /136 /154 /157 /172 /174 /175

Door sill molding in cargo space

P68.30-2393-11

1
Caps

2
Door sill molding


Remove/install

1
Remove cover caps (1)

Do not scratch door sill molding.

2
Remove screws below caps

3
Remove door sill molding (2)


Installation:
Ensure that sealing rubber is

positioned correctly.

4.1
Disconnect connector from electronic compass

Only as of 01.09.00 and with code (245),

trip computer.

5
Install in the reverse order

Copyright DaimlerChrysler AG 17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

AR68.30-P-4100GI
Remove/install door sill molding
20.4.01

MODEL
163.113 /128 /136 /154 /157 /172 /174 /175

Door sill molding in cargo space

P68.30-2393-11

1
Caps

2
Door sill molding


Remove/install

1
Remove cover caps (1)

Do not scratch door sill molding.

2
Remove screws below caps

3
Remove door sill molding (2)


Installation:
Ensure that sealing rubber is

positioned correctly.

4.1
Disconnect connector from electronic compass

Only as of 01.09.00 and with code (245),

trip computer.

5
Install in the reverse order

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1
