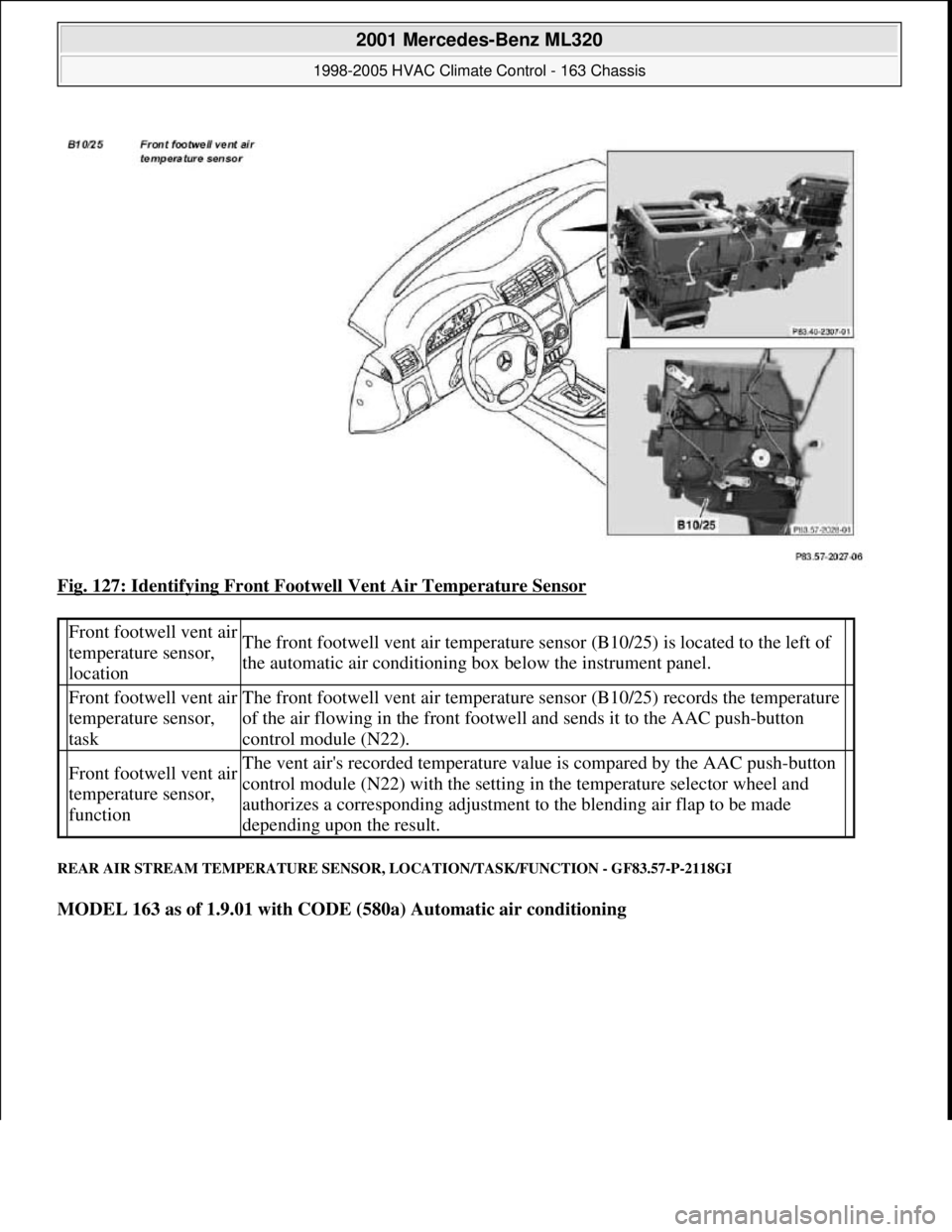

Fig. 127: Identifying Front Footwell Vent Air Temperature Sensor
REAR AIR STREAM TEMPERATURE SENSOR, LOCATION/TASK/FUNCTION - GF83.57-P-2118GI
MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

Front footwell vent air
temperature sensor,
locationThe front footwell vent air temperature sensor (B10/25) is located to the left of
the automatic air conditioning box below the instrument panel.

Front footwell vent air
temperature sensor,
taskThe front footwell vent air temperature sensor (B10/25) records the temperature
of the air flowing in the front footwell and sends it to the AAC push-button
control module (N22).


Front footwell vent air
temperature sensor,
functionThe vent air's recorded temperature value is compared by the AAC push-button
control module (N22) with the setting in the temperature selector wheel and
authorizes a corresponding adjustment to the blending air flap to be made
depending upon the result.


2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:17 PMPage 150 © 2006 Mitchell Repair Information Company, LLC.

Fig. 150: Identifying Switch Unit For Heater/Ventilation Components
REMOVE AND INSTALL HEAT EXCHANGER FROM HEATER HOUSING - AR83.20-P-3400GH
MODEL 163

Remove/install
1Remove radio AR82.60-P-
7502EA
2Remove center part of instrument panel (1) AR68.10-P-
1030GH
3Unscrew bolts at heater/AC controls (4) and
remove controls
4Detach cable (2, 3) Unclip cables at
heater/AC controls.
5Disconnect connector (X72/3) at heater/AC
controls (4)
6Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:18 PMPage 180 © 2006 Mitchell Repair Information Company, LLC.

Fig. 153: Identifying Series Resistor For Heater Blower Components (Shown On Model 163 Up To VIN
A289564, X754619)
REMOVE/INSTALL COVER AT AIR INTAKE - AR83.25-P-1405GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

Remove/install
1Remove cover below instrument panel (2) (on right)Up to VIN A145272,
X708318.AR68.10-P-
1520GH
As of VINA145273,
X708319.AR68.10-P-
1520GI
2Disconnect connector (4) on blower motor series
resistor group (R14)
3Unscrew screws (3) from blower motor series
resistor group (R14) on heater housing (1)
4Remove blower motor series resistor group (R14)
5Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:18 PMPage 183 © 2006 Mitchell Repair Information Company, LLC.

Fig. 158: Identifying Components Of Defroster Vent Flap Actuator Motor For Windshield
REMOVE/INSTALL FOOTWELL FLAP ACTUATOR MOTOR - AR83.30-P-2007GH

Remove/install
1Remove cover below instrument
panel (left) AR68.10-P-
1500GH
2.1Remove electronic transmission
control (ETC) control module Only on models fitted with automatic
transmission.AR27.19-P-
1719GH
3
Disconnect interior and taillamp
wiring harness connector, cockpit
(X18)from bracket(1)

4Remove screws (2)
5Move bracket (1) downwards and
put to one side
6Disconnect plug (3)
7
Remove screws (4) on defroster vent
flap actuator motor (M2/8) from
heater housing

8Remove defroster vent flap actuator
motor (M2/8) Installation:Adjust defroster vent flap
actuator motor (M2/8) to the 0 position
using STAR DIAGNOSIS.

9Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:18 PMPage 190 © 2006 Mitchell Repair Information Company, LLC.

MODELS 163.113 #A as of 289565, 163.113 #X as of 754620, 163.154 /174 #A as of 289565,
163.128/157/175
Fig. 159: Identifying Footwell Flap Actuator Motor Components

Remove/install
1Remove cover below
instrument panel (left) AR68.10-P-
1500GH
2.1 Remove electronic
transmission control
(ETC) control module
Only on models fitted with
automatic transmission.AR27.19-P-
1719GH
3
Disconnect interior and
taillamp wiring harness
connector, cockpit(X18)from
bracket(1)

4Remove screws (2)
5Move bracket (1) downwards
and put to one side
6Disconnect connector (3)
7
Remove screws (4) on defroster
vent flap actuator motor
(M2/15) from heater housing

8
M2/15 Remove footwell flap
Installation: Adjust footwell
flap actuator motor (M2/15) to the

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:18 PMPage 191 © 2006 Mitchell Repair Information Company, LLC.

REMOVE/INSTALL REAR SHUTOFF FLAP ACTUATOR MOTOR - AR83.30-P-2008GH
MODEL 163.113 /154 /174 #A as of 289565, 163.113 #X as of 754620, 163.128/157/175
Fig. 160: Identifying Rear Shutoff Flap Actuator Motor Components

actuator motor0 position using STAR
DIAGNOSIS.
9Install in the reverse order
Remove/install
1Remove cover below
instrument panel (left) AR68.10-P-
1500GH
2.1 Remove electronic
transmission control
(ETC) control module
Only on models fitted with
automatic transmission.AR27.19-P-
1719GH
3
Disconnect interior and taillamp
wiring harness connector,
cockpit(X18)from bracket(1)

4Remove screws (2)
5Move bracket (1) downwards
and put to one side
6Disconnect plug (3)
Remove screws (4) on rear

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:18 PMPage 192 © 2006 Mitchell Repair Information Company, LLC.

REMOVE/INSTALL FRESH AIR/RECIRCULATED AIR STEPPER MOTOR - AR83.30-P-2010GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 with CODE (580) Air conditioning or Tempmatic for
USA
Shown on model 163 up to VIN A289564, X754619
Fig. 161: Identifying Fresh Air/Recirculated Air Stepper Motor Components (Shown On Model 163 Up
To VIN A289564, X754619)
7shutoff flap actuator motor
(M2/12) from heater housing
8Remove rear shutoff flap
actuator motor (M2/12)
Installation: Adjust rear
shutoff flap actuator motor
(M2/12)to 0 position using STAR
DIAGNOSIS.

9Install in the reverse order

Remove/install
1Remove instrument panel AR68.10-P-
1000GH
2Remove front passenger airbag unit AR91.60-P-
0680GH
Disconnect connector (4) from recirculated

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:18 PMPage 193 © 2006 Mitchell Repair Information Company, LLC.

REMOVING AND INSTALLING BLENDING AIR INCREMENT ADJUSTMENT MOTOR - AR83.30-P-2020GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 with CODE (580) Air conditioning or Tempmatic for
USA
Shown on model 163 up to VIN A289564, X754619
Fig. 162: Identifying Blending Air Increment Adjustment Motor Components (Shown On Model 163 Up
To VIN A289564, X754619)
3air flap actuator motor (M39)
4Unscrew screws (3) from recirculated air
flap actuator motor (M39) 3 screws are fitted as of
VIN A289565 X754620.
5Detach recirculated air flap actuator motor
(M39)from AC housing (1)
6Install in the reverse order

Remove/install
1Remove instrument panel AR68.10-P-
1000GH
2Disconnect connector (4) from blend air
flap actuator (M16/8)
3Unscrew screws (3) from blend air flap
screws are fitted as of VIN
A289565 X754620.

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:18 PMPage 194 © 2006 Mitchell Repair Information Company, LLC.
