Fig. 180: Identifying Rear Air Stream Temperature Sensor And Connector
REMOVE, INSTALL IN-CAR TEMPERATURE SENSOR FOR ASPIRATOR BLOWER (M9) - AR83.30-P-8100GH
MODELS 163.113/136/154/172/174 as of 1.9.99 up to 31.8.01

Remove/install
1Remove center console AR68.20-P-
2000GH
2Remove sound deadener
3
Disconnect plug (1) from rear
air stream temperature sensor
(B10/7) The rear air stream temperature sensor
(B10/7) is positioned in the left air nozzle on
the blower motor.

4Remove rear air stream
temperature sensor (B10/7)
Do not damage rear air stream temperature
sensor (B10/7).
Turn rear air stream temperature sensor
(B10/7) 90 counterclockwise.

5Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:19 PMPage 224 © 2006 Mitchell Repair Information Company, LLC.

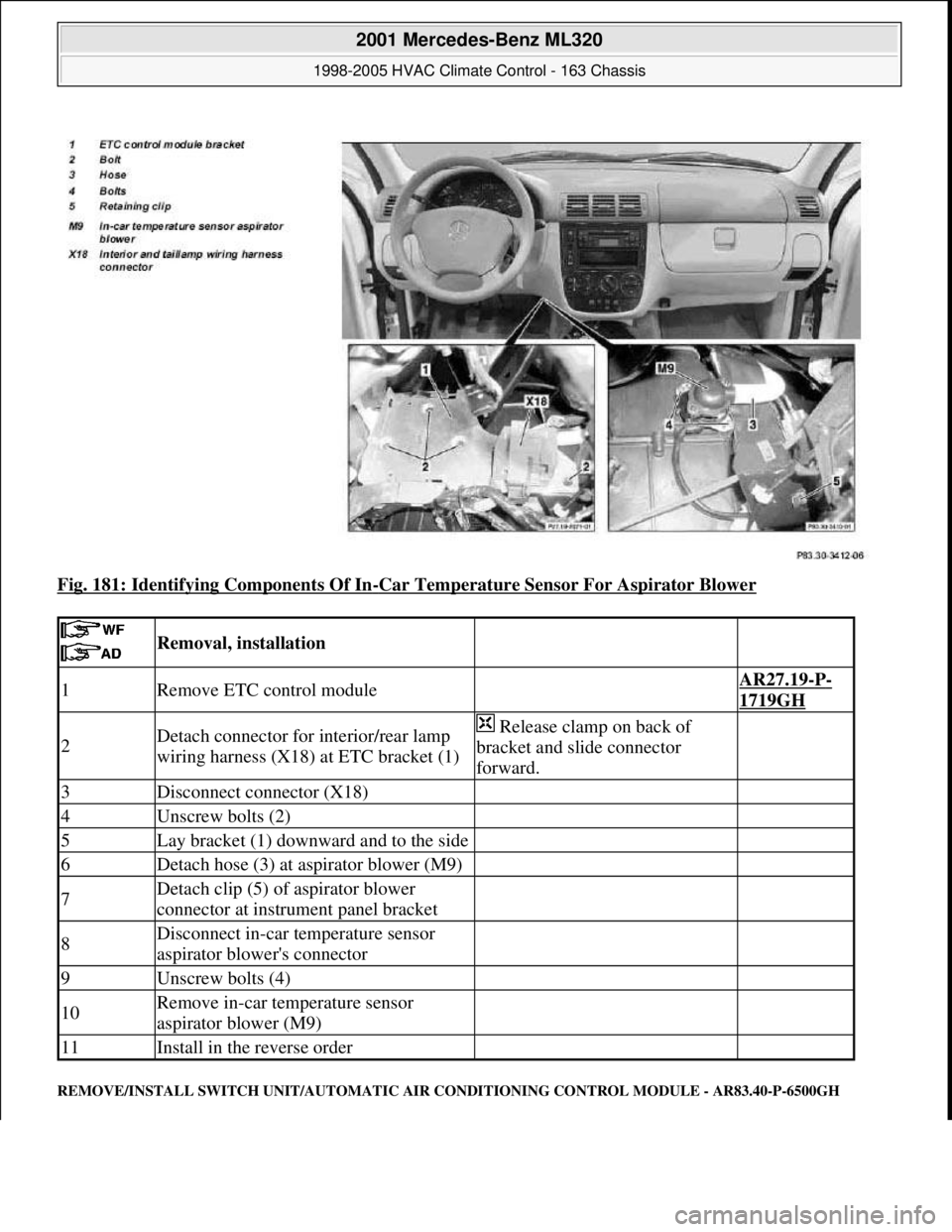

Fig. 181: Identifying Components Of In-Car Temperature Sensor For Aspirator Blower
REMOVE/INSTALL SWITCH UNIT/AUTOMATIC AIR CONDITIONING CONTROL MODULE - AR83.40-P-6500GH

Removal, installation
1Remove ETC control module AR27.19-P-
1719GH
2Detach connector for interior/rear lamp
wiring harness (X18) at ETC bracket (1) Release clamp on back of
bracket and slide connector
forward.

3Disconnect connector (X18)
4Unscrew bolts (2)
5Lay bracket (1) downward and to the side
6Detach hose (3) at aspirator blower (M9)
7Detach clip (5) of aspirator blower
connector at instrument panel bracket
8Disconnect in-car temperature sensor
aspirator blower's connector
9Unscrew bolts (4)
10Remove in-car temperature sensor
aspirator blower (M9)
11Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:19 PMPage 225 © 2006 Mitchell Repair Information Company, LLC.

MODEL 163.113 /154 /174 #A as of 289565, 163.113 #X as of 754620, 163.128/157/175

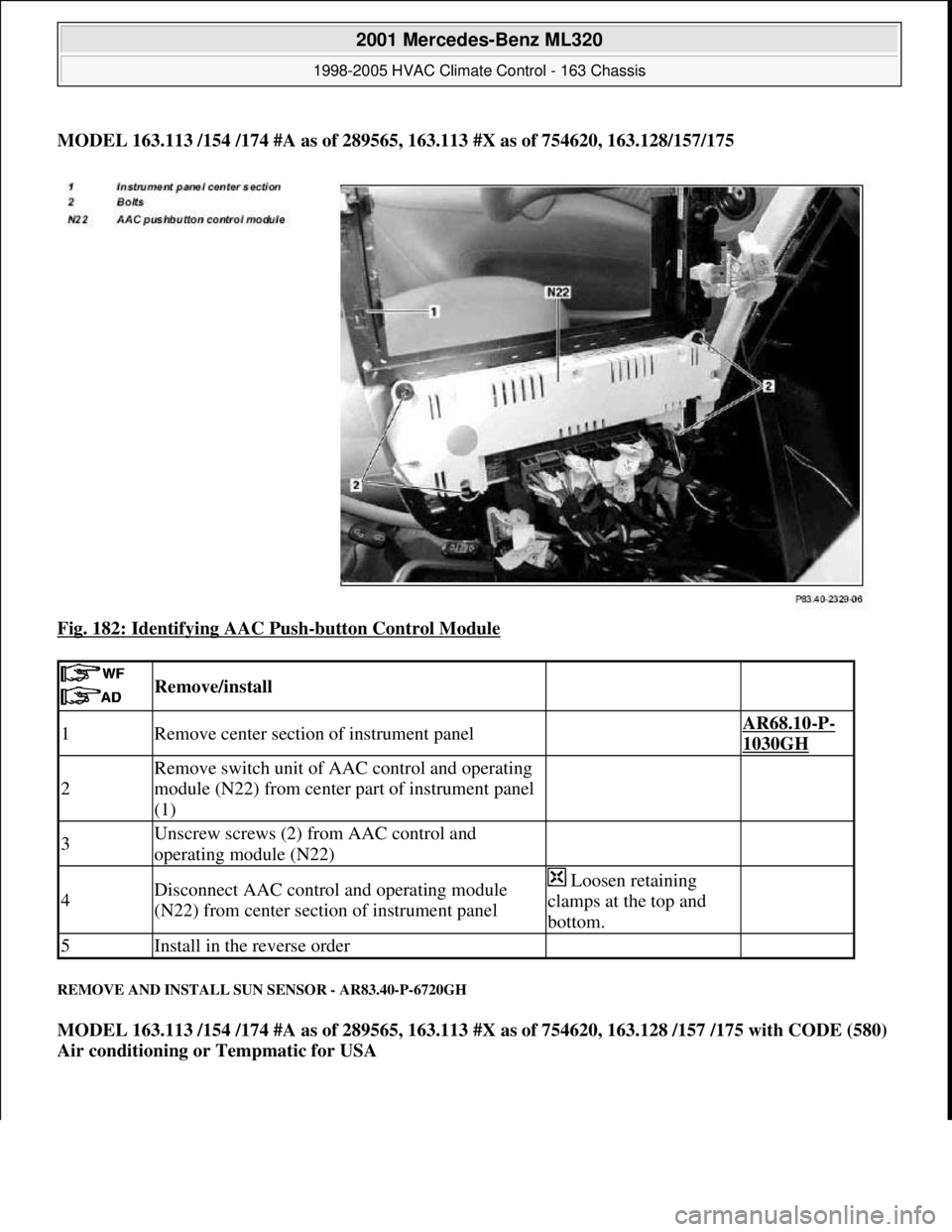

Fig. 182: Identifying AAC Push
-button Control Module
REMOVE AND INSTALL SUN SENSOR - AR83.40-P-6720GH
MODEL 163.113 /154 /174 #A as of 289565, 163.113 #X as of 754620, 163.128 /157 /175 with CODE (580)
Air conditioning or Tempmatic for USA

Remove/install
1Remove center section of instrument panel AR68.10-P-
1030GH
2
Remove switch unit of AAC control and operating
module (N22) from center part of instrument panel
(1)

3Unscrew screws (2) from AAC control and
operating module (N22)
4Disconnect AAC control and operating module
(N22) from center section of instrument panel Loosen retaining
clamps at the top and
bottom.

5Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:19 PMPage 226 © 2006 Mitchell Repair Information Company, LLC.

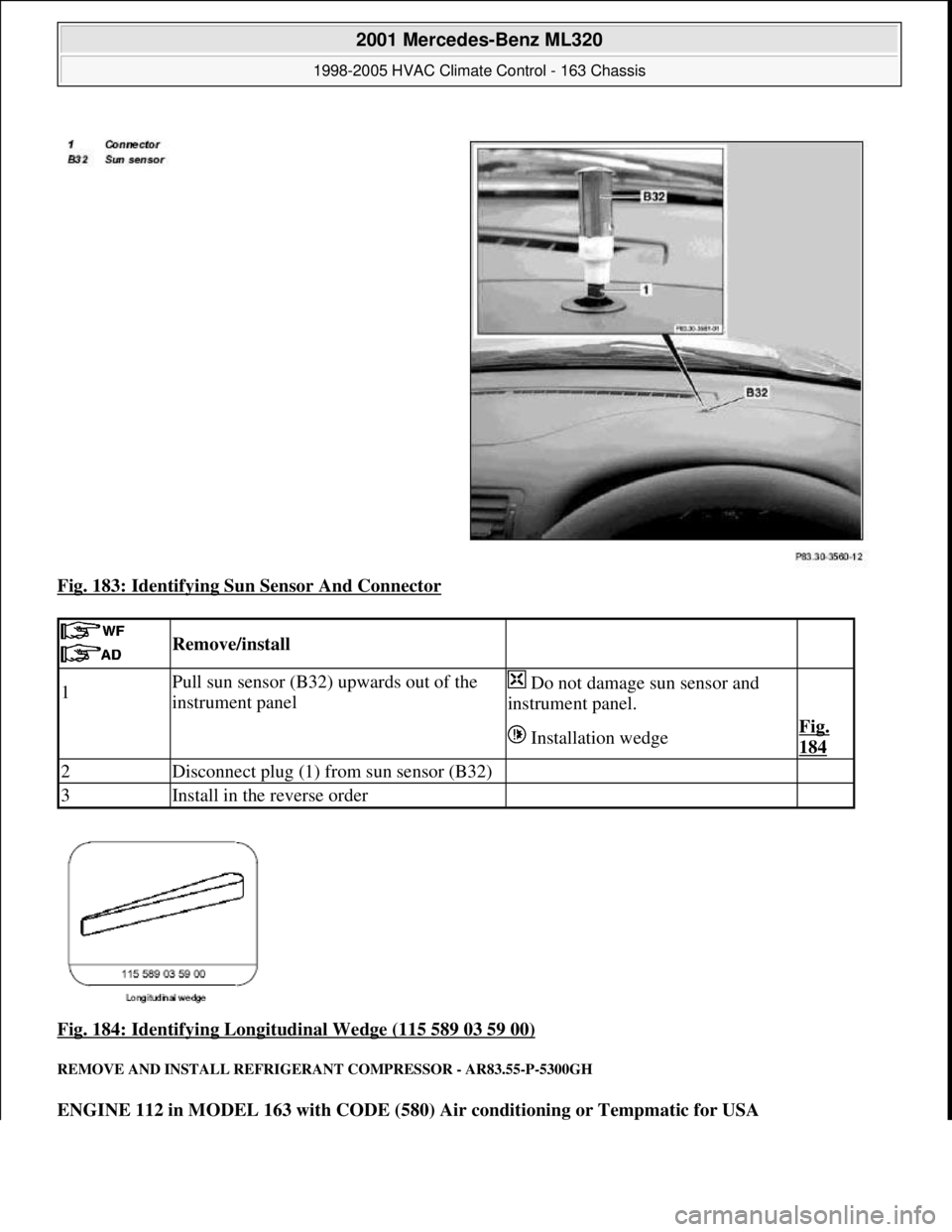

Fig. 183: Identifying Sun Sensor And Connector
Fig. 184: Identifying Longitudinal Wedge (115 589 03 59 00)

REMOVE AND INSTALL REFRIGERANT COMPRESSOR - AR83.55-P-5300GH
ENGINE 112 in MODEL 163 with CODE (580) Air conditioning or Tempmatic for USA

Remove/install
1Pull sun sensor (B32) upwards out of the
instrument panel Do not damage sun sensor and
instrument panel.
Installation wedgeFig.
184
2Disconnect plug (1) from sun sensor (B32)
3Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 HVAC Climate Control - 163 Chassis
me
Saturday, October 02, 2010 3:23:19 PMPage 227 © 2006 Mitchell Repair Information Company, LLC.

GF54.30-P-3003A
Indicator/warning messages triggered via CAN data buses, function
24.10.96

MODEL
129, 140 as of 1.6.96,

163, 168, 170,

202 as of 1.8.96,

208 up to 31.7.99,

210 as of 1.6.96 up to 30.6.99

Indicator and warning displays triggered via CAN

Low brake fluid level/parking brake indicator lamp (A1e7)
The parking brake signal comes from the traction system

control module.

The brake fluid signal comes directly from the switch (S11)

(except model 163).

Brake pad wear indicator lamp (A1e6)

The parking brake signal comes from the traction system

control module (N47)

Low engine oil level indicator lamp (A1e12)

The oil level signal comes from the injection system control

module (N3).

For vehicles with ASSYST, also refer to document: ASSYST

engine oil monitoring.

Preglow indicator lamp (A1e16)

The signal comes directly from the injection system control

module (N3).

Coolant level and temperature warning lamp (A1e11) model 168

only as of 9.99
The coolant temperature signal comes from the injection

system control module (N3)

-----------------------------------------------------------------------------------------
ABS MIL (A1e17)

The parking brake signal comes from the traction system

control module (N47).

"CHECK ENGINE" MIL (A1e26),


I
only

The signal comes from the injection system control module (N3)

ETS (A1e35) or ASR (A1e22) or ESP (A1e42) MIL
Lamp illuminated if there is a fault in the respective system.

The signal comes from the traction system control module

(N47).

ETS (A1e36) or ASR (A1e21) or ESP (A1e41) warning lamp
The lamp indicates that the respective system is active.

The signal comes from the traction system control module

(N47).

-----------------------------------------------------------------------------------------

Severe leak warning (

I
as of 97 only)

The fuel reserve indicator lamp (A1e4) flashes. The signal

comes from the injection system control module (N3).

The warning takes place at the earliest 30 minutes after cold

start with the engine idling and the vehicle stationary.

Also refer to document: Purge system with leak test, function
Fog lamps indicator lamp (A1e57), model 163 only except
I
)

The signal comes from the All-activity module (AAM, N10)

"LOW RANGE" indicator lamp (A1e53), model 163 only
The signal comes from the transfer case control module (N78)

Active service system (ASSYST)
Engines 112, 113, 611 (engines with oil

sensor)

GF00.20-P-2009A

Engine oil monitoring, function
Model 210 as of 01.03.97 with engine M111,

OM602, OM604, OM605 and OM606

As of 06.97 models 129, 140, 170, 202 except

engines 112, 113, 611

(Valid for engines with low oil level switch).
GF00.20-P-2009B

Displaying coolant temperature, function
Model 168 as of 9.99

GF54.30-P-3020GC

Purge system with leak test, function

GF47.30-P-3016L

Bus systems, overall function

GF54.00-P-0004A

Copyright DaimlerChrysler AG 04.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

Rims
D
When changing wheels, for instance, when replacing steel

wheels with light-alloy rims, ensure that the wheel bolts

required for the spare wheel are stored in a clearly visible

location.

D
Since December 1994 models 202 and 124 with special

equipment light alloy disk wheels, are supplied with a sheet

steel spare wheel instead of a light alloy spare wheel. The

necessary wheel bolts are included with the steel spare wheel.

D
Only use approved Mercedes-Benz rims of the same version.

D
Reinforced steel rims are identified by a sticker on the wheel

disc.

D
The wheel bolts on steel and light-alloy rims should always be

tightened to the specified tightening torque using a torque
wrench.

It is not necessary to retorque the lug bolts after approximately

100 to 500 km.
D

The seat for the tire bead must display no corrosion marks.

D
Before inserting a new rubber valve, clean the contact surfaces

on the disk wheel.

On sheet steel-disk wheel wheel trims must be fitted to support

the rubber valve.


Damaged or deformed rims must not be repaired.

Tire pressure monitor
D
Before replacing a tire, check the date of manufacturer of the

wheel sensor: wheel sensors which are more than 5 years old

must be replaced.

D
Use STAR DIAGNOSIS to read out the actual values of the tire

pressure monitor. Check the remaining life of the wheel sensor

battery, replace the wheel sensor if necessary.

Copyright DaimlerChrysler AG 06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2

AR68.40-P-0001GI
Remove/install inside rearview mirror
23.4.01

MODEL
163.136 /154 /172 #A as of 145273,

163.136 /154 /172 #X as of 708319,

163.113 /128 /157 /174 /175

P68.40-2042-06

1
Inside rearview mirror

2
Automatic dimming connector

B38
Rain sensor


Remove/install

1
Turn inside rearview mirror (1) 90 and press

against mirror housing at side.

Danger of breaking windshield.Do not

damage rain sensor (B38), if present.

2.1
Disconnect automatic dimming

connector (2).

Only with automatically dimming inside

rearview mirror, code 249a.

3
Install in the reverse order

Copyright DaimlerChrysler AG 04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

GF54.30-P-0002-01GC
Instrument cluster (IC), block diagram

n

P54.30-0785-06

58
Terminal 58

58d
Terminal 58d

61
Terminal 61

A1
Instrument cluster

X11/4
Data link connector (DTC readout)

a
Engine control module

b
Traction system control module

c
Engine control module inputs, e.g.

ECT sensor

d
Traction system control module

inputs, e.g. wheel speed sensors

e
Direct inputs

f
Transfer case control module (N78)

(model 163 only)

g
Gear recognition module (A61) or

automatic clutch control module

(N15/4) (model 168 only)
