1997 GMC SAVANA Owners Manual

For steady wiping at low speed, turn the band to the
LOW position. For high-speed wiping, turn the
band further, to
HIGH. To stop the wipers, move the
band to
OFF.
Remember that damaged wiper blades may prevent you
from seeing well enough to drive safely.
To avoid
damage, be sure to clear ice and snow from the wiper
blades before using them. If they are frozen to the
windshield, carefully loosen or thaw them. If your
blades do become damaged, get new blades or
blade inserts.
Heavy snow or ice can overload your wipers. The
windshield wiper motor is protected from overload by a
circuit breaker and a fuse.
If the motor overheats due to
heavy snow, etc., the wiper will stop until the motor cools.
Although the circuit is protected from electrical overload,
overload due to heavy snow, etc. may cause wiper linkage
damage. Always clear ice and heavy snow from the
windshield before using your windshield wipers.
Windshield Washer
At the top of the lever, there’s a paddle with the word
PUSH on it. To spray washer fluid on the windshield,
push the paddle.
Washer fluid will spray as long
as you push the paddle.
When you let
go of the paddle, the wipers will continue
to wipe for approximately two more wipe cycles and
then either stop or return to the preset speed.
I1
In freezing weather, don’t use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
2-35
ProCarManuals.com

Cruise Control (Option)
With cruise control, you can maintain a speed of about
25 mph (40 km/h) or more without keeping your foot on
the accelerator. This can really help on long trips. Cruise
control does not work at speeds below about
25 mph
(40km/h).
1 When you apply your brakes, the cruise control
shuts off.
Cruise control can be dangerous where you
can’t drive safely
at a steady speed. So,
don’t use your cruise control on winding
roads or in heavy traffic.
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and you could lose control. Don’t
use cruise control on slippery roads.
0 Cruise contrcil can be dangerous on Setting Cruise Control
I,
If you leave
your cruise control switch on
when you’re not using cruise, you might hit
a
button and go into cruise when you don’t want
to. You could be startled and even lose control.
Keep the cruise control switch
OFF until you
want to use it.
I
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
3. Press in the SET button
at the end
of the lever
and release it.
4. Take your foot off the
accelerator pedal.
2-36
ProCarManuals.com

Resuming a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brake. This,
of course, shuts off
the cruise control. But you don’t need to reset it.
Once you’re going about
25 mph (40 km/h) or more,
you can move the cruise control switch from ON to
R/A (Resume/Accelerate) for about half
a second.
You’ll go right back up to your chosen speed and
stay there.
Remember,
if you hold the switch at WA longer than
half a second, the vehicle will keep going faster until
you release
the switch or apply the brake. So unless you
want to go faster, don’t hold the switch at WA.
Increasing Speed While Using Cruise Control
There are two ways to go to a higher speed:
Use the accelerator pedal to get to the higher speed.
Push the button at the end of the lever, then release
the button and the accelerator pedal. You’ll now
cruise at the higher speed.
Move the cruise switch from ON to RIA. Hold it
there until you get up to the speed you want, and
then release the switch. To increase your speed in
very small amounts, move the switch to WA for less
than half a second. Each time you do this, your
vehicle will go about
1 mph (1.6 Mh) faster.
Reducing Speed While Using Cruise Control
There are two ways to reduce your speed while using
cruise control:
Push in the button at the end of the lever until you
reach the lower speed you want, then release it.
To slow down in very small amounts, push the
button
for less than half a second. Each time you
do this, you’ll go
1 mph (1.6 kmh) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.
2-37
ProCarManuals.com

Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and the steepness
of the hills.
When going up steep hills, you may have
to step on
the accelerator pedal to maintain your speed. If the
steepness of the hill causes the vehicle speed to drop
more than
15 mph (9.4 km/h) below the set speed, your
cruise control will automatically disengage. When going
downhill,
you may have to brake or shift to a lower gear
to keep your speed down.
Of course, applying the brake
takes
you out of cruise control. Many drivers find this to
be too much trouble and don’t use cruise control on
steep hills.
Ending Cruise Control
There are two ways to turn off the cruise control:
Step lightly on the brake pedal; or
Move the cruise switch to OFF.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory is erased.
Exterior Lamps
Your parkingheadlamp switch is on the driver’s side of
your instrument panel.
Your instrument panel dimmer wheel now has two
detent positions.
2-38
ProCarManuals.com

When the wheel is turned to full brilliance, and then into
the first detent position, the radio display and PRNDL
display will go to the day mode (full intensity). This is
known as “parade” mode. The rest
of the I/P
illumination will stay in the maximum dimming state
(full brilliance dimming). Turning the wheel up one
more detent will activate the interior dome light circuit
(with slightly higher effort).
The dome lights cannot be turned on by depressing the
dome light switch button, located below the parkhead
lamp switch knob. This switch is a dome lamp off
switch and will only interrupt inputs from the door jamb
switches, inhibiting interior light operation when
depressed. It will not inhibit the light function from the
I/P dimmer switch.
The delayed entry will allow
you to enter or exit your
vehicle with the lights staying
on for about 20 seconds
after the door
is closed or ignition is cycled.
Rotate the switch knob clockwise to the parking lamp
symbol to turn on:
0 Parking Lamps
0 Sidemarker Lamps
0 Taillamps
License Plate Lamps
Instrument Panel Lights
0 Ashtray Lamp
0 Glove Box Lamp
Rotate the switch
knob clockwise again to the master
lighting symbol to turn on all the lamps listed above as
well as the headlamps.
Rotate the switch counterclockwise to
OFF to turn off
your lamps and lights.
Rotate the thumb wheel next to the switch knob up to
adjust instrument panel lights. Rotate the thumb wheel
up to the first notch to return the radio display and
gearshift indicator Vacuum Fluorescence (VF) display
to full intensity when the headlamps or parking lamps
are on.
Rotate the thumb wheel up
to the second notch to
activate the interior dome lamps.
You can switch your headlamps from high to low beam
by pulling
on the turn signalhigh beam lever.
A circuit breaker protects your headlamps. If you have
an electrical overload, your headlamps will flicker on
and off. Have your headlamp wiring checked right away
if this happens.
ProCarManuals.com

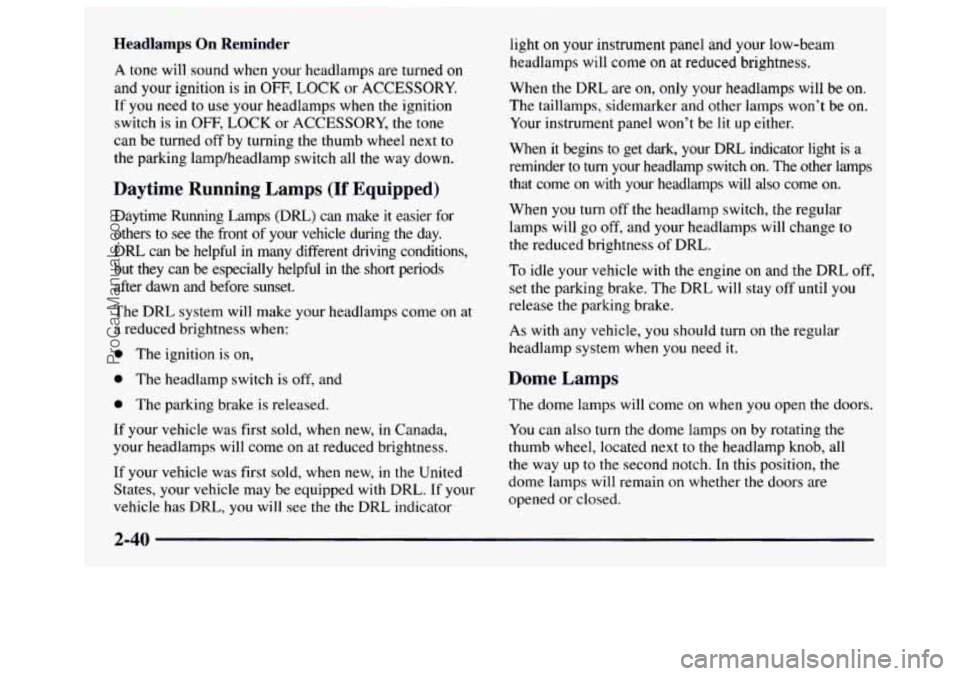

Headlamps On Reminder
A tone will sound when your headlamps are turned on
and your ignition is in OFF, LOCK or ACCESSORY.
If you need to use your headlamps when the ignition
switch is in
OFF, LOCK or ACCESSORY, the tone
can be turned off by turning the thumb wheel
next to
the parking lamp/headlamp switch all the way down.
Daytime Running Lamps (If Equipped)
Daytime Running Lamps (DRL) can make it easier for
others
to see the front of your vehicle during the day.
DRL can be helpful in many different driving conditions,
but they can be especially helpful in
the short periods
after dawn and before sunset.
The DRL system will make your headlamps come on at
a reduced brightness when:
0 The ignition is on,
0 The headlamp switch is off, and
0 The parking brake is released.
If your vehicle was first sold, when new,
in Canada,
your headlamps will come on at reduced brightness.
If your vehicle was first sold, when new,
in the United
States, your vehicle may be equipped with DRL. If your
vehicle has DRL,
you will see the the DRL indicator light
on your instrument panel and your low-beam
headlamps will
come on at reduced brightness.
When the DRL are on,
only your headlamps will be on.
The taillamps, sidemarker and other lamps won’t be on.
Your instrument panel won’t be lit up either.
When
it begins to get dark, your DRL indicator light is a
reminder
to turn your headlamp switch on. The other lamps
that come on with your headlamps will also come on.
When you turn off the headlamp switch, the regular
lamps will go off, and your headlamps will change to
the reduced brightness
of DRL.
To idle your vehicle with the engine on and the DRL off,
set the parking brake. The DRL will stay off until you
release the parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need
it.
Dome Lamps
The dome lamps will come on when you open the doors.
You can also turn the dome lamps on by rotating the
thumb wheel, located next
to the headlamp knob, all
the way up to the second notch. In this position, the
dome lamps will remain on whether the doors are
opened or closed.
2-40
ProCarManuals.com

You can use the DOME OVERRIDE button, located
below the headlamp knob,
to set the dome lamps to
automatically come
on when the doors are open, or to
remain off.
To turn the lamps off, push the button once. With the
button
in this position, the dome lamps will remain
off when the doors are open. To return the lamps to
automatic operation, push the button again and return
it
to the “out” position. With the button in this position,
the dome lamps will come on when you open the doors.
Reading Lamps (Option)
If your vehicle has reading lamps, press the button next
to the lamp to turn the lamp on.
Press the button again to turn the lamp off.
2-41
ProCarManuals.com

If you have an underhood reel lamp, it is located on the
passenger side
of the engine compartment. The lamp can
be switched on without unreeling the cord. Also, you
can use it
as a flashlight.
Underhood Reel Lamp (Option)
To use the lamp as a flashlight, pull down on the lever
located under the lamp, unlocking the lamp and pull the
lamp out. The cord will unreel as you pull the lamp.
When you are done using the lamp, reel the cord back
into the housing by turning the handle.
Then, slide the lamp into the holder and press the lever
marked
PUSH at the bottom of the holder to lock into
the slot.
2-42
ProCarManuals.com
