1997 GMC SAVANA Owners Manual

Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
applied. This does not mean something is wrong with
your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly torque wheel nuts in the
proper sequence to
GM specifications.
Your rear drum brakes don’t have wear indicators, but
if you ever hear a rear brake rubbing noise, have the
rear brake linings inspected. Also, the rear brake drums should be removed and inspected each time the tires
are removed for rotation or changing. When you have
the front brake pads replaced, have the rear brakes
inspected, too.
Brake linings should always be replaced as complete
axle sets.
See “Brake System Inspection” in Section
7 of this
manual under Part
C “Periodic Maintenance
Inspections”.
Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or
if there is a rapid increase in pedal
travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you make a brake stop, your disc brakes
adjust for wear.
If your brake pedal goes down farther than normal, your
rear drum brakes may need adjustment. Adjust them by
backing up and firmly applying the brakes a few times.
Replacing Brake System Parts
The braking system on a modern vehicle is complex.
Its many parts have to be of top quality and work well
together if the vehicle is to have really good braking.
Your vehicle was designed and tested with top-quality
GM brake parts. When you replace parts of your braking
system
-- for example, when your brake linings wear
down and you have to have new ones put in
-- be sure
you get new approved GM replacement parts. If you
don’t, your brakes may no longer work properly. For
example,
if someone puts in brake linings that are wrong
for your vehicle, the balance between your front and
rear brakes can change
-- for the worse. The braking
performance you’ve come to expect can change in many
other ways if someone puts in the wrong replacement
brake parts.
6-31
ProCarManuals.com

Battery
Every new vehicle has a Delco Freedom@ battery. You
never have to add water to one of these. When it’s time
for
a new battery, we recommend a Delco Freedom
battery. Get one that has the replacement number shown
on the original battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days or more,
take off the black, negative (-) cable from the battery. This
will help keep your battery from running down. Contact
your dealer
to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Feature” in the Index.
Bulb Replacement
Before you replace any bulbs, be sure that all the lamps
are off and the engine isn’t running. See “Replacement
Bulbs”
in the index for the proper types of bulbs to use.
Halogen Bulbs
A CAUTION:
Batteries have acid that can Durn you and gas
that can explode. You can be badly hurt
if you
aren’t careful. See “Jump Starting” in the Index
for tips
on working around a battery without
getting hurt.
A CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You
or
others could be injured. Be sure to read and
follow the instructions
on the bulb package.
6-32
ProCarManuals.com

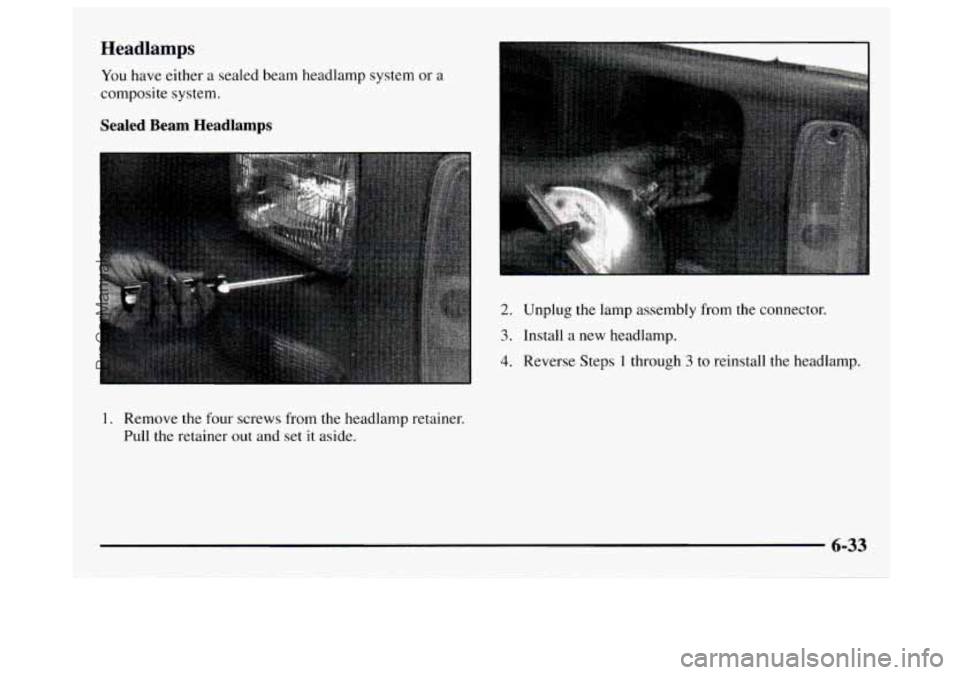

Headlamps
You have either a sealed beam headlamp system or a
composite system.
Sealed Beam Headlamps
2. Unplug the lamp assembly from the connector.
3. Install a new headlamp.
4. Reverse Steps 1 through 3 to reinstall the headlamp.
1. Remove the four screws from the headlamp retainer.
Pull the retainer
out and set it aside.
6-33
ProCarManuals.com

Composite Headlamps
1. Open the hood.
2. Locate the rear side of each of the headlamps.
3. Without removing the headlamp assembly itself,
remove the bulb assembly from the back of
the
headlamp on the driver’s side by turning the bulb
counterclockwise one quarter
turn.
4. On the passenger side, turn the bulb clockwise one
quarter turn. Also,
to remove the bulb on the
passenger side,
you will need to move the battery.
5. Install a new bulb. Do not handle the glass part of
the bulb.
6. Reverse Steps 3 through 4 to reinstall the headlamp.
6-34
ProCarManuals.com

Front ParkingITbrn Signal Lamps
To replace the front parkingkurn signal lamps:
2. Remove the lamp from the grille.
1. Remove the outer screws from the parkinghum
signal lamp lens assembly. (There are either two or
four screws, depending
on your vehicle’s trim level.)
ProCarManuals.com

Sidemarker Lamps
3. Remove the bulb assembly from the back of the lens
and replace the bulb.
Reverse Steps
1 through 3 to replace the bulb. Turn
the socket clockwise to replace it in the lens assembly.
1. Remove the screw from the top of the lens.
6-36
ProCarManuals.com

2. Un-clip the bottom of the lamp from the grille.
3. Remove the bulb by twisting it out of the socket.
Turn the bulb to remove
it. Install the new bulb.
4. Reverse these steps to reinstall the lamp.
Taillamps
1. Open the rear door.
2. Push the socket protector until you can see
the fasteners.
6-37
ProCarManuals.com

3. Remove the nuts with a deep socket wrench. 4. Remove the hidden upper nuts.
