1997 CHEVROLET SUBURBAN Owners Manual

4-DOOr Utility
3. To make the lap part tight, pull down on the buckle
end
of the belt as you pull up on the shoulder part. The lap
part of the belt should be worn low and snug on
the hips, just touching the thighs. In a crash, this applies
force to the strong pelvic bones. And you’d be less likely
to slide under the lap belt.
If you slid under it, the belt
would apply force at your abdomen. This could cause
serious or even fatal injuries. The shoulder belt should go
over the shoulder and across
the chest. These parts of the
body are best able to take belt restraining forces.
The safety belt locks if there’s a sudden stop or a crash.
1-42
ProCarManuals.com

Four-door utility models and the second seat of
Suburbans have shoulder belt height adjusters. Move
the shoulder belt height adjuster to the height that is
right for you.
To move the height adjuster down, push in at the word
PRESS and move the height adjuster to the desired
position.
You can move the adjuster up just by pushing
up on the shoulder belt guide. After you move the
adjuster to where
you want it, try to move it down
without pushing in to make sure it has locked into
position.
Adjust the height
so that the shoulder portion of the
belt is centered on your shoulder. The belt should be
away from your face and neck, but not falling
off
your shoulder.
I
You can be seriously hurt if your shoulder belt is
too loose. In a crash, you would move forward
too much, which could increase injury. The
shoulder belt should fit against your body.
1-43
ProCarManuals.com

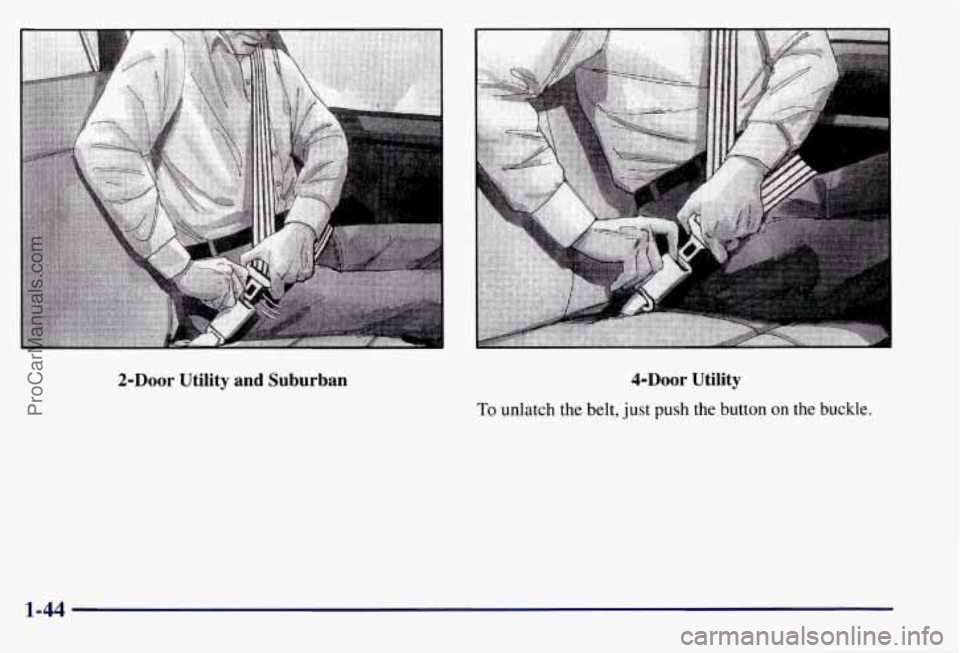

2-Door Utility and Suburban 4-Door Utility
To unlatch the belt, just push the button on the buckle.
1-44
ProCarManuals.com

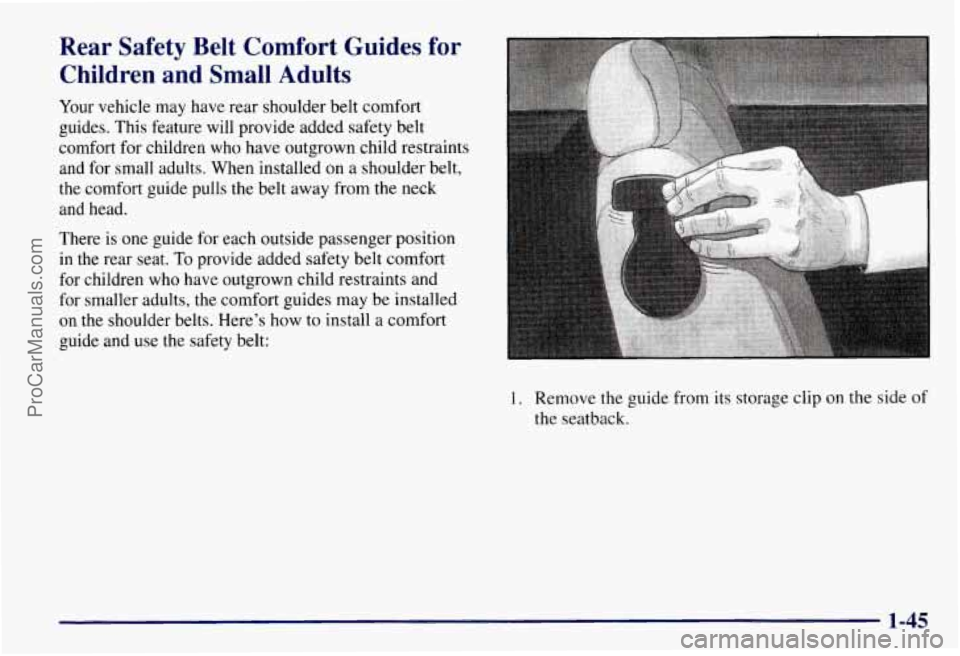

Rear Safety Belt Comfort Guides for Children and Small Adults
Your vehicle may have rear shoulder belt comfort
guides. This feature will provide added safety belt
comfort for children who have outgrown child restraints
and for small adults. When installed
on a shoulder belt,
the comfort guide pulls the belt away from the neck
and head.
There is one guide for each outside passenger position
in the rear seat.
To provide added safety belt comfort
for children who have outgrown child restraints and
for smaller adults, the comfort guides may be installed
on the shoulder belts. Here’s how to install a comfort
guide and use the safety belt:
1. Remove the guide from its storage clip on the side of
the seatback.
1-45
ProCarManuals.com

2. Slide the guide under and past the belt. The elastic
cord must be under the belt. Then, place the guide
over
the belt, and insert the two edges of the belt into
the slots
of the guide.
3. Be sure that the belt is not twisted and it lies flat.
The elastic cord must be under the belt and the
guide on top.
1-46
~ ProCarManuals.com

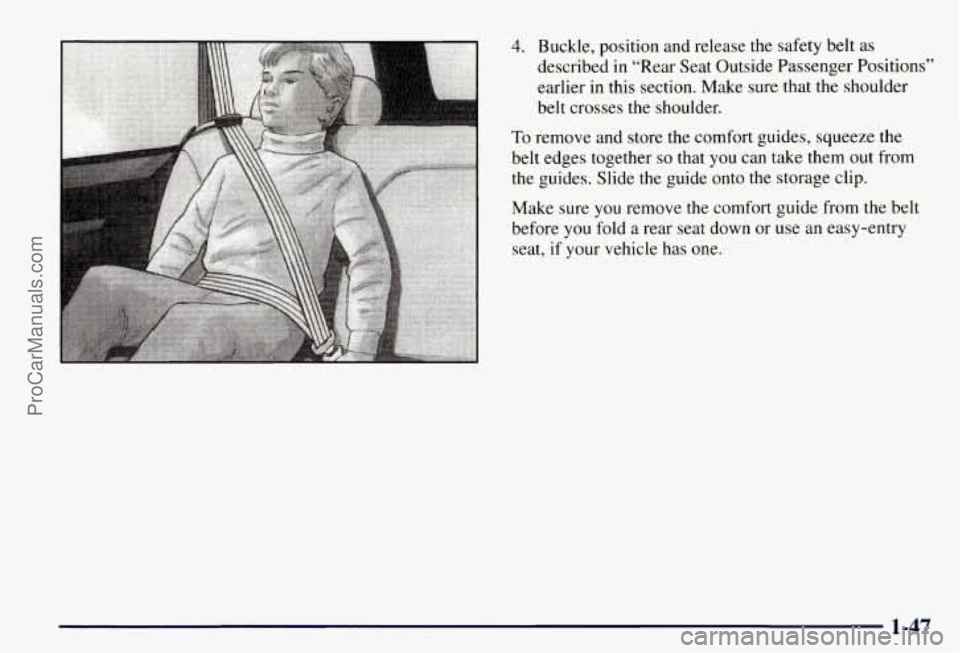

4. Buckle, position and release the safety belt as
described in "Rear Seat Outside Passenger Positions"
earlier in this section. Make sure that the shoulder
belt crosses the shoulder.
To remove and store the comfort guides, squeeze the
belt edges together
so that you can take them out from
the guides. Slide the guide onto the storage clip.
Make sure you remove the comfort guide from the belt
before
you fold a rear seat down or use an easy-entry
seat, if your vehicle has one.
1-47
ProCarManuals.com

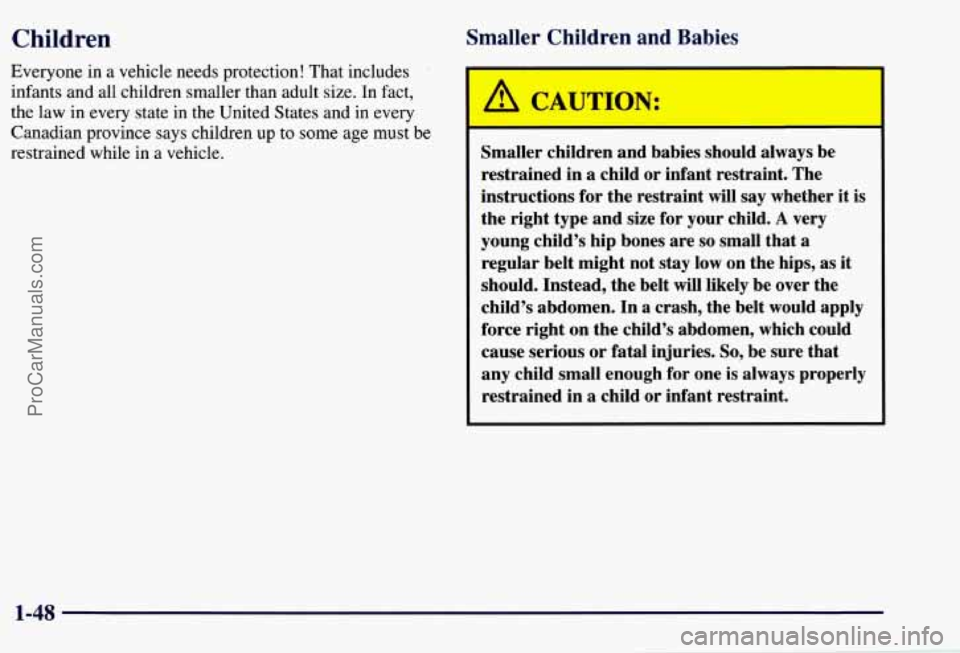

Children
Everyone in a vehicle needs protection! That includes
infants and all children smaller than adult size.
In fact,
the law
in every state in the United States and in every
Canadian province says children up to some age must be
restrained while in a vehicle.
Smaller Children and Babies
A CAUTION:
Smaller children and babies should always be
restrained in
a child or infant restraint. The
instructions for the restraint will
say whether it is
the right type and size for your child.
A very
young child’s hip bones are
so small that a
regular belt might not stay low on the hips, as it
should. Instead, the belt will likely be over the
child’s abdomen. In
a crash, the belt would apply
force right on the child’s abdomen, which could
cause serious or fatal injuries.
So, be sure that
any child small enough for one is always properly
restrained in a child or infant restraint.
1-48
ProCarManuals.com

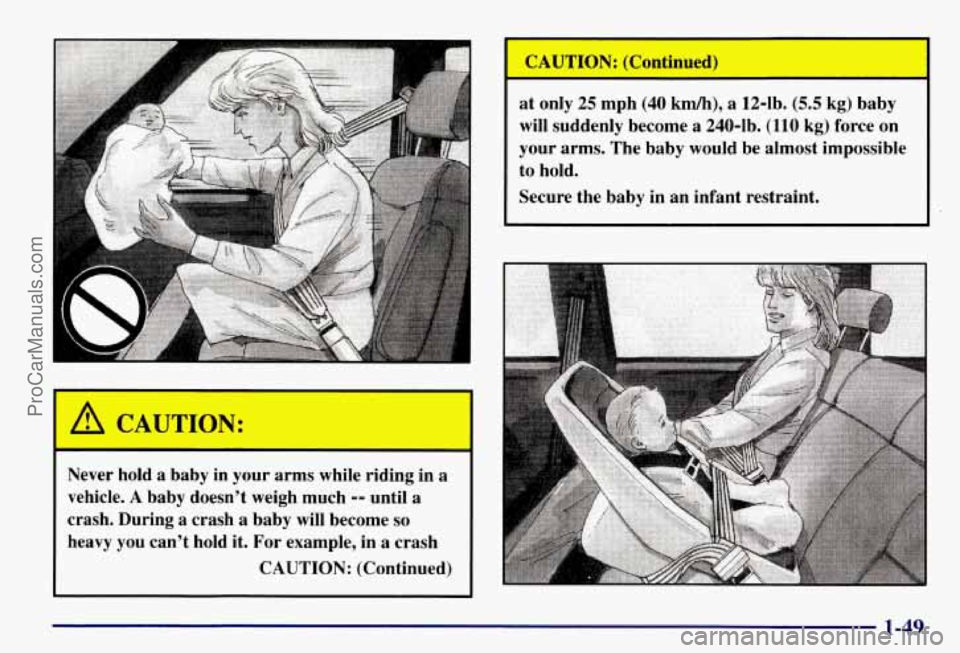

Never hold a baby in your arms while riding in a
vehicle. A baby doesn’t weigh much -- until a
crash. During a crash a baby will become so
heavy you can’t hold it. For example, in a crash
CAUTION: (Continued)
1 CAUTION: (CO-~’----”) I
at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby
will suddenly become
a 240-lb. (110 kg) force on
your arms. The baby would be almost impossible
to hold.
Secure the baby in an infant restraint.
1-49
