1997 CHEVROLET SUBURBAN Owners Manual

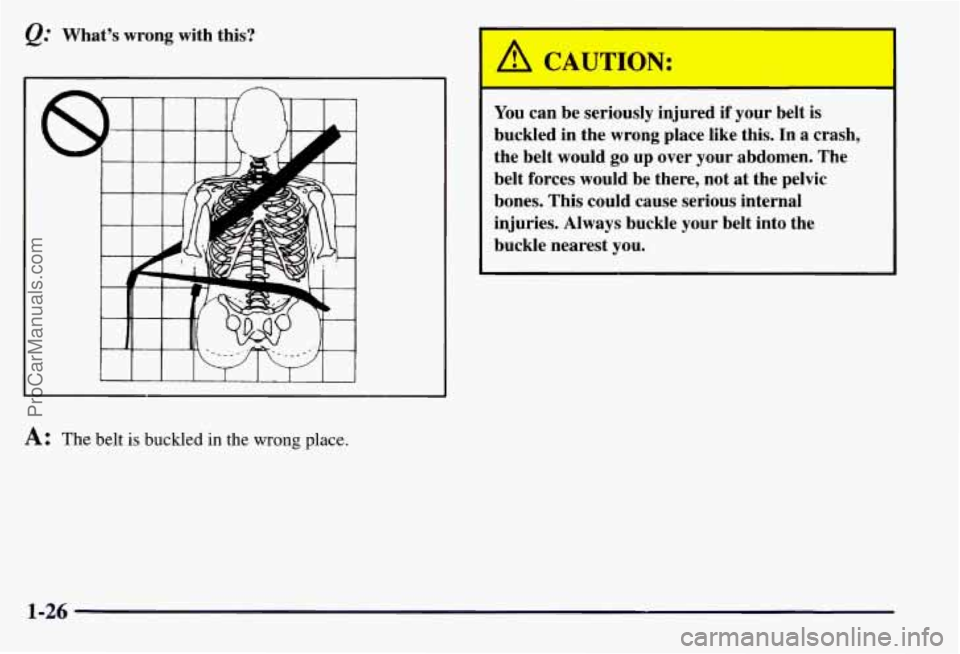

&.. What’s wrong with this?
A: The belt is buckled in the wrong place.
You can be seriously injured if your belt is
buckled in the wrong place like this.
In a crash,
the belt would go
up over your abdomen. The
belt forces would be there, not at the pelvic
bones. This could cause serious internal
injuries. Always buckle your belt into the
buckle nearest you.
1-26
ProCarManuals.com

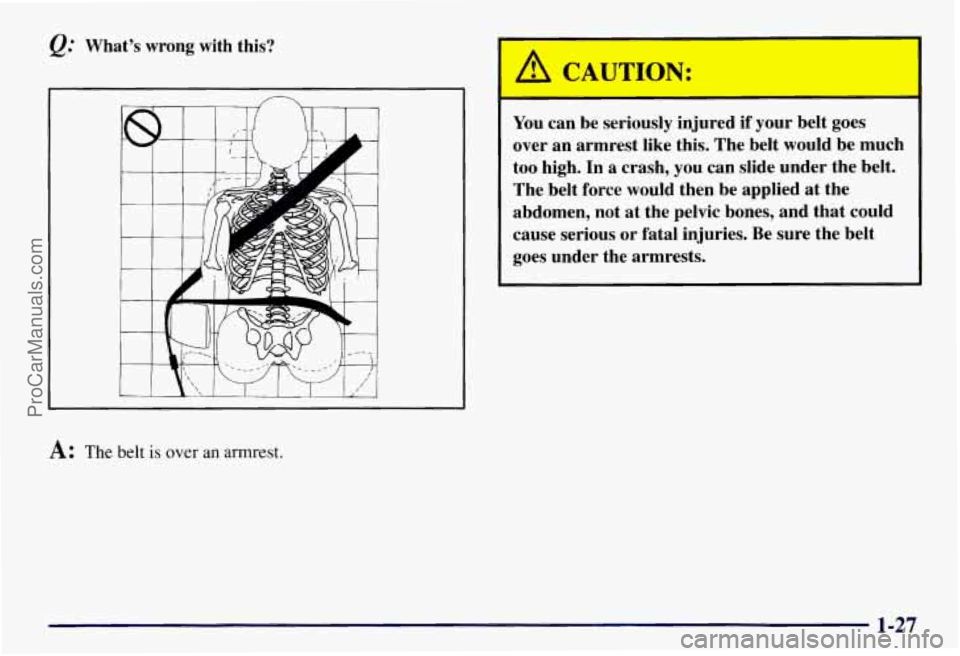

Q: What’s wrong with this?
A: The belt is over an armrest.
You can be seriously injured if your belt goes
over an armrest like this. The belt would be much
too high.
In a crash, you can slide under the belt.
The belt force would then be applied at the
abdomen, not at the pelvic bones, and that could
cause serious or fatal injuries. Be sure the belt
goes under the armrests.
1-27
ProCarManuals.com

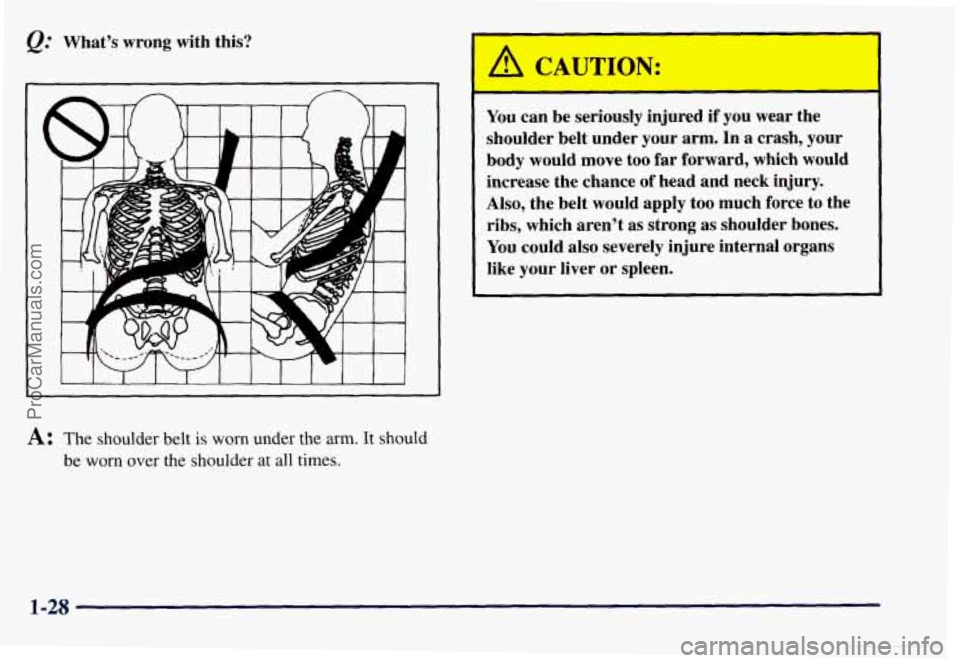

What’s wrong with this?
I
A: The shoulder belt is worn under the arm. It should
be worn over the shoulder at all times.
You can be seriously injured if you wear the
shoulder belt under your arm. In a crash, your
body would move
too far forward, which would
increase the chance
of head and neck injury.
Also, the belt would apply too much force to the
ribs, which aren’t as strong as shoulder bones.
You could also severely injure internal organs
like your liver or spleen.
1-28
ProCarManuals.com

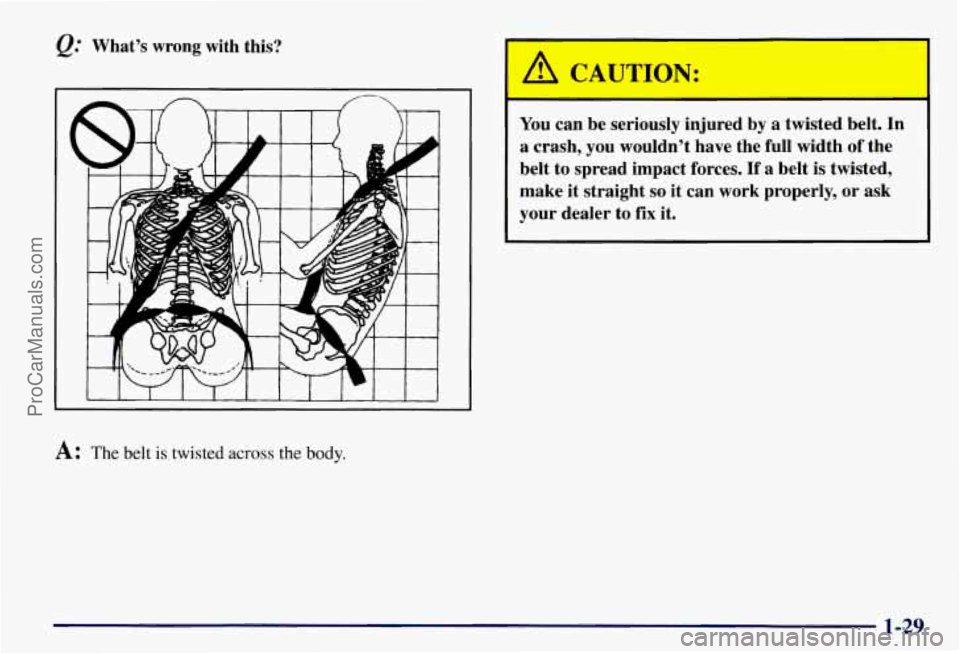

Q: What’s wrong with this?
A: The belt is twisted across the body.
You can be seriously injured by a twisted belt. In
a crash, you wouldn’t have the full width
of the
belt to spread impact forces. If a belt
is twisted,
make it straight
so it can work properly, or ask
your dealer to
fix it.
1-29
ProCarManuals.com

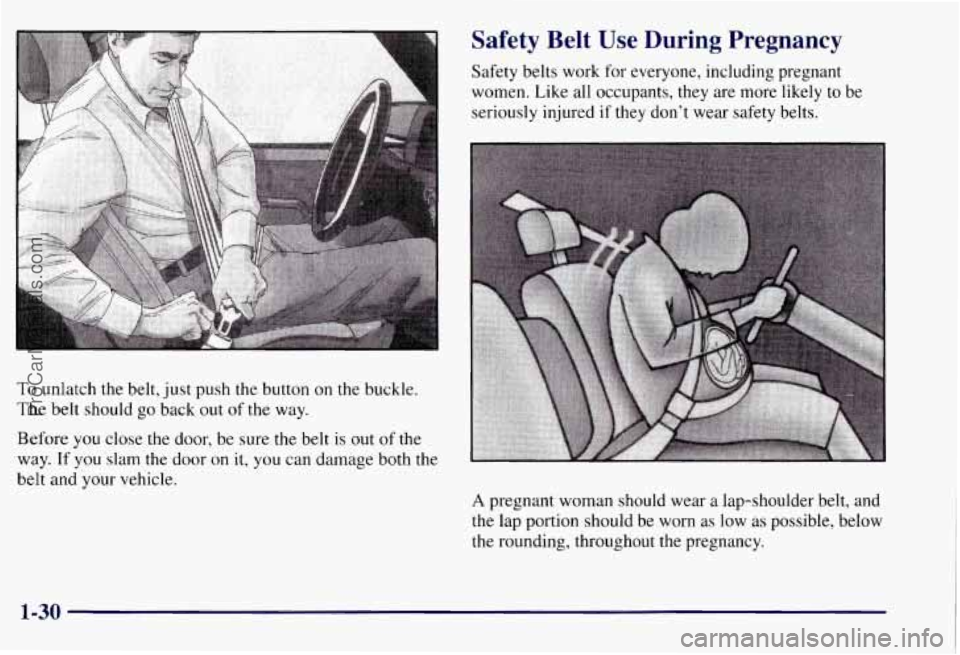

To unlatch the belt, just push the button on the buckle.
The
belt should go back out of the way.
Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely to be
seriously injured if they don’t wear safety belts.
Before you close the door, be sure the belt is out of the
way.
If you slam the door on it, you can damage both the
belt and your vehicle.
A pregnant woman should wear a lap-shoulder belt, and
the lap portion should be worn as low as possible, below
the rounding, throughout the pregnancy.
1-30
ProCarManuals.com

The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it’s more
likely that the fetus won’t be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position
The right front passenger’s safety belt works the same
way as the driver’s safety belt. See “Driver Position”
earlier in this section.
When the lap belt is pulled out all the way,
it will lock.
(This is the child restraint locking feature working
normally.) If the belt locks, let it
go back all the way
and start again.
Supplemental Inflatable
Restraint System
This part explains the Supplemental Inflatable Restraint
system or air bag system.
Your vehicle has two air bags
-- one air bag for the
driver and another air bag for the right front passenger. Here are the most
important things to know about the air
bag system:
You can be severely injured or killed in a crash if
you aren’t wearing your safety belt
-- even if you
have air bags. Wearing your safety belt during
a
crash helps reduce your chance of hitting things
inside the vehicle or being ejected from it. Air
bags are “supplemental restraints’’ to the safety
belts.
All air bags are designed to work with
safety belts, but don’t replace them. Air
bags are
designed to work only in moderate to severe
crashes where the front of your vehicle hits
something. They aren’t designed to inflate at all
in rollover, rear, side or low-speed frontal
crashes. Everyone in your vehicle should wear
a
safety belt properly -- whether or not there’s an
air bag for that person.
1-31
ProCarManuals.com

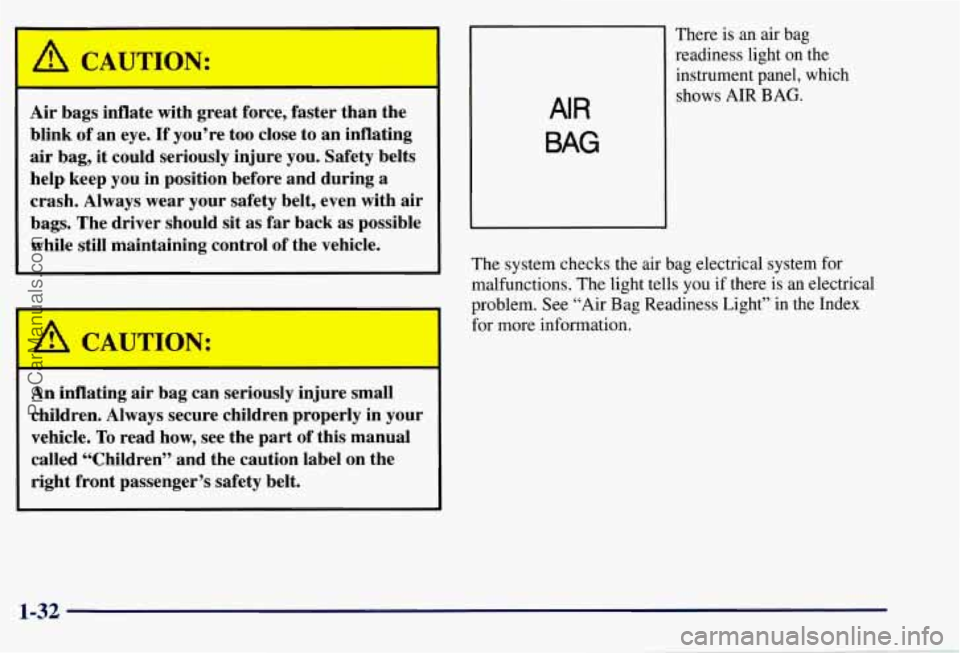

A CAUTION:
Air bags inflate with great force, faster than the
blink of an eye.
If you’re too close to an inflating
air bag, it could seriously injure you. Safety belts
help keep
you in position before and during a
crash. Always wear your safety belt, even with air
bags. The driver should sit as far back as possible
while still maintaining control of the vehicle.
I A CAUTION:
An inflating air bag can seriously injure small
children. Always secure children properly in your
vehicle.
To read how, see the part of this manual
called “Children” and the caution label on the
right front passenger’s safety belt.
AIR
BAG
There is an air bag
readiness light on the
instrument panel, which
shows
AIR BAG.
The system checks the air bag electrical system for
malfunctions. The light tells you if there is an electrical
problem. See “Air Bag Readiness Light” in the Index
for more information.
1-32
ProCarManuals.com

How the Air Bag System Works
The right front passenger’s air bag is in the instrument
panel on the passenger’s side.
Where are the air bags?
The driver’s air bag is in the middle of the steering wheel.
1-33
