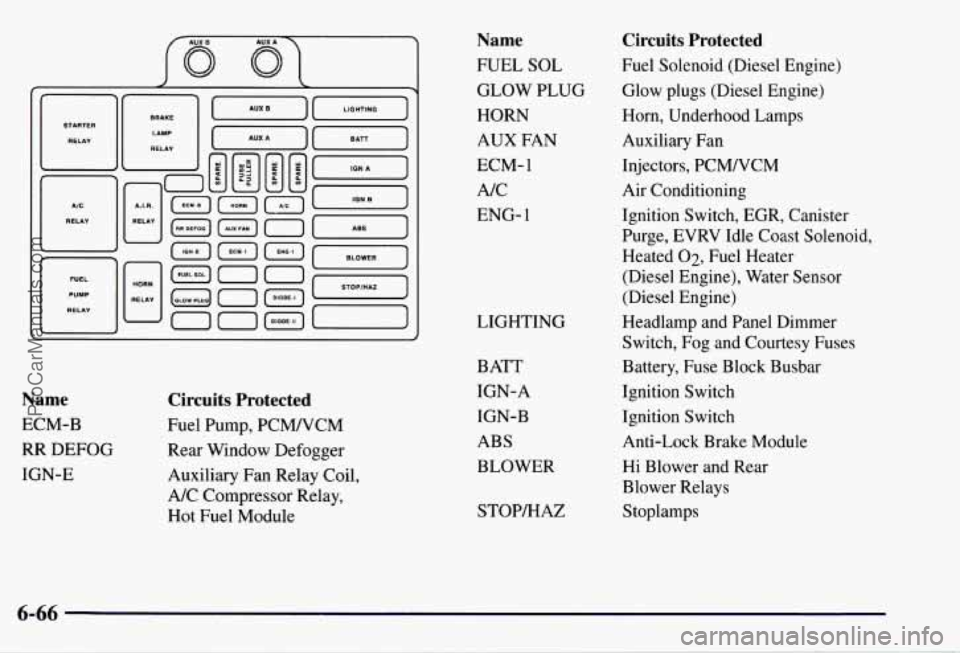

1997 CHEVROLET SUBURBAN Owners Manual

Name
ECM-B
RR DEFOG
IGN-E
Circuits Protected
Fuel Pump, PCMNCM
Rear Window Defogger
Auxiliary Fan Relay Coil,
A/C Compressor Relay,
Hot Fuel Module
Name
FUEL SOL
GLOW PLUG
HORN
AUX FAN
ECM-
1
AIC ENG-
1
LIGHTING
BATT
IGN-A IGN-B
ABS
BLOWER
STOP/HAZ
Circuits Protected
Fuel Solenoid (Diesel Engine)
Glow plugs (Diesel Engine)
Horn, Underhood Lamps
Auxiliary Fan
Injectors, PCMNCM
Air Conditioning
Ignition Switch, EGR, Canister
Purge, EVRV Idle Coast Solenoid,
Heated
02, Fuel Heater
(Diesel Engine), Water Sensor
(Diesel Engine)
Headlamp and Panel Dimmer
Switch, Fog and Courtesy Fuses
Battery, Fuse Block Busbar
Ignition Switch
Ignition Switch Anti-Lock Brake Module
Hi Blower and Rear
Blower Relays
Stoplamps
6-66
ProCarManuals.com

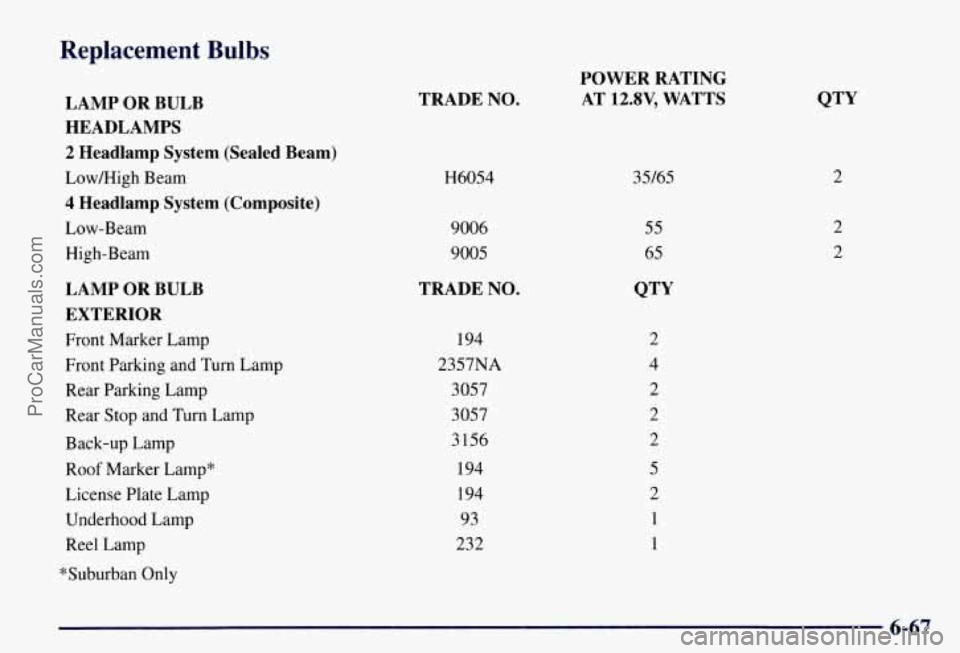

Replacement Bulbs
LAMP OR BULB
HEADLAMPS
2 Headlamp System (Sealed Beam)
Low/High Beam
4 Headlamp System (Composite)
Low-Beam High-Beam
LAMP OR BULB
EXTERIOR
Front Marker Lamp
Front Parking and
Turn Lamp
Rear Parking Lamp
Rear Stop and Turn Lamp
Back-up Lamp Roof Marker Lamp*
License Plate Lamp
Underhood Lamp
Reel Lamp
*Suburban
Only
TRADE NO.
H6054
9006
9005
TRADE NO.
194
2357NA
3057
3057
3 156
194
194
93
232
POWER RATING AT
12.8V, WATTS
35/65
55
65
QTY
2
4 2
2
2
6-67
ProCarManuals.com

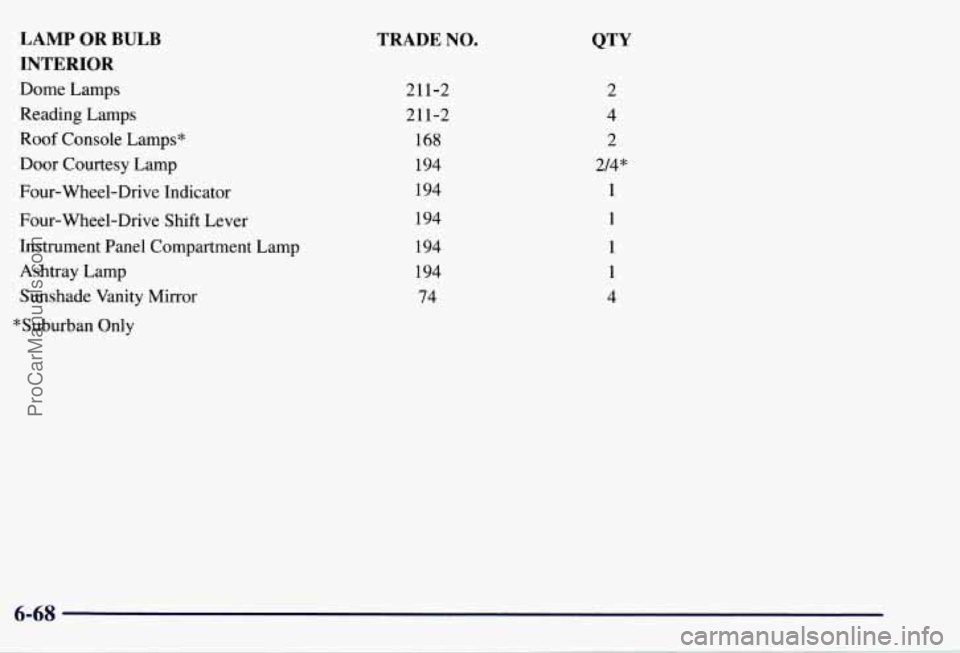

LAMP OR BULB
INTERIOR
Dome Lamps
Reading Lamps
Roof Console Lamps*
Door Courtesy Lamp
Four-Wheel-Drive Indicator
Four-Wheel-Drive Shift Lever
Instrument Panel Compartment Lamp
Ashtray Lamp Sunshade Vanity Mirror
*Suburban Only
TRADE NO.
211-2
211-2 168
194
194
194
194
194
74 2
4
2
214"
1
1
1
1
4
ProCarManuals.com

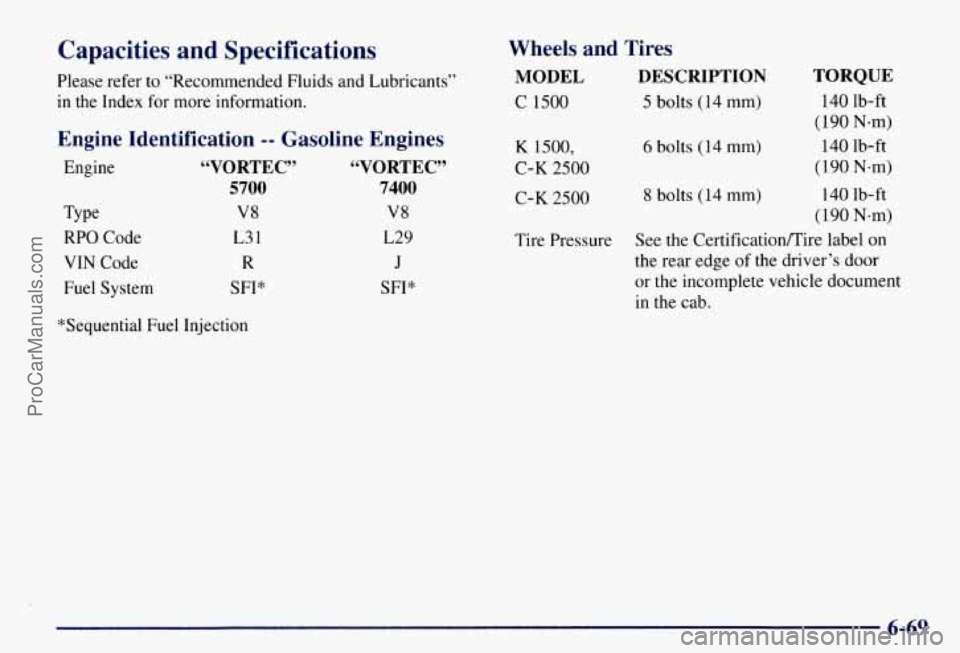

Capacities and Specifications
Please refer to “Recommended Fluids and Lubricants”
in the Index for more information.
Type
RPO Code
VIN Code
Fuel System
Engine Identification -- Gasoline Engines
Engine “VORTEC” “VORTEC”
5700 7400
V8 V8
L3 1 L29
R J
SFI* SFI*
*Sequential Fuel Injection
Wheels and Tires
MODEL DESCRIPTION
C 1500 5 bolts ( 14 mm)
K 1500, 6 bolts (14 mm)
C-IS
2500
TORQUE
(190 Nam)
(190 N-m) 140 lb-ft
140 lb-ft
C-K 2500 8 bolts ( 14 mm) 140 lb-ft
(190 N-m)
Tire Pressure See the Certificationmire label on
the rear edge of the driver’s door
or the incomplete vehicle document in the cab.
6-69
ProCarManuals.com

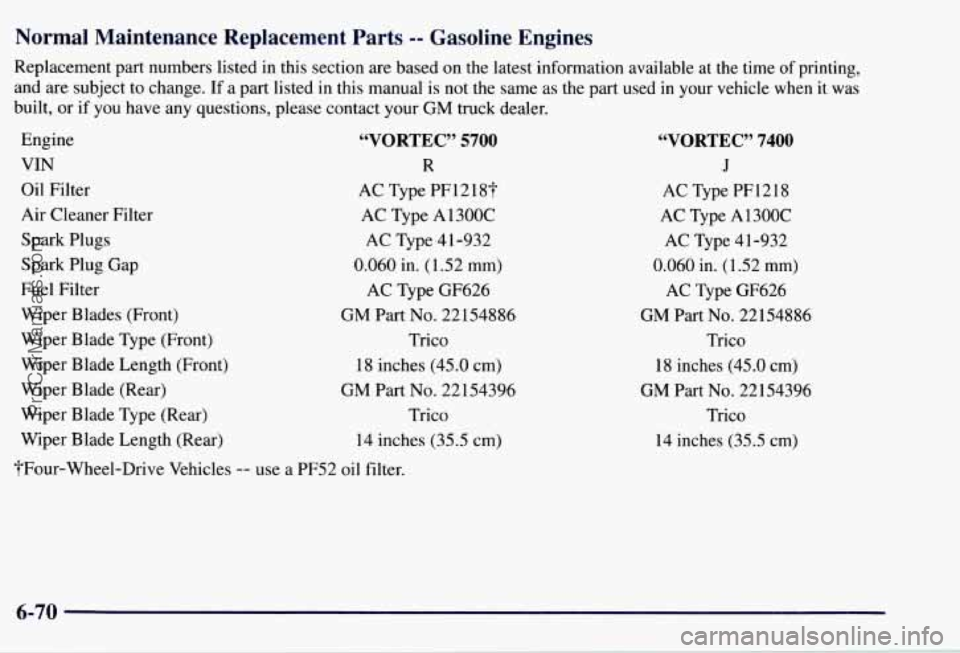

Normal Maintenance Replacement Parts -- Gasoline Engines
Replacement part numbers listed in this section are based on the latest information available at the time of printing,
and are subject to change. If a part listed in this manual is not the same as the part used in your vehicle when
it was
built, or if you have any questions, please contact your GM truck dealer.
Engine
“VORTEC” 5700
VIN R
Oil Filter AC Type PF1218f
Air Cleaner Filter AC Type A1300C
Spark Plugs
AC Type 4 1-932
Spark Plug Gap 0.060
in. (1.52 mm)
Fuel Filter AC Type GF626
Wiper Blades (Front) GM Part No. 22154886
Wiper Blade Type (Front) Trico
Wiper Blade Length (Front) 18 inches (45.0 cm)
Wiper Blade (Rear) GM Part
No. 22154396
Wiper Blade Type (Rear) Trico
Wiper Blade Length (Rear) 14 inches (35.5 cm)
“four-Wheel-Drive Vehicles
-- use a PF52 oil filter.
‘VORTEC” 7400
J
AC Type PF1218
AC Type A1300C AC Type 41-932
0.060 in. (1.52 mm)
AC Type GF626
GM Part
No. 22154886
Trico
18 inches
(45.0 cm)
GM Part No. 22154396
Trico
14 inches (35.5 cm)
ProCarManuals.com

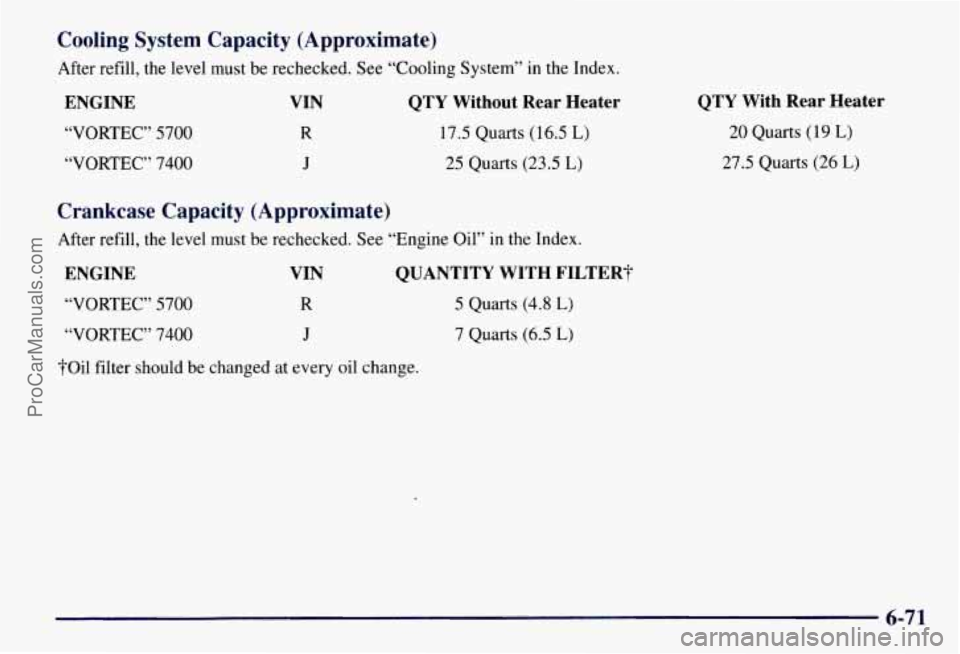

Cooling System Capacity (Approximate)
After refill, the level must be rechecked. See “Cooling System” in the Index.
ENGINE VIN QTY Without Rear Heater
“VORTEC” 5700 R 17.5 Quarts (16.5 L)
“VORTEC” 7400 J 25 Quarts (23.5 L)
Crankcase Capacity (Approximate)
After refill, the level must be rechecked. See “Engine Oil” in the Index.
ENGINE VIN QUANTITY WITH FILTER?
“VORTEC” 5700 R 5 Quarts (4.8 L)
“VORTEC” 7400 J 7 Quarts (6.5 L)
?Oil filter should be changed at every oil change.
QTY With Rear Heater
20 Quarts (19 L)
27.5 Quarts (26 L)
6-71
ProCarManuals.com

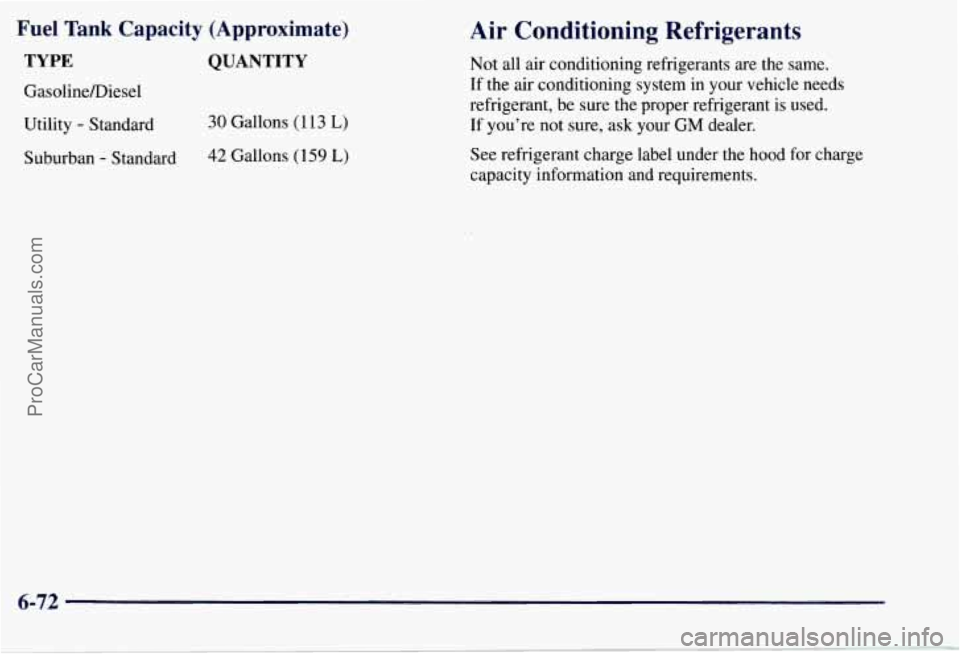

Fuel Tank Capacity (Approximate)
TYPE QUANTITY
GasolineDiesel
Utility
- Standard
Suburban
- Standard
30 Gallons (1 13 L)
42 Gallons (159 L)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If you’re not sure, ask your GM dealer.
See refrigerant charge label under the hood for charge
capacity information and requirements.
6-72
ProCarManuals.com

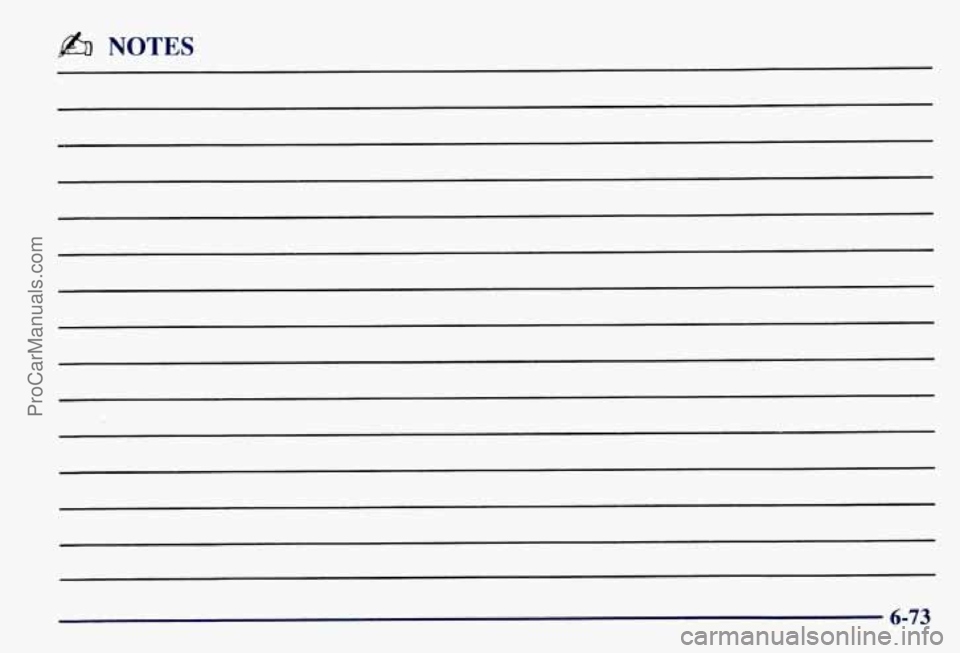

@% NOTES
6-73
