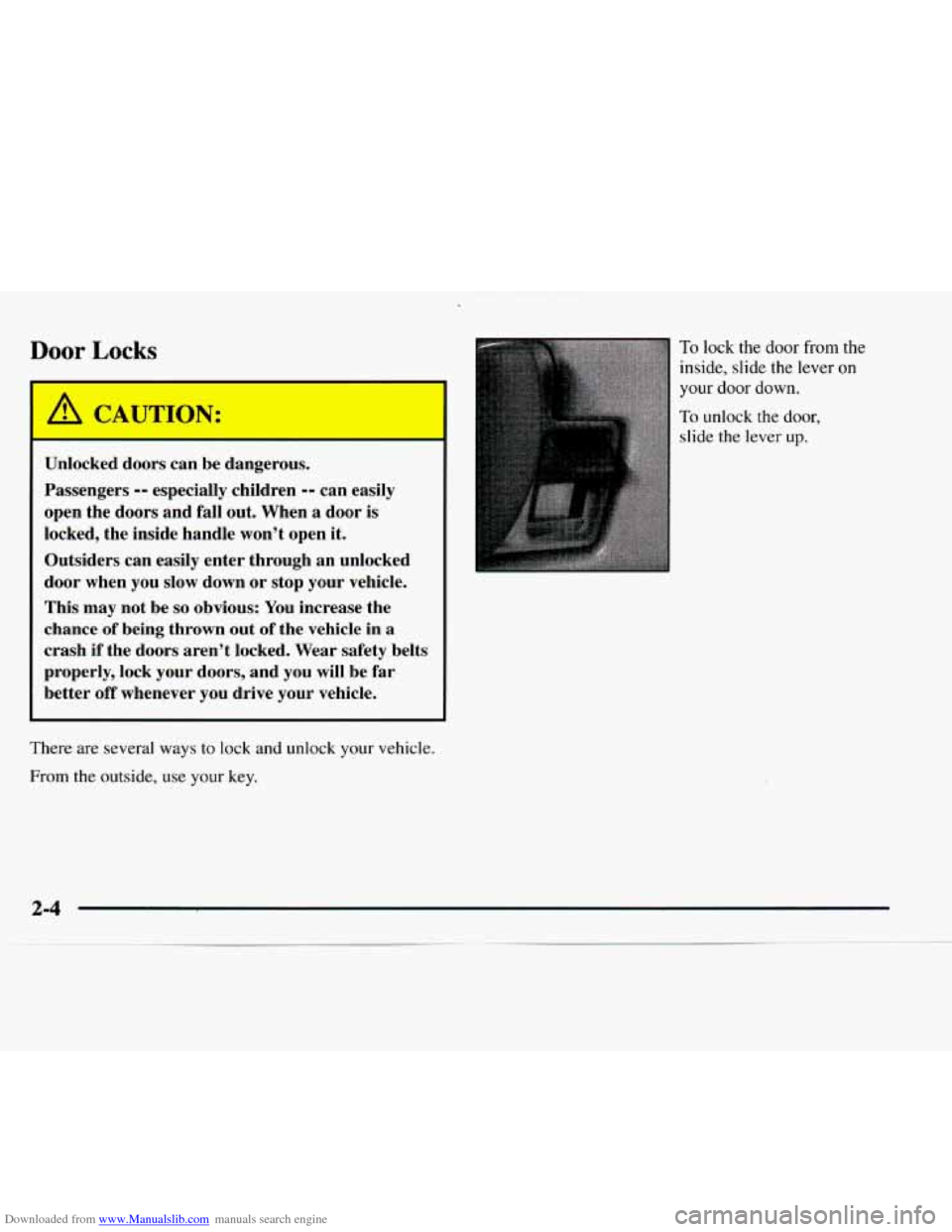

1997 CHEVROLET EXPRESS Owners Manual

Downloaded from www.Manualslib.com manuals search engine 1 Door Locks
A CAUTION:
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and fall out. When
a door is
locked, the inside handle won’t open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be
so obvious: You increase the
chance
of being thrown out of the vehicle in a
crash
if the doors aren’t locked. Wear safety belts
properly, lock your doors, and you will be far
better
off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use your key.
To lock the door from the
inside, slide the lever
on
your door down.
To unlock the door,
slide the lever up.
2-4

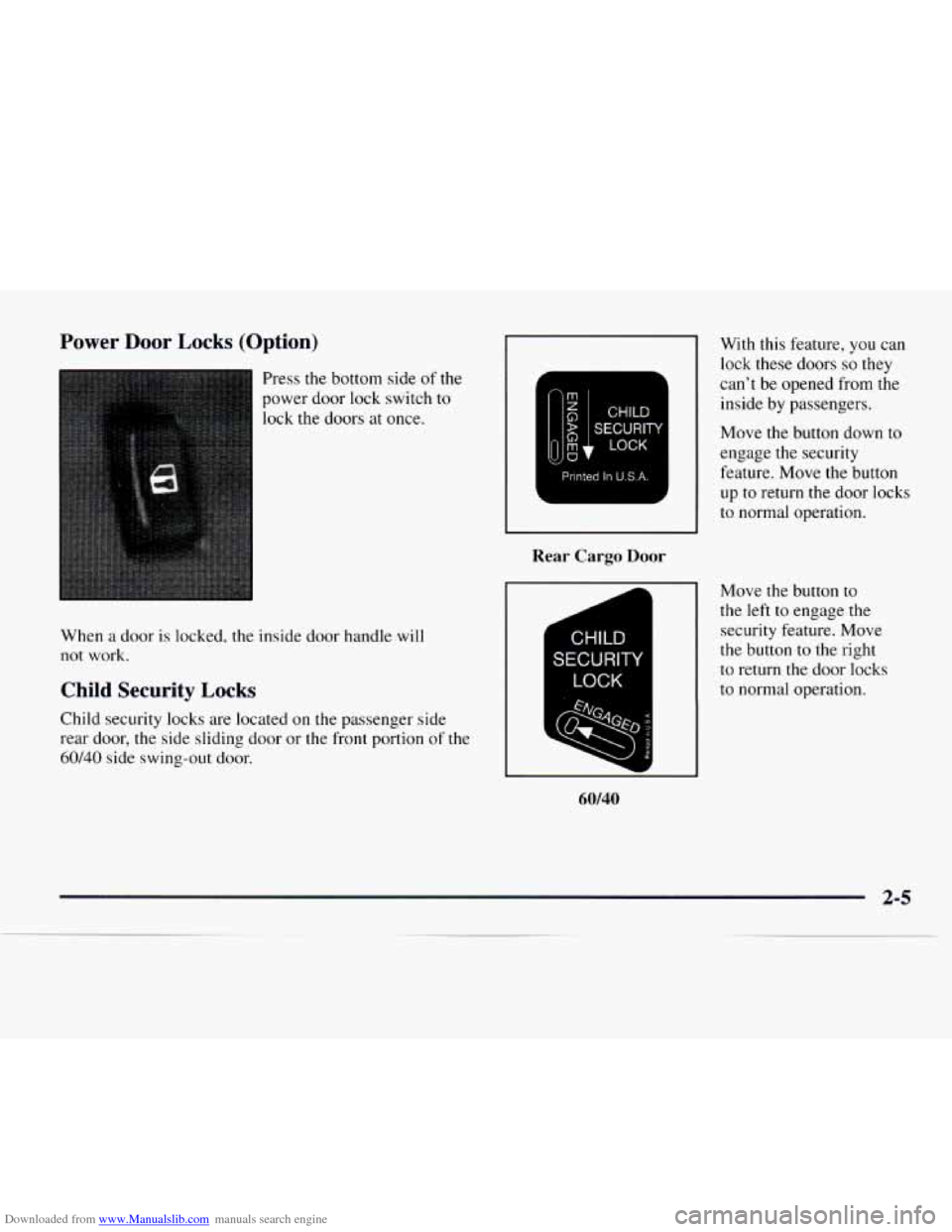

Downloaded from www.Manualslib.com manuals search engine Power Door Locks (Option)
Press the bottom side of the
power door lock switch
to
lock the doors at once.
When
a door is locked, the inside door handle will
not work.
Child Security Locks
Child security locks are located on the passenger side
rear door, the side sliding door or the front portion
of the
60/40 side swing-out door.
p/S$J]
Printed In U.S.A.
Rear Cargo Door
CHILD
SECURITY
LOCK
60/40
With this feature, you can
lock these doors
so they
can’t be opened from the
inside by passengers.
Move the button down to
engage the security
feature. Move the button
up
to return the door locks
to normal operation.
Move the button
to
the left to engage the
security feature. Move
the button to the right
to return the door locks
to normal operation.
2-5

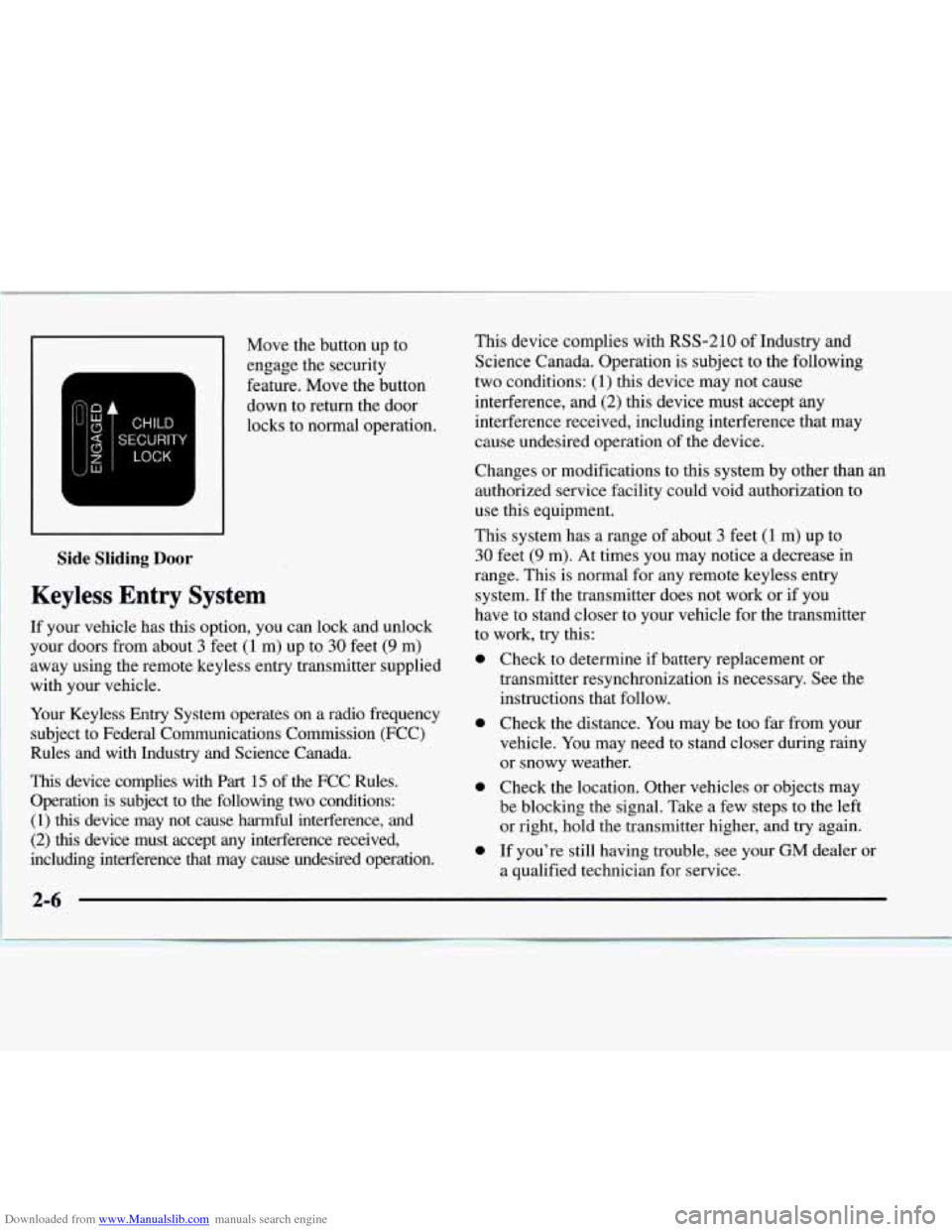

Downloaded from www.Manualslib.com manuals search engine Side Sliding Door
Keyless Entry System
Move the button up to
engage the security
feature. Move the button
down to return the door
locks
to normal operation.
If your vehicle has
this option, you can lock and unlock
your doors from about
3 feet (1 m) up to 30 feet (9 m)
away using the remote keyless entry transmitter supplied
with your vehicle. ~
Your Keyless Entry System operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry and Science Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation. This device
complies with
RSS-210 of Industry and
Science Canada. Operation
is subject to the following
two conditions:
(1) this device may not cause
interference, and
(2) this device must accept any
interference received, including interference that may
cause undesired operation of the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization
to
use this equipment.
This system has
a range of about 3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease in
range. This is normal for any remote keyless entry
system.
If the transmitter does not work or if you
have to stand closer to your vehicle for the transmitter
to work, try this:
0 Check to determine if battery replacement or
transmitter resynchronization is necessary. See the
instructions that follow.
0 Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.
0 Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps
to the left
or right, hold the transmitter higher, and try again.
0 If you’re still having trouble, see your GM dealer or
a qualified technician for service.

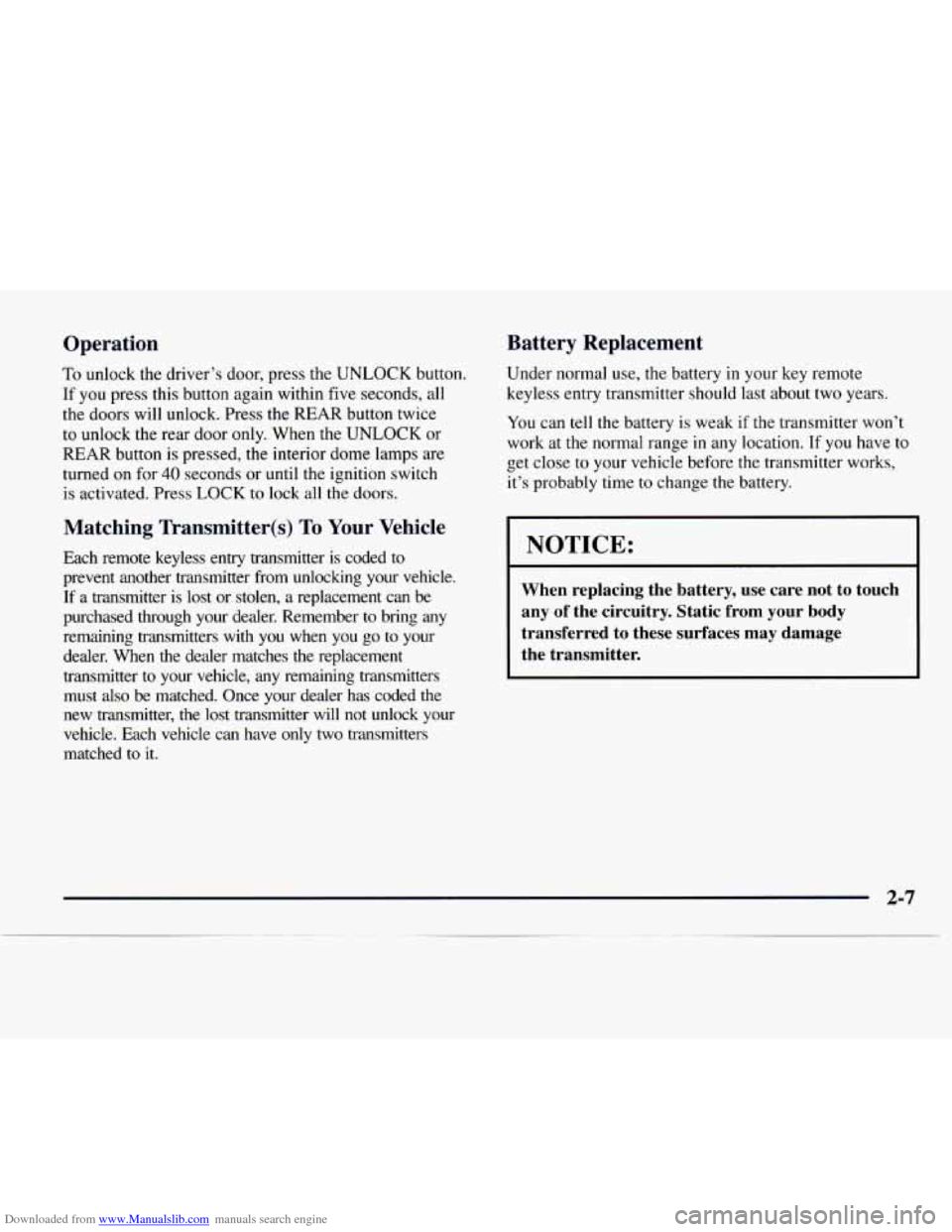

Downloaded from www.Manualslib.com manuals search engine Operation
To unlock the driver’s door, press the UNLOCK button.
If you press
this button again within five seconds, all
the doors will unlock. Press the
REAR button twice
to unlock the rear door
only. When the UNLOCK or
REAR button is pressed, the interior dome lamps are
turned on for
40 seconds or until the ignition switch
is activated. Press
LOCK to lock all the doors.
Battery Replacement
Under normal use, the battery in your key remote
keyless entry transmitter should last about two years.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with
you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle,
any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only two transmitters
matched to
it.
You can tell the battery is weak if the transmitter won’t
work at the normal range
in any location. If you have to
get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
I NOTICE:
~~~~~ ~~
When replacing the battery, use care not to touch
any
of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.

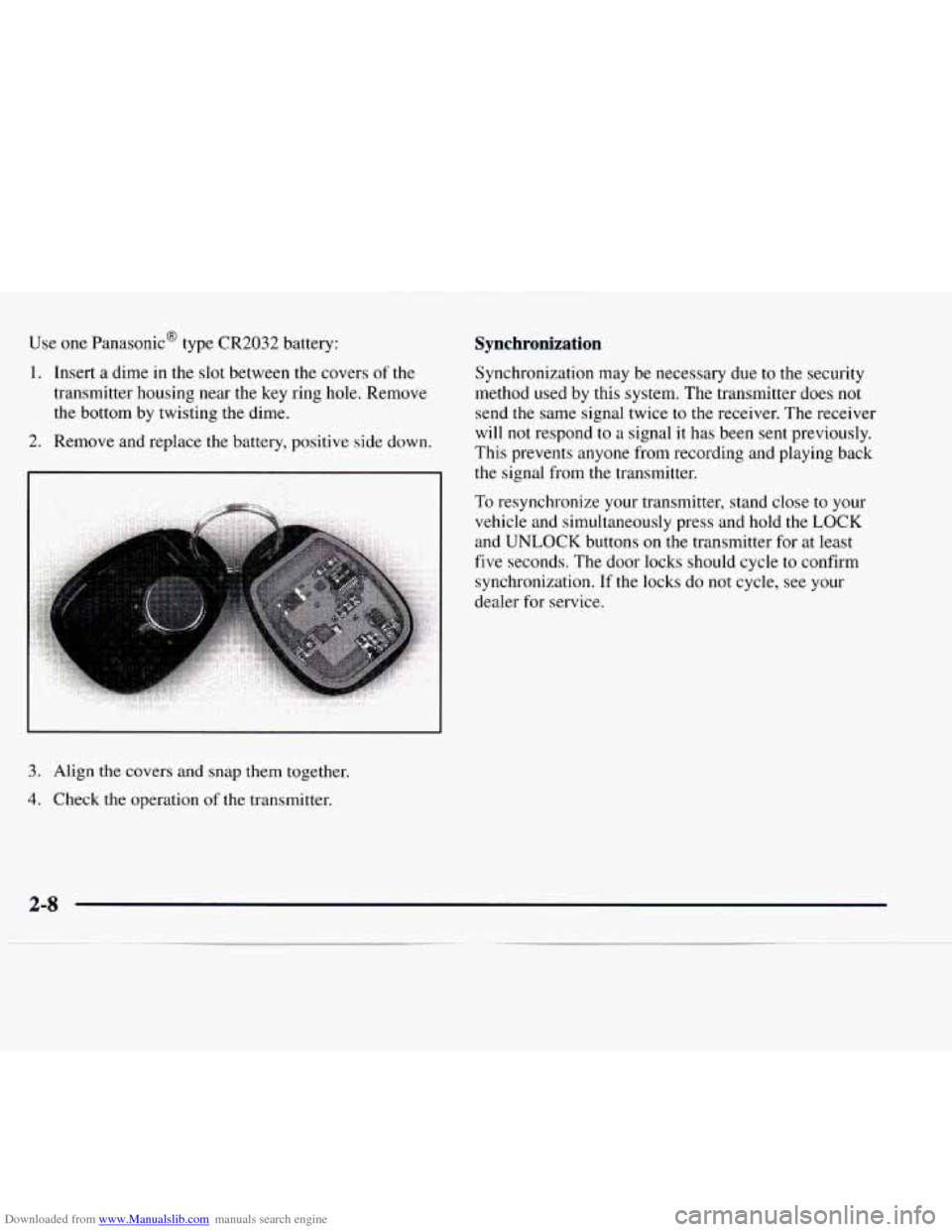

Downloaded from www.Manualslib.com manuals search engine Use one PanasonicB type CR2032 battery:
1. Insert a dime in the slot between the covers of the
transmitter housing near
the key ring hole. Remove
the bottom by twisting the dime.
2. Remove and replace the battery, positive side down.
3. Align the covers and snap them together.
4. Check the operation of the transmitter.
Synchronization
Synchronization may be necessary due to the security
method used by this system. The transmitter does not
send the same signal twice to the receiver. The receiver
will not respond to a signal it has been sent previously.
This prevents anyone from recording and playing back
the signal from the transmitter.
To resynchronize your transmitter, stand close to your
vehicle and simultaneously press and hold
the LOCK
and UNLOCK buttons on the transmitter for at least
five seconds. The door locks should cycle to confirm
synchronization. If the locks do not cycle, see your
dealer for service.
2-8

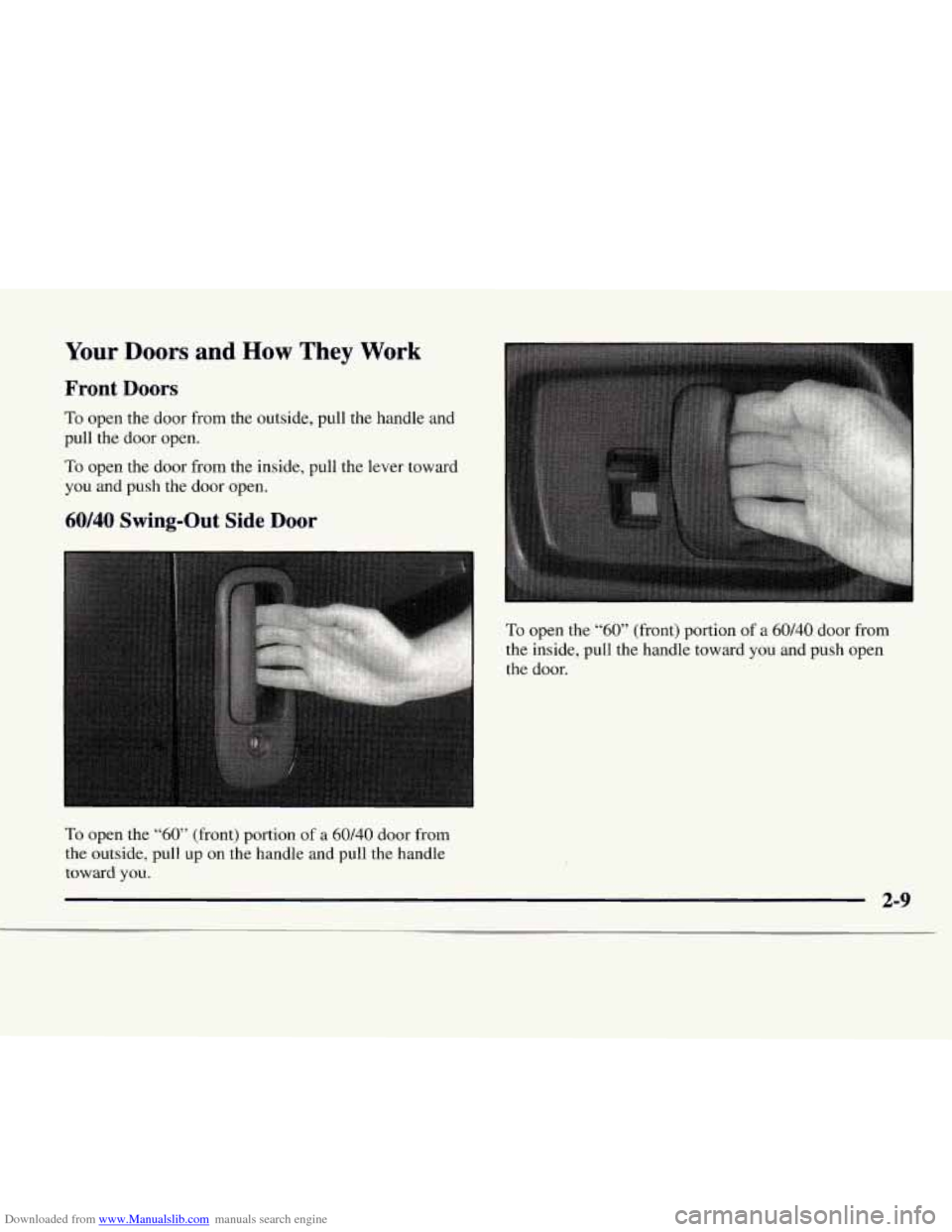

Downloaded from www.Manualslib.com manuals search engine Your Doors and How They Work
Front Doors
To open the door from the outside, pull the handle and
pull the door open.
To open the door from the inside, pull the lever toward
you and push the door open.
60140 Swing-Out Side Door
To open the “60” (front) portion of a 60/40 door from
the inside, pull the handle toward
you and push open
the door.
To open the “60” (front) portion of a 60/40 door from
the outside, pull up on the handle and pull the handle
toward you.
2-9

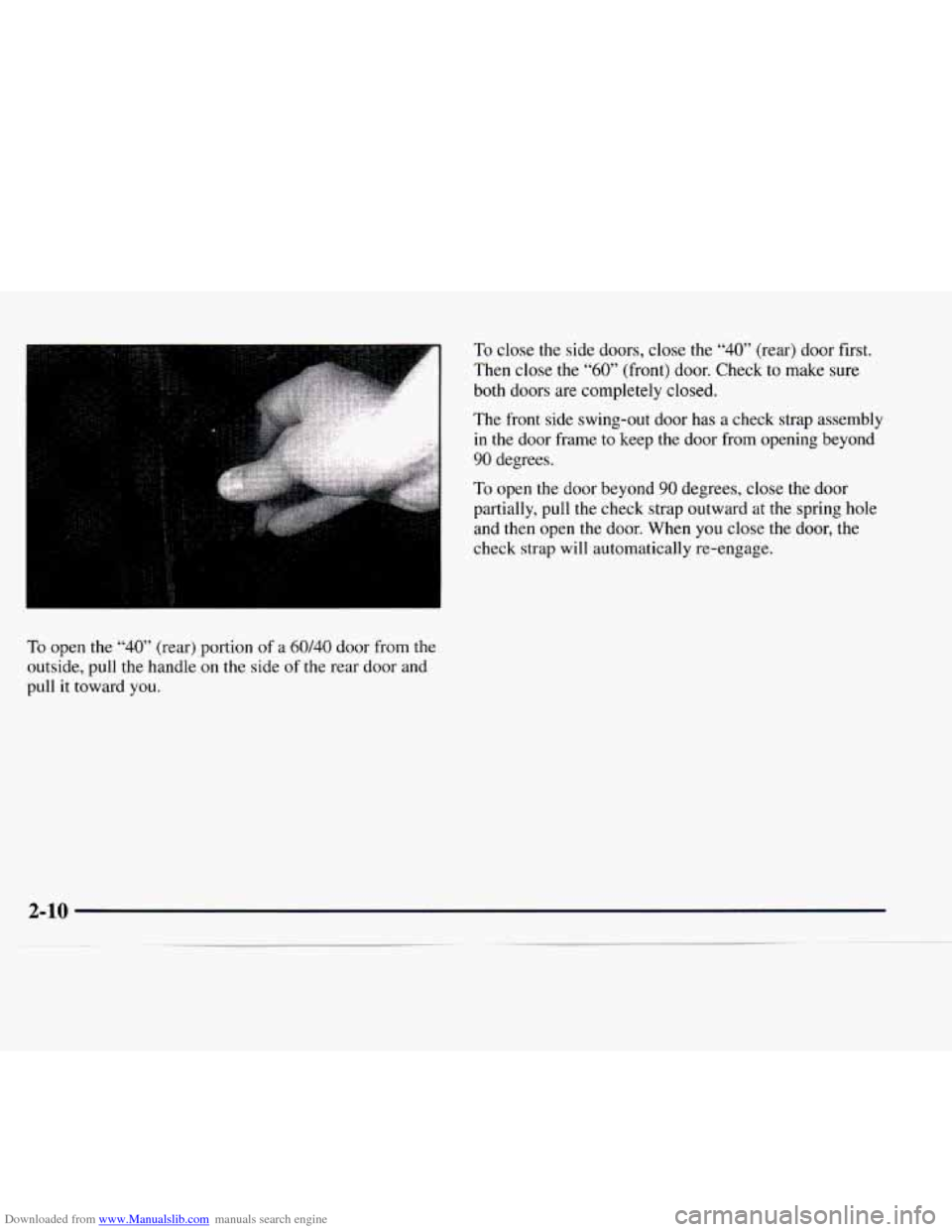

Downloaded from www.Manualslib.com manuals search engine To open the “40” (rear) portion of a 60/40 door from the
outside, pull the handle on the side of the rear door and
pull it toward
you.
To close the side doors, close the “40” (rear) door first.
Then close the
“60” (front) door. Check to make sure
both doors are completely closed.
The front side swing-out door has
a check strap assembly
in the door frame to keep the door from opening beyond
90 degrees.
To open the door beyond 90 degrees, close the door
partially, pull the check strap outward at the spring hole
and then open the door. When you close the door, the
check strap will automatically re-engage.

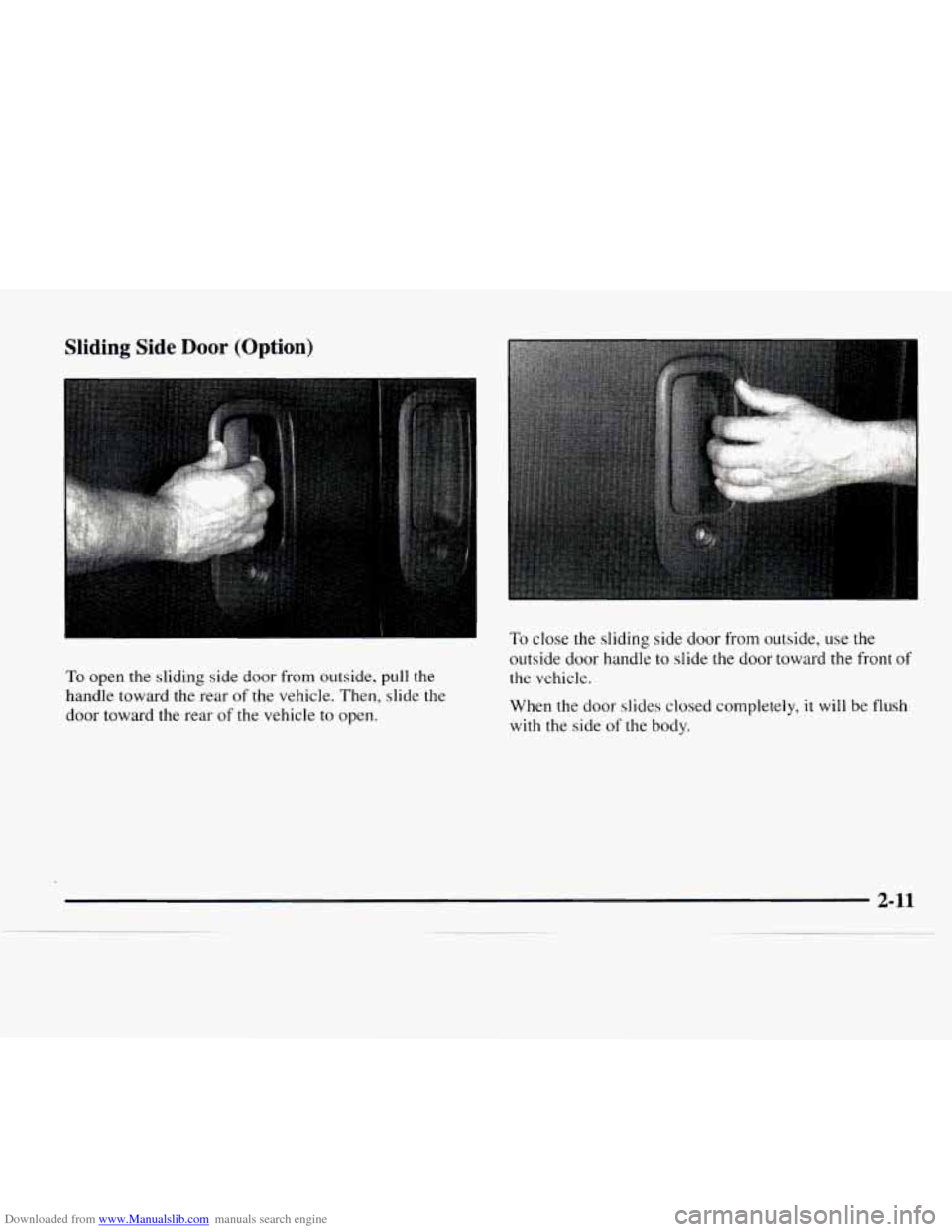

Downloaded from www.Manualslib.com manuals search engine Sliding Side Door (Option)
To open the sliding side door from outside, pull the
handle toward the rear
of the vehicle. Then, slide the
door toward the rear
of the vehicle to open.
I To close the sliding side door from outside, use the
outside door handle
to slide the door toward the front of
the vehicle.
When the door slides closed completely,
it will be flush
with the side
of the body.
