Downloaded from www.Manualslib.com manuals search engine Lift the hood, release the
hood prop from its retainer
and put the hood prop into
the slot in the hood hinge.
The underhood lamp will
automatically come
on
and stay on until the
hood is closed.
Then
go to the front of the vehicle and release the
secondary hood release.

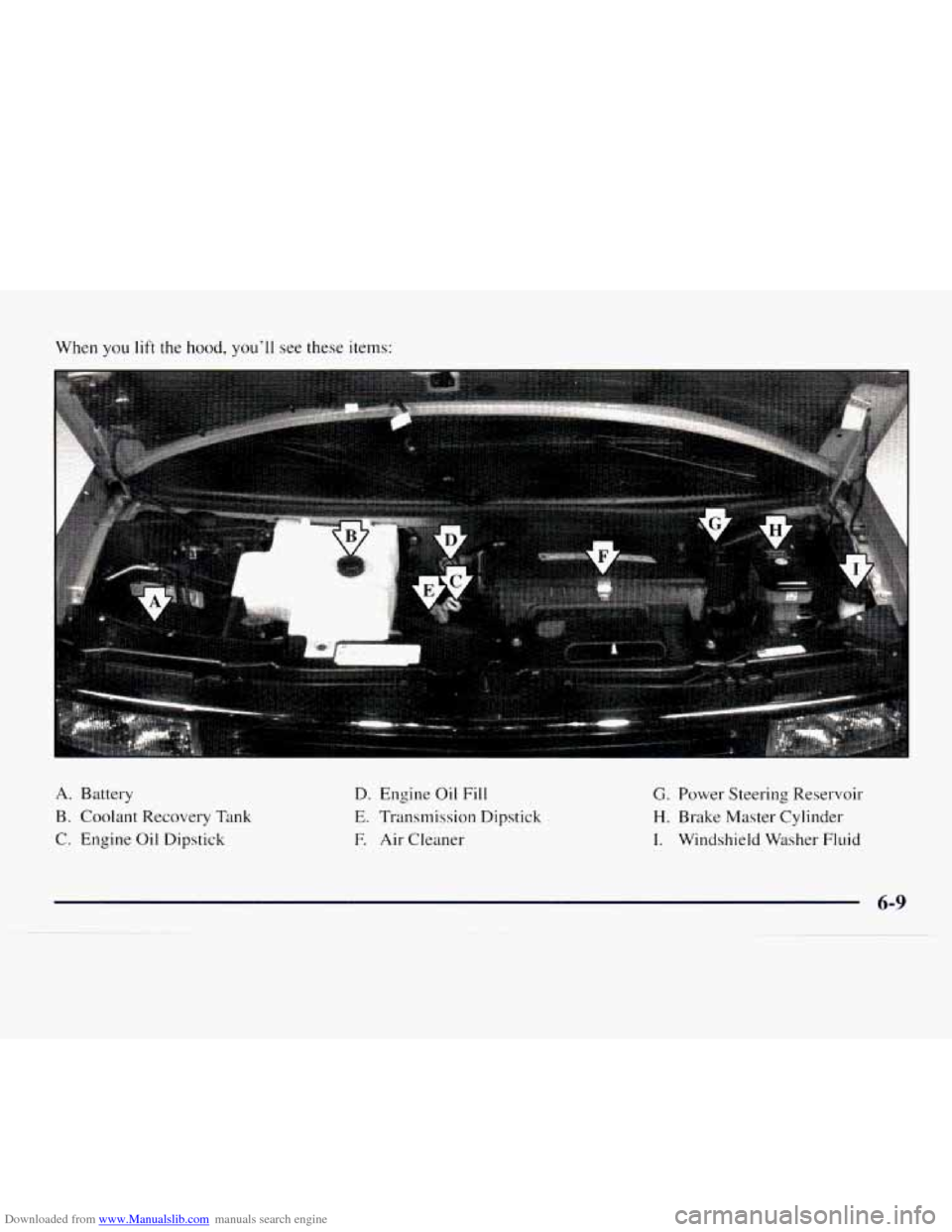

Downloaded from www.Manualslib.com manuals search engine When you lift the hood, you’ll see these items:
A. Battery
B. Coolant Recovery Tank
C. Engine Oil Dipstick D.
Engine Oil Fill E. Transmission Dipstick
E Air Cleaner
G. Power Steering Reservoir
H. Brake Master Cylinder
I. Windshield Washer Fluid
6-9

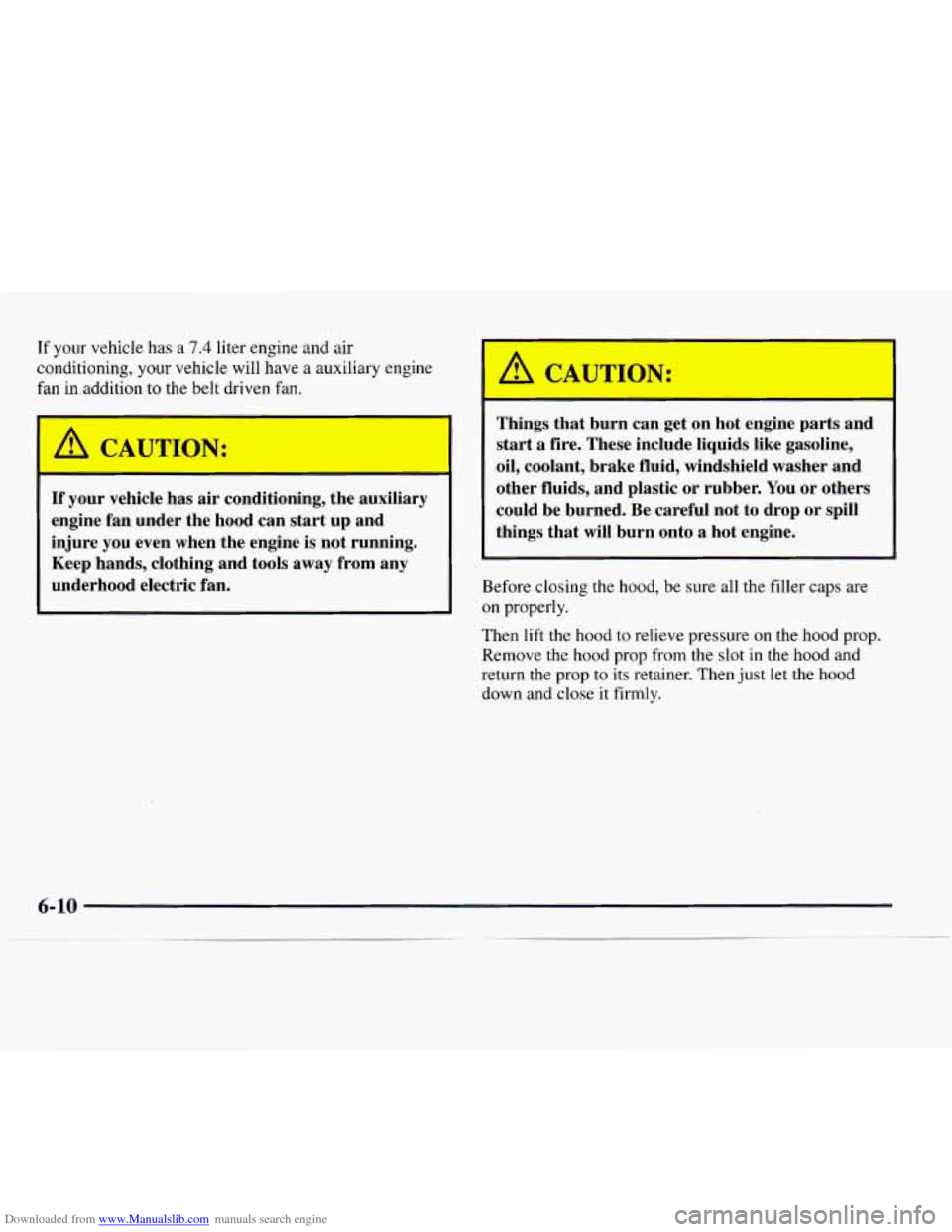

Downloaded from www.Manualslib.com manuals search engine If your vehicle has a 7.4 liter engine and air
conditioning, your vehicle will have
a auxiliary engine
fan in addition to the belt driven fan.
1
,A CAUTION: I
If your vehicle has air conditioning, the auxiliary
engine fan under the hood can start up and
injure you even when the engine is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
I A CAUTION:
i
Things that burn can get on hot engine parts and
start
a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You
or others
could be burned. Be careful not to drop or spill
things that will burn onto
a hot engine.
Before closing the hood, be sure all the filler caps are
on properly.
Then
lift the hood to relieve pressure on the hood prop.
Remove the hood prop from the slot in the hood and
return the prop
to its retainer. Then just let the hood
down and close
it firmly.
6-10
. .~

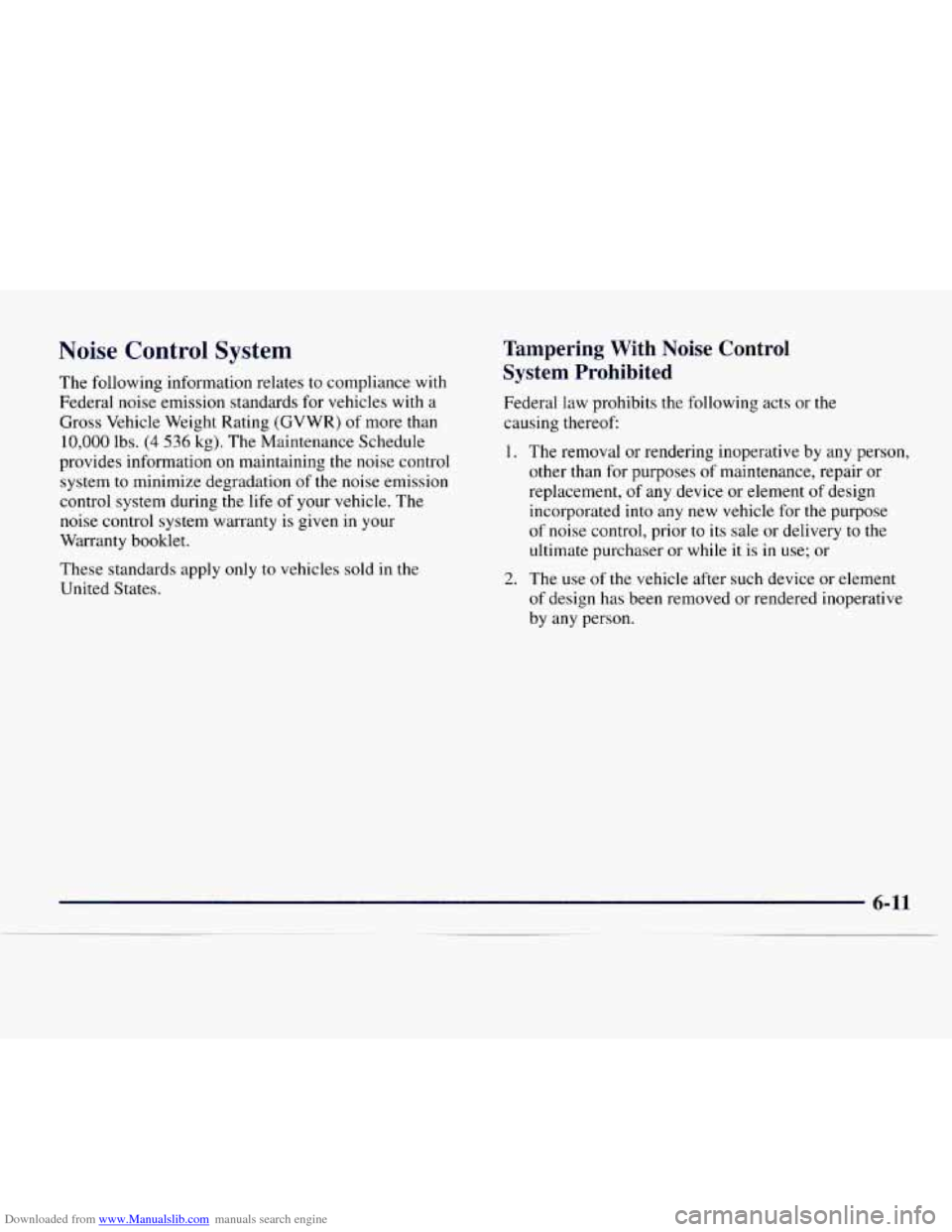

Downloaded from www.Manualslib.com manuals search engine Noise Control System
The following information relates to compliance with
Federal noise emission standards for vehicles with
a
Gross Vehicle Weight Rating (GVWR) of more than
10,000 lbs.
(4 536 kg). The Maintenance Schedule
provides information on maintaining the noise control
system to minimize degradation
of the noise emission
control system during the life
of your vehicle. The
noise control system warranty is given in
your
Warranty booklet.
These standards apply only
to vehicles sold in the
United States.
Tampering With Noise Control
System Prohibited
Federal law prohibits the following acts or the
causing thereof
1. The removal or rendering inoperative by any person,
other than for purposes
of maintenance, repair or
replacement,
of any device or element of design
incorporated into any new vehicle
for the purpose
of noise control, prior to its sale or delivery to the
ultimate purchaser or while it is in use; or
2. The use of the vehicle after such device or element
of design has been removed or rendered inoperative
by any person.

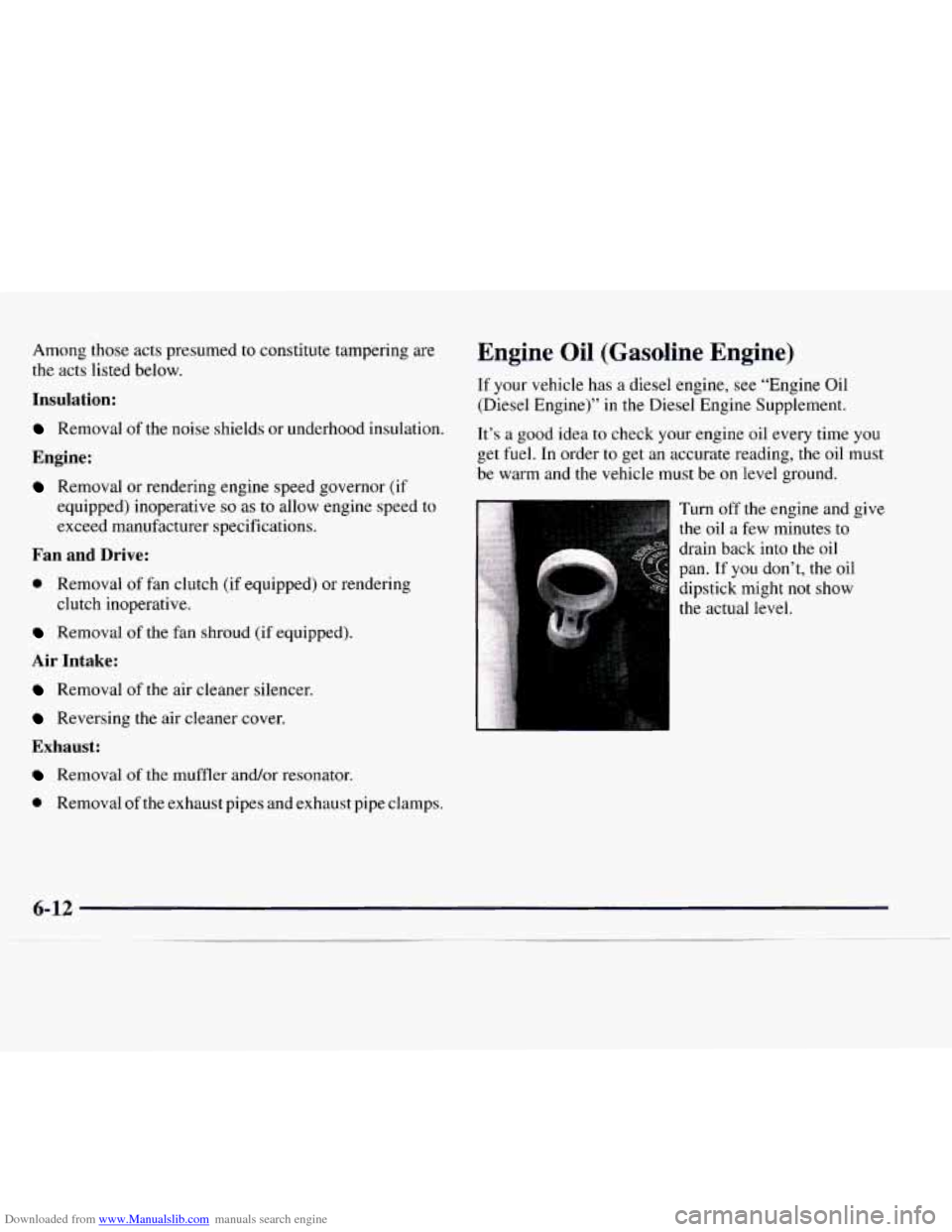

Downloaded from www.Manualslib.com manuals search engine Among those acts presumed to constitute tampering are
the acts listed below.
Insulation:
Removal of the noise shields or underhood insulation.
Engine:
Removal or rendering engine speed governor (if
equipped) inoperative so as to allow engine speed to
exceed manufacturer specifications.
Fan and Drive:
0 Removal of fan clutch (if equipped) or rendering
Removal of the fan shroud (if equipped).
Air Intake:
clutch inoperative.
Removal of the air cleaner silencer.
Reversing the air cleaner cover.
Exhaust:
Removal of the muffler and/or resonator.
0 Removal of the exhaust pipes and exhaust pipe clamps.
Engine Oil (Gasoline Engine)
If your vehicle has a diesel engine, see “Engine Oil
(Diesel Engine)” in the Diesel Engine Supplement.
It’s a good idea to check your engine oil every time
you
get fuel. In order to get an accurate reading, the oil must
be warm and
the vehicle must be on level ground.
Turn off the engine and give
the oil a few minutes to
drain back into the oil
pan.
If you don’t, the oil
dipstick might not show
the actual level.

Downloaded from www.Manualslib.com manuals search engine Checking Engine Oil
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the tip down, and check the level.
When to Add Oil
If the oil is at or below the ADD mark, then you’ll need
to add at least one quart
of oil. But you must use the
right kind. This part explains what kind
of oil to use. For
crankcase capacity, see “Capacities and Specifications”
in the Index.
I NOTICE:
Don’t add too much oil. If your engine has so
much oil that the oil level gets above the upper
mark that shows the proper operating range,
your engine could be damaged.

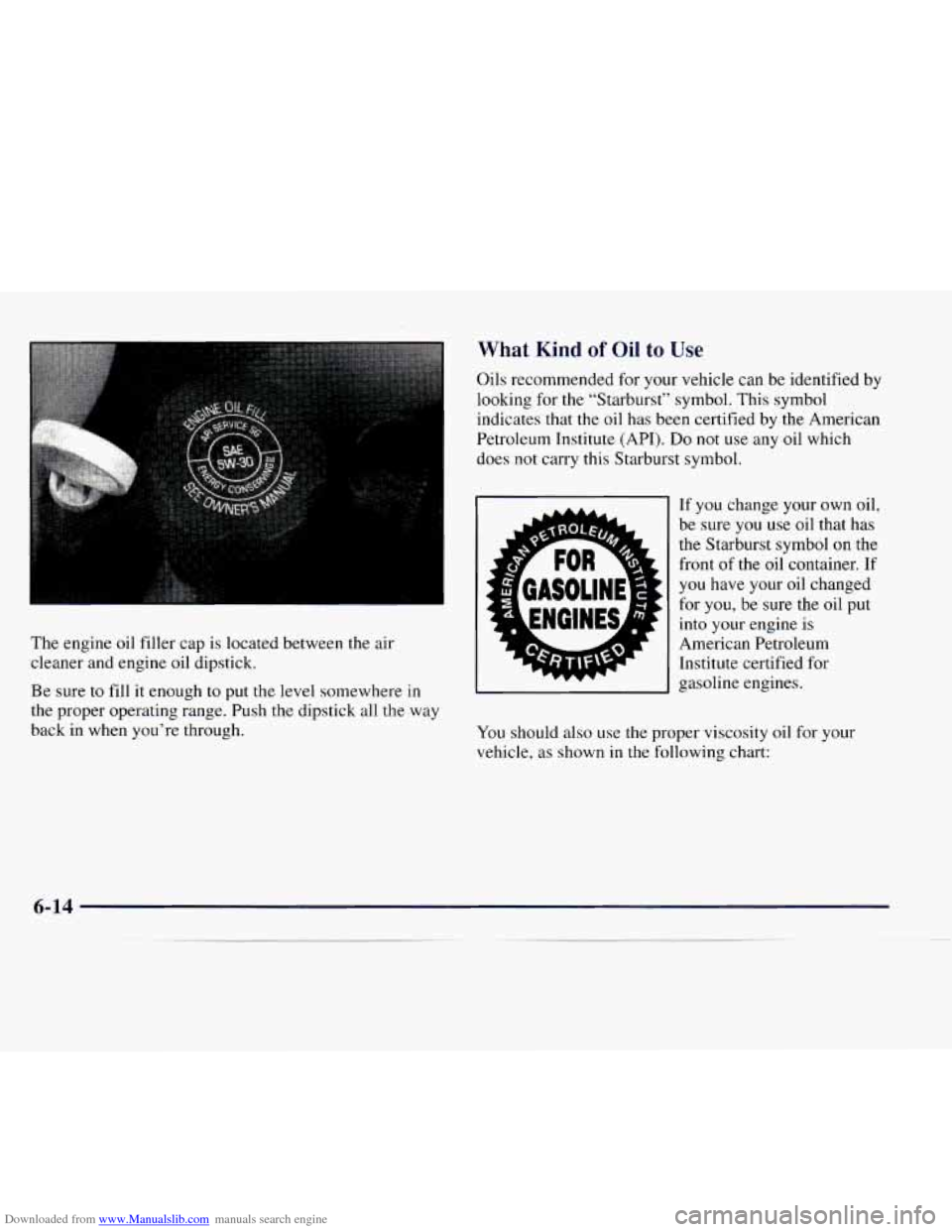

Downloaded from www.Manualslib.com manuals search engine What Kind of Oil to Use
The engine oil filler cap is located between the air
cleaner and engine oil dipstick.
Be sure to fill it enough
to put the level somewhere in
the proper operating range. Push the dipstick all
the way
back in when you’re through. Oils recommended
for your vehicle can be identified by
looking for the “Starburst” symbol. This symbol
indicates that
the oil has been certified by the American
Petroleum Institute (API).
Do not use any oil which
does not carry
this Starburst symbol.
If you change your own oil,
be sure you use oil that has
the Starburst symbol on the
front of the oil container.
If
you have your oil changed
for
you, be sure the oil put
into your engine is
American Petroleum
Institute certified for
-.
I I gasoline engines.
You should also use the proper viscosity oil for your
vehicle,
as shown in the following chart:

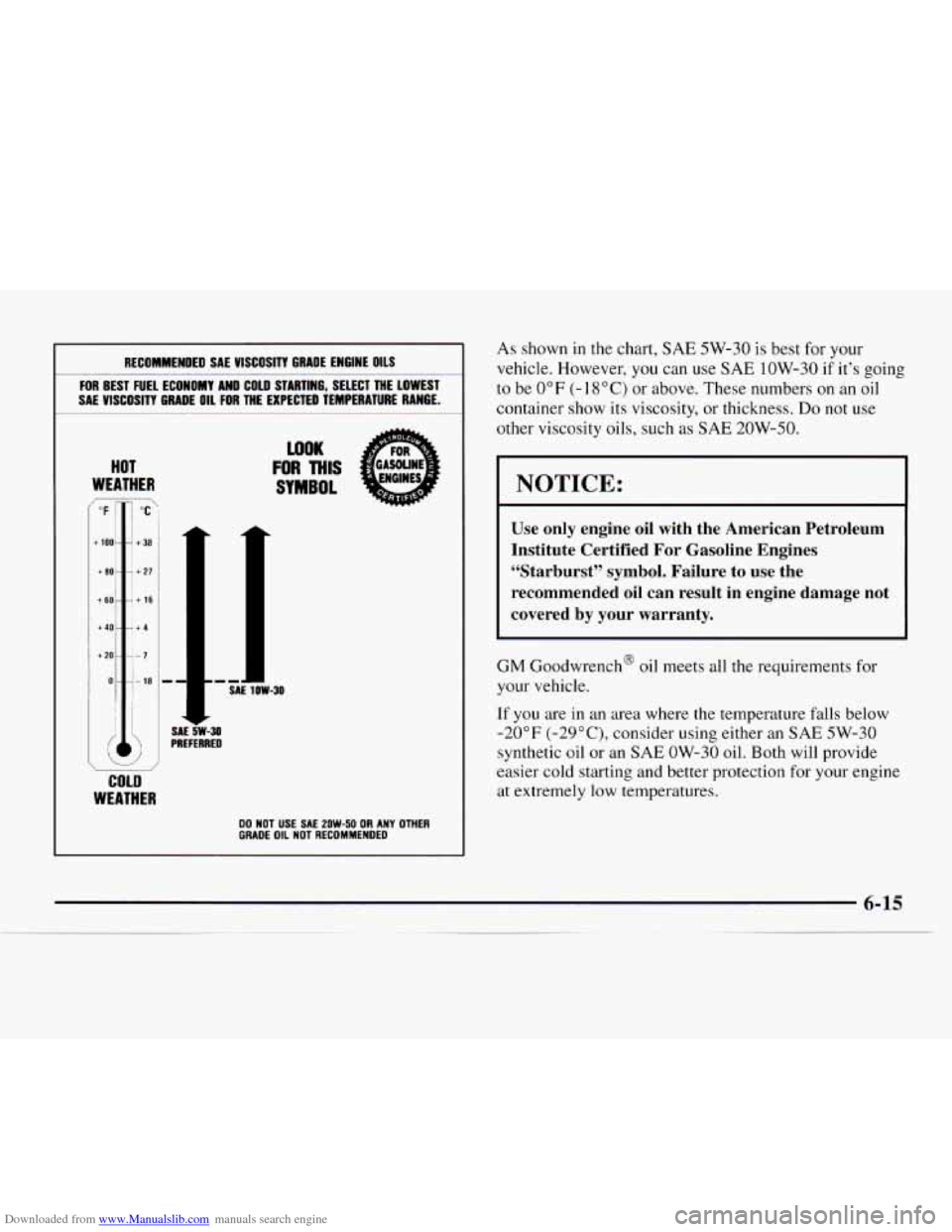

Downloaded from www.Manualslib.com manuals search engine I RECOMMENDED SAE VISCOSITY GRADE ENGINE OILS
FOR BEST FUEL ECONOMY AND COLD STARTING, SELECT THE LOWEST
SAE VISCOSITY
GRADE OIL FOR THE EXPECTED TEMPERATURE RANGE.
HOT
WEATHER
I- SAL 1OW-30
SAE SW-30 PREFERRED
.. -.-/
COLD
WEATHER
DO NOT USE SAE 2OW-50 OR ANY OTHER GRADE OIL NOT RECOMMENDED
As shown in the chart, SAE 5W-30 is best for your
vehicle. However, you can use
SAE 1OW-30 if it's going
to be
0" F (- 18 "C) or above. These numbers on an oil
container show its viscosity, or thickness.
Do not use
other viscosity oils, such as
SAE 20W-50.
NOTICE:
Use only engine oil with the American Petroleum
Institute Certified For Gasoline Engines
"Starburst" symbol. Failure to use the
recommended oil can result in engine damage not
covered by your warranty.
GM Goodwrench@ oil meets all the requirements for
your vehicle.
If you are in an area where the temperature falls below
-20°F
(-29"C), consider using either an SAE 5W-30
synthetic oil or an
SAE OW-30 oil. Both will provide
easier cold starting and better protection for your engine
at extremely low temperatures.
