1997 CHEVROLET EXPRESS Owners Manual

Downloaded from www.Manualslib.com manuals search engine Battery
Every new vehicle has a Delco Freedom@ battery. You
never have
to add water to one of these. When it’s time
for a new battery, we recommend a Delco Freedom
battery. Get one that
has the replacement number shown
on the original battery’s label.
Vehicle Storage
If’ you’re not going to drive your vehicle for 25 days or more,
take
off the black, negative (-) cable from the battery. This
will help keep your battery from running down.
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt
if you
aren’t careful. See “Jump Starting” in the Index
for tips on working around
a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Feature’’ in the Index.
Bulb Replacement
Before you replace any bulbs, be sure that all the lamps
are
off and the engine isn’t running. See “Replacement
Bulbs”
in the index for the proper types of bulbs to use.
Halogen Bulbs
Halogen bulbs have pressurized gas inside and
can burst if you drop
or scratch the bulb. You or
others could be injured. Be sure
to read and
follow the instructions on the bulb package.

Downloaded from www.Manualslib.com manuals search engine Headlamps

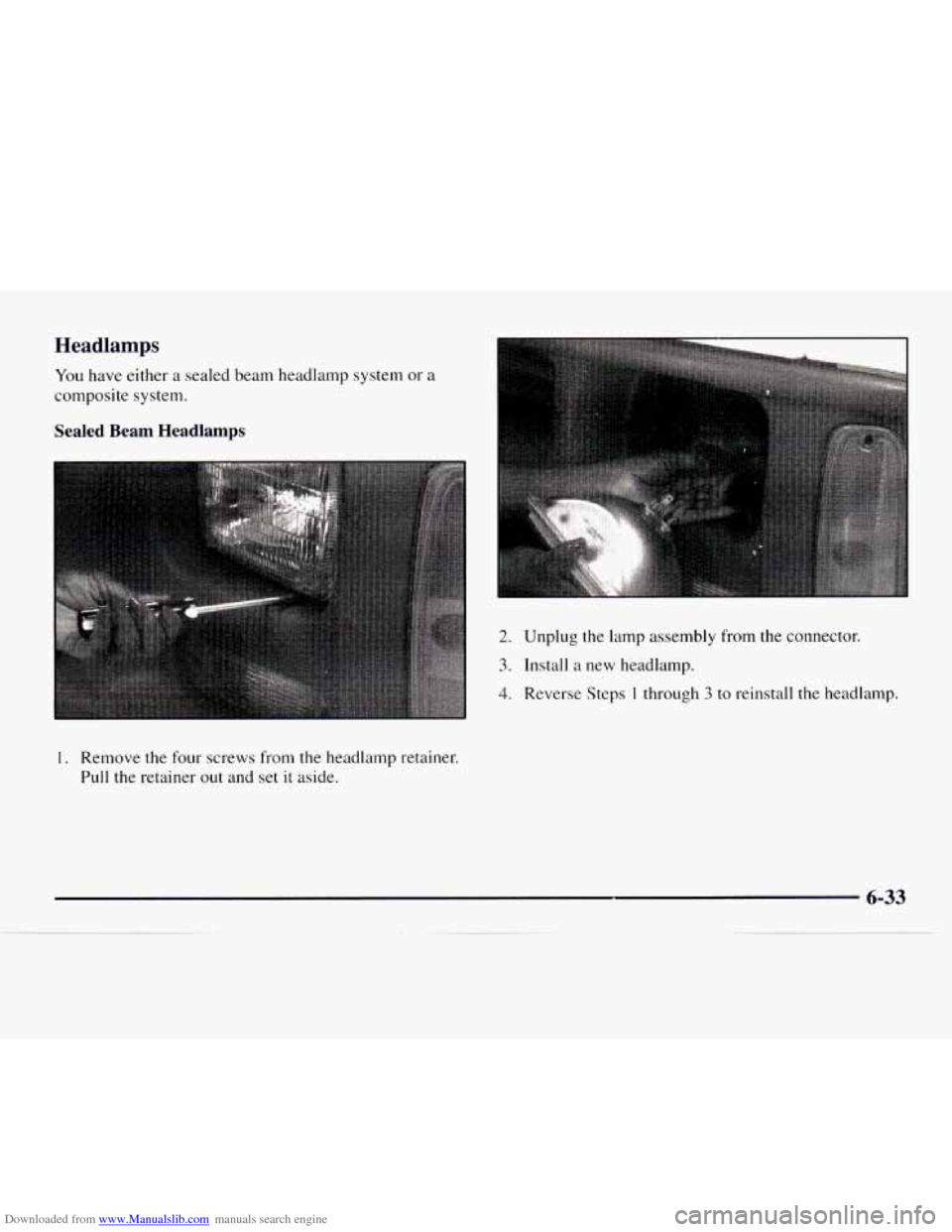

You have either a sealed beam headlamp system or a
composite system.
Sealed Beam Headlamps
2. Unplug the lamp assembly from the connector.
3. Install a new headlamp.
4. Reverse Steps 1 through 3 to reinstall the headlamp.
1. Remove the four screws from the headlamp retainer.
Pull the retainer
out and set it aside.

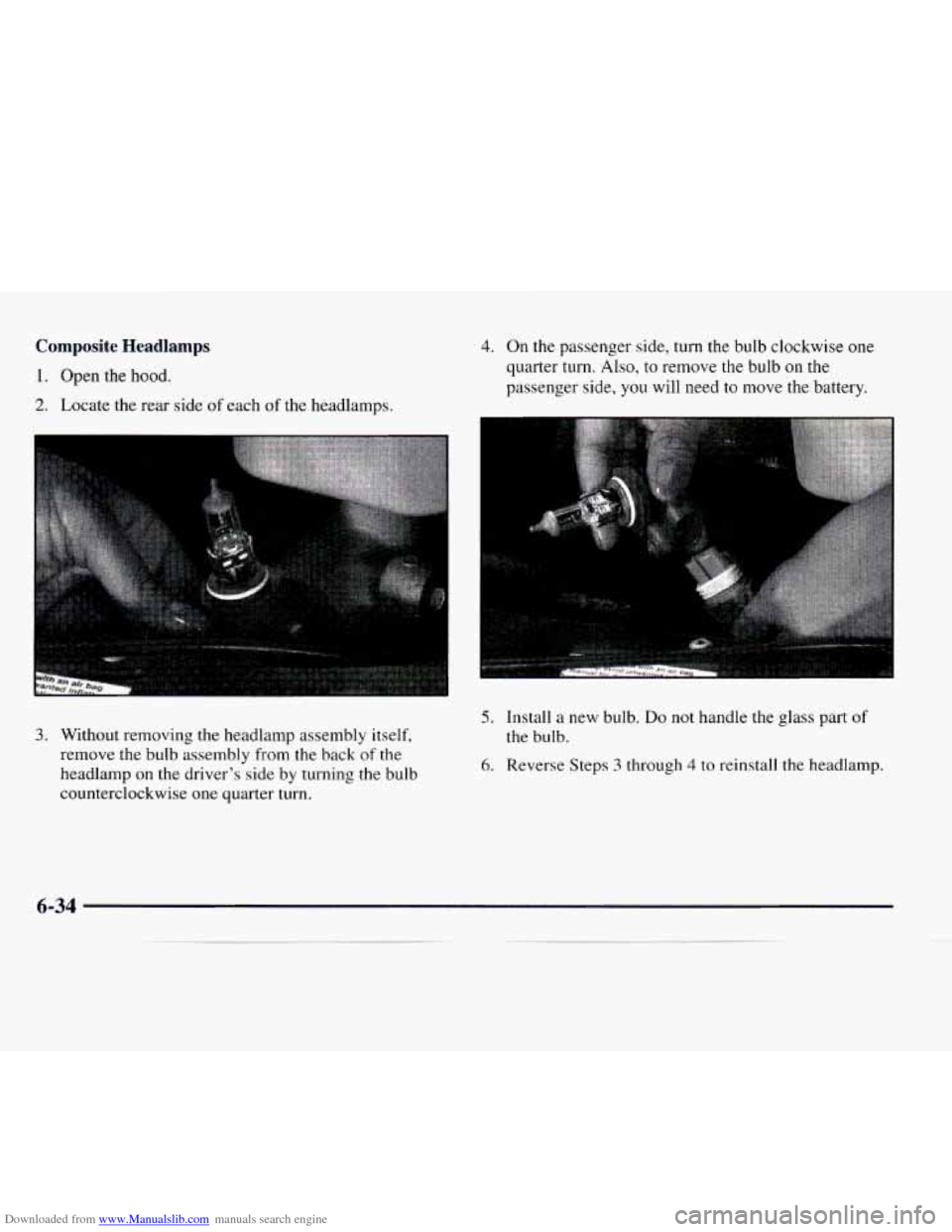

Downloaded from www.Manualslib.com manuals search engine Composite Headlamps
1. Open the hood.
2. Locate the rear side of each of the headlamps.
4. On the passenger side, turn the bulb clockwise one
quarter turn. Also, to remove the bulb on the
passenger side,
you will need to move the battery.
3. Without removing the headlamp assembly itself,
remove the bulb assembly from the back
of the
headlamp
on the driver’s side by turning the bulb
counterclockwise
one quarter turn.
5. Install a new bulb. Do not handle the glass part of
the bulb.
6. Reverse Steps 3 through 4 to reinstall the headlamp.
6-34

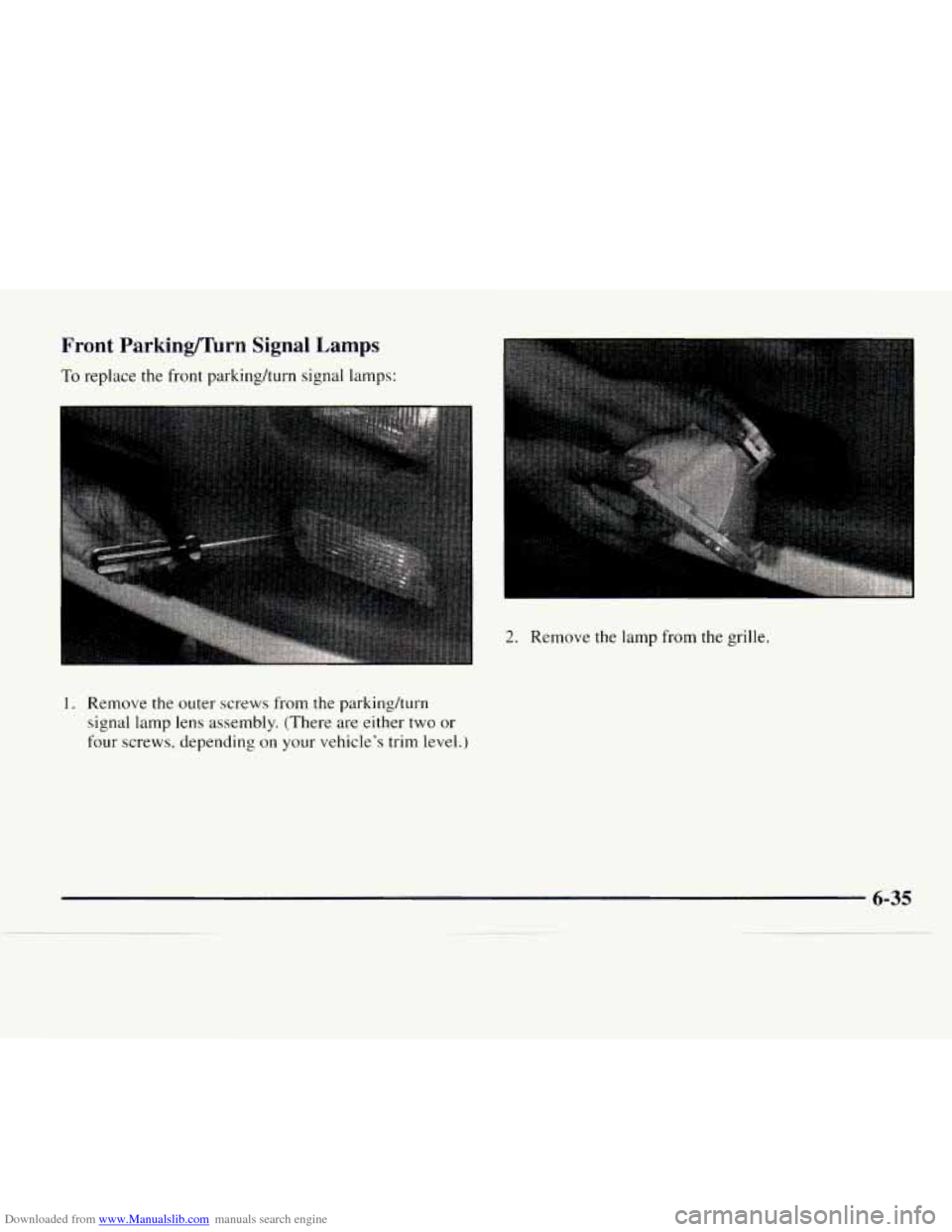

Downloaded from www.Manualslib.com manuals search engine Front ParkinglTurn Signal Lamps
To replace the front parkinghurn signal lamps:
I
2. Remove the lamp from the grille.
1. Remove the outer screws from the parking/turn
signal lamp lens assembly. (There are either two
or
four screws, depending on your vehicle’s trim level.)

Downloaded from www.Manualslib.com manuals search engine I P I

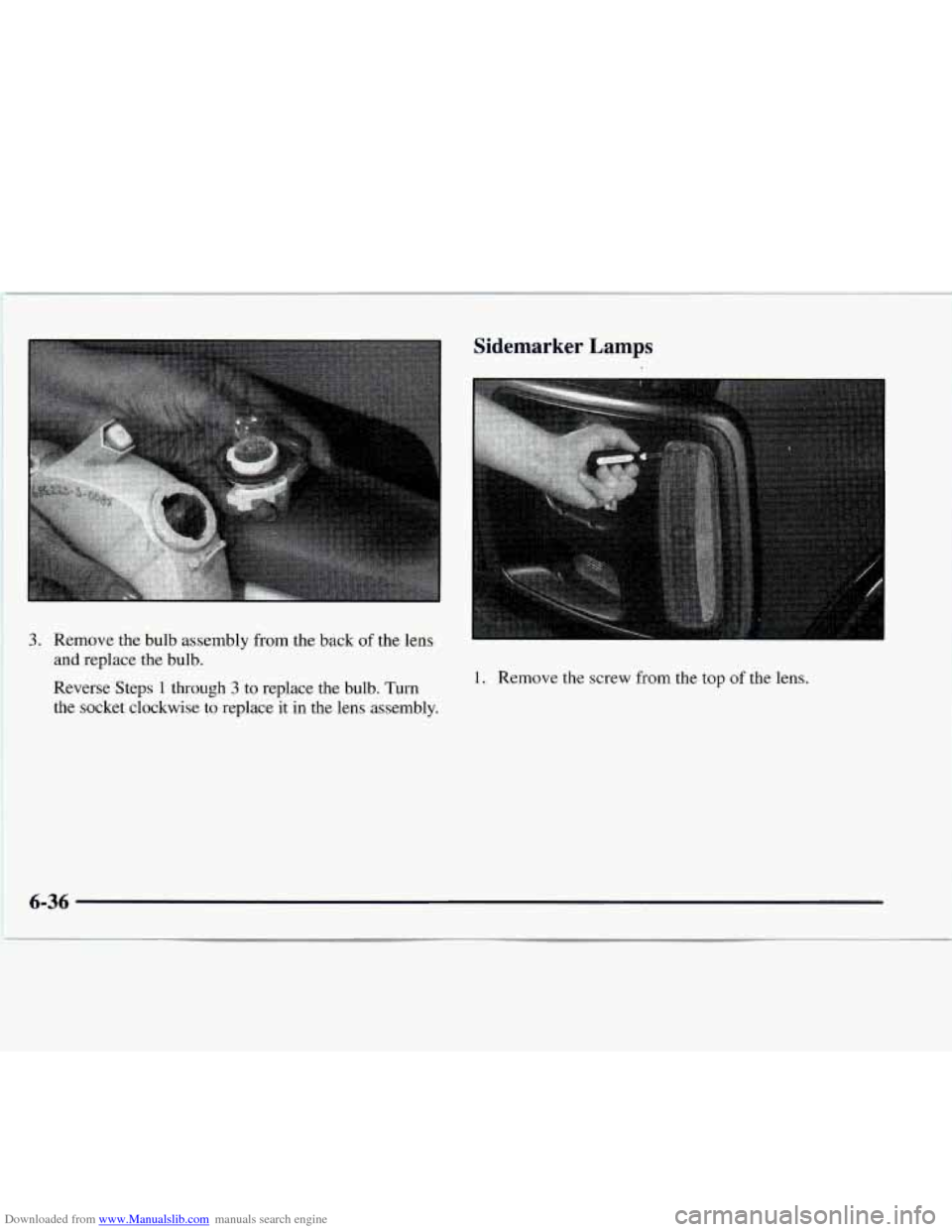

Sidemarker Lamps
3. Remove the bulb assembly from the back of the lens
and replace the bulb.
Reverse Steps
1 through 3 to replace the bulb. Turn
the socket clockwise to replace it in the lens assembly. 1. Remove the screw from the top of the lens.

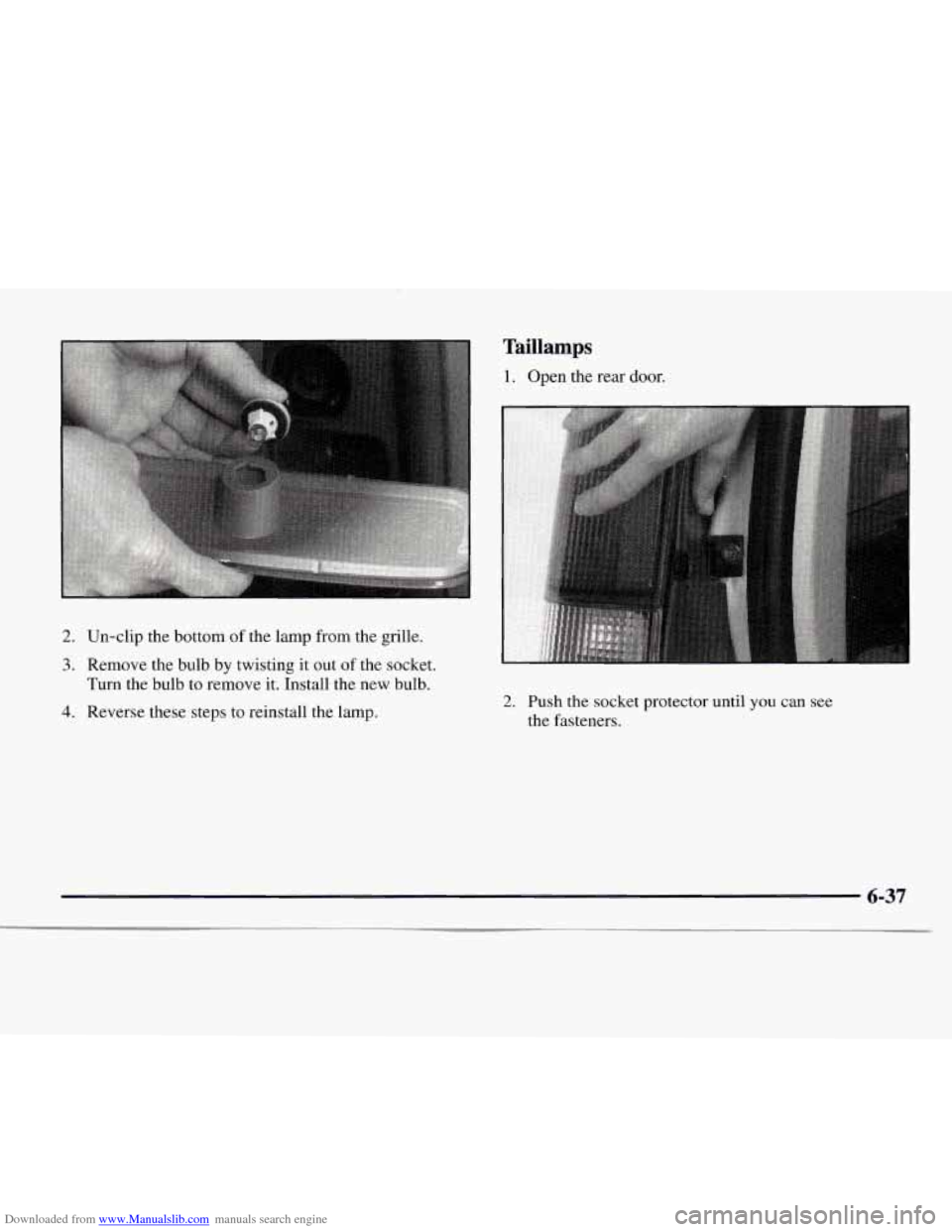

Downloaded from www.Manualslib.com manuals search engine 2. Un-clip the bottom of the lamp from the grille.
3. Remove the bulb by twisting it out of the socket.
Turn the bulb to remove it. Install the new bulb.
4. Reverse these steps to reinstall the lamp.
Taillamps
1. Open the rear door.
2. Push the socket protector until you can see
the fasteners.
6-37

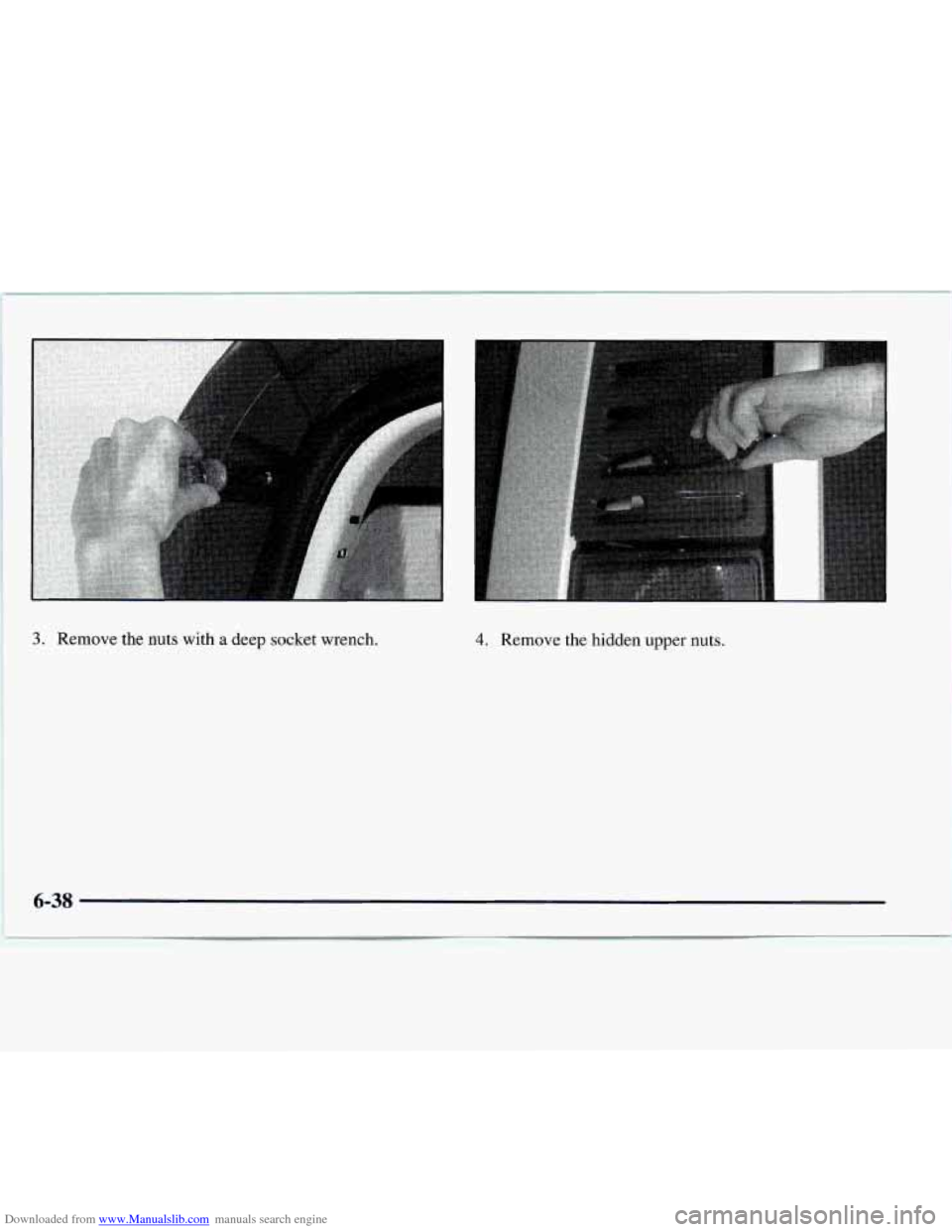

Downloaded from www.Manualslib.com manuals search engine 3. Remove the nuts with a deep socket wrench. 4. Remove the hidden upper nuts.
6-38

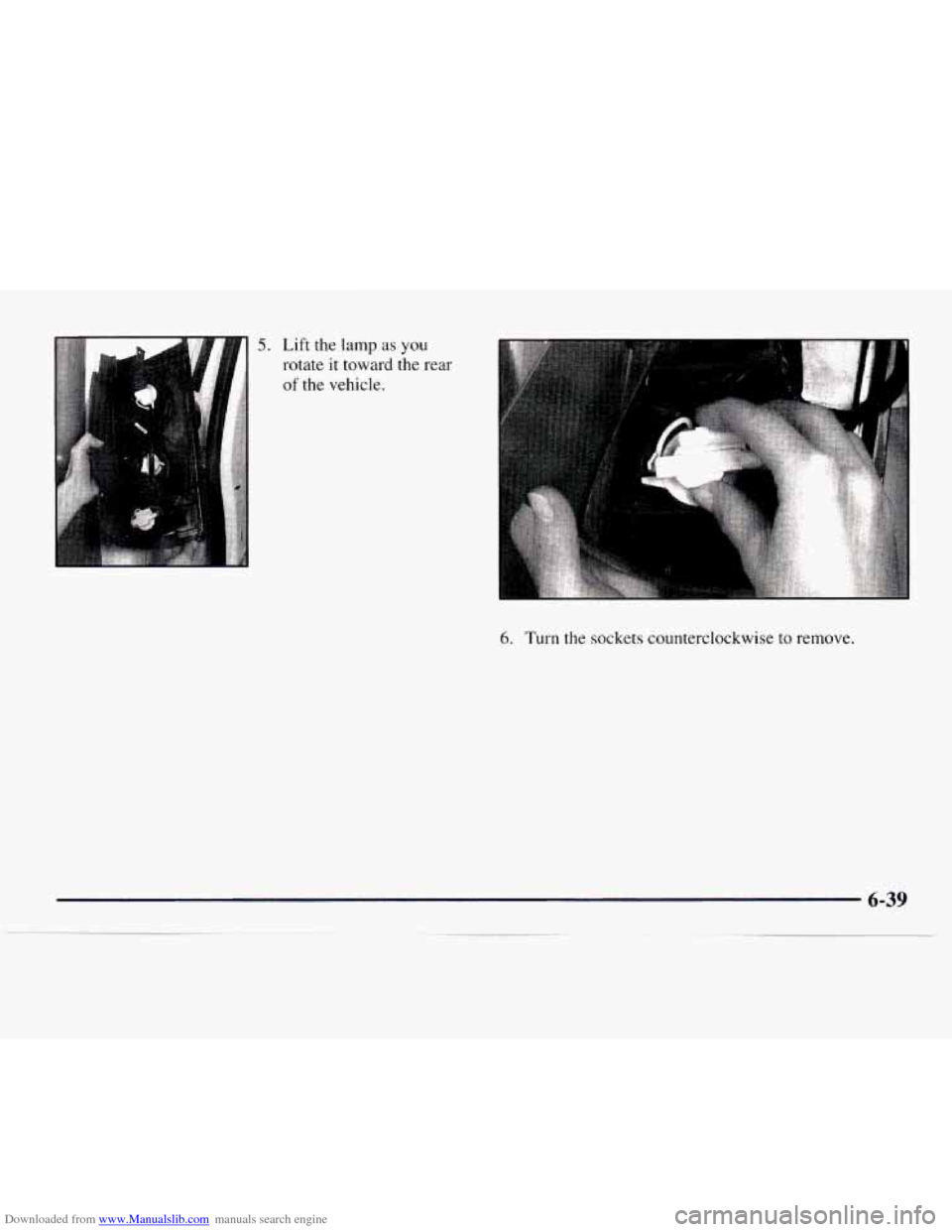

Downloaded from www.Manualslib.com manuals search engine 5. Lift the lamp as
rotate it toward
of the vehicle.
YOU
the rear
6. Turn the sockets counterclockwise to remove.
