1997 CHEVROLET CORVETTE jump start

Downloaded from www.Manualslib.com manuals search engine e Section 5 Problems on the Road
Here you’ll find what to do about some problems that can occur on the road.
5-2
5-3
5-8
5-13
Hazard Warning Flashers
Jump Starting
Towing Your Vehicle
Engine Overheating
5- 16 Cooling System
5-22 If a Tire Goes Flat
5-22 If You’re Stuck: In Sand, Mud, Ice or Snow
5-1

Downloaded from www.Manualslib.com manuals search engine 1
Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables to start your
Corvette. But please
use the following steps to do
it safely.
NOTICE:
Ignoring these steps could result in costly damage
to your vehicle that wouldn’t be covered by your
warranty.
Trying to start your Corvette by pushing or
pulling it could damage your vehicle, even
if you
have a manual transmission. And if you have an
automatic transmission, it won’t start that way. Batteries can
hurt you. They can be dangerous
because:
They contain acid that can burn you.
0 They contain gas that can explode or ignite.
0 They contain enough electricity to
If you don’t follow these steps exactly, some or all
of these things can hurt you.
burn
you.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
I NOTICE:
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.
I

Downloaded from www.Manualslib.com manuals search engine 2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other.
If they are, it could cause a ground
connection you don’t want. You wouldn’t be able to
start your Corvette, and the bad grounding could
damage the electrical systems.
unnecessary accessories plugged into the cigarette
lighter or accessory plug.
Turn off all lamps that
aren’t needed as well as radios. This will avoid
sparks and help save both batteries. In addition, it
could save your radio!
3. Turn off the ignition on both vehicles. Unplug
NOTICE:
If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
4. Open the hoods and locate the batteries. Find the
positive
(+) and negative (-) terminals on each.
A CAUTION:
An electric fan can start up even when the engine
is not running and can injure you. Keep hands,
clothing and tools away from any underhood electric fan.
5-4

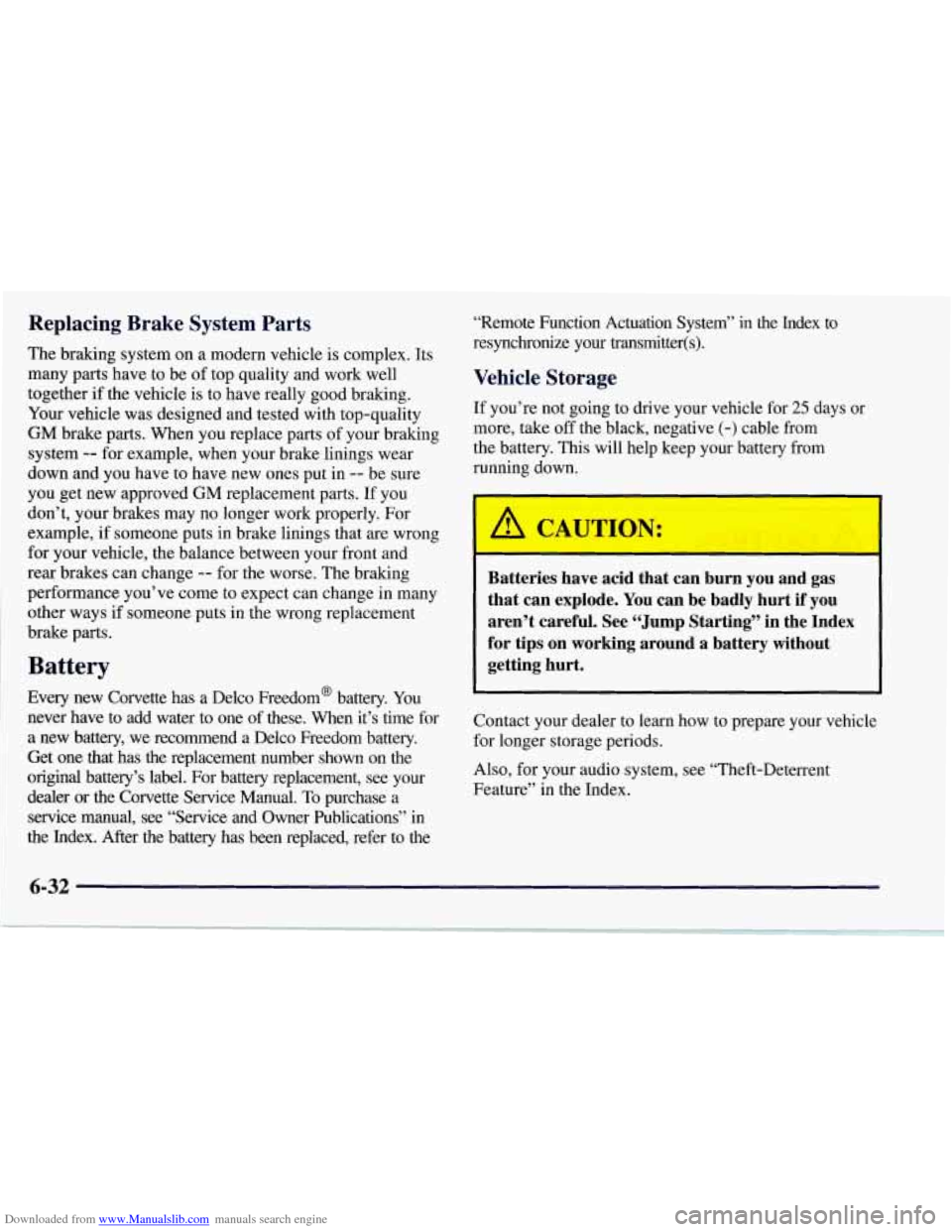

Downloaded from www.Manualslib.com manuals search engine Replacing Brake System Parts
The braking system on a modern vehicle is complex. Its
many parts have to be of top quality and work well
together if the vehicle is to have really good braking.
Your vehicle was designed and tested with top-quality
GM brake parts. When you replace parts of your braking
system
-- for example, when your brake linings wear
down and you have to have new ones put
in -- be sure
you get new approved GM replacement parts. If you
don’t, your brakes may no longer work properly. For
example, if someone puts in brake linings that
are wrong
for your vehicle, the balance between your front and
rear brakes can change
-- for the worse. The braking
performance you’ve come to expect can change in many
other ways if someone puts in the wrong replacement
brake parts.
Battery
Every new Corvette has a Delco Freedom@ battery. You
never have to add water to one of these. When it’s time for
a new battery, we recommend a Delco Freedom battery.
Get one that has the replacement number shown on the
original battery’s label. For battery replacement, see your
dealer or the Corvette Service Manual. To purchase
a
service manual, see “Service and Owner Publications” in
the Index. After the battery has been replaced, refer to the “Remote Function Actuation System” in
the Index to
resynchronize your transmitter(s).
Vehicle Storage
If you’re not going to drive your vehicle for 25 days or
more, take
off the black, negative (-) cable from
the battery.
This will help keep your battery from
running down.
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt
if you
aren’t careful. See “Jump Starting” in the Index
for tips
on working around a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Feature” in the Index.
6-32

Downloaded from www.Manualslib.com manuals search engine ROADSIDE Courtesy TM Care PROVIDES:
e
e
e
a
e
Roadside Basic Care services (as outlined above)
Plus:
FREE Non-Warranty Towing (to the closest dealer
from a legal roadway)
FREE Locksmith/Key Service (when keys are lost
on the road or locked inside)
FREE Jump Start (at home or on the road)
FREE Fuel Delivery
($5 of fuel delivered on
the road) Chevrolet/Geo offers
Courtesy Transportation for
customers needing warranty service. Courtesy
Transportation will be offered in conjunction with
the coverage provided by the Bumper to Bumper
New Vehicle Limited Warranty to eligible purchasers
of 1997 Chevrolet/Geo passenger car and light duty
trucks. (Please see your selling dealer for details.)
Note:
Courtesy Care is available to Retail and Retail Lease
Customers operating 1997 and newer ChevroletlGeo
vehicles for a period
of 3 years/36,000 miles (60 OOO km),
whichever occurs first. All Courtesy Care services must
be pre-arranged by Chevrolet Roadside or dealer
Service Management.
Basic Cure and Courtesy Care are not part of or
included in the coverage provided by the New Vehicle
Limited Warranty. Chevrolet reserves the right to
modify or discontinue
Basic Care and Courtesy Care
at any time.

Downloaded from www.Manualslib.com manuals search engine e
Section 9 Index
Accessory Outlet .............................. 2-58
Accessory Power Plug
........................... 6-61
Adding Equipment to the Outside
of Your Vehicle ...... 6-3
AirBag
....................................... 1-19
How Does It Restrain
.......................... 1-23
How It Works
................................ 1-2 1
Location .................................... 1-21
Servicing
................................... 1-24
What Makes It Inflate
......................... 1-22
What Will You See After It Inflates
............... 1-23
When Should It Inflate
......................... 1-22
Air Bag Readiness Light
.................... 1-20, 2-72
AirBagSystem
................................ 1-19
Aircleaner
.................................... 6-16
Air Conditioning
....................... 3-4,3-9, 3-11
Alignment and Balance, Tire
...................... 6-48
Aluminum Wheels, Cleaning
...................... 6-57
Antenna
...................................... 3-30
Antifreeze
..................................... 6-22
Anti-Lock Brakes
...................................... 4-7
Brake System Warning Light
................ 2-74, 4-7
Anti-Theft Radio
............................... 3-26
Appearancecare
............................... 6-51
Appearance Care Materials
....................... 6-59 Arbitration Program
.............................. 8-9
Ashtray ....................................... 2-57
Audio Equipment. Adding
........................ 3-29
Audio Systems
................................. 3-13
Automatic Electronic Dual Climate Control System
............ 3-5
Overdrive
................................... 2-28
Transmission Check
........................... 7-14
Transmission Fluid
............................ 6-18
Transmission. Operation
....................... 2-26
Transmission. Park Mechanism Check
............ 7-16
Transmission. Shifting
......................... 2-26
Transmission. Starting Your Engine
.............. 2-22
Axle. Limited-Slip Rear
......................... 2-38
Axle. Rear
.................................... 6-22
Back-up Lamp Bulb Replacement
................. 6-37
Battery
....................................... 6-32
Jump Starting
................................. 5-3
Replacement, Remote Function Actuation System ... 2-12
Warnings
................................ 5-3, 5-5
BBB Auto Line ................................. 8-9
Belt, Engine Accessory .......................... 6-71
Better Business Bureau Mediation
................... 8-9
Blizzard
...................................... 4-28

Downloaded from www.Manualslib.com manuals search engine Inspections .................................... 7-17
Brakesystem
................................ 7-17
Exhaust System
.............................. 7-17
Radiator and Heater Hose
...................... 7-17
Steering
.................................... 7-17
Suspension
.................................. 7-17
Tire
........................................ 7-17
Wheel
...................................... 7-17
InstrumentPanel
............................... 2-68
Brightness Control
............................ 2-52
Cleaning
.................................... 6-53
Cluster
..................................... 2-7 0
FuseBlock .................................. 6-63
Instrument Panel Cupholder
....................... 2-54
Interior Lamps
................................. 2-52
Jump Starting
.................................. 5-3
Key Fob Transmitter
............................ 2-6
Key Lock Cylinders Service
...................... 7-14
Labels
....................................... 4-30
Keys
.......................................... 2-2
Certification
................................. 4-30
Service Parts Identification
..................... 6-60
Tire-Loading Information
...................... 4-30
Vehicle Identification Number
................... 6-60
Cleaning Exterior LampsLenses
................. 6-56
Courtesy
.................................... 2-52
Exterior
.................................... 2-50
Interior
..................................... 2-52
OnReminder
................................ 2-44
Lamps Latches.
Seatback
................................ 1-5
Leaving Your Vehicle
............................. 2-5
Leaving Your Vehicle with the Engine Running
....... 2-34
Lighter
....................................... 2-57
Lights Air Bag Readiness
....................... 1-20, 2-72
Anti-Lock Brake System Warning
............ 2-74, 4-7
Brake System Warning
......................... 2-73
Check Engine
................................ 2-76
Safety Belt Reminder
...................... 1-7, 2-72
Traction Control System
(TCS) .................. 2-75
Loading Your Vehicle
........................... 4-30
CheckGages
................................ 2-79
Security
.................................... 2-79
Locks
......................................... 2-4
Cylinders
................................... 7-14
Door
........................................ 2-4
Ignition Transmission Lock Check
............... 7-16
Key Lock Cylinders Service
.................... 7-14
PowerDoor
.................................. 2-5
Using the Wheel Lock Key
..................... 6-50
Lubricants and Fluids
............................ 7-18
Lubrication Service, Body
........................ 7-14
Maintenance Record
........................... 7-20
Maintenance Schedule
............................ 7-1
Periodic Maintenance Inspections
................ 7-17
Recommended Fluids and Lubricants
............. 7-18
Scheduled Maintenance Services
.................. 7-4
Your Vehicle and the Environment
................ 7-2
Maintenance, Underbody
......................... 6-57
Malfunction Indicator Lamp
...................... 2-76
