The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow
you to signal a turn
or a lane change.
To signal a turn, move the multifunction lever all the
way up or down. When the turn
is finished, the lever
will return automatically.
A chime will remind you if you leave your turn signal
on for more than
3/4 of a mile (1.2 km) of driving.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
As
you signal a turn or a lane change, if the arrows flash
faster than normal, a signal bulb may be burned out.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don’t go
on at all when you
signal a turn, check the fuses and check for burned-out
bulbs. (See “Fuses and Circuit Breakers” in the Index.)
A green arrow on the
instrument cluster will
flash in the direction of
the turn or lane change.
2-42

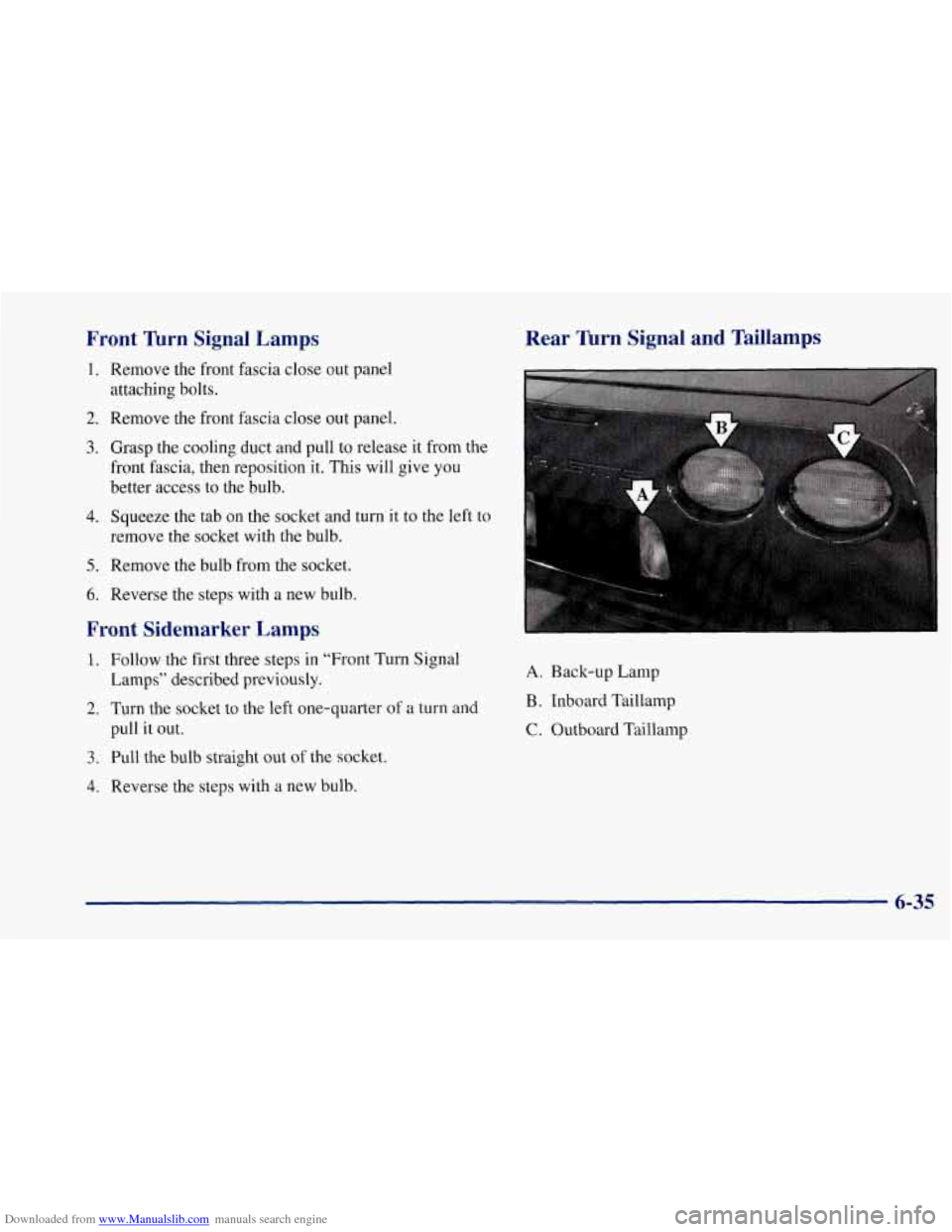

Downloaded from www.Manualslib.com manuals search engine Front Turn Signal Lamps
1. Remove the front fascia close out panel
attaching bolts.
2. Remove the front fascia close out panel.
3. Grasp the cooling duct and pull to release it from the
front fascia, then reposition it. This will give you
better access to the bulb.
4. Squeeze the tab on the socket and turn it to the left to
5. Remove the bulb from the socket.
6. Reverse the steps with a new bulb.
remove the
socket with the bulb.
Front Sidemarker Lamps
Lamps” described previously.
1. Follow the first three steps in “Front Turn Signal
2. Turn the socket to the left one-quarter of a turn and
pull it out.
3. Pull the bulb straight out of the socket.
4. Reverse the steps with a new bulb.
Rear Turn Signal and Taillamps
A. Back-up Lamp
B. Inboard Taillamp
C. Outboard Taillamp
6-35

Downloaded from www.Manualslib.com manuals search engine 4. Remove the bulb from the socket.
5. Reverse the steps with a new bulb.
Back-up Lamps
YOU can access the back-up lamps through the inboard
taillamp opening. See “Rear Turn Signal and Taillamps”
in the Index.
1. Squeeze the tab on the socket while turning
it to the
2. Remove the bulb from the socket.
left
to remove it from the assembly.
3. Reverse the steps with a new bulb.
For any bulb replacement procedures not listed here,
please see your dealership.
Windshield Wiper Blade Replacement
It’s a good idea to clean or replace the wiper blade
assembly every six months. For the proper windshield
wiper blade length and type, see “Replacement Parts” in
the Index.
NOTICE:
Use care when removing or installing a blade
assembly. Accidental bumping can cause the
arm
to fall back and strike the windshield.
To remove the wiper blade assembly:
I. Open the hood to gain access to the windshield wipers.
2. Lift the wiper arm until it locks into a vertical position.
6-37

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Automatic Transmission Indicator ............ 194
Console Compartment Flood
................ LED
Glove Box Lamp ......................... 194
Mirror Reading Lamps
.................... 212-2
Visor Vanity Mirror
........................ 37
Underhood
............................. 211-2
IP Courtesy Lamps
........................ 194
Headlamp High Beam
.................... 9005
Headlamp Low Beam .................... 9006
Fog .................................... 893
Rear Courtesy .......................... PC168
Front ParlunglTurn Signal
............. 3 157NAK
Back-up
............................... 2057
Front Sidemarker
......................... 194
Rear Sidemarker
......................... 194
Stopflail Turn Signal
..................... 3057
Center High-Mounted Stoplamp
............. LED
License
................................. 194
Capacities and Specifications
Engine
Type .................................... V8
Fuel Delivery ............ Sequential Multi-Port
VIN Engine Code .......................... G
Fuel Injection (SFI)
Valve Arrangement ............. Overhead Valve
Piston Displacement ..................... 5.7 L
Bore ...................... 3.90 inches (9.9 cm)
Stroke .................... 3.62 inches (9.2 cm)
Compression Ratio ..................... 10.1 : 1
Horsepower ............................. 345
Firing Order .................. 1-8-7-2-6-5-4-3
Thermostat Temperature
Specification
.................. 1 87 O F (86 O C)
6-69

Downloaded from www.Manualslib.com manuals search engine Fiberglass Springs .............................. 6-58
Fifth Gear. Manual Transmission
................... 2-29
Filling Your Tank
................................ 6-5
Filter. Air Cleaner
.............................. 6- 16
Finish Care
.................................... 6-56
Finish Damage
................................. 6-57
First Gear. Automatic Transmission
................ 2-28
First Gear. Manual Transmission
................... 2-29
Flashers. Hazard Warning
......................... 5-2
Flat Tire. What to
Do ............................ 5-22
Floor Mats
.................................... 2-60
Fluid Capacities
................................ 6-70
FobTraining
................................... 2-89
Foreign Countries, Fuel
........................... 6-5
Fourth Gear. Manual Transmission
................. 2-29
French Language Manual
11
Front Sidemarker Lamp Bulb Replacement ........... 6-35
Front Turn Signal Lamp Bulb Replacement
.......... 6-35
Fuel
.......................................... 6-3
Canada
...................................... 6-4
In Foreign Countries
........................... 6-5
Fuel. Filling Your Tank
........................... 6-5
Fuses and Circuit Breakers
....................... 6-63
Gages
FogLamps
.................................... 2-51
.. ...........................
FrontTowing .................................. 5-10
Gage ....................................... 2-80
Engine Coolant Temperature
.................... 2-75
Engine Oil Pressure
........................... 2-78
Fuel
....................................... 2-81
Voltmeter
................................... 2-73 GAWR
.................................. 4.30. 4.31
Gear Positions
................................. 2-26
Gross Axle Weight Rating
................... 4.30. 4.31
Gross Vehicle Weight Rating
................. 4.30. 4-31
Guide en Franpis
11
GVWR .................................. 4.30. 4.31
Halogen Bulbs
................................ 6-33
Hazard Warning Flashers
.......................... 5-2
Headlamp Doors
............................... 2-44
Headlamp/Highbeams Bulb Replacement
............ 6-33
Headlamps
.................................... 2-43
Wiring
..........................................
Hearing Impaired, Customer Assistance .............. 8-4
Heating
....................................... 3-12
High-Beam Lamps
.............................. 2-45
Highway Hypnosis
............ ............... 4-24
Hill and Mountain Roads
..... ............. 4-24
Hood
Checking Things Under
...... .............. 6-8
Release
.................................... 6-8
Horn
......................................... 2-40
Hydraulic Clutch
............................... 6-20
Hydroplaning
.......................... ... 4-20
.. .................................
HighLow Beamchanger ...................... 2-45
Heritage Pages
111 ... ...................................
Ignition Switch .............. ............... 2-20
Inadvertent Load Control
....... ............... 2-53
Inflation. Tire
.................................. 6-43
Inside Daymight Rearview Mirror
................. 2-53
9-5

Downloaded from www.Manualslib.com manuals search engine Publications. Service and Owner ................. 8- 12
InCanada
................................... 8-11
Racing or Other Competitive Driving
.............. 2-24
RadioReception
................................ 3-28
Radios
................................ ... 3-13
Rain. Driving In
.............................. 4- 18
Reading Lamps
................................ 2-53
Rear Axle
............ ...................... 6-22
Axle Service
...... .................... 7-17
Towing
..................................... 5-11
Turn Signal and Taillamp Bulb Replacement ....... 6-35
Rearview Mirror, Inside Daymight
................. 2-53
Recommended Fluids and Lubricants
............... 7- 18
Remote Function Actuation (RFA) System
Storage
................................... 2-56
Window Defogger
........................ 3-4, 3-10
Reclining Seatbacks
.............................. 1-3
Battery Replacement
.......................... 2- 12
Resynchronizing Your Transmitter
............... 2- 1 1
Remote Hatch Release ........................... 2- 14
Replacement Bulbs
............................. 6-69
Replacement Parts
.............................. 6-70
Replacement, Wheel
............................ 6-48
Reporting Safety Defects
....................... 8-10
In Canada
.................. .......... 8-11
To General Motors ........... .......... 8-11
Resetting the Oil Life Monitor
................... 6-15
Restraints
Checking
................................... 1-33 Child
............................. 1.25. 1.26.
1-27
Replacing Parts After a Crash
................... 1-34
Systemcheck
................................ 7-14
Retained Accessory Power (RAP)
.................. 2-21
Reverse Automatic Transmission
....................... 2-27
Manual Transmission
.......................... 2-29
Ridecontrol
................................... 2-38
Roadside Assistance
.............................. 8-5
Roadside Assistance. Canadian
..................... 8-7
Rocking Your Vehicle
........................... 5-23
RoofPanel
.................................... 2-60
Rotation. Tire
.................................. 6-44
Safety Belts
................................... 1-6
Adults
...................................... 1-11
Care ....................................... 6-54
Children
.......................... 1-25. 1-26. 1-27
Driver Position
............................... 1-12
Extender
.................................... 1-33
How to Wear Properly ......................... 1-11
Incorrect Usage
.................... 1-14. 1-31. 1-32
Lap Belt Cinch Feature
........................ 1-13
Larger Children
.............................. 1-30
Passenger Position
............................ 1-19
Questions and Answers
........................ 1-10
Reminder Light
.......................... 1-7. 2-72
Replacing After a Crash
........................ 1-34
Smaller Children and Babies
.......... 1-25. 1-26. 1-27
Use During Pregnancy
......................... 1-18
Lap-Shoulder
....... .................... 1-12
WhyThey Work
............................... 1-7
9-8
