1997 BUICK PARK AVENUE Owners Manual

Appearance Care Materials Chart
PART NUMBER SIZE DESCRIPTION USAGE
994954 23 in. x 25 in. Polishing Cloth - Wax Treated
Exterior Polish
1050004 2.75
sq. ft. Chamois Shines vehicle without scratching
1050 172 16
oz. (0.473 L)
Tar and Road Oil Remover Also removes old waxes and polishes
1050173 16
02. (0.473 L) Chrome Cleaner and Polish
Removes rust and corrosion
1050 174 16
oz. (0.473 L) White Sidewall Tire Cleaner
Removes soil and black marks
1050200 1 gal. (3.785
L) Magic Mirror Cleaner Polish
'Exterior cleaner and polish
-
1050214 32 oz. (0.946 L) Vinyl Cleaner
Spot and stain removal
1050427 23
oz. (0.680 L) Glass Cleaner Cleans grease, grime and smoke film
1052870 16
02. (0.473 L) Wash and Wax Concentrate
Exterior wash
1052918"" 8
oz. (0.237 L) Armor All Rvl Protector Protects vinyl, leather and rubber
1052925 16
02. (0.473 L) Multi-Purpose Powdered Cleaner
Cleans vinyl, cloth, tires and mats
1052929 16
oz. (0.473 L) Wheel Cleaner
Spray on wheel cleaner
I 1052930 I 8 oz. (0.237 L) I Capture Dry Spot Remover I Attracts and absorbs soils
12345002"" 16
02. (0.473 L) Armor All Cleaner Cleans vinyl, leather and rubber
12345725 12
oz. (0.354 L) Silicone Tire Shine Shines tires
12377964 16
oz. (0.473 L) Cleaning Wax Protects finish and removes fine scratches
12377966
I 16 oz. (0.473 L) I I Spot cleans paint and gives high luster
Finish Enhancer
See your General Motors
Parts Department for these products. **Not recommended for use on instrument panel vinyl.
See "Fluids and Lubricants" in the Index.
6-65
ProCarManuals.com

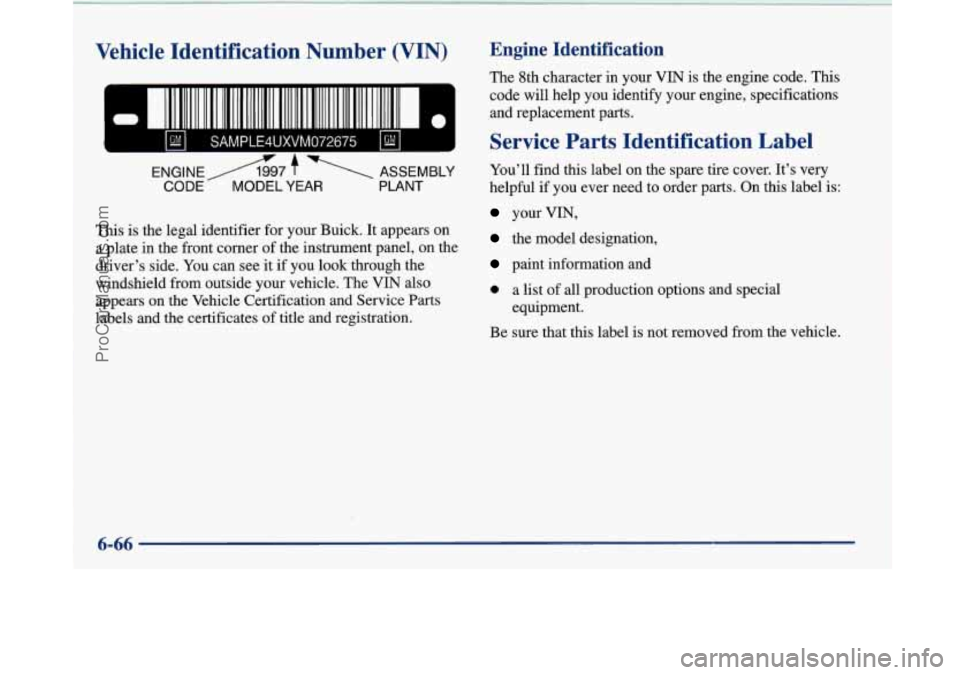

Vehicle Identification Number (VIN) Engine Identification
- -1 I. 11111.11 1.11 111 111111 II.111111.. 1111111.111.111..1111II- 0
SAMPLE4UXVM072675
-
I 11111111 1111 lllllmmmmnmmnllllllllll11llll111 I IIIIIIIII IIII 11l1111111111I IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII I
ENGINEA997 7 ASSEMBLY
CODE MODEL YEAR PLANT
This is the legal identifier for your Buick. It appears on
a plate in the front corner of the instrument panel, on the
driver’s side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates
of title and registration. The 8th
character in your
VIN is the engine code. This
code
will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You’ll find this label on the spare tire cover. It’s very
helpful
if you ever need to order parts. On this label is:
your VIN,
the model designation,
paint information and
0 a list of all production options and special
equipment.
Be sure that this label is not removed from the vehicle.
6-66
ProCarManuals.com

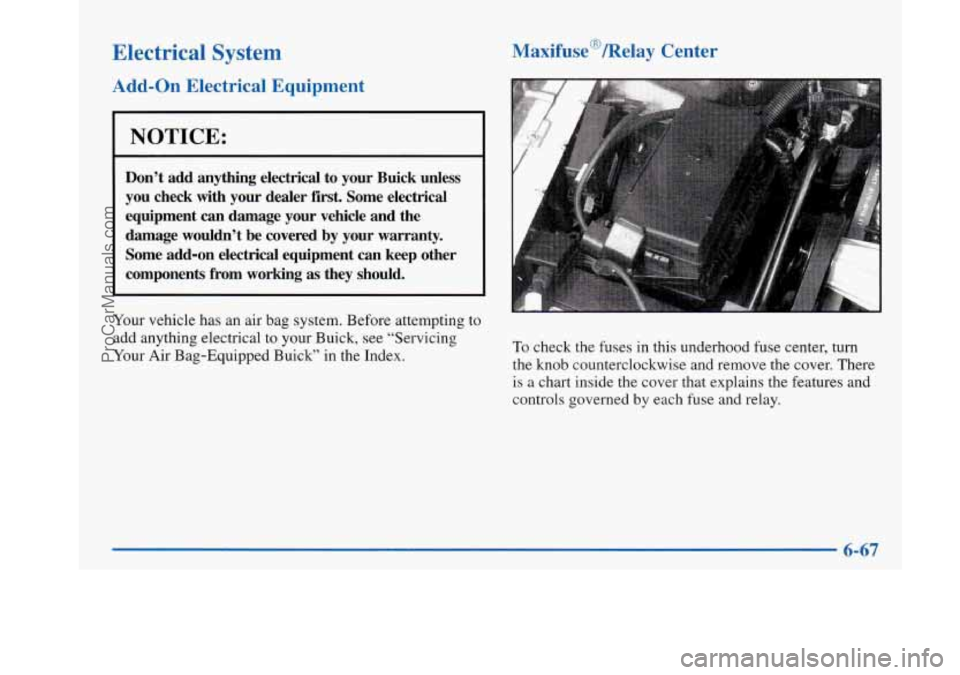

Electrical System
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Buick unless
you check with your dealer first. Some electrical equipment
can damage your vehicle and the
damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other
components
from working as they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Buick, see “Servicing
Your
Air Bag-Equipped Buick” in the Index.
Maxifuse@/Relay Center
To check the fuses in this underhood fuse center, turn
the knob counterclockwise and remove the cover. There
is a chart inside the cover that explains the features and
controls governed
by each fuse and relay.
ProCarManuals.com

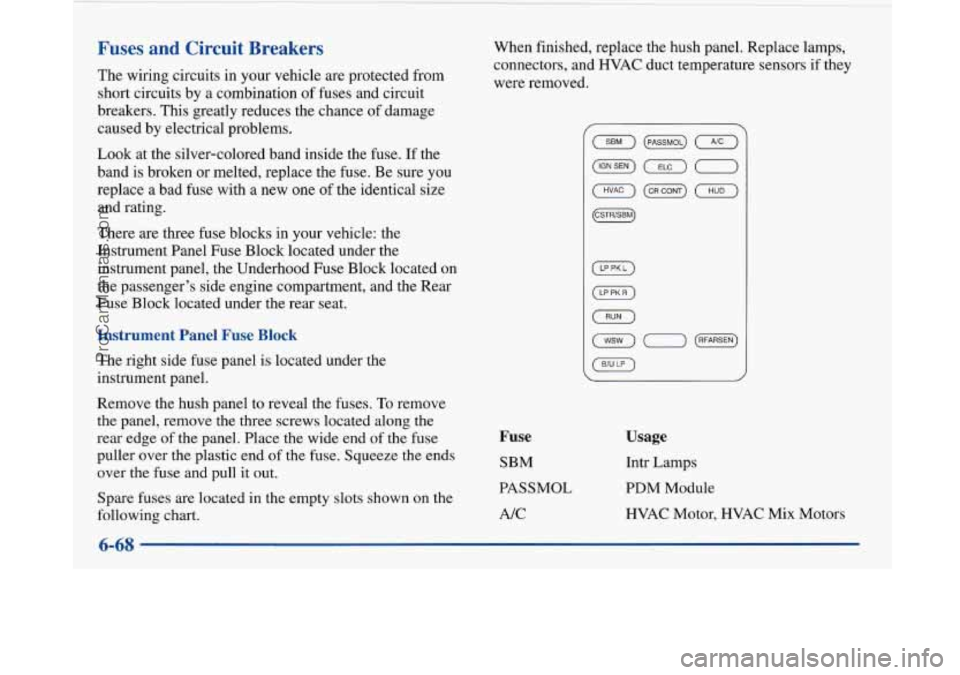

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of damage
caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure
you
replace a bad fuse with a new one of the identical size
and rating.
There are three fuse blocks in your vehicle: the
Instrument Panel Fuse Block located under the
instrument panel, the Underhood Fuse Block located on
the passenger’s side engine compartment, and the Rear
Fuse Block located under the rear seat.
Instrument Panel Fuse Block
The right side fuse panel is located under the
instrument panel.
Remove the hush panel to reveal the fuses.
To remove
the panel, remove the three screws located along the
rear edge of the panel. Place the wide end
of the fuse
puller over the plastic end
of the fuse. Squeeze the ends
over the fuse and pull it out.
>pare fuses are located
in the empty slots shown on the
following chart. When finished, replace
the hush panel. Replace lamps,
connectors, and HVAC duct temperature sensors if they
were removed.
Fuse
SBM
PASSMOL
NC
(SEN) (ELC) (-)
(x) (KT) (TI
(K)
(LPPKR 1
Usage
Intr Lamps
PDM Module
HVAC Motor, HVAC Mix Motors
ProCarManuals.com

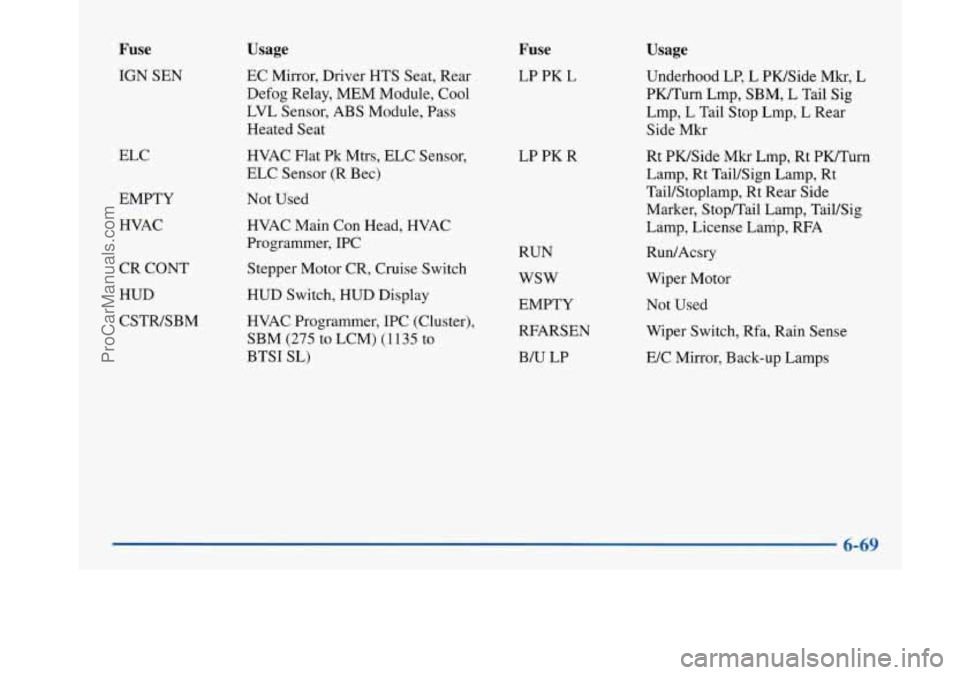

Fuse
IGN SEN
Usage
EC Mirror, Driver HTS Seat, Rear
Defog Relay, MEM Module, Cool
LVL Sensor, ABS Module, Pass
Heated Seat
Fuse
LP PK L
Usage
Underhood LP, L PWSide Mkr, L
PWTurn Lmp, SBM, L Tail Sig
Lmp, L Tail Stop Lmp, L Rear
Side Mkr
ELC
EMPTY
HVAC
CR CONT
HUD
CSTWSBM HVAC
Flat Pk Mtrs, ELC Sensor,
ELC Sensor (R Bec)
Not Used
HVAC Main Con Head, HVAC
Programmer, IPC
Stepper Motor CR, Cruise Switch
HUD Switch, HUD Display
HVAC Programmer, IPC (Cluster),
SBM
(275 to LCM) (1 135 to
BTSI SL) LP
PK R
RUN
wsw
EMPTY
RFARSEN B/U LP Rt
PWSide Mkr Lmp, Rt PWTurn
Lamp, Rt TaiUSign Lamp, Rt
TaiUStoplamp, Rt Rear Side
Marker, Stop/Tail Lamp, Tail/Sig
Lamp, License Lamp, RFA
Run/Acsry
Wiper Motor Not Used
Wiper Switch, Rfa, Rain
Sense
E/C Mirror, Back-up Lamps
ProCarManuals.com

I !

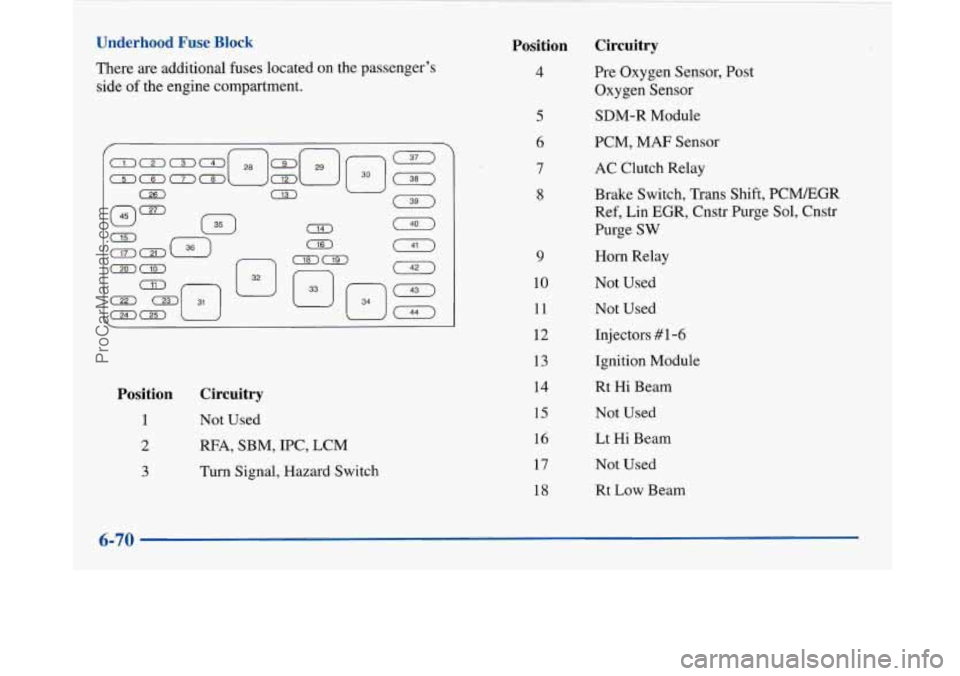

Underhood Fuse Block
There are additional fuses located on the passenger’s
side
of the engine compartment.
Position
1
2
3
Circuitry
Not Used
RFA, SBM, IPC, LCM
Turn Signal, Hazard Switch
Position Circuitry
4
9
10
11
12
13
14
15
16
17
1s Pre Oxygen Sensor,
Post
Oxygen Sensor
SDM-R Module
PCM, MAF Sensor
AC Clutch Relay
Brake Switch, Trans Shift, PCMEGR
Ref, Lin EGR, Cnstr Purge Sol, Cnstr
Purge
SW
Horn Relay
Not Used Not Used
Injectors #1-6
Ignition Module
Rt Hi Beam
Not Used
Lt Hi Beam
Not Used
Rt Low Beam
6-70
ProCarManuals.com

Position
19
20
21
22 23
24
25
26 27
28
29 30
31
Circuitry
Lt Low Beam
Turn Signal, Stepper Mtr, Brake Lmp,
CHMSL
Fuel Pump Relay (Wire in BEC)
Ign Switch
In Key Module, PCM
To
IP BEC-B/U Lamp
Flasher Module Not Used
Not Used
Relay--1gn
Relay--Horn
Relay--Cooling Fan #2
Relay--Theft 1
Position
32
33
34
35
36 37
38
39
40
41
42
43
44
Circuitry
Relay--Theft 2
Relay--Cooling Fan
S/P
Relay--Cooling Fan #1
Relay--A/C CLU micro
Relay--Fuel Pump micro
IP BEC
HVAC Blower Motor
Low Speed Fan Relay
LCM Module
To Rear BEC-Seats
To
IP BEC “Run”
Starter Relays
High Speed Fan Rly
ProCarManuals.com

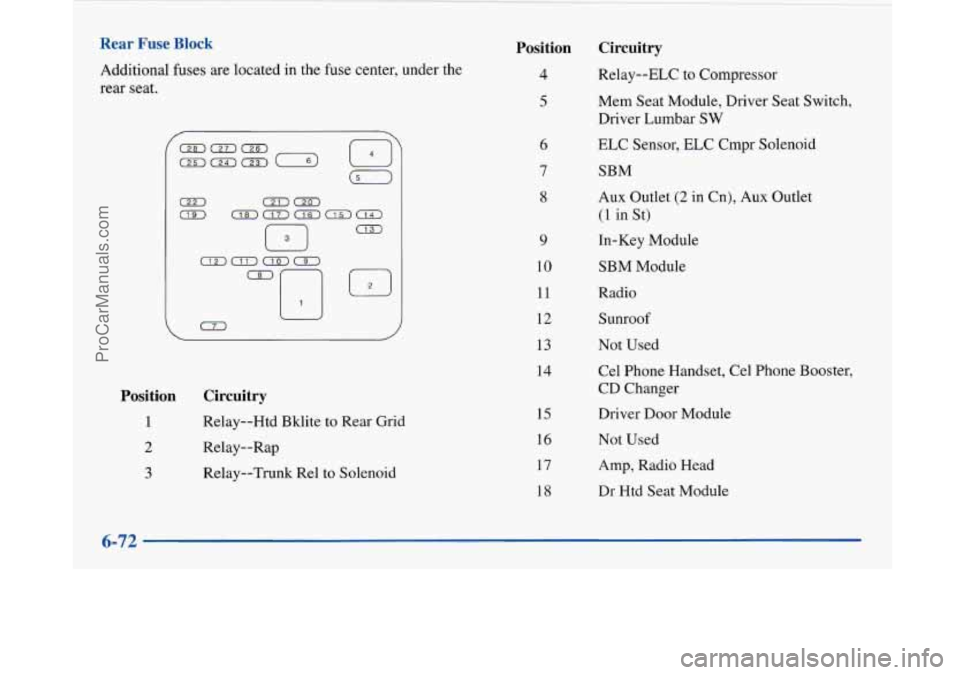

Rear Fuse Block
Additional fuses are located in the fuse center, under the
rear seat.
0
Position
1
2
3
Circuitry
Relay--Htd Bklite to Rear Grid
Relay--Rap
Relay--Trunk Re1 to Solenoid
Position Circuitry
4 Relay--ELC to Compressor
5
9
10
11
12
13
14
15
16
17
18 Mem
Seat Module, Driver Seat Switch.
Driver Lumbar
SW
ELC Sensor, ELC Cmpr Solenoid
SBM
Aux Outlet
(2 in Cn), Aux Outlet
(1 in St)
In-Key Module
SBM Module
Radio Sunroof
Not Used
Cel Phone Handset, Cel Phone Booster,
CD Changer
Driver
Door Module
Not Used
Amp, Radio Head
Dr Htd Seat Module
6-72
