1997 BUICK PARK AVENUE Owners Manual

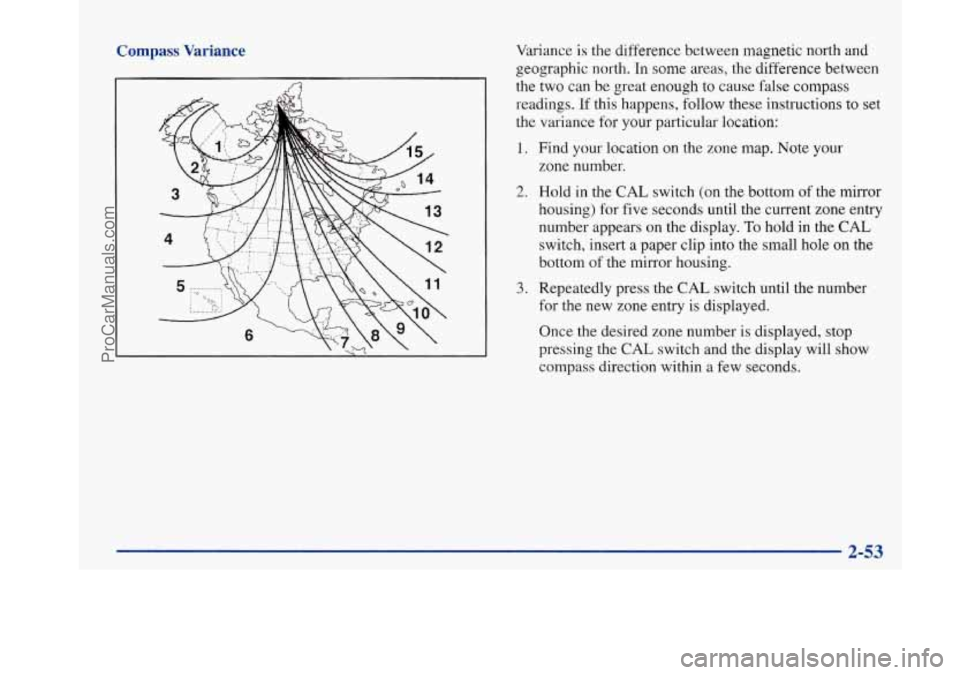

Compass Variance
I fa
Variance is the difference between magnetic north and
geographic north. In some areas, the difference between
the two can be great enough to cause false compass
readings.
If this happens, follow these instructions to set
the variance for your particular location:
1. Find your location on the zone map. Note your
zone number.
2. Hold in the CAL switch (on the bottom of the mirror
housing) for five seconds until the current zone entry
number appears on the display.
To hold in the CAL
switch, insert a paper clip into the small hole on the
bottom
of the mirror housing.
3. Repeatedly press the CAL switch until the number
for the new zone entry is displayed.
Once the desired zone number is displayed, stop
pressing the
CAL switch and the display will show
compass direction within a few seconds.
2-53
ProCarManuals.com

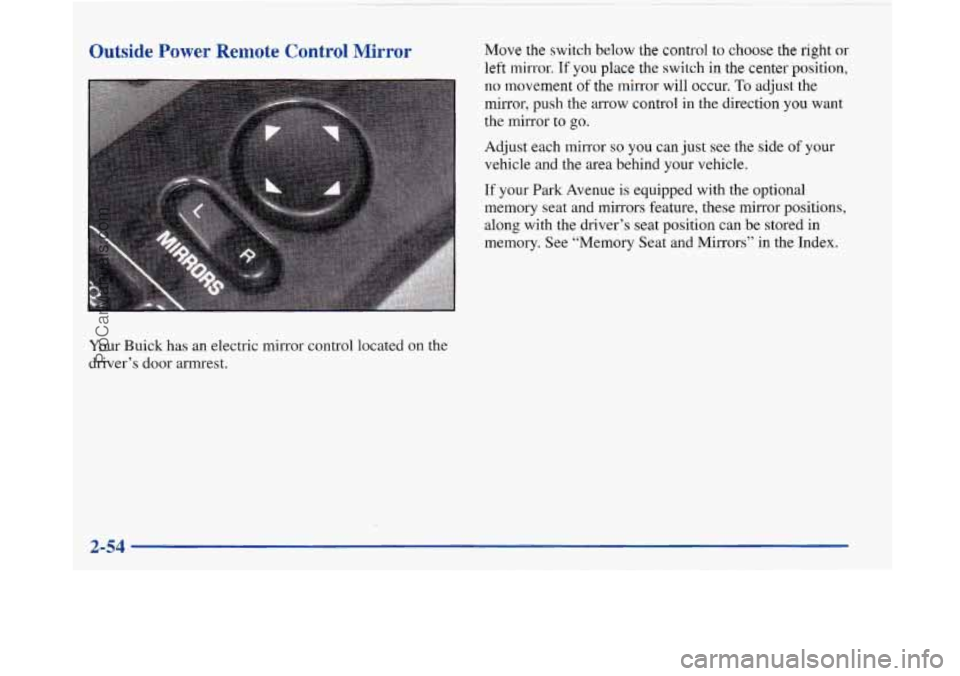

Outside Power Remote Control Mirror
Your Buick has an electric mirror control located on the
driver’s door armrest.
Move the switch below the control to choose the right or
left mirror. If you place the switch in the center position,
no movement of the mirror will occur. To adjust the
mirror, push the arrow control in the direction you want
the mirror to go.
Adjust each mirror
so you can just see the side of your
vehicle and the area behind your vehicle.
If your Park Avenue is equipped with the optional
memory seat and mirrors feature, these mirror positions,
along with the driver’s seat position can be stored in
memory. See “Memory Seat and Mirrors” in the Index.
ProCarManuals.com

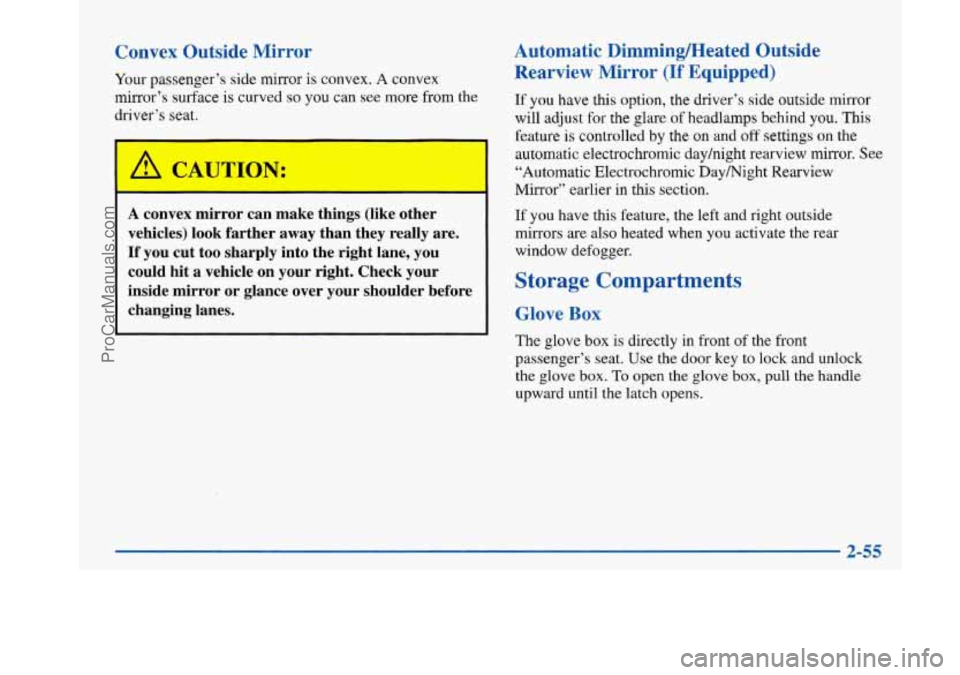

Convex Outside Mirror
Your passenger’s side mirror is convex. A convex
mirror’s surface is curved
so you can see more from the
driver’s seat.
1
A convex mirror can make things (like other
vehicles) look farther away than they really are.
1 If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Automatic DimmingMeated Outside Rearview Mirror
(If Equipped)
If you have this option, the driver’s side outside mirror
will adjust for the glare of headlamps behind you.
This
feature is controlled by the on and off settings on the
automatic electrochromic dayhight rearview mirror. See
“Automatic Electrochromic Daymight Rearview
Mirror” earlier in this section.
If you have this feature, the left and right outside
mirrors are also heated when you activate the rear
window defogger.
Storage Compartments
Glove Box
The glove box is directly in front of the front
passenger’s seat. Use the door key to lock and unlock
the glove
box. To open the glove box, pull the handle
upward until the latch opens.
ProCarManuals.com

Installing a Garage Door Opener
The garage door opener storage area is located in the
headliner near the reading lamps. The following chart
and instructions will help you install your garage door
opener
in the overhead storage area.
1. Push the extended tab (above the GARAGE button)
or insert a screwdriver between the tab and outer
edge
of the cover. The garage door opener cover will
flip down.
2. Remove the square height adapters from the cover.
Refer to the
chart to determine the number and
location of the height adapters for your garage door
opener. If
your unit does not appear on the chart, you
will have to
try different adapter number and
location combinations.
2-56
ProCarManuals.com

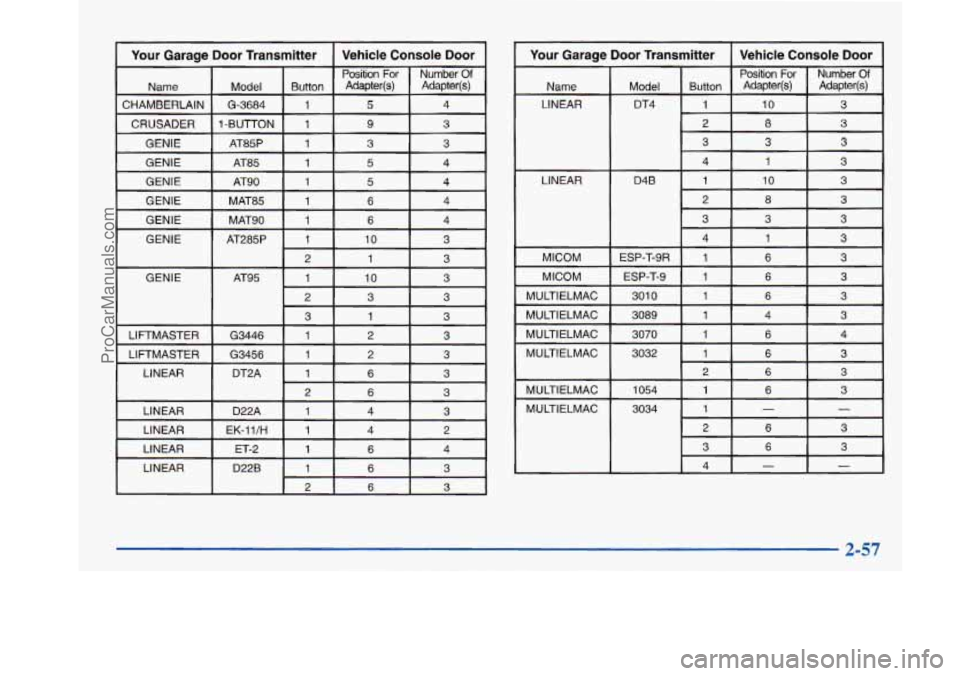

Your Garage Door Transmitter I Vehicle Console Door
Name
CHAMBERLAIN
CRUSADER
GENIE
GENIE
GENIE
I
GENIE
LINEAR
Position For Number Of
Model Button Adapter(s) Adapter@) I G-3684 1 5 4
1 -BUTTON 1 9 3
AT85
3
10
1
AT285P 4
6
1 MAT90
4 6 1 MAT85 4
5 1
AT90 4
5 1
2 1
3
.
AT95
5
G3456
6 3
EK-ll/H
D22B 6 3
I 6 I 3 I
I Your Garage Door Transmitter I Vehicle Console Door I
F LINEAR
MICOM MICOM
MULTIELMAC
MULTIELMAC
MULTIELMAC
~
MULTIELMAC
MULTIELMAC
MULTIELMAC
2 8 3
3
3 3
cl
3 3 I I
4 I 1 3 I I
ESP-T-9R I 1 6 ! ! 3
ESP-T-9
3 6
1
301
0
3 6
1 3032 4
6
1 3070 3 4
1
3089 3
6 1
2 6 3
1054
3034 3 6 1
1
- -
3
4
3 6
- -
ProCarManuals.com

DOOR I I I I I
OVERHEAD
DOOR
OVERHEAD
DOOR
OVERHEAD
DOOR
PULSAR 921 1 4 3
PULSAR 931 1
4 3

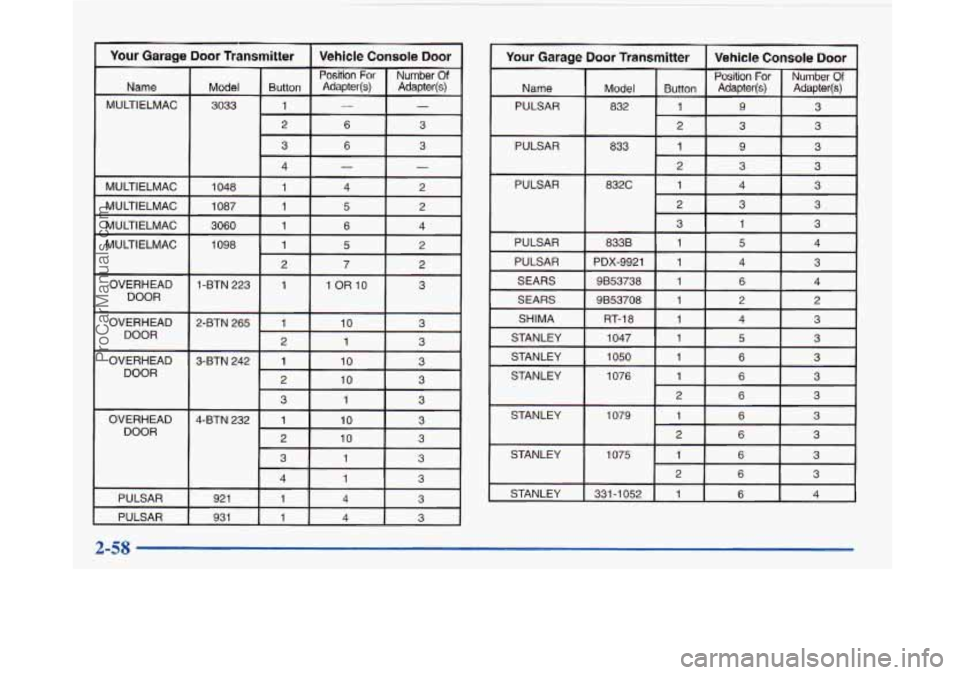

Your Garage Door Transmitter Vehicle Console Door
Position For Number Of
Name Model Button Adapter(s) Adapter@)
PULSAR 832 1 9
3 I I
I 12 I 3 I 3
I PULSAR I 833 I 1 I 9 13
2 I 3. I 3
PULSAR
I 832c
I I I 1 I 3
PULSAR 833B
1 5 4
PULSAR
PDX-9921 1 4 3
SEARS 9B53738 1
6 4
SEARS
3
6
2
3 6 1 1076
STANLEY 3
6 1 1050
STANLEY 3
5 1 1047
STANLEY 3
4 1
RT-18
SHIMA 2
2
1
9853708
STANLEY
I 1079
1 6
3
6
2
3
~~ ~
STANLEY 3 6 1 1075
4 6 1 331-1052
STANLEY 3
6 2
2-58
ProCarManuals.com

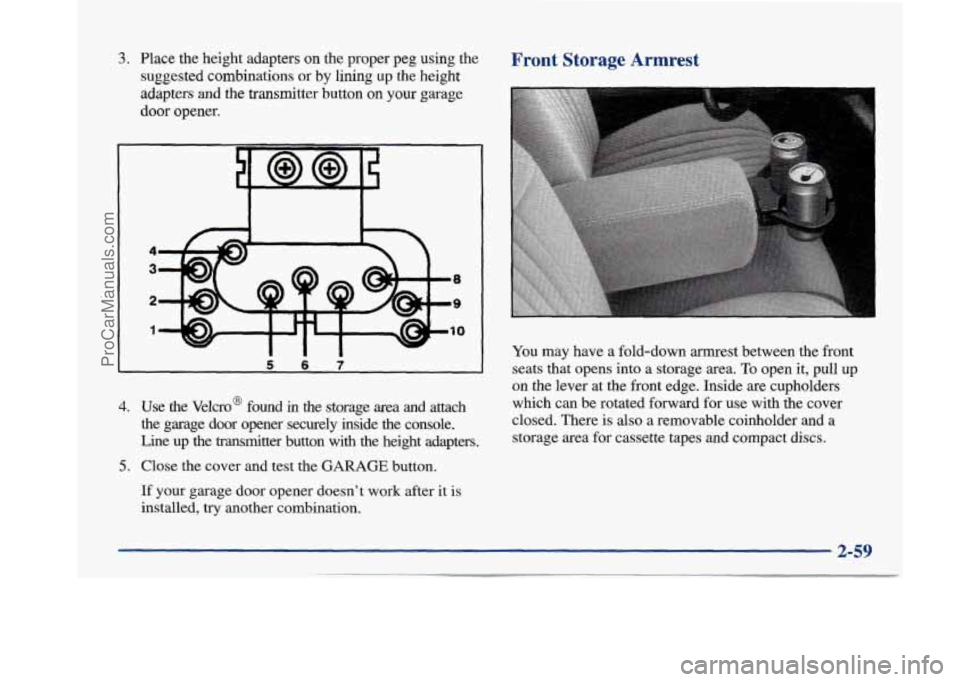

3. Place the height adapters on the proper peg using the
suggested combinations
or by lining up the height
adapters
and the transmitter button on your garage
door opener.
4
3
2
1
W Ill
4. Use the Velcro@ found in the storage area and attach
the garage door opener securely inside the console.
Line up the transmitter button with the height adapters.
5. Close the cover and test the GARAGE button.
If your garage door opener doesn’t work after it is
installed, try another combination.
Front Storage Armrest
You may have a fold-down armrest between the front
seats that opens into a storage area. To open it, pull up
on the lever at the front edge. Inside are cupholders
which can be rotated forward for use with the cover
closed. There is
also a removable coinholder and a
storage area for cassette tapes and compact discs.
2-59
ProCarManuals.com

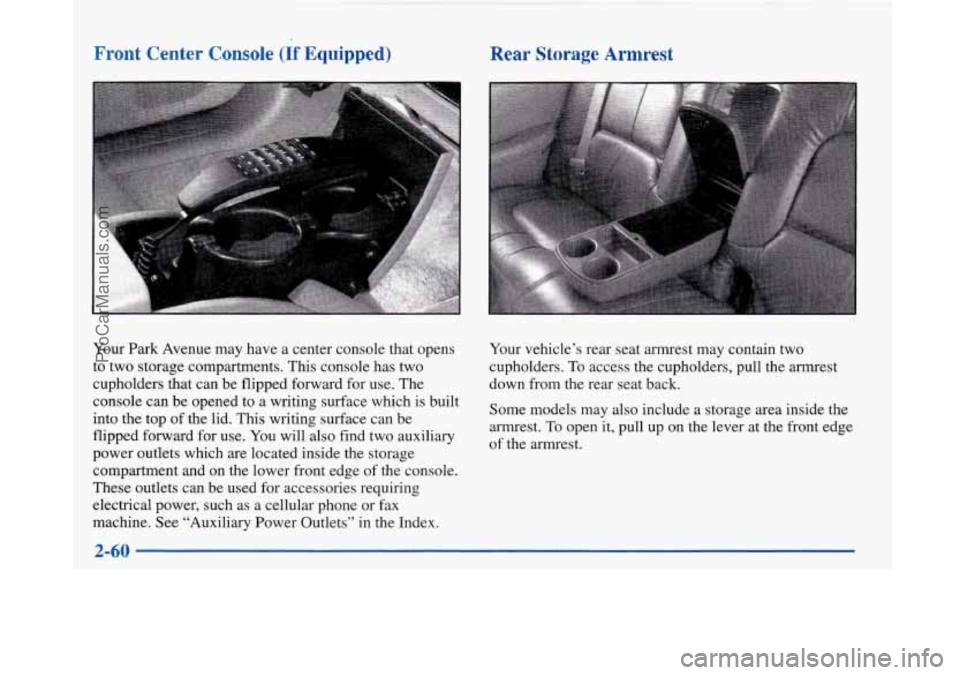

Front Center Console (If Equipped)
Your Park Avenue may have a center console that opens
to two storage compartments. This console has two
cupholders that can be flipped forward for use. The
console can be opened to a writing surface which is built
into the top of the lid. This writing surface can be
flipped forward for use. You will also find two auxiliary
power outlets which are located inside the storage
compartment and on the lower front edge of the console.
These outlets can be used
for accessories requiring
electrical power, such as a cellular phone or fax
machine. See “Auxiliary Power Outlets” in the Index.
Rear Storage Armrest
Your vehicle’s rear seat armrest may contain two
cupholders.
To access the cupholders, pull the armrest
down from the rear seat back.
Some models may also include a storage area inside the
armrest. To open it, pull up on the lever at the front edge
of the armrest.
