128Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer's directions for how
much to mix with water.
Do not use engine antifreeze or any
other substitute because it may
damage your vehicle's paint.
NOTICE
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the transmission into
Pº and block the rear wheels. Do not use
the parking brake, or snow or water accu-
mulated in and around the parking brake
mechanism may freeze, making it hard to
release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally. Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the ve-
hicle are tire chains, window scraper, bag
of sand or salt, flares, small shovel, jump-
er cables, etc.
Your vehicle is designed primarily as a
passenger-carrying vehicle. Towing a
trailer will have an adverse effect on han-
dling, performance, braking, durability
and driving economy (fuel consumption,
etc.). Your safety and satisfaction
depend
on the proper use of correct equipment
and cautious driving habits. For your safe-
ty and the safety of others, you must not
overload your vehicle or trailer. Toyota
warranties do not apply to damage or mal-
function caused by towing a tailer for com-
mercial purposes. Ask your local Toyota
dealer for further details before towing.
WEIGHT LIMITS
Before towing, make sure the total trailer
weight, gross vehicle weight, gross axle
weight and trailer tongue load are all with-
in the limits.
The total trailer weight and tongue load
can be measured with platform scales
found at a highway weighing station,
building supply company, trucking com-
pany, junk yard, etc.
CAUTION

The total trailer weight (trailer
weight plus its cargo load) must
not exceed 907 kg (2000 lb.). Ex-
ceeding this weight is dangerous.!
Trailer towing
ProCarManuals.com

129

The gross vehicle weight must not
exceed the Gross Vehicle Weight
Rating (GVWR) indicated on the
Certification Label. The gross ve-
hicle weight is the sum of weights
of the unloaded vehicle, driver,
passengers, luggage, hitch and
trailer tongue load. It also includes
the weight of any special equip-
ment installed on your vehicle.

The load on either the front or rear
axle resulting from distribution of
the gross vehicle weight on both
axles must not exceed the Gross
Axle Weight Rating (GAWR) listed
on the Certification Label.
The trailer cargo load should be
distributed so that the tongue load
is 9 to 11 % of the total trailer
weight, not exceeding the maxi-
mum of 90 kg (200 lb.). Never load
the trailer with more weight in the
back than in the front. About 60 %
of the trailer load should be in the
front half of the trailer and the re-
maining 40 % in the rear. HITCHES


Use only a hitch which is recom-
mended by the hitch manufacturer and
conforms to the total trailer weight
requirement.

Follow the directions supplied by the
hitch manufacturer, and bolt the hitch
securely to the rear bumper. Lubricate
the hitch ball with a light coat of grease.

Toyota recommends removing the
trailer hitch whenever you are not tow-
ing a trailer to reduce the possibility of
additional damage caused by the hitch
if your vehicle is struck from behind.
After removing the hitch, seal any
mounting holes in the vehicle body to
prevent entry of pollutants such as ex-
haust fumes, dirt, water, etc.
Do not use axle-mounted hitches they can cause damage to the axle
housing, wheel bearings, wheels ortires. Also, never install a hitchwhich may interfere with the normalfunction of an Energy AbsorbingBumper.
NOTICE
ProCarManuals.com

130BRAKES AND SAFETY CHAINS


Toyota recommends trailers with
brakes that conform to any appli-
cable federal and state/provincial
regulations.

A safety chain must always be used
between the towing vehicle and the
trailer. Leave sufficient slack in the
chain for turns. The chain should
cross under the trailer tongue to
prevent the tongue from dropping
to the ground in case it becomes
damaged or separated. For correct
safety chain procedures, follow the
hitch or trailer manufacturer's rec-
ommendations.
CAUTION

If the total trailer weight exceeds
453 kg (1000 lb.), trailer brakes are
required.

Never tap into your vehicle's hy-
draulic system as it would lower its
braking effectiveness.

Never tow a trailer without using a
safety chain securely attached to
both the trailer and the vehicle. If
damage occurs to the coupling
unit or hitch ball, there is danger of
the trailer wandering over into
another lane.!
TIRES

Ensure that your vehicle's tires are
properly inflated. See Chapter 7-2 for
instructions.

The trailer tires should be inflated to
the pressure recommended by the
trailer manufacturer in respect to the
total trailer weight.
TRAILER LIGHTS

Trailer lights must comply with federal,
state/provincial and local regulations.
See your local recreational vehicle
dealer or rental agency for the correct
type of wiring and relays for your trail-
er. Check for correct operation of the
turn signals and stop lights each time
you hitch up. Direct splicing may dam-
age your vehicle's electrical system
and cause a malfunction of your lights.
BREAK-IN SCHEDULE

Toyota recommends that you do not
tow a trailer with a new vehicle or a ve-
hicle with any new power train compo-
nent (engine, transmission, differen-
tial, wheel bearing, etc.) for the first
800 km (500 miles) of driving. MAINTENANCE


If you tow a trailer, your vehicle will re-
quire more frequent maintenance due
to the additional load. For this informa-
tion, please refer to the scheduled
maintenance information in the Own-
er 's Manual Supplement/Maintenance
Scheduleº.

Retighten all fixing bolts of the towing
ball and bracket after approximately
1000 km (600 miles) of trailer driving.
PRE-T OWING SAFETY CHECK

Check that your vehicle remains level
when a loaded or unloaded trailer is
hitched. Do not drive if the vehicle has
an abnormal nose-up or nose-down
condition, and check for improper
tongue load, overload, worn suspen-
sion or other possible causes.

Make sure the trailer cargo is securely
loaded so that it can not shift.

Check that your rear view mirrors con-
form to any applicable federal, state/
provincial or local regulation. If not,
install the rear view mirrors required
for towing purpose.
ProCarManuals.com

131
TRAILER TOWING TIPS
When towing a trailer, your vehicle will
handle differently than when not tow-
ing.
The three main causes of vehicle-
trailer accidents are driver error, ex-
cessive speed and improper trailer
loading. Keep these in mind when tow-
ing:

Before starting out, check operation of
the lights and all vehicle-trailer con-
nections. After driving a short dis-
tance, stop and recheck the lights and
connections. Before actually towing a
trailer, practice turning, stopping and
backing with a trailer in an area away
from traffic until you learn the feel.

Backing w ith a trailer is difficult and re-
quires practice. Grip the bottom of the
steering wheel and move your hand to
the left to move the trailer to the left.
Move your hand to the right to move
the trailer to the right. (This procedure
is generally opposite to that when
backing without a trailer). Also, just
turn the steering wheel a little at a time,
avoiding sharp or prolonged turning.
Have someone guide you when back-
ing to reduce the risk of an accident.

Because stopping distance may be in-
creased, vehicle-to-vehicle distance
should be increased when towing a
trailer. For each 16 km/h (10 mph) of
speed, allow at least one vehicle and
trailer length between you and the ve-
hicle ahead. Avoid sudden braking as
you may skid, resulting in jackknifing
and loss of control. This is especially
true on wet or slippery surfaces.

Avoid jerky starts or sudden accelera-
tion.

Avoid jerky steering and sharp turns.
The trailer could hit your vehicle in a
tight turn. Slow down before making a
turn to avoid the necessity of sudden
braking.

Remember that when making a turn,
the trailer wheels will be closer than
the vehicle wheels to the inside of the
turn. Therefore, compensate for this
by making a larger than normal turning
radius with your vehicle.

Crosswinds and rough roads will ad-
versely affect handling of your vehicle
and trailer, causing sway. Pay attention
to the rear from time to time to prepare
yourself for being passed by large
trucks or buses, which may cause your
vehicle and trailer to sway. If swaying
happens, firmly grip the steering wheel
and reduce speed immediately but
gradually. Never increase speed. Steer
straight ahead. If you make no extreme
correction with the steering or brakes,
the vehicle and trailer will stabilize.

Be careful when passing other ve-
hicles. Passing requires considerable
distance. After passing a vehicle, do
not forget the length of your trailer and
be sure you have plenty of room be-
fore changing lanes.

In order to maintain engine braking ef-
ficiency do not use overdrive.

Because of the added load of the trail-
er, your vehicle's engine may overheat
on hot days (at temperatures over
305C [85 5 F]) when going up a long or
steep grade with a trailer. If the engine
coolant temperature gauge indicates
overheating, immediately turn off the
air conditioning (if in use), pull off the
road and stop in a safe spot. Refer to
If your vehicle overheatsº in Part 4 of
this manual.ProCarManuals.com

132

Always place wheel blocks under both
the vehicle and trailer wheels when
parking. Apply the parking brake firm-
ly. Put the transmission in Pº. Avoid
parking on a slope with a trailer, but if
it cannot be avoided, do so only after
performing the following:
1. Apply the brakes and hold.
2. Have someone place wheel blocks un-
der both the vehicle and trailer wheels.
3. When the wheel blocks are in place,
release your brakes slowly until the blocks
absorb the load.
4. Apply the parking brake firmly.
5. Shift into Pº and turn off the engine.
When restarting out after parking on a
slope:
1. With the transmission in Pº position,
start the engine. Be sure to keep the brake
pedal depressed.
2. Shift into the 2º, Lº or Rº position.
3. Release the parking brake and brake
pedal and slowly pull or back away from
the wheels blocks. Stop and apply your
brakes.
4. Have someone retrieve the blocks.

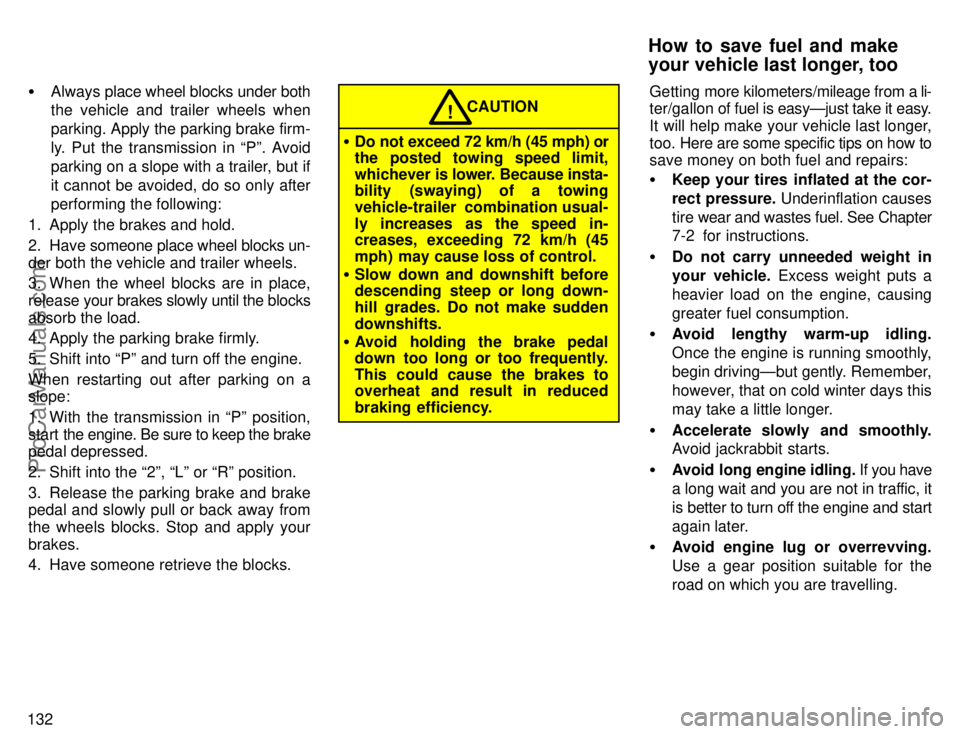

Do not exceed 72 km/h (45 mph) or
the posted towing speed limit,
whichever is lower. Because insta-
bility (swaying) of a towing
vehicle-trailer combination usual-
ly increases as the speed in-
creases, exceeding 72 km/h (45
mph) may cause loss of control.

Slow down and downshift before
descending steep or long down-
hill grades. Do not make sudden
downshifts.

Avoid holding the brake pedal
down too long or too frequently.
This could cause the brakes to
overheat and result in reduced
braking efficiency.
CAUTION!
Getting more kilometers/mileage from a li-
ter/gallon of fuel is easyÐjust take it easy.
It will help make your vehicle last longer,
too. Here are some specific tips on how to
save money on both fuel and repairs:

Keep your tires inflated at the cor-
rect pressure. Underinflation causes
tire wear and wastes fuel. See Chapter
7-2 for instructions.

Do not carry unneeded weight in
your vehicle. Excess weight puts a
heavier load on the engine, causing
greater fuel consumption.

Avoid lengthy warm-up idling.
Once the engine is running smoothly,
begin drivingÐbut gently. Remember,
however, that on cold winter days this
may take a little longer.

Accelerate slowly and smoothly.
Avoid jackrabbit starts.

Avoid long engine idling. If you have
a long wait and you are not in traffic, it
is better to turn off the engine and start
again later.

Avoid engine lug or overrevving.
Use a gear position suitable for the
road on which you are travelling.
How to save fuel and make
your vehicle last longer, too
ProCarManuals.com

133


Avoid continuous speeding up and
slowing down. Stop-and-go driving
wastes fuel.

Avoid unnecessary stopping and
braking. Maintain a steady pace. Try
to time the traffic signals so you only
need to stop as little as possible or take
advantage of through streets to avoid
traffic lights. Keep a proper distance
from other vehicles to avoid sudden
braking. This will also reduce wear on
your brakes.

Avoid heavy traffic or traffic jams
whenever possible.

Do not rest your foot on the clutch
or brake pedal. This causes needless
wear, overheating and poor fuel econ-
omy.

Maintain a moderate speed on
highways. The faster you drive, the
greater the fuel consumption. By re-
ducing your speed, you will cut down
on fuel consumption.

Keep the front wheels in proper
alignment. Avoid hitting the curb and
slow down on rough roads. Improper
alignment not only causes faster tire
wear but also puts an extra load on the
engine, which, in turn, wastes fuel.

Keep the bottom of your vehicle
free from mud, etc. This not only
lessens weight but also helps prevent
corrosion.

Keep your vehicle tuned-up and in
top shape. A dirty air cleaner, improp-
er valve clearance, dirty plugs, dirty oil
and grease, brakes not adjusted, etc.
all lower engine performance and con-
tribute to poor fuel economy. For lon-
ger life of all parts and lower operating
costs, keep all maintenance work on
schedule, and if you often drive under
severe conditions, see that your ve-
hicle receives more frequent mainte-
nance (For scheduled maintenance in-
formation, please refer to the separate
Owner 's Manual Supplement/Main-
tenance Scheduleº).
CAUTION
Never turn off the engine to coast
down hills. Your power steering and
brake booster will not function
without the engine running. Also,
the emission control system
operates properly only when the
engine is running.!
ProCarManuals.com

134ProCarManuals.com

Part 4
135
IN CASE OF AN
EMERGENCY

If your vehicle will not start

If your engine stalls while
driving

If your vehicle overheats

If you have a flat tire

If your vehicle needs to be
towed

If you cannot shift automatic
transmission selector lever

If you lose your keys

If you lose your wireless remote
control transmitter
Before making these checks, make sure
you have followed the correct starting pro-
cedure given in How to start the engineº
in Part 3 and that you have sufficient fuel.
If the engine is not turning over or is
turning over too slowlyÐ
1. Check that the battery terminals are
tight and clean.
2. If the battery terminals are O.K., switch
on the interior light.
3. If the light is out, dim or goes out when
the starter is cranked, the battery is dis-
charged. You may try jump starting. See
(c) Jump startingº for further instructions.
If the light is O.K., but the engine still will
not start, it needs adjustment or repair.
Call a Toyota dealer or qualified repair
shop.
NOTICE
Do not pull- or push-start the vehicle. It may damage the vehicle
or cause a collision when the enginestarts. Also the three-way catalyticconverter may overheat andbecome a fire hazard.
If the engine turns over at its normal
speed but will not startÐ
1. Check that all the push-on connectors
are tight. (For example, connectors at the
spark plugs)
2. If the connectors are O.K., the engine
may be flooded because of repeated
cranking. See (b) Starting a flooded en-
gineº for further instructions.
If your vehicle will not startÐ
(a) Simple checks
ProCarManuals.com
