1996 HONDA ODYSSEY Owners Manual

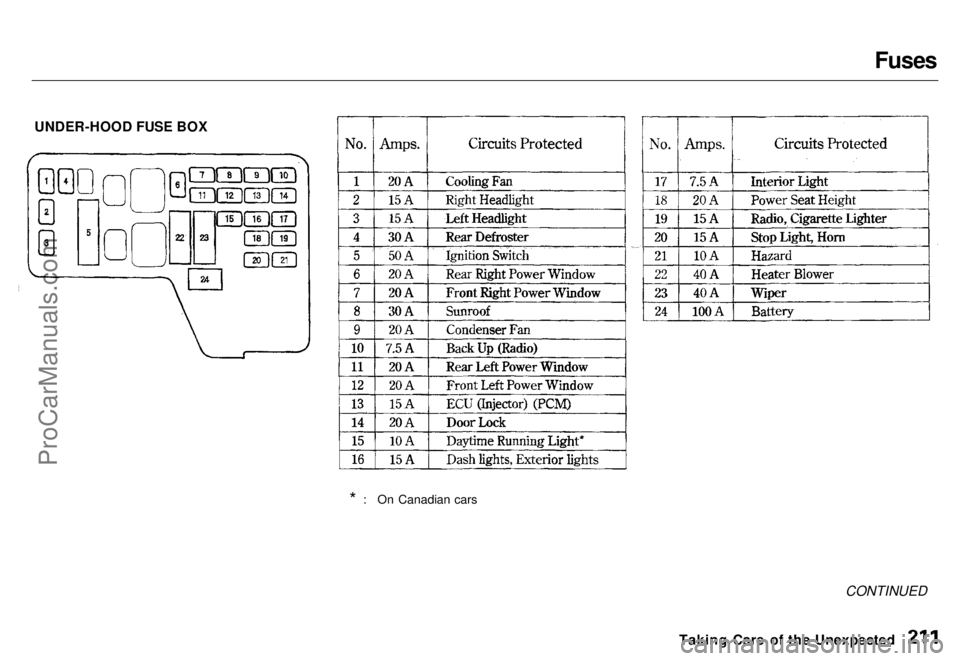

Fuses
UNDER-HOOD FUSE BOX
* : On Canadian cars
CONTINUED
Taking Care of the UnexpectedProCarManuals.comMain Menu s t Table of Contents

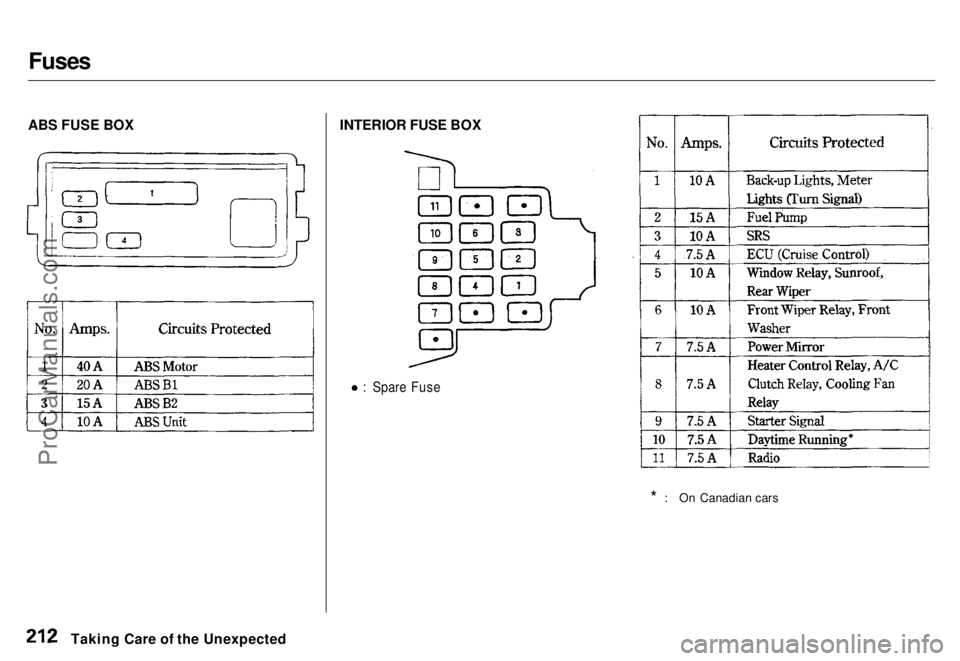

Fuses

ABS FUSE BOX INTERIOR FUSE BOX

: Spare Fuse
* : On Canadian cars
Taking Care of the UnexpectedProCarManuals.coms t Main Menu Table of Contents

Towing

If your car needs to be towed, call a
professional towing service or, if you
belong to one, an organization that
provides roadside assistance. Never tow your car behind another car with
just a rope or chain. It is very
dangerous.

Emergency Towing

There are three popular methods of towing a car:

Flat-bed Equipment — The operator

loads your car on the back of a truck.
This is the best way of trans- porting your Honda.

Wheel Lift Equipment — The tow

truck uses two pivoting arms that go
under the tires (front or rear) and lift them off the ground. The other two
tires remain on the ground.
Sling-type Equipment — The tow

truck uses metal cables with hooks on the ends. These hooks go around
parts of the frame or suspension and
the cables lift that end of the car off
the ground. Your car's suspension and body can be seriously damaged
if this method of towing is attempted.
If your Honda cannot be transported by flat-bed, it should be towed with
the front wheels off the ground. Ifdue to damage, your car must be
towed with the front wheels on the ground, do the following:
Release the parking brake.Start the engine.
Shift to D4, then to N.
Turn off the engine.
Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shift the transmission or start the engine, your car must be transported

on a flat-bed.

It is best to tow the car no fartherthan 80 km (50 miles), and keepthe speed below 35 mph (55

km/h).

Trying to lift or tow your car by the

bumpers will cause serious damage.
The bumpers are not designed to

support the car's weight.

Taking Care of the Unexpected

NOTICE
NOTICEProCarManuals.comMain Menu s t Table of Contents

Technical Information

The diagrams in this section give
you the dimensions and capacities of
your Honda, and the locations of the identification numbers. The expla-
nations of several electronic and
mechanical systems on your Honda
are for the more technically-orientedowner. Identification Numbers................. 216
Specifications................................. 218
Anti-lock Brake System................ 220 Tire Information............................ 221
Tire Size Designation................ 221Wheel Size Designation............ 221
Tire Speed Ratings.................... 221 Tire Pressure Adjustment For High Speed Driving........ 222
DOT Tire Quality Grading....... 222
Treadwear.............................. 222
Traction.................................. 223
Temperature.......................... 223 Emission Controls......................... 224
The Clean Air Act...................... 224Crankcase Emission Control System..................................... 224
Evaporative Emission Control
System.....................................224

Exhaust Emission Controls...... 225 PGM-FI System..................... 225
Ignition Timing Control System................................. 225
Exhaust Gas Recirculation (EGR) System.................... 225
Three Way Catalytic Converter............................ 225
Replacement Parts..................... 225
Three Way Catalytic Converter... 226
Technical InformationProCarManuals.comMain Menu s t

Identification Numbers

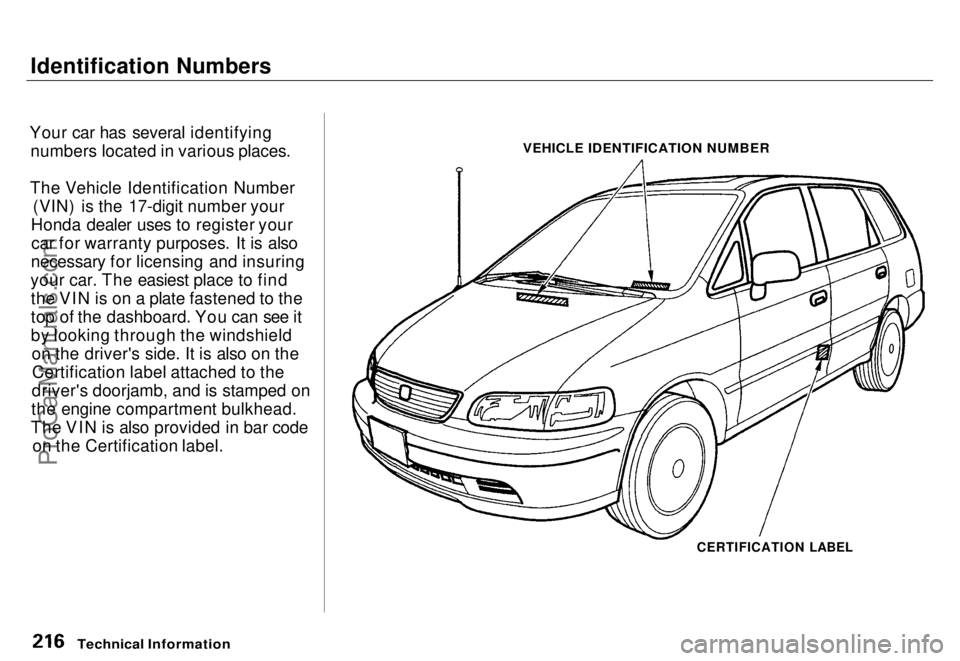

Your car has several identifying numbers located in various places.
The Vehicle Identification Number (VIN) is the 17-digit number your
Honda dealer uses to register your car for warranty purposes. It is also
necessary for licensing and insuring
your car. The easiest place to find the VIN is on a plate fastened to the
top of the dashboard. You can see it
by looking through the windshield on the driver's side. It is also on theCertification label attached to the
driver's doorjamb, and is stamped on
the engine compartment bulkhead.
The VIN is also provided in bar code on the Certification label.
VEHICLE IDENTIFICATION NUMBER

CERTIFICATION LABEL

Technical InformationProCarManuals.comMain Menu s t Table of Contents

Identification Numbers

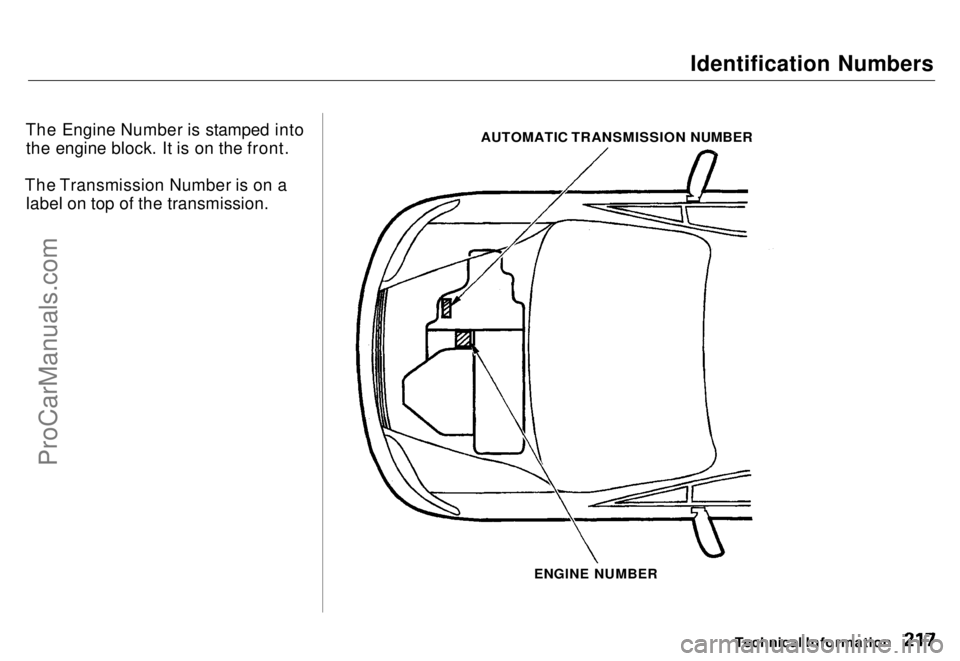

The Engine Number is stamped into the engine block. It is on the front.
The Transmission Number is on a label on top of the transmission.

Technical Information

AUTOMATIC TRANSMISSION NUMBER

ENGINE NUMBERProCarManuals.comMain Menu s t Table of Contents

Specifications

* 1 : For front A/C only
* 2 : For front and rear A/C *
1 : Including the coolant in the reserve tank and that remaining in the
engine.

Reserve tank capacity:
0.6 (0.16 US gal, 0.13 Imp gal)
* 2 : Excluding the oil remaining in the engine.

Technical InformationProCarManuals.comMain Menu s t Table of Contents

Specifications

Technical Information

NOTE:

Replacement of the high-mount brake light should be done by your
dealer.
