1996 FORD CROWN VICTORIA Owners Manual

161 % [AS56200( GV)05/94]

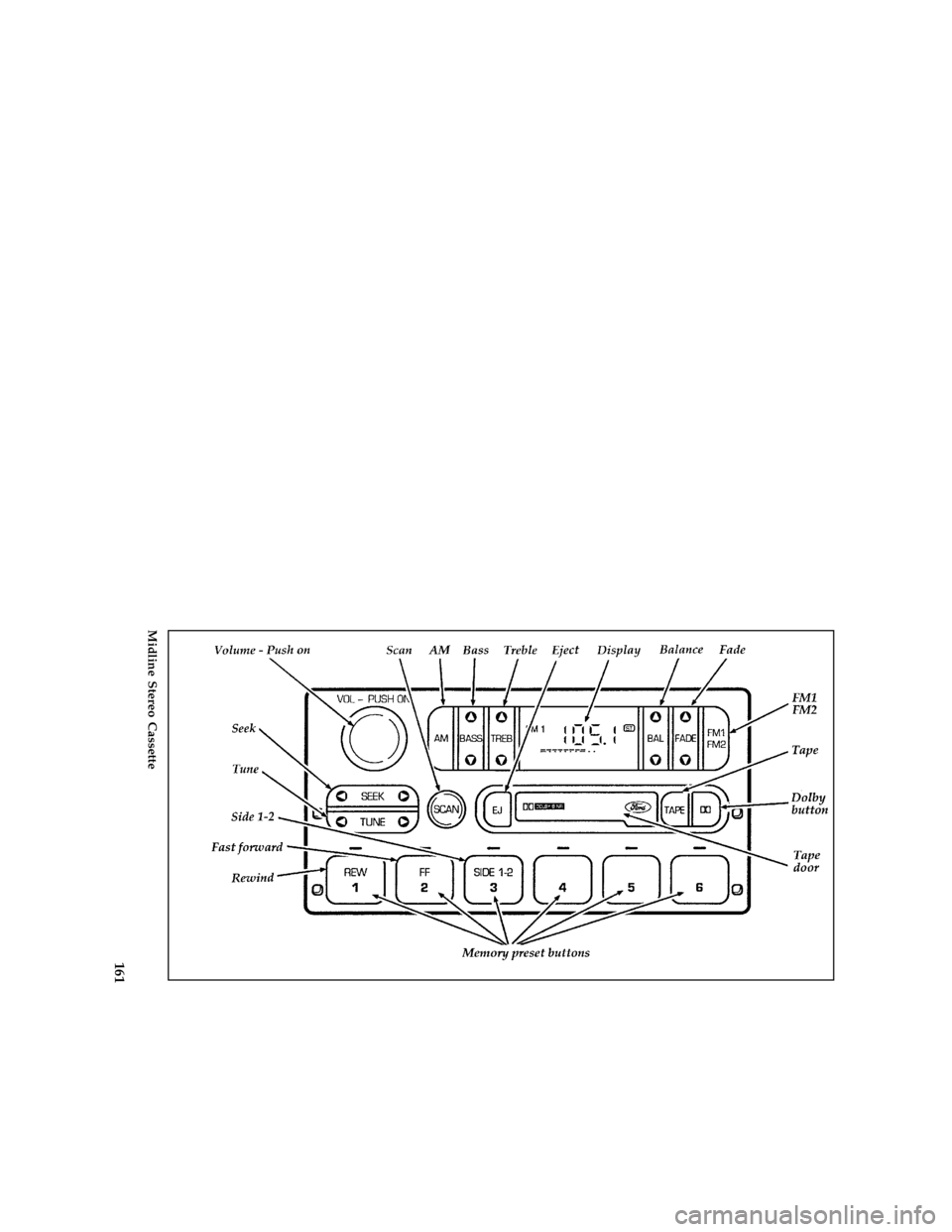

full page art:0060667-A
Midline Stereo Cassette
File:rcasv.ex
Update:Thu Feb 15 08:03:35 1996

162
*
[AS56220( V)05/95]
Midline Stereo and Stereo
Cassette Radio
*
[AS56250( GV)02/95]
Using the Controls on Your New Radio
*
[AS56300( GV)04/95]
How to turn the radio on and off
*
[AS56350( GV)01/95]
Press the ªVOL/PUSH ONº knob to turn the
radio on. Press again to turn it off.
*
[AS56400( GV)04/95]
How to adjust the volume
*
[AS56450( GV)04/94]
Turn the ªVOL/PUSH ONº knob to the right to
increase the volume and to the left to decrease
the volume. Bars illuminate in the display to
show relative volume level.
*
[AS56460( GV)04/95]
NOTE: If the volume level is set above a
certain listening level when the
ignition switch is turned off, when the
ignition switch is turned back on, the
volume will come back to a ªnominalº
listening level. However, if the radio
power is turned off (with the
ªPOWERº button), the volume will
remain in the position it was set at
when radio power is switched back on.
*
[AS56500( GV)04/95]
Selecting the AM or FM frequency band
*
[AS56550( GV)02/95]
Push the ªAM/FMº button to select the desired
frequency band or to stop/store cassette tape
(when in cassette mode). Pushing the button
more than once will alternate between AM, FM1
and FM2. These functions are used with the
station memory buttons described underHow to
tune radio stations.
%*
[AS56600( GV)05/95]
How to tune radio stations
*
[AS56650( GV)04/95]
There are four ways for you to tune in a
particular station. You can manually locate the
station using the ªSCAN/TUNEº button,
ªSEEKº the station, ªSCANº to the station or
File:rcasv.ex
Update:Thu Feb 15 08:03:35 1996

163
select the station by using the memory buttons,
which you can set to any desired frequency.
These four methods are described below.
*
[AS56660( GV)05/95]
q
Using the ªTUNEº function
*
[AS56700( GV)03/95]
You can change the frequency up or down
one increment at a time by pressing and
releasing either the left (
b) or right (
a) side
of the ªTUNEº button.
*
[AS56750( GV)04/95]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or
not a station is present on that frequency.
(SeeAll About Radio Frequenciesin this
section.)
*
[AS56800( GV)04/95]
q
Using the ªSEEKº function
*
[AS56850( GV)04/95]
This feature on your radio allows you to
automatically select listenable stations up or
down the frequency band. Press the right
(
a) side of the ªSEEKº button to select the
next listenable station up the frequency band.
Press the left (
b) side of the button to select
the next listenable station down the
frequency band. By holding the button down,
listenable stations can be passed over to reach
the desired station.
*
[AS56900( GV)01/95]
q
Using the ªSCANº function
*
[AS56950( GV)04/95]
Pressing the ªSCANº button will begin the
scan mode up the frequency band, stopping
on each listenable station for approximately
five seconds.
*
[AS57000( GV)02/95]
To stop the scan mode on the presently
sampled station, press the ªSCANº button
again.
File:rcasv.ex
Update:Thu Feb 15 08:03:35 1996

164
*
[AS57050( GV)04/95]
q
Setting the Station Memory Preset buttons
*
[AS57100( GV)02/95]
Your radio is equipped with 6 station
memory buttons. These buttons can be used
to select up to 6 preset AM stations and 12
FM stations (6 in FM1 and 6 in FM2).
*
[AS57150( GV)02/95]
Follow the easy steps below to set these buttons
to the desired frequencies:
*
[AS57200( GV)04/95]
1. Select a band, then select a frequency.
*
[AS57300( GV)04/95]
2. Press one of the memory buttons and hold
the button until the sound returns. That
station is now held in memory on that
button.
*
[AS57350( GV)04/95]
3. Follow the two steps above for each station
memory preset button you want to set.
[AS57375( GV)05/94]
NOTE: If the vehicle's battery is disconnected
the station memory preset buttons will
need to be reset.
*
[AS57400( GV)02/95]
Adjusting the tone balance and speaker
output of your radio
*
[AS57450( GV)04/95]
q
Increasing or decreasing bass response
*
[AS57500( GV)03/95]
Press the top (
c) of the ªBASSº button to
increase bass; press the bottom (
d) of the
ªBASSº button to decrease bass.
*
[AS57550( GV)04/95]
q
Increasing or decreasing treble response
*
[AS57600( GV)03/95]
Press the top (
c) of the ªTREBLEº button to
increase treble; press the bottom (
d) of the
treble button to decrease treble.
File:rcasv.ex
Update:Thu Feb 15 08:03:35 1996

165
*
[AS57650( GV)04/95]
q
Adjusting speaker balance
*
[AS57700( GV)03/95]
Balance control allows you to adjust the
sound distribution between the right and left
speakers. Press the top (
c) of the ªBALº
button to shift the sound to the right
speakers, and press the bottom (
d) of the
ªBALº button to shift the sound to the left
speakers.
*
[AS57750( GV)04/95]
q
Adjusting speaker fader
*
[AS57800( GV)03/95]
Fade control allows you to adjust the sound
distribution between the front and rear
speakers. Press the top (
c) of the ªFADEº
button to shift the sound to the front
speakers, and press the bottom (
d) of the
ªFADEº button to shift the sound to the back
speakers.
*
[AS57850( GV)04/95]
NOTE: Illuminated bars in the display show
relative levels of bass and treble, and
positions of speaker balance and fader
functions (left to right, front to rear).
*
[AS57900( GV)02/95]
Using the Controls of Your Cassette Tape
Player
*
[AS57950( GV)04/95]
NOTE: Radio power must be on to use the
cassette tape player or eject a tape.
*
[AS58000( GV)02/95]
How to insert a tape
*
[AS58050( GV)09/94]
Your cassette tape player is equipped with
power loading. Once you insert a tape and push
slightly (with theopen edge to the right), the
loading mechanism draws the tape the rest of
the way in and play will begin after a
momentary tape tightening process.
File:rcasv.ex
Update:Thu Feb 15 08:03:35 1996

166 [AS58150( GV)04/94]NOTE: A cassette tape can be loaded with the
ignition on whether or not the radio
power is on. Inserting a cassette tape
with the radio power off will turn the
audio system on. After the cassette is
ejected, radio play will return.
*
[AS58200( GV)02/95]
How to locate a desired track on the tape
*
[AS58250( GV)09/94]
There are four ways to quickly locate a desired
selection on the tape. You can use the fast
forward, rewind, ªSEEKº, or ªSCANº function.
Following are brief descriptions of each.
*
[AS58300( GV)02/95]
q
Fast forwarding the tape
*
[AS58350( GV)01/95]
To fast forward the tape, press the ªFFº
button. The radio will begin playing until fast
forward is manually stopped (by pushing the
ªTAPEº button) or the end of the tape is
reached.
*
[AS58400( GV)01/95]
At the end of the tape, the direction
automatically reverses and plays the other
side of the tape.
*
[AS58450( GV)02/95]
q
Rewinding the tape
*
[AS58500( GV)01/95]
To rewind the tape, press the ªREWº button.
The radio will begin playing until rewind is
manually stopped (by pushing the ªTAPEº
button) or the beginning of the tape is
reached.
File:rcasv.ex
Update:Thu Feb 15 08:03:35 1996

167
*
[AS58550( GV)01/95]
q
Using the ªSEEKº function with your cassette
tape player
*
[AS58600( GV)03/95]
While in the tape mode, push the right (
a)
side of the ªSEEKº button to seek forward to
the next selection on the tape. Push the left
(
b) side to seek the previous tape selection.
*
[AS58650( GV)01/95]
q
Using the ªSCANº function with your
cassette tape player
*
[AS58700( GV)01/95]
Press the ªSCANº button to begin the
forward scan mode on the tape currently
playing, stopping on each tape selection for
approximately an eight-second sampling
(display indicates ªSCº).
*
[AS58800( GV)01/95]
To stop the scan mode on the presently
sampled tape selection, press ªSCANº a
second time.
*
[AS58850( GV)02/95]
q
How to change the side of the tape being
played
*
[AS58900( GV)01/95]
The alternate side of the tape can be selected
by pressing the ªSIDE 1-2º button.
*
[AS58950( GV)02/95]
How to eject the tape
*
[AS59000( GV)01/95]
To stop the tape and eject the cassette, press the
ªEJº button. The radio will resume playing if the
radio power is on. The tape cartridge can be
ejected with radio power (and/or ignition) on or
off.
*
[AS59050( GV)01/95]
How to store the tape
*
[AS59100( GV)01/95]
Press the ªAM/FMº button to stop the tape
player and resume radio play.
File:rcasv.ex
Update:Thu Feb 15 08:03:35 1996

168
*
[AS59150( GV)02/95]
Using the DolbyHB noise reduction feature
*
[AS59200( GV)02/95]
NOTE: Noise reduction system manufactured
under license from Dolby Labs
Licensing Corporation. ªDolbyº and
double-D symbol are trademarks of
Dolby Laboratories Licensing
Corporation.
*
[AS59250( GV)04/95]
Push thekbutton to activate Dolby B Noise
Reduction. Push again to deactivate.
*
[AS59860( GV)02/95]
Tips on Caring for the Cassette Player and
Tapes
*
[AS59870( GV)02/95]
In order to keep your cassette tape player
performing the way it was meant to, read and
follow these simple precautions:
*
[AS59880( GV)02/95]
q
Using a Ford Cassette Cleaning Cartridge to
clean the tape player head after 10-12 hours
of play will help maintain the best playback
sound and proper tape operation.
*
[AS59890( GV)02/95]
q
Only cassettes that are 90 minutes long or
less should be used. Tapes longer than 90
minutes are thinner and subject to breakage
or may jam the tape player mechanism.
*
[AS59900( GV)02/95]
q
Protect cassettes from exposure to direct
sunlight, high humidity and extreme heat or
cold. If they are exposed to extreme
conditions, allow them to reach a moderate
temperature before playing.
*
[AS59910( GV)02/95]
q
If a tape is loose inside the cassette, tighten it
before playing by putting your finger or a
pencil into one of the holes and turning the
hub until the tape is tight.
*
[AS59920( GV)01/95]
q
Loose labels on cassette tapes can become
lodged in the mechanism. Remove any loose
label material before inserting cassette.
