1996 FORD CROWN VICTORIA Owners Manual

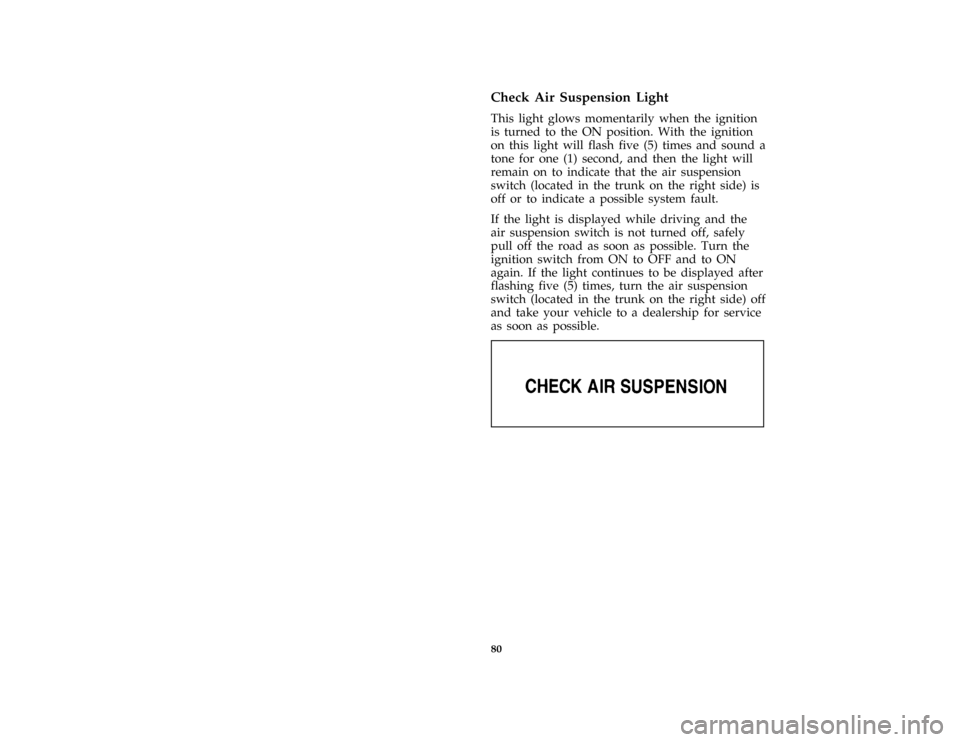

80 [LG52200( GV)05/95]Check Air Suspension Light
*
[LG52300( GV)01/95]
This light glows momentarily when the ignition
is turned to the ON position. With the ignition
on this light will flash five (5) times and sound a
tone for one (1) second, and then the light will
remain on to indicate that the air suspension
switch (located in the trunk on the right side) is
off or to indicate a possible system fault.
*
[LG52400( GV)01/95]
If the light is displayed while driving and the
air suspension switch is not turned off, safely
pull off the road as soon as possible. Turn the
ignition switch from ON to OFF and to ON
again. If the light continues to be displayed after
flashing five (5) times, turn the air suspension
switch (located in the trunk on the right side) off
and take your vehicle to a dealership for service
as soon as possible.
[LG52500( GV)10/90]
one inch art:0010522-AFile:rclgv.ex
Update:Wed Jan 31 10:21:13 1996

81 %
*
[LG52550( GV)05/95]

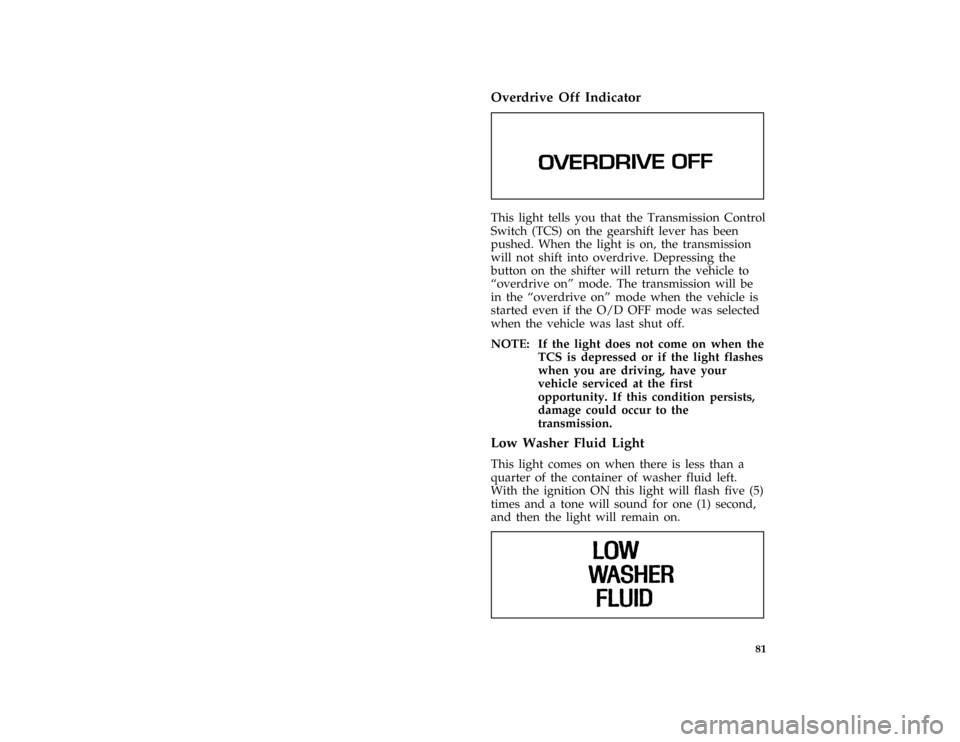

Overdrive Off Indicator
[LG52560( GV)06/92]
one inch art:0010733-B*
[LG52570( GV)01/95]
This light tells you that the Transmission Control
Switch (TCS) on the gearshift lever has been
pushed. When the light is on, the transmission
will not shift into overdrive. Depressing the
button on the shifter will return the vehicle to
ªoverdrive onº mode. The transmission will be
in the ªoverdrive onº mode when the vehicle is
started even if the O/D OFF mode was selected
when the vehicle was last shut off.
*
[LG52571( GV)04/95]
NOTE: If the light does not come on when the
TCS is depressed or if the light flashes
when you are driving, have your
vehicle serviced at the first
opportunity. If this condition persists,
damage could occur to the
transmission.
%*
[LG52600( GV)01/95]
Low Washer Fluid Light
*
[LG52700( GV)01/95]
This light comes on when there is less than a
quarter of the container of washer fluid left.
With the ignition ON this light will flash five (5)
times and a tone will sound for one (1) second,
and then the light will remain on.
[LG52800( GV)05/94]
one inch art:0010523-BFile:rclgv.ex
Update:Wed Jan 31 10:21:13 1996

82 %
*
[LG52900( GV)01/95]

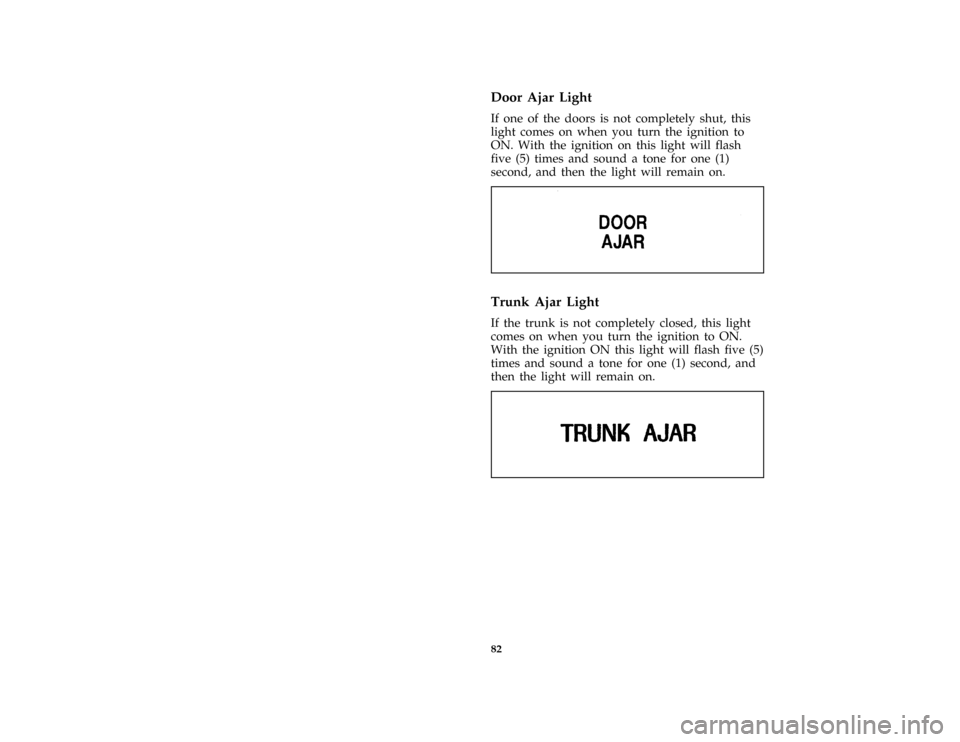

Door Ajar Light
*
[LG53000( GV)01/95]
If one of the doors is not completely shut, this
light comes on when you turn the ignition to
ON. With the ignition on this light will flash
five (5) times and sound a tone for one (1)
second, and then the light will remain on.
[LG53100( GV)10/90]
one inch art:0010531-A%*
[LG53200( GV)01/95]
Trunk Ajar Light
*
[LG53300( GV)01/95]
If the trunk is not completely closed, this light
comes on when you turn the ignition to ON.
With the ignition ON this light will flash five (5)
times and sound a tone for one (1) second, and
then the light will remain on.
[LG53400( GV)05/94]
one inch art:0010524-BFile:rclgv.ex
Update:Wed Jan 31 10:21:13 1996

83
[LG53500( GV)07/93]

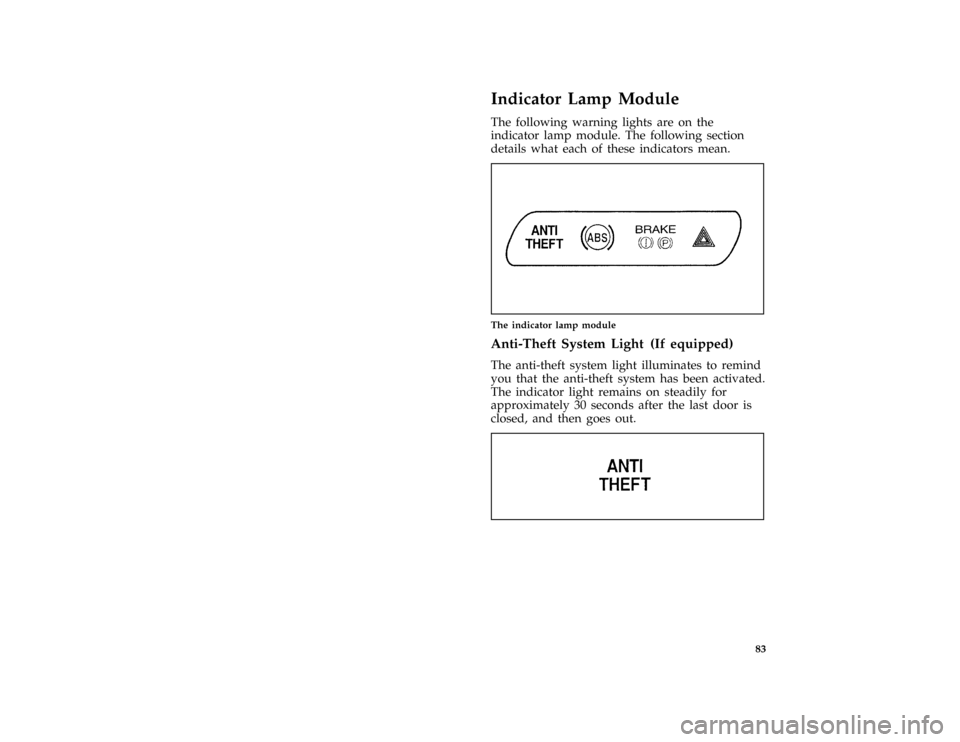

Indicator Lamp Module
[LG53600( GV)05/94]
The following warning lights are on the
indicator lamp module. The following section
details what each of these indicators mean.
[LG53700( GV)05/94]
one third page art:0011296-A
The indicator lamp module
% [LG53800( GV)05/94]
Anti-Theft System Light (If equipped)
[LG53900( GV)05/94]
The anti-theft system light illuminates to remind
you that the anti-theft system has been activated.
The indicator light remains on steadily for
approximately 30 seconds after the last door is
closed, and then goes out.
[LG54000( GV)05/94]
one inch art:0011297-AFile:rclgv.ex
Update:Wed Jan 31 10:21:13 1996

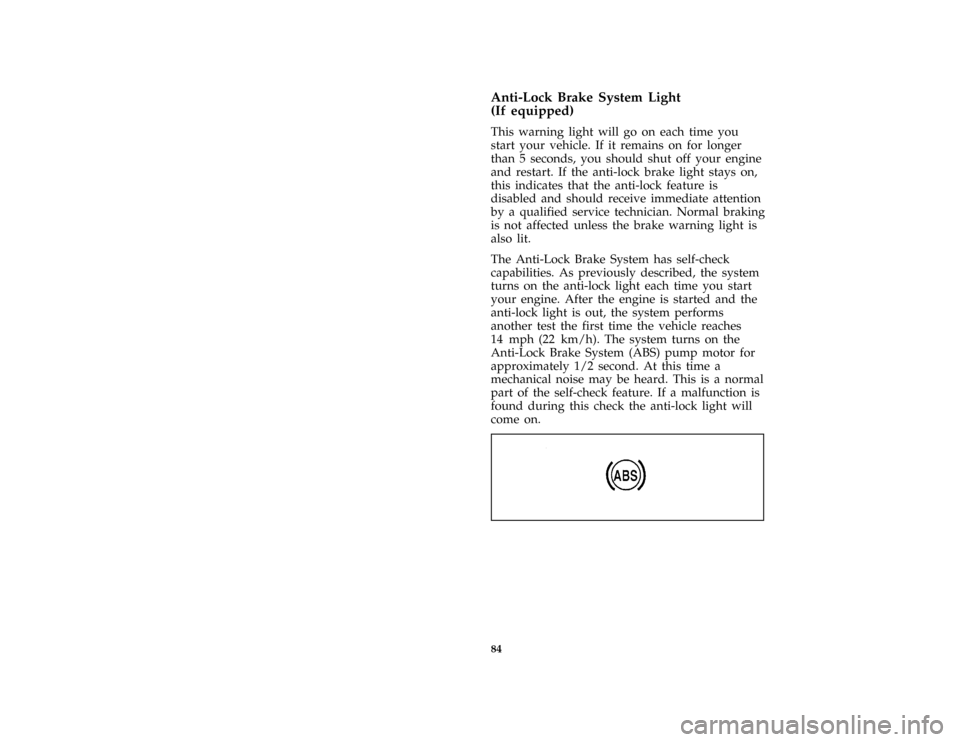

84 % [LG54200( GV)05/94]Anti-Lock Brake System Light
(If equipped)
*
[LG54300( GV)01/95]
This warning light will go on each time you
start your vehicle. If it remains on for longer
than 5 seconds, you should shut off your engine
and restart. If the anti-lock brake light stays on,
this indicates that the anti-lock feature is
disabled and should receive immediate attention
by a qualified service technician. Normal braking
is not affected unless the brake warning light is
also lit.
*
[LG54400( GV)01/95]
The Anti-Lock Brake System has self-check
capabilities. As previously described, the system
turns on the anti-lock light each time you start
your engine. After the engine is started and the
anti-lock light is out, the system performs
another test the first time the vehicle reaches
14 mph (22 km/h). The system turns on the
Anti-Lock Brake System (ABS) pump motor for
approximately 1/2 second. At this time a
mechanical noise may be heard. This is a normal
part of the self-check feature. If a malfunction is
found during this check the anti-lock light will
come on.
[LG54500( GV)05/94]
one inch art:0010642-EFile:rclgv.ex
Update:Wed Jan 31 10:21:13 1996

85
*
[LG54550( GV)05/95]
RWARNING
If the anti-lock brake system warning
light remains on or comes on while
driving, have the braking system checked
by a qualified service technician as soon
as possible.
[LG54555( GV)05/95]
NOTE: If a fault occurs in the anti-lock
system, and the brake warning light is
not lit, the anti-lock system is disabled
but normal brake function remains
operational.
%*
[LG54560( GV)03/95]

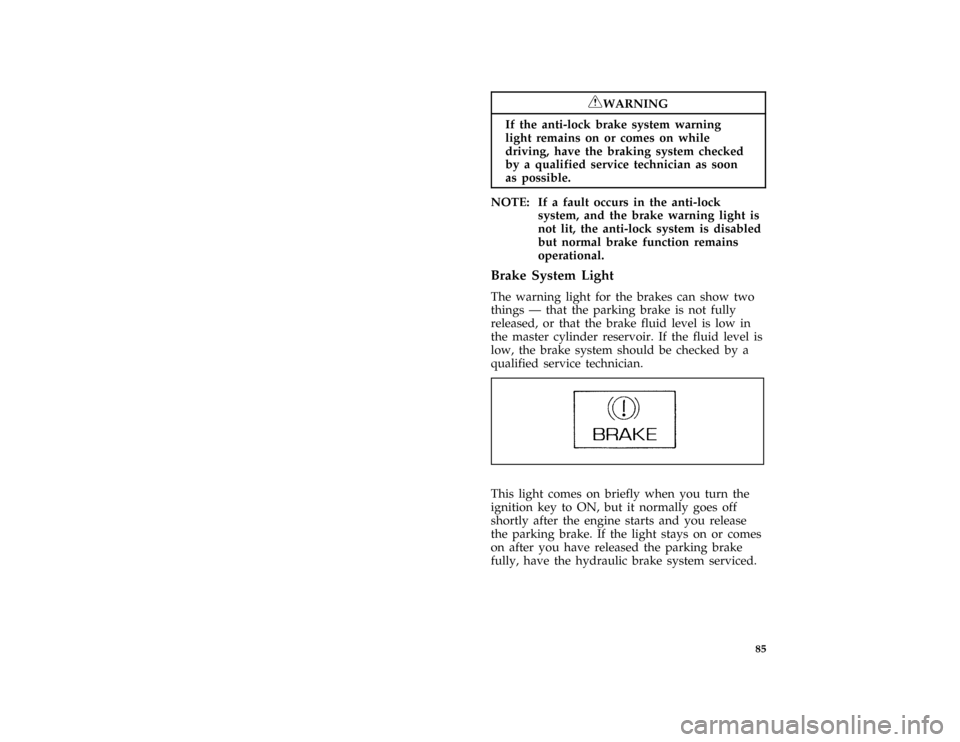

Brake System Light
*
[LG54570( GV)03/95]
The warning light for the brakes can show two
things Ð that the parking brake is not fully
released, or that the brake fluid level is low in
the master cylinder reservoir. If the fluid level is
low, the brake system should be checked by a
qualified service technician.
[LG54580( GV)05/94]
one inch art:0010681-C*
[LG54590( GV)01/95]
This light comes on briefly when you turn the
ignition key to ON, but it normally goes off
shortly after the engine starts and you release
the parking brake. If the light stays on or comes
on after you have released the parking brake
fully, have the hydraulic brake system serviced.
File:rclgv.ex
Update:Wed Jan 31 10:21:13 1996

86
*
[LG55000( GV)05/95]
RWARNING
The BRAKE light indicates that the brakes
may not be working properly. Have the
brakes checked immediately.
% [LG55100( GV)05/94]

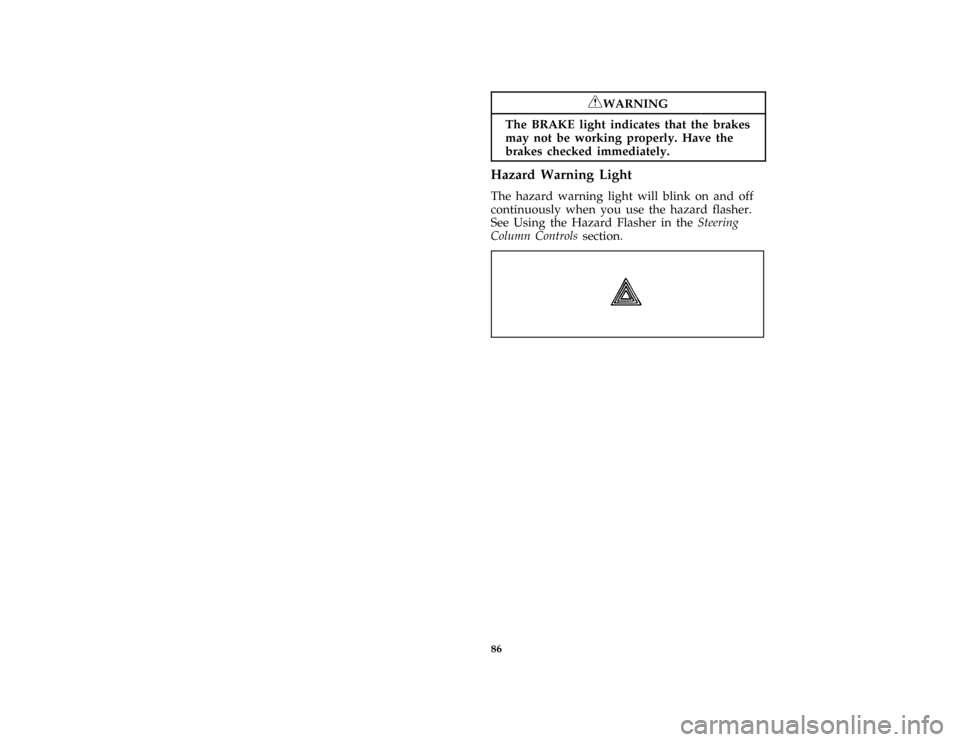

Hazard Warning Light
[LG55200( GV)05/94]
The hazard warning light will blink on and off
continuously when you use the hazard flasher.
See Using the Hazard Flasher in theSteering
Column Controlssection.
[LG55300( GV)05/94]
one inch art:0011298-AFile:rclgv.ex
Update:Wed Jan 31 10:21:13 1996

87

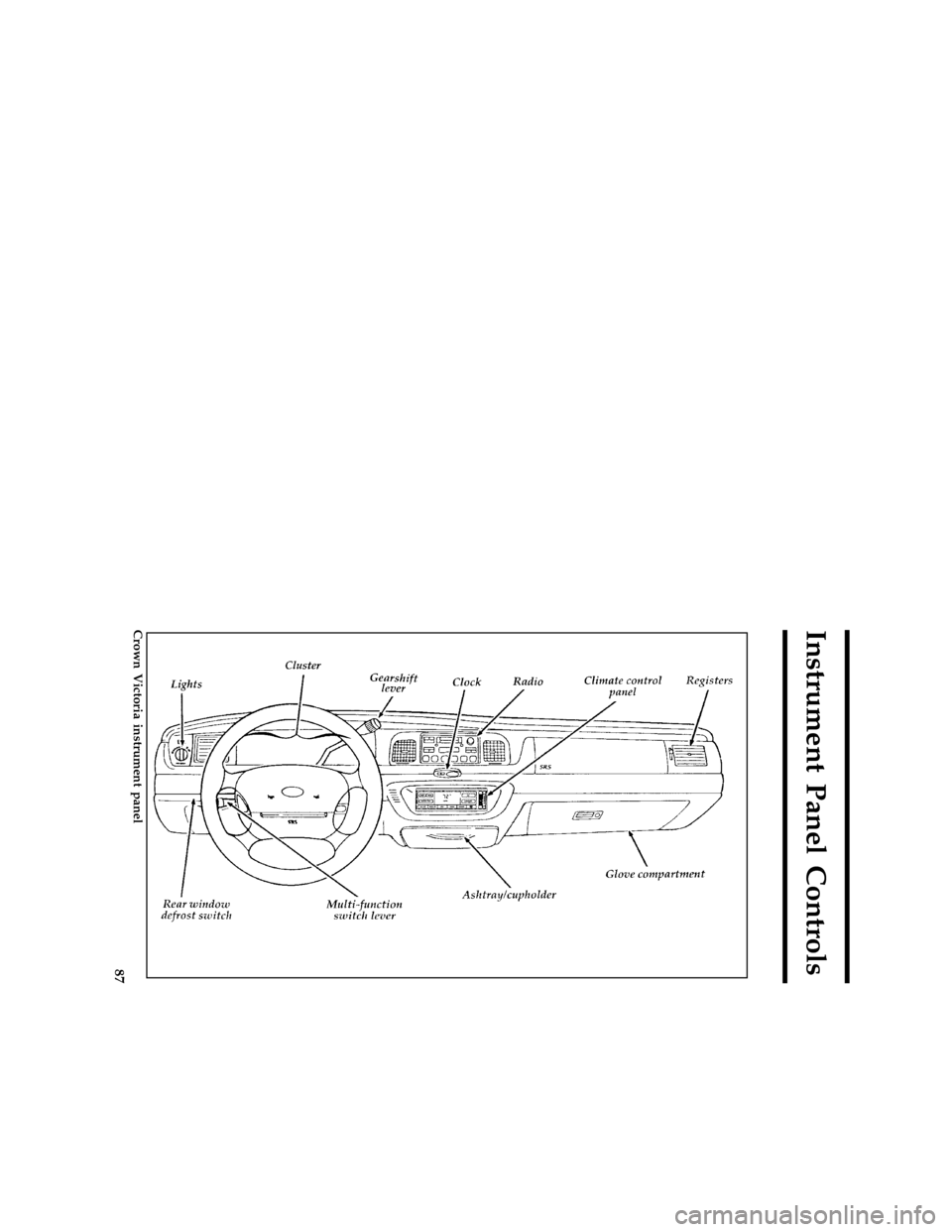

Instrument Panel Controls
[IP00290( V)10/94]
full page art:0010667-G
Crown Victoria instrument panel
File:rcipv.ex
Update:Wed Jan 31 10:22:47 1996
