1996 FORD CROWN VICTORIA Owners Manual

144
%*
[FV32725(M GV)03/95]
Power Point Electrical Outlet
[FV32760( GV)03/95]
The power point outlet is located on the
instrument panel to the right of the ashtray. This
outlet should be used for optional electrical
accessories.
[FV32785( GV)05/95]
NOTE: Do not attempt to plug the cigarette
lighter into the power point outlet.
Damage could occur. Do not plug
optional electrical accessories into the
cigarette lighter. Electrical system
damage could occur.
[FV32815( GV)05/95]
half page art:0011352-A
Power point electrical outlet
File:rcfvv.ex
Update:Wed Jan 31 10:27:22 1996

145
%*
[FV32875( ALL)01/95]
Storage Compartments
*
[FV32900(M GV)01/95]
Your vehicle may have several small storage
compartments:
[FV33000( BCGV)11/94]
q
a glove compartment that locks. Use the
round key to lock and unlock it.
*
[FV33100( BCGV)01/95]
q
two map pockets on the panels of the front
doors.
[FV33200( V)03/93]
q
two map pockets on the back of the front
seats (on LX only).
*
[FV33300( ALL)05/95]
RWARNING
Do not put objects on the ledge between
the back seat and the rear window, as
they can become dangerous projectiles and
injure someone.
%
*
[FV33400( ALL)01/95]
Trunk
*
[FV33500( ALL)01/95]
Opening the Trunk Manually
[FV34200( GV)05/94]
The trunk in your vehicle gives you plenty of
room for storage Ð 20.6 cubic feet (.58 cubic
meters).
%*
[FV34600( ALL)03/95]
To open and close the trunk from the outside:
[FV34950( BCGV)03/95]
1. Insert the key into the lock on the trunk.
[FV35100( ALL)11/90]
2. Turn the key to the right until the trunk
opens.
[FV35300( ALL)11/90]
3. Remove the key before you close and lock
the lid.
[FV35450( ALL)06/93]
4. Shut the trunk lid completely.
File:rcfvv.ex
Update:Wed Jan 31 10:27:22 1996

146 % [FV36200( ALL)03/95]Using the Remote Control for the
Trunk (If equipped)
[FV36550( GV)12/91]
You can use the remote control on the driver's
door to unlock and open the trunk unless you
lock the button with the main key. The valet key
equipped with your vehicle can only open the
doors and start the engine.
[FV36800( GV)05/95]
one third page art:0010670-C
The remote control for the trunk
File:rcfvv.ex
Update:Wed Jan 31 10:27:22 1996

147
% [FV47500( ALL)08/93]
Positive Location Floor Mat
[FV47700( GV)06/93]
When installing or removing the driver's side
floor mat you must attach/detach the positive
location grommet from the hook on the floor.
The hook is just forward of the center of the
driver's seat. This is done by rotating the
grommet one quarter turn, slipping the eyelet
onto the hook, and sliding it to the floor.
[FV47900( GV)03/94]
half page art:0001094-B

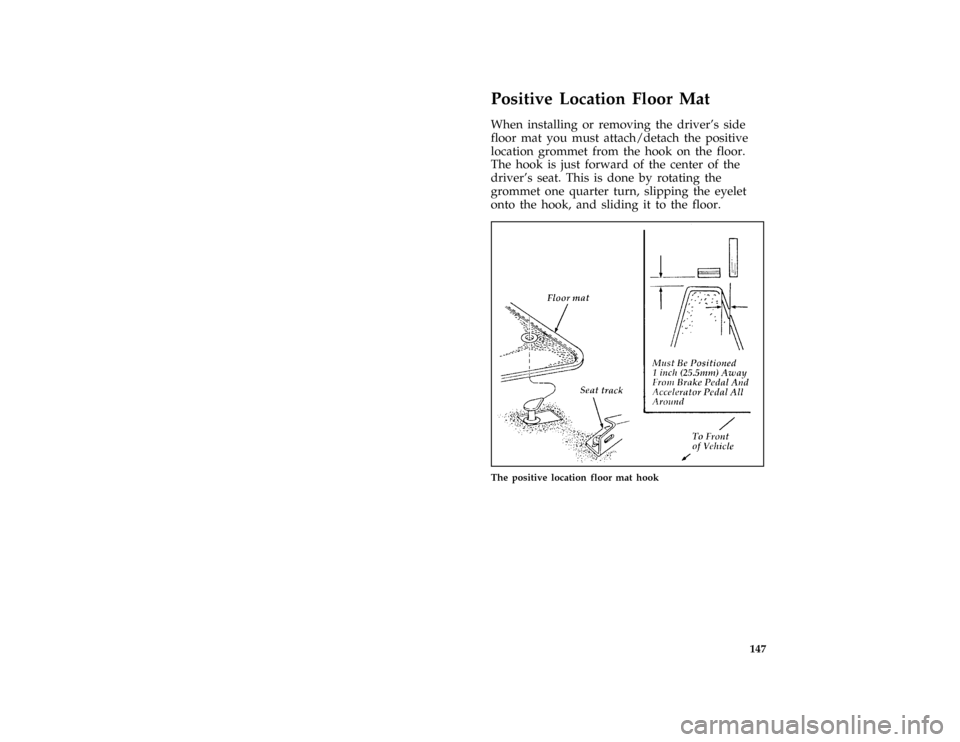

The positive location floor mat hook
File:rcfvv.ex
Update:Wed Jan 31 10:27:22 1996

149
Electronic Sound Systems
% [AS10315( GV)05/94]
full page art:0060663-A

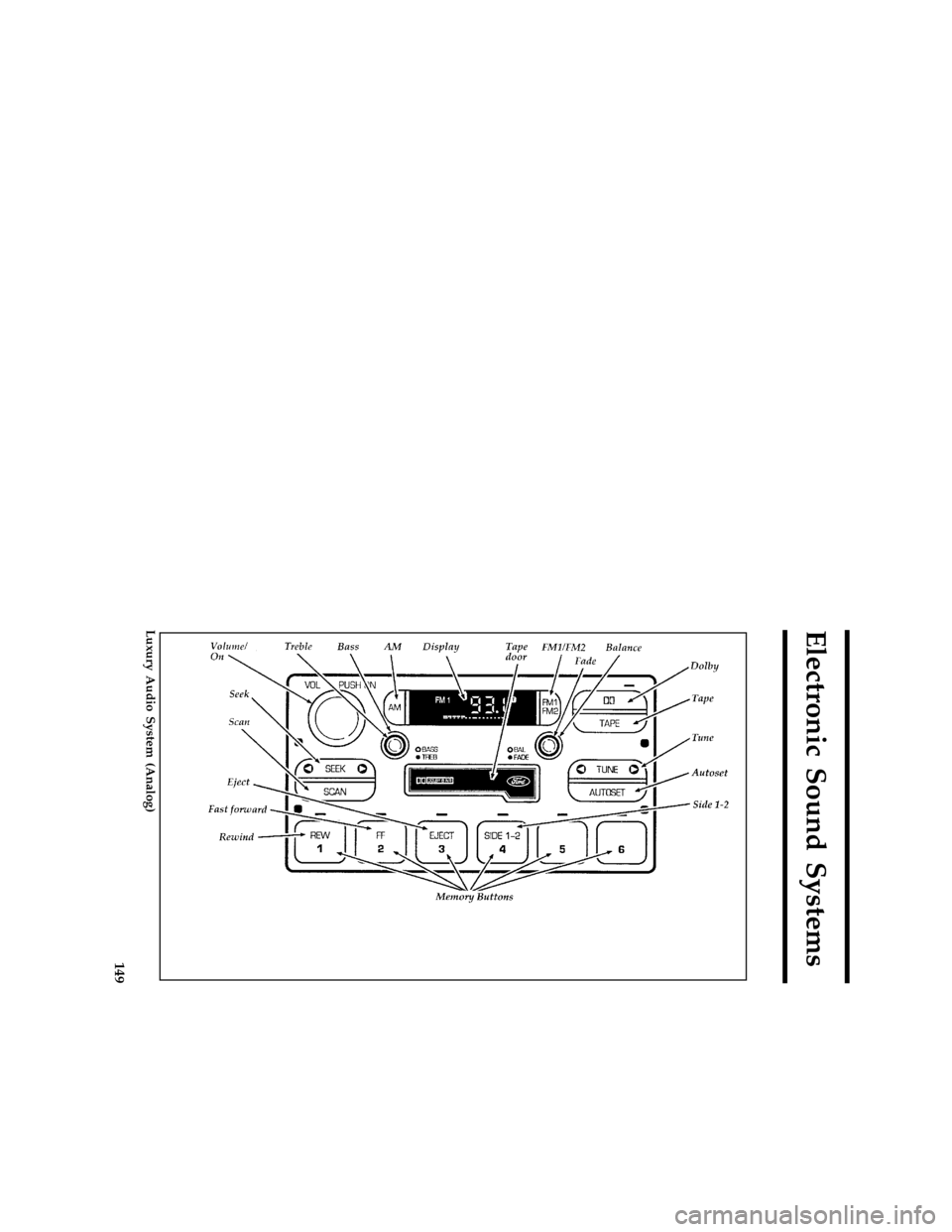

Luxury Audio System (Analog)
File:rcasv.ex
Update:Thu Feb 15 08:03:35 1996

150 [AS10317( V)07/94]

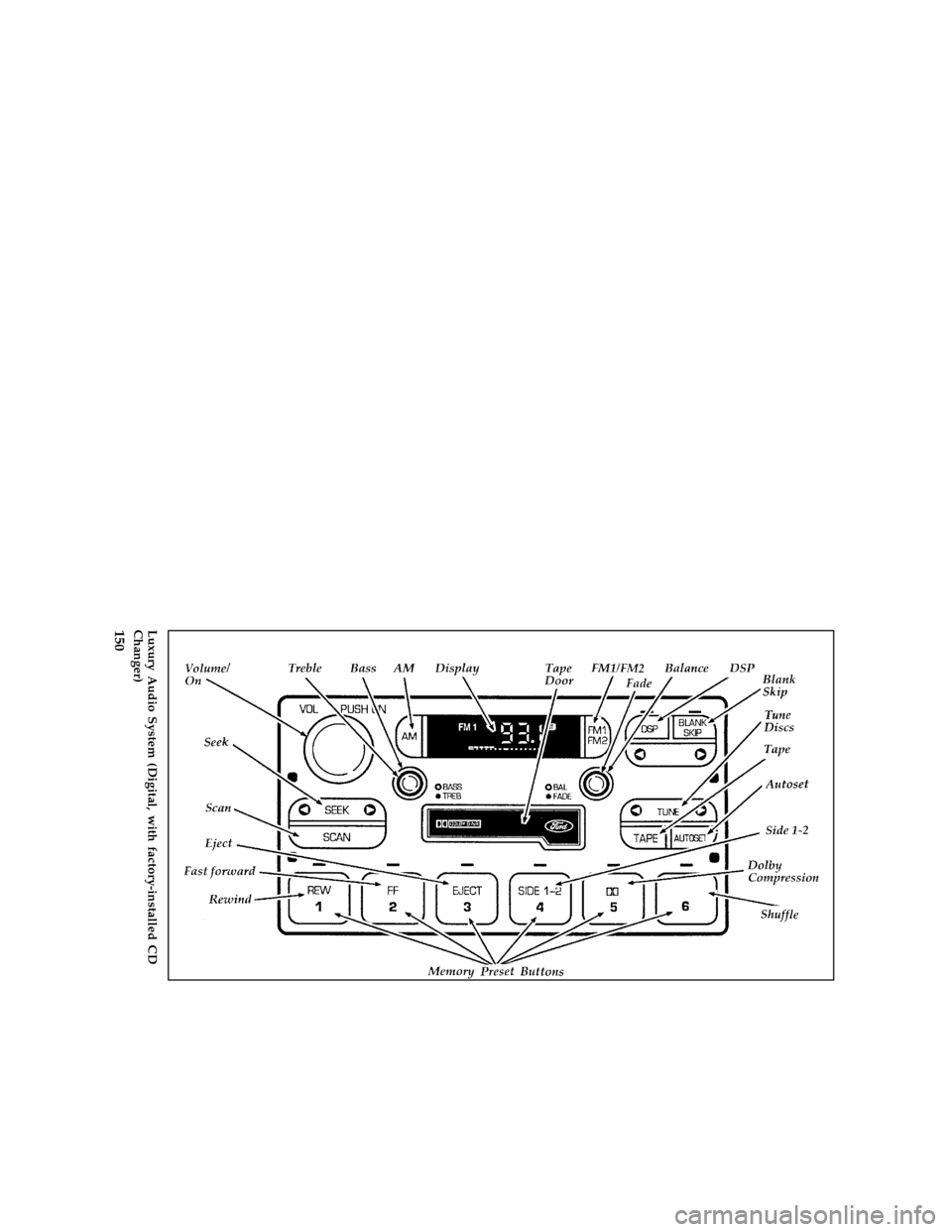

full page art:0060664-BLuxury Audio System (Digital, with factory-installed CD
Changer)
File:rcasv.ex
Update:Thu Feb 15 08:03:35 1996

151
*
[AS10319( GV)03/95]
Luxury Audio System
*
[AS10320( GV)02/95]
Using the Controls on Your New Radio
*
[AS10330( GV)04/95]
How to turn the radio on and off
*
[AS10340( GV)01/95]
Press the ªVOL/PUSH ONº knob to turn the
radio on. Press again to turn it off.
*
[AS10351( GV)04/95]
How to adjust the volume
*
[AS10352( GV)05/95]
Turn the ªVOL/PUSH ONº knob to the right to
increase the volume and to the left to decrease
the volume.
[AS10353( V)04/94]
NOTE: If the volume level is set above a
certain listening level when the
ignition switch is turned off, when the
ignition switch is turned back on, the
volume will come back to a ªnominalº
listening level. However, if the radio
power is turned off (with the
ªVOL/PUSH ONº button), the volume
will remain in the position it was set
at when radio power is switched back
on (digital systems only).
*
[AS10354( GV)04/95]
Selecting the AM or FM frequency band
*
[AS10355( GV)04/95]
Push the ªAM/FMº button to select the desired
frequency band. Pushing the ªAM/FMº button
causes the frequency band to switch from ªAMº
to ªFM1º to ªFM2º to ªAMº, changing one band
to the next each time the button is pressed.
These functions are used with the station
memory buttons described underHow to tune
radio stations.
%*
[AS10356( GV)05/95]
How to tune radio stations
*
[AS10357( GV)01/95]
There are four ways for you to tune in a
particular station. You can use the ªTUNEº,
ªSEEKº, ªSCANº or memory buttons.
File:rcasv.ex
Update:Thu Feb 15 08:03:35 1996

152
*
[AS10358( GV)05/95]
q
Using the ªTUNEº function
[AS10359( GV)03/95]
You can change the frequency up or down
one increment at a time by pressing and
releasing either the left
bor right
aside of
the ªTUNEº button. To change frequencies
quickly, press and hold down either the right
or left side of the ªTUNEº button.
*
[AS10360( GV)04/95]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or
not a station is present on that frequency.
(SeeAll About Radio Frequenciesin this
section.)
*
[AS10361( GV)04/95]
q
Using the ªSEEKº function
*
[AS10362( GV)03/95]
Press the right
aside of the ªSEEKº button
to select the next listenable station up the
frequency band. Press the left
bside of the
button to select the next listenable station
down the frequency band. By holding the
button down, listenable stations can be
passed over to reach the desired station.
*
[AS10363( GV)01/95]
q
Using the ªSCANº function
*
[AS10364( GV)04/95]
Pressing the ªSCANº button will begin the
scan mode up the frequency band, stopping
on each listenable station for approximately
five seconds.
*
[AS10365( GV)02/95]
To stop the scan mode on the presently
sampled station, press the ªSCANº button
again.
*
[AS10366( GV)01/95]
q
Setting the station MEMORY PRESET buttons
*
[AS10367( GV)01/95]
Your radio is equipped with 6 station
memory buttons. These buttons can be used
to select up to 6 preset AM stations and 12
FM stations (6 in FM1 and 6 in FM2)
[AS10368( GV)05/95]
Follow the easy steps below to set these buttons
to the desired frequencies:
*
[AS10369( GV)04/95]
1. Select a band, then select a frequency.
File:rcasv.ex
Update:Thu Feb 15 08:03:35 1996
