1996 FORD CROWN VICTORIA Owners Manual

136 %
*
[FV18500( BCGV)05/95]
Using the Power Seats (If equipped)
[FV18700( GV)10/94]
If your vehicle has power seats, you can adjust
them in several directions. The controls are
located on the driver and passenger door trim
panels or on the side of the driver's seat.
[FV18810( GV)10/94]
one third page art:0011313-A

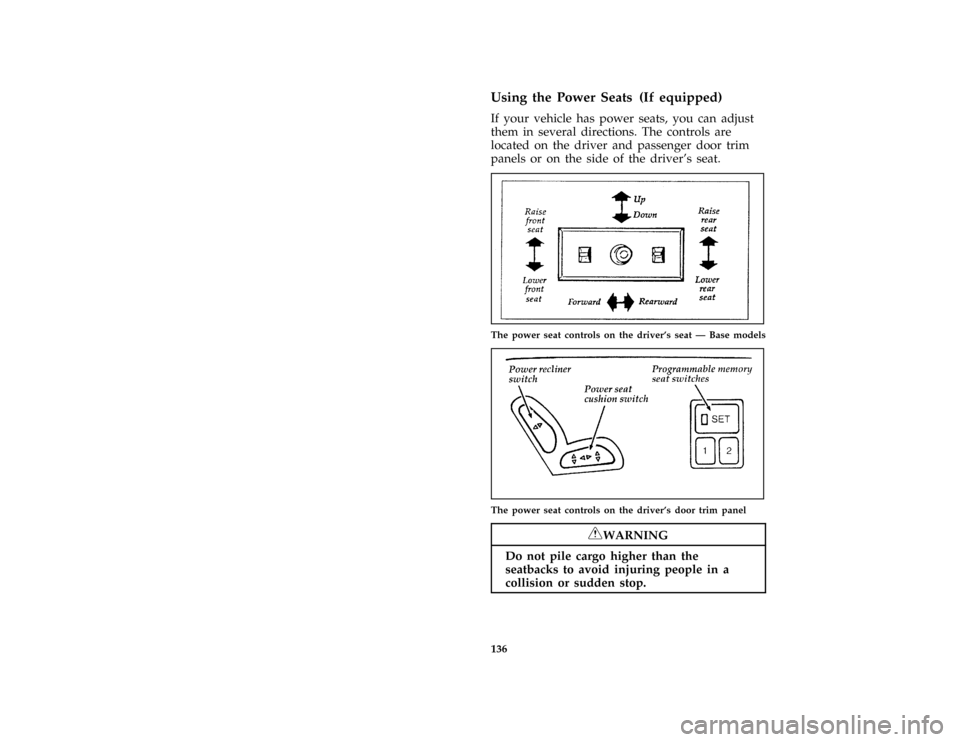

The power seat controls on the driver's seat Ð Base models
[FV18825( V)03/94]
one third page art:0010259-B
The power seat controls on the driver's door trim panel
*
[FV18850( ALL)05/95]
RWARNING
Do not pile cargo higher than the
seatbacks to avoid injuring people in a
collision or sudden stop.
File:rcfvv.ex
Update:Wed Jan 31 10:27:22 1996

137 % [FV18920( GV)10/90]
Power Seat Recliner/Lumbar Option
[FV18960( GV)10/90]
The arrows on the power seat control panel
indicate the direction the seat or seatback will
move. To adjust the seat or seatback move the
control knob in the desired direction.
[FV18980( GV)03/94]
The power lumbar switch controls the inflation
of the lumbar support pad in the seatback. To
inflate the lumbar pad, push the forward portion
of the switch. To deflate the pad, press the rear
portion of the switch.
[FV18990( GV)05/95]
one third page art:0010686-B

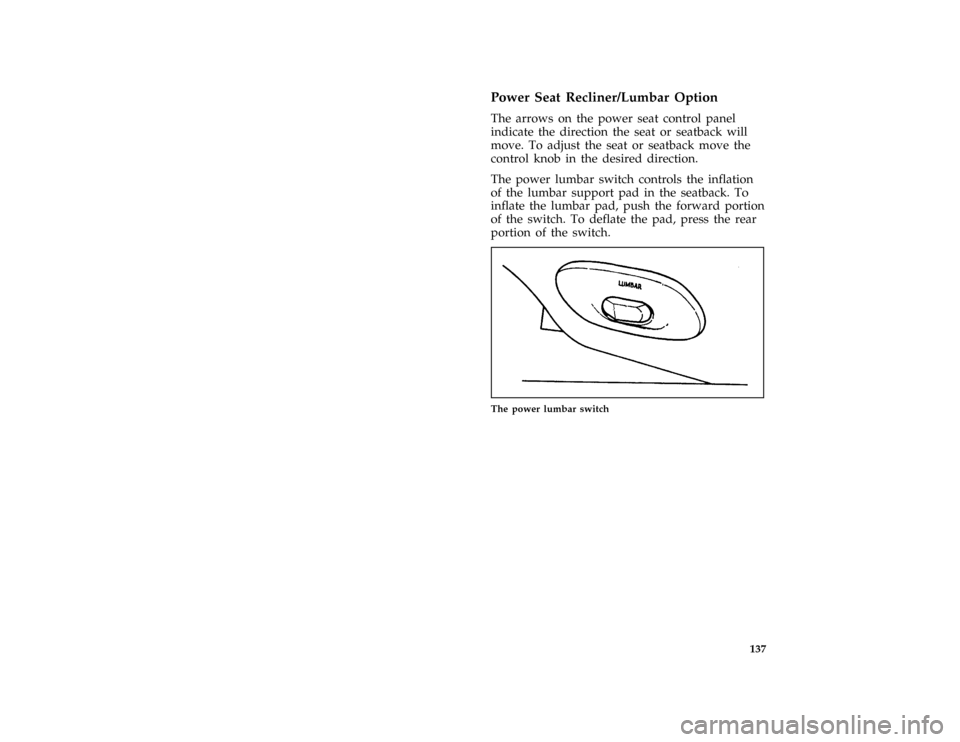

The power lumbar switch
File:rcfvv.ex
Update:Wed Jan 31 10:27:22 1996

138 %
*
[FV19000( V)05/95]
Programmable Memory Ð Seat and
Mirrors (If equipped)
*
[FV19025( V)01/95]
If your vehicle is equipped with this option, you
can store settings for three seat and mirror
positions. This allows you to get into your
vehicle and simply push the preset button(s) to
automatically have your seat and mirrors in the
proper position.
[FV19050( V)03/94]
one third page art:0011290-A

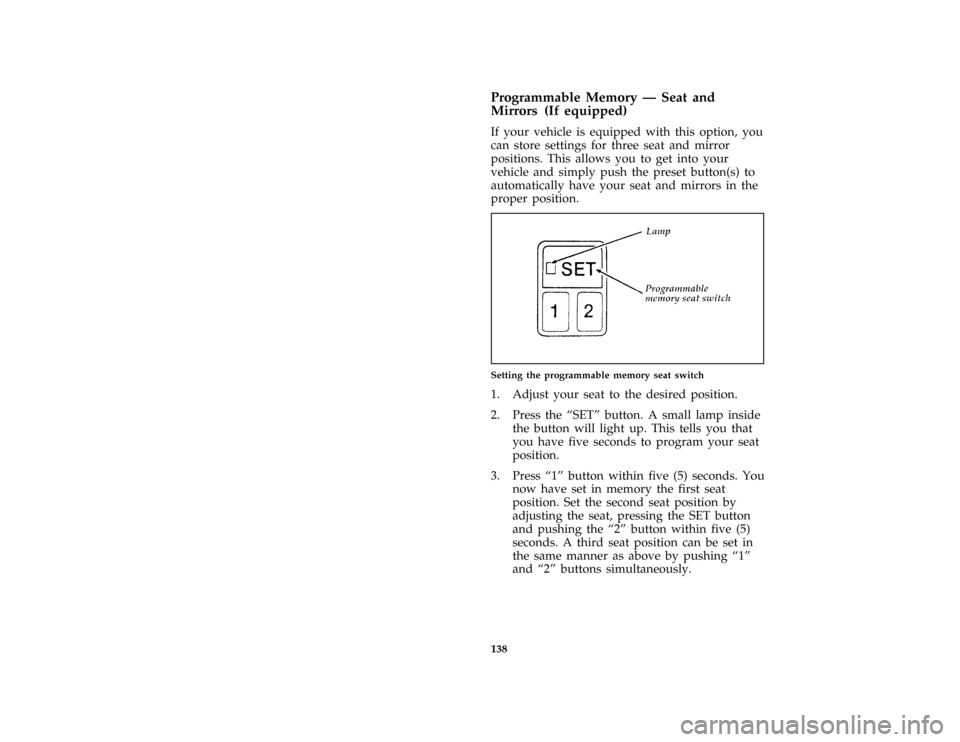

Setting the programmable memory seat switch
[FV19075( V)06/94]
1. Adjust your seat to the desired position.
[FV19100( V)06/94]
2. Press the ªSETº button. A small lamp inside
the button will light up. This tells you that
you have five seconds to program your seat
position.
[FV19125( V)06/94]
3. Press ª1º button within five (5) seconds. You
now have set in memory the first seat
position. Set the second seat position by
adjusting the seat, pressing the SET button
and pushing the ª2º button within five (5)
seconds. A third seat position can be set in
the same manner as above by pushing ª1º
and ª2º buttons simultaneously.
File:rcfvv.ex
Update:Wed Jan 31 10:27:22 1996

139 [FV19150( V)02/93]
To prevent accidental seat movement, this
system will only recall a position when the
transmission gearshift lever is in P (Park) or
N (Neutral) with the engine either running or
off. However, a new position can be set at any
time. If the memory seat has been activated and
you wish to stop the seat movement, push the
switch again.
[FV19175( V)06/94]
Moving the seat with the power controls is
possible even when memory seat positions have
been set. The seat will not automatically
reposition until the memory position is activated
by pushing the appropriate button(s).
%*
[FV20500( ALL)04/95]
Cleaning the Seats
*
[FV20600( ALL)05/95]
Leather and vinyl
*
[FV20650( ALL)05/95]
For routine cleaning, wipe the surface with a
soft, damp cloth. For more thorough cleaning,
wipe the surface with a leather and vinyl cleaner
or a mild soap.
%*
[FV20700( ALL)04/95]
Fabric
*
[FV20750( ALL)04/95]
Remove dust and loose dirt with a whisk broom
or a vacuum cleaner. Remove fresh spots
immediately. Follow the directions that come
with the cleaner.
*
[FV20775( ALL)04/95]
NOTE: Before using any cleaner, test it on a
small, hidden area of fabric. If the
fabric's color or texture is adversely
affected by a particular cleaner, do not
use it.
File:rcfvv.ex
Update:Wed Jan 31 10:27:22 1996

140
%*
[FV20800( ALL)01/95]
Mirrors
*
[FV20850(ALL )03/95]
You can adjust your rearview mirror in any
direction. The special swivel bracket lets you
move the mirror up or down and from side to
side.
[FV021000(ALL )03/95]
RWARNING
Make sure you can see clearly through the
rearview mirror at all times. Do not block
your vision. If you cannot see through the
mirror, it could result in a collision,
injuring yourself and others.
%*
[FV21500( GV)01/95]
Automatic Dimming Inside Rearview
Mirror (If equipped)
[FV22620( GV)10/94]
quarter page art:0010037-C

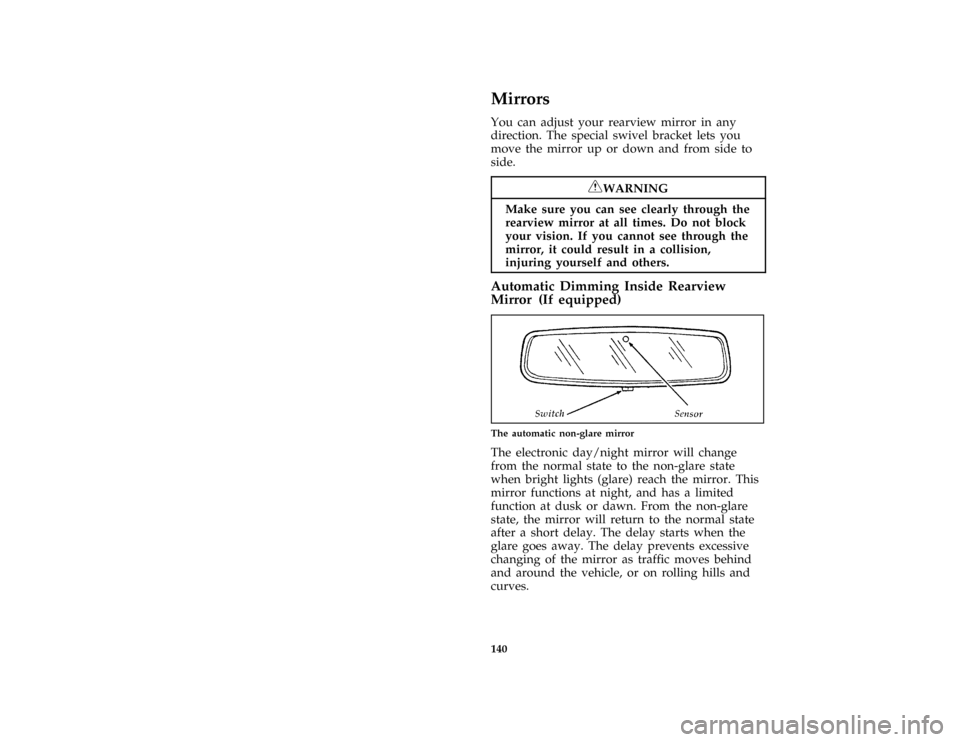

The automatic non-glare mirror
*
[FV22630( GV)01/95]
The electronic day/night mirror will change
from the normal state to the non-glare state
when bright lights (glare) reach the mirror. This
mirror functions at night, and has a limited
function at dusk or dawn. From the non-glare
state, the mirror will return to the normal state
after a short delay. The delay starts when the
glare goes away. The delay prevents excessive
changing of the mirror as traffic moves behind
and around the vehicle, or on rolling hills and
curves.
File:rcfvv.ex
Update:Wed Jan 31 10:27:22 1996

141 [FV22650( GV)10/94]
To turn the mirror on, push the ON/OFF
switch, located on the bottom of the mirror, to
latch it in the ON position. The switch will
illuminate and the mirror will be in the
automatic dimming mode. To turn the switch
illumination and automatic dimming feature off,
push the ON/OFF switch again.
*
[FV22660( GV)01/95]
The electronic mirror measures the brightness of
the light coming in from the rear of the vehicle.
It automatically makes a correction in the glare
state. The mirror may be turned off in either the
normal or non-glare position.
[FV22685( GV)03/95]
There are two light sensors (photocells) in this
mirror. The sensor that detects rear glare is
located inside a window in the center of the
mirror. The second light sensor which
determines outside light level is located on the
backside of the mirror case.
*
[FV22690( GV)01/95]
One important safety feature is that the mirror
automatically returns to the normal position
whenever the vehicle is placed in R (Reverse)
(when the mirror is in the ON position). This
feature ensures a bright clear view in the mirror
when backing up.
% [FV24100( BCGV)07/93]
Adjusting the Dual Electric Remote
Control Mirrors
[FV24150( GV)11/90]
Your vehicle is equipped with electric remote
control side view mirrors; the switch for
controlling their operation is a control knob in
the armrest.
%*
[FV24400( ALL)01/95]
Do not clean the housing or glass of any mirror
with harsh abrasives, fuel or other
petroleum-based cleaning products.
File:rcfvv.ex
Update:Wed Jan 31 10:27:22 1996

142 [FV24450( GV)03/94]

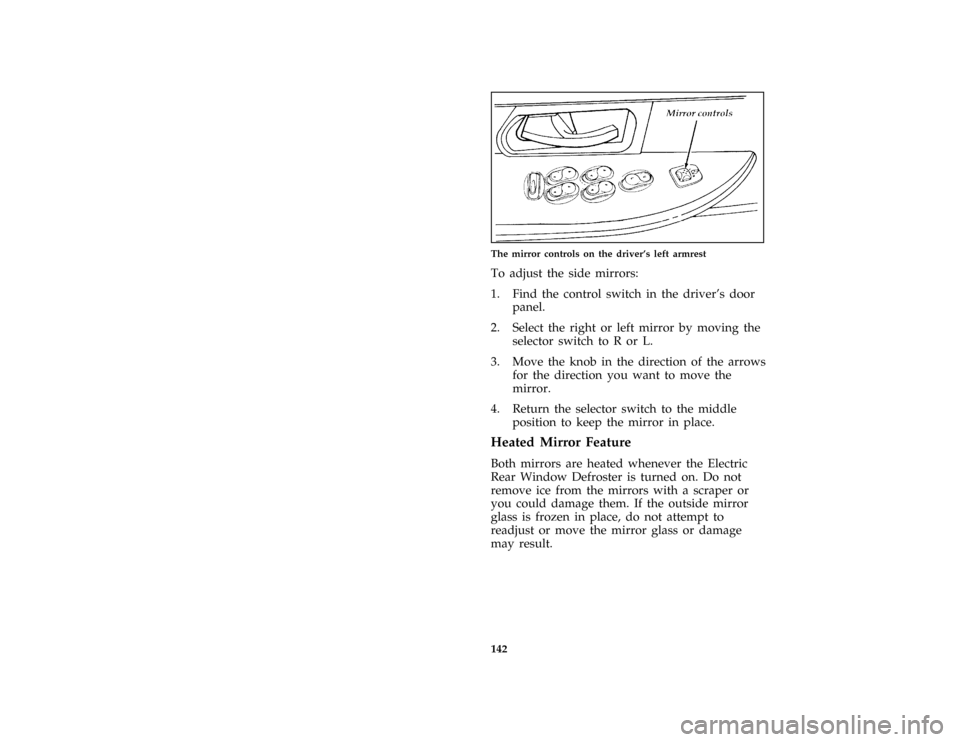

one third page art:0010273-CThe mirror controls on the driver's left armrest
*
[FV24700( ALL)04/95]
To adjust the side mirrors:
*
[FV24800( ALL)01/95]
1. Find the control switch in the driver's door
panel.
*
[FV24900( ALL)02/95]
2. Select the right or left mirror by moving the
selector switch to R or L.
[FV25000( ALL)06/93]
3. Move the knob in the direction of the arrows
for the direction you want to move the
mirror.
*
[FV25100( ALL)01/95]
4. Return the selector switch to the middle
position to keep the mirror in place.
%*
[FV25200( GV)03/95]
Heated Mirror Feature
*
[FV25300( GV)03/95]
Both mirrors are heated whenever the Electric
Rear Window Defroster is turned on. Do not
remove ice from the mirrors with a scraper or
you could damage them. If the outside mirror
glass is frozen in place, do not attempt to
readjust or move the mirror glass or damage
may result.
File:rcfvv.ex
Update:Wed Jan 31 10:27:22 1996

143 [FV28700( ALL)01/89]
The Right Side Convex Mirror
[FV28800( ALL)03/90]
The side view mirror on the right is a convex
mirror. This mirror gives you a wider view of
the lanes on your right and behind you.
*
[FV28900( ALL)05/95]
RWARNING
The side view mirror on the right makes
objects appear smaller and farther away
than they actually are.
%
*
[FV28950( ALL)01/95]
Sun Visors
%*
[FV29100( ALL)05/94]
Turning on the Mirror Light on the Sun
Visors (If equipped)
[FV29300( ALL)06/93]
To turn on the visor mirror light, lift the mirror
cover.
[FV29900( GV)10/90]
one third page art:0010278-B

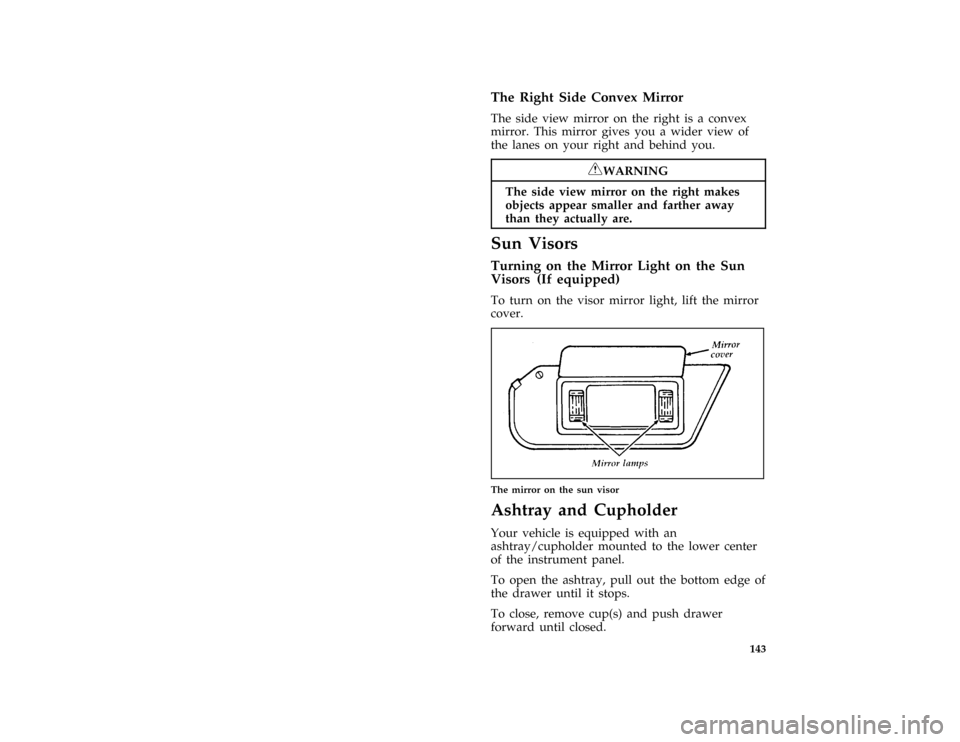

The mirror on the sun visor
%*
[FV32626( GV)03/95]
Ashtray and Cupholder
[FV32650( GV)10/94]
Your vehicle is equipped with an
ashtray/cupholder mounted to the lower center
of the instrument panel.
*
[FV32675( GV)01/95]
To open the ashtray, pull out the bottom edge of
the drawer until it stops.
*
[FV32701( GV)01/95]
To close, remove cup(s) and push drawer
forward until closed.
File:rcfvv.ex
Update:Wed Jan 31 10:27:22 1996
