1996 CHEVROLET EXPRESS Owners Manual

Downloaded from www.Manualslib.com manuals search engine 3. Remove the nuts with a deep socket wrench. 4. Remove the hidden upper nuts.
6-37

Downloaded from www.Manualslib.com manuals search engine 5. Lift the lamp as you
rotate it toward the
rear
of the vehicle.
6. Turn the sockets to the left to remove.
6-38

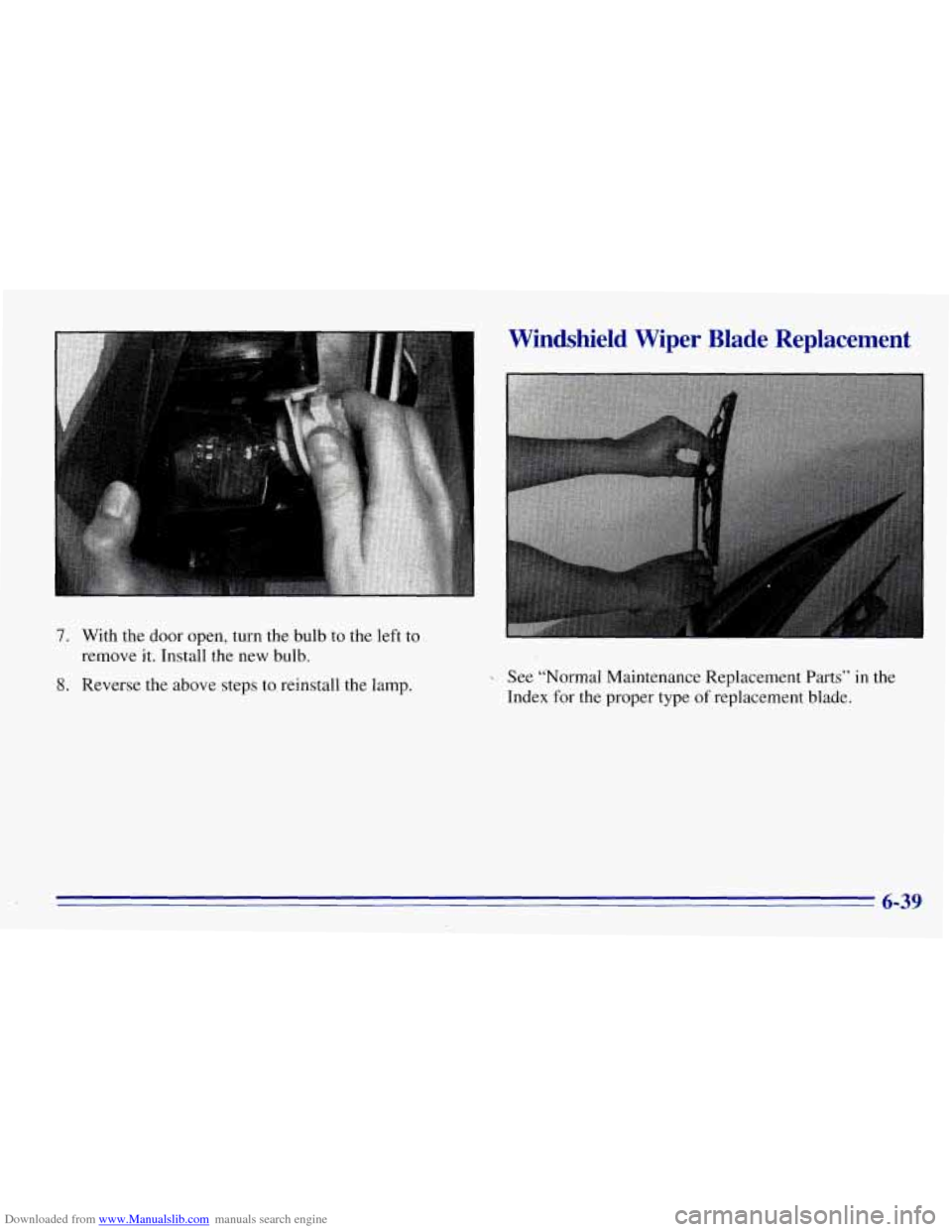

Downloaded from www.Manualslib.com manuals search engine 7. With the door open, turn the bulb to the left to
remove
it. Install the new bulb.
5. Reverse the above steps to reinstall the lamp.
Windshield Wiper Blade Replacement
See “Normal Maintenance Replacement Parts” in the
Index for the proper type
of replacement blade.
6-39

Downloaded from www.Manualslib.com manuals search engine Replacement blades come in different types and are
removed in different ways.
To remove the type with a
release clip:
1.
2.
3.
To remove the old wiper blades, lift the wiper arm
until it locks into
a vertical position.
Press down on the blade assembly pivot locking tab.
Pull down on the blade assembly
to release it from
the wiper arm hook.
Remove the insert from the blade assembly. The
insert has two notches at one end that are locked by
bottom claws
of the blade assembly. At the notched
end, pull the insert from the blade assembly.
4. To install the new wiper insert, slide the notched end
last, into the end with two blade claws. Slide
all the
way through the blade claws
at the opposite end.
5. Be sure that the notches are locked by the bottom
claws. Make sure that all other claws are properly
locked
on both sides of the insert slots.
6. Put the blade assembly pivot in the wiper arm
hook. Pull up until
the pivot locking tab locks in
the hook slot.
7. Carefully lower the wiper arm and blade assembly
into
the windshield.
6-40

Downloaded from www.Manualslib.com manuals search engine Tires
We don’t make tires. Your new vehicle comes with
high-quality tires made
by a leading tire manufacturer. If
you ever have questions about your tire warranty and
where
to obtain service, see your GM Warranty booklet
for details.
Poorly maintained and improperly used tires
are dangerous.
Overloading your tires can cause
overheating as a result of too much friction.
You could have an air-out and a serious
accident. See “Loading Your Vehicle” in
the Index.
CAUTION: (Continued)
0 Underinflated tires pose the same danger as
overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.
cut, punctured or broken by a sudden
impact
-- such as when you hit a pothole.
Keep tires at the recommended pressure.
0 Worn, old tires can cause accidents. If your
tread is badly worn, or if your tires have
been damaged, replace them.
0 Overinflated tires are more likely to be
6-41

Downloaded from www.Manualslib.com manuals search engine Inflation -- Tire Pressure
The Certificationflire label, which is on the rear edge of
the driver’s door, shows the correct inflation pressures
for your tires when they’re cold. “Cold” means your
vehicle has been sitting for at least three hours or driven
no more than 1 mile (1.6 km).
I NOTICE:
Don’t let anyone tell you that .underinflation or
overinflation is
all right. It’s not. If your tires
don’t have enough air junderinflation), you can
get the following:
Too much flexing
Too much heat
0 Tire overloading
Bad wear
Bad handling
Bad fuel economy.
NOTICE: (Continued)
I NOTICE: (Continued) I
If your tires have too much air (overinflation),
you can get the following:
Unusual wear
Bad handling
Rough ride
Needless damage from road hazards.
When to Check
Check your tires once a month or more. Also, check the
tire pressure of the spare tire.
How to Check
Use a good quality pocket-type gage to check tire
pressure. You can’t tell
if your tires are properly inflated
simply by looking at them. Radial tires may look
properly inflated even when they’re underinflated.
Be sure
to put the valve caps back on the valve stems.
They help prevent leaks by keeping out dirt and moisture.
6-42

Downloaded from www.Manualslib.com manuals search engine Tire Inspection and Rotation
Tires should be inspected every 6,000 to 8,000 miles
(10 000 to 13 000 km) for any signs of unusual wear. If
unusual wear is present, rotate your tires as soon as
possible and check wheel alignment. Also check for
damaged tires or wheels. See “When It’s Time for New
Tires” and “Wheel Replacement” later in this section for
more information. If your vehicle has dual rear wheels,
also see “Dual Tire Operation’’ later in this section.
The purpose of regular rotation is to achieve more
uniform wear for all tires on the vehicle: The first
rotation is the most important. See “Scheduled
Maintenance Services” in the Index for scheduled
rotation intervals.
I FRT FRT
If your vehicle has single rear wheels, always use one of
the correct rotation patterns shown here when rotating
your tires.
II
If your vehicle has dual rear wheels, always use one of
the correct rotation patterns shown here when rotating
your tires.
When you install dual wheels, be sure the vent holes in
the inner and outer wheels on each side are lined
up.
After the tires have been rotated, adjust the front and
rear inflation pressures as shown on the
Certificationmire label. Make certain that all wheel nuts
are properly tightened. See “Wheel Nut Torque’’ in
the Index.
6-43

Downloaded from www.Manualslib.com manuals search engine A CAUTION: I
Rust or dirt on a wheel, or on the parts to which
it is fastened, can make wheel nuts become loose
after a time. The wheel could come
off and cause
an accident. When you change a wheel, remove
any rust or dirt from places where the wheel
attaches to the vehicle. In an emergency, you can
use
a cloth or a paper towel to do this; but be
sure to use
a scraper or wire brush later, if you
need to, to get all the rust or dirt
off. (See
“Changing
a Flat Tire” in the Index.) When
It’s Time
for New Tires
One way to tell when it’s
time for new tires is to
check the treadwear
indicators, which will
appear when your tires have
only
1/16 inch (1.6 mm) or
less of tread remaining.
Some commercial truck
tires may not have
treadwear indicators.
You need a new tire if any of the following statements
are true:
You can see the indicators at three or more places
around the tire.
You can see cord or fabric showing through the
tire’s rubber.
The tread or sidewall is cracked, cut or snagged deep
enough to show cord or fabric.
0 The tire has a bump, bulge or split.
The tire has a puncture, cut or other damage that
can’t be repaired well because of the size or location
of the damage.
6-44
