Downloaded from www.Manualslib.com manuals search engine Lamps
Your parking/headlamp switch is on the driver’s
side
of your instrument panel.
Your instrument panel dimmer wheel has two
detent positions. When
the wheel is turned
to full brightness, and then
into
the first detent position, the radio display and
PRNDL display
will go to the day mode (full intensity).
This is known as “parade” mode. The rest
of the I/P
illumination will stay
in the maximum dimming state
(full brightness dimming). Turning the wheel up one
more detent will activate the interior dome light circuit
(with slightly higher effort).
Rotate the switch knob clockwise
to the parking lamp
symbol to
turn on:
0 Parking Lamps
Sidemarker Lamps
0 Taillamps
0 License Plate Lamps
Instrument Panel Lights
0 Ashtray Lamp
0 Glove Box Lamp
2-35

Downloaded from www.Manualslib.com manuals search engine Rotate the switch knob clockwise again to the master
lighting symbol
to turn on all the lamps listed as well as
the headlamps.
Rotate the switch counterclockwise to
OFF to turn off
your lamps.
Rotate the thumb wheel next
to the switch knob up to
adjust instrument panel lights. Rotate the thumb wheel up
to the first notch to return the radio display and gearshift
indicator display
to full intensity when the headlamps or
parking lamps are
on.
Rotate the thumb wheel up to the second notch to
activate the interior dome lamps.
You can switch your headlamps from high to low beam
by pulling
on the turn signalhigh beam lever.
A circuit breaker protects your headlamps. If you have
an electrical overload, your headlamps will flicker on
and off. Have your headlamp wiring checked right away
if this happens.
Headlamps On Reminder
A buzzer will sound when your headlamps are turned on
and your ignition is in OFF, LOCK or ACCESSORY.
If
you need to use your headlamps when the ignition
switch is in
OFF, LOCK or ACCESSORY, the buzzer
can be turned off by turning the thumb wheel next to the
parking lampheadlamp switch all the way down.
Daytime Running Lamps (If Equipped)
Daytime Running Lamps (DRL) can make it easier for
others
to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful in the
short periods after dawn and before sunset.
The DRL system will make your headlamps come
on at
a reduced brightness when:
0 The ignition is on,
The headlamp switch is off and
0 The parking brake is released.
If your vehicle was first sold, when new, in Canada,
your headlamps will come
on at reduced brightness.
2-36

Downloaded from www.Manualslib.com manuals search engine If your vehicle was first sold, when new, in the United
States, your vehicle may be equipped with DRL. If your
vehicle has DRL,
you will see the the DRL indicator
light
on your instrument panel and your low-beam
headlamps will come
on at reduced brightness.
When the DRL are on, only your headlamps will be on.
The taillamps, sidemarker and other lamps won’t be on.
Your instrument panel won’t be lit up either,
When it begins to get dark, your DRL indicator light
is a reminder
to turn your headlamp switch on. The
other lamps that come on with your headlamps will also
come on.
When-you turn off the headlamp switch, the regular
lamps will go
off, and your headlamps will change to
the reduced brightness of DRL.
To idle your vehicle with the engine on and the DRL
off,
set the parking brake. The DRL will stay off until you
release the parking brake.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
Dome Lamps
The dome lamps will come on when you open the doors.
You can also turn the dome lamps on by rotating the
thumb wheel, located next
to the headlamp knob, all
the way up
to the second notch. In this position, the
dome lamps will remain on whether the doors are
opened or closed.
You can use the dome
lamp button, located
below the headlamp knob,
to set the dome lamps to
automatically come
on
when the doors are open,
or to remain off.
To turn
the lamps off, push the button once. With the
button in this position, the dome lamps will remain off
when the doors are open. To return the lamps
to
automatic operation, push the button again and return it
to the out position. With the button in this position, the
dome lamps will come
on when you open the doors.
The delayed entry will allow you
to enter or exit your
vehicle with the lamps staying
on for about 20 seconds,
after the door is closed
or ignition is cycled.
2-37

Downloaded from www.Manualslib.com manuals search engine Reading Lamps (Option) Underhood Reel Lamp (Option)
I
If your vehicle has reading lamps, press the button next
to the lamp to
turn the lamp on.
Press the button again to turn the lamp off.
If you have an underhood reel lamp, it is located on the
passenger side
of the engine compartment. The lamp can
be switched on without unreeling the cord. Also,
you
can use it as a flashlight.
2-38

Downloaded from www.Manualslib.com manuals search engine Mirrors
Inside Mirror
Push or pull the tab under the mirror to reduce glare
from headlamps behind you after dark.
Outside Mirrors
Adjust your outside mirrors so you can just see the
side of your vehicle, and have a clear view
of objects
behind
you. Some mirrors can be folded in to enter
narrow doorways.
Electric Outside Rearview Mirrors (Option)
To use the lamp as a flashlight, pull down on the lever
located under the lamp, unlocking the lamp and pull
the
lamp out. The cord will unreel as you pull the lamp.
When
you are done using the lamp, reel the cord back
into the housing by turning the handle.
Then, slide the lamp
into the holder and press the
lever marked
PUSH at the bottom of the holder to
lock into place.
If you have electric mirrors, they can be adjusted to
point where you want from inside the vehicle.
2-39

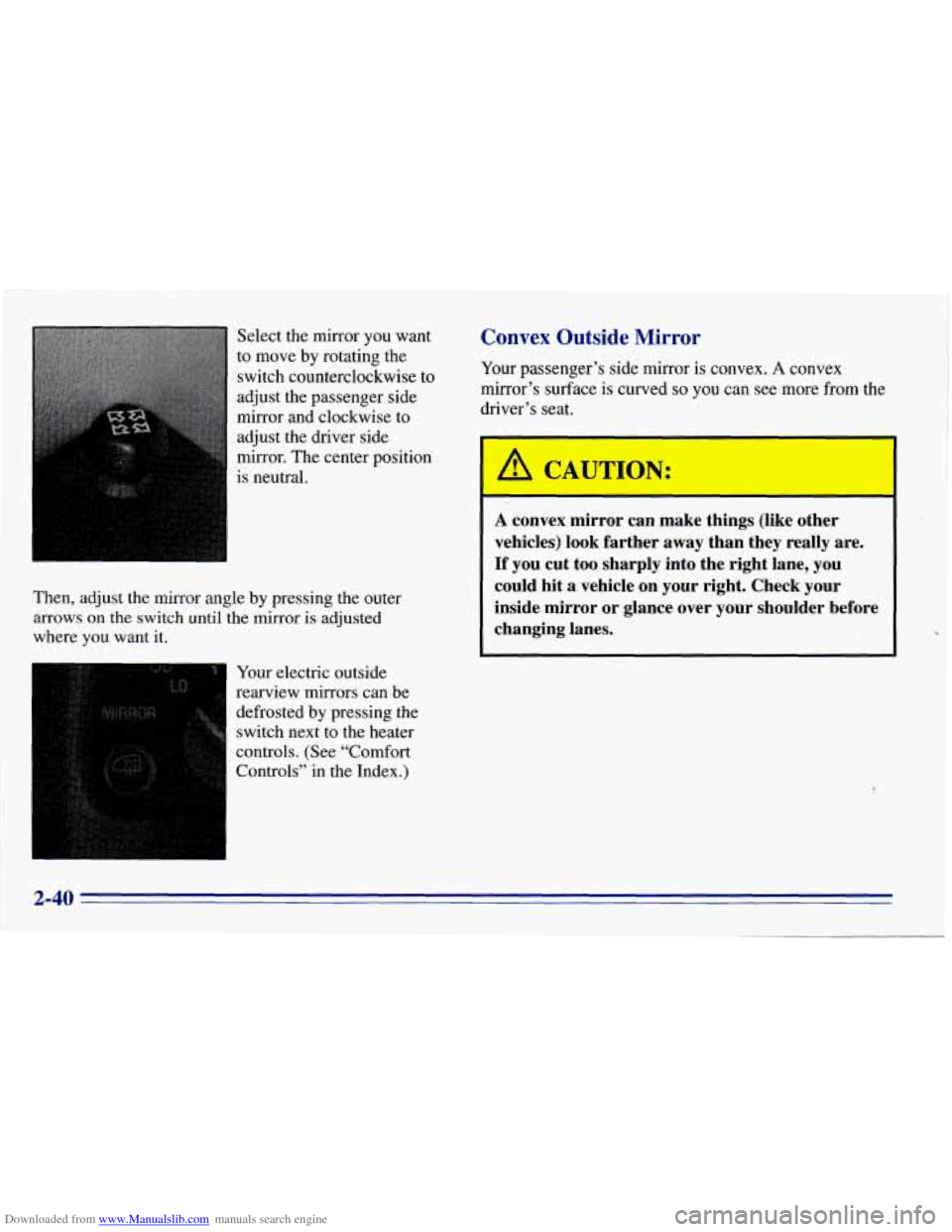

Downloaded from www.Manualslib.com manuals search engine Select the mirror you want
to move by rotating the
switch counterclockwise to
adjust the passenger side
mirror and clockwise to
adjust the driver side
mirror. The center position
is neutral.
Then, adjust the mirror angle by pressing the outer
arrows on the switch until the mirror is adjusted
where
you want it.
Your electric outside
rearview mirrors can be
defrosted by pressing the
switch next to the heater
controls. (See “Comfort
Controls” in the Index.)
Convex Outside .Mirror
Your passenger’s side mirror is convex. A convex
mirror’s surface
is curved so you can see more from the
driver’s seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
I
2-40

Downloaded from www.Manualslib.com manuals search engine Storage Compartments
..
Your front storage compartment is at the center of the
instrument panel extension,
by the floor. To open the
compartment, squeeze and
pull the handle at the top. Storage
compartments
may also be included on the
inside
of each front door.
Sun Visors
To block out glare, you can swing down the visors. You
can
also swing them from side to side. Your visors have
elastic straps
you can use to hold items such as maps.
2-41

Downloaded from www.Manualslib.com manuals search engine Visor Vanity Mirror (Option)
Some visors have illuminated mirrors on them. Pull the
visor down and lift the mirror cover (if there is
one), to
use the mirror.
Cigarette LightedAshtrays
The front ashtray is located in the instrument panel
extension, at the center
of the instrument panel. Lift up
on the ashtray door to open it.
I NOTICE:
To use the cigarette lighter, push it in all the way, and let
go. When it’s ready, it will pop back by itself.
NOTICE:
Holding a cigarette lighter in with your hand
while it is heating can make
it overload,
damaging the lighter and the heating element.
Just push the lighter all the
way in and let go.
When it’s done, it will pop back by itself.
Papers and other things that burn into your
ashtrays could be set on
fire by cigarettes or
other smoking materials. That could cause a
fire and possibly damage your vehicle.
Do not
store papers and other things that burn in
your ashtrays.
To remove the front ashtray, pull up on the tab with
a
key or screw driver inserted in the tab, and lift the
ashtray out.
