1996 CHEVROLET ASTRO Owners Manual

Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed
at least twice a year (for instance, each
spring and fall). You should let your GM dealer’s
service department or other qualified service center do
these jobs. Make sure any necessary repairs are
completed at once.
Proper procedures to perform these services may be
found
in a GM Service Manual. See “Service and Owner
Publications’’
in the Index.
Steering and Suspension Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes, loose connections
or other conditions which could
cause a heat build-up
in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust’’
in the Index.
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damage or missing
parts. Replace parts as
needed. Replace any cables
that have high effort or
excessive wear.
Do not lubricate accelerator and cruise
control cables.
7-45

Drive Axle Service
Check readfront axle fluid level and add as needed.
Check constant velocity joints and axle
seals for leaking.
Transfer Case (All-Wheel Drive) Inspection
Every 12 months or at oil change intervals, check front
axle and transfer case and add lubricant when necessary.
Oil the control lever pivot point and all exposed control
linkage. Check vent hose at transfer case for kinks and
proper installation.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment.
You may need to have
your brakes inspected more often if your driving habits
or conditions result in frequent braking.
7-46

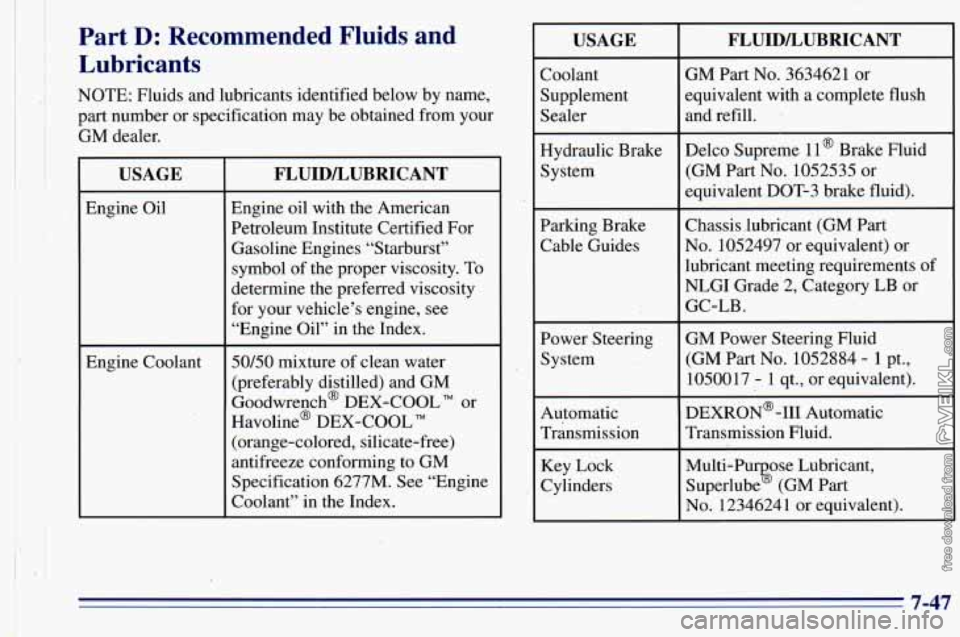

Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM dealer.
USAGE
Engine Oil
Engine Coolant
FLUID/LUBRICANT ~~~ ~
Engine oil with the American
Petroleum Institute Certified For Gasoline Engines “Starburst”
symbol of the proper viscosity. To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil’’ in the Index.
~~
50/50, mixture of clean water
(preferably distilled) and GM
Goodwrench@ DEX-COOL
TM or
Havoline@ DEX-COOL
TM
(orange-colored, silicate-free)
antifreeze conformiag to GM
Specification 6277M. See “Engine
Coolant” in the Index.
USAGE
Coolant
Supplement
Sealer
Hydraulic Brake
System
~~~~~~~
Parking Brake
Cable Guides
Power Steering
System
Automatic
Transmission
Key Lock
Cylinders
FLUIDLUBRICANT
GM Part No. 3634621 or
equivalent with a complete flush
and refill.
-
Delco Supreme 11 @ Brake Fluid
(GM Part No. 1052535 or
equivalent DOT-3 brake fluid).
Chassis.1ubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements of
NLGI Grade 2, Category
LB or
GC-LB.
GM Power Steering Fluid
(GM Part No. 1052884
- 1 pt.,
1050017
- 1 qt., or equivalent).
DEXRON@-I11 Automatic
Transmission Fluid.
Multi-Pu ose Lubricant,
Superlube
% (GM Part
No. 1234624 1 or equivalent).
7-47

USAGE
Chassis
Lubrication
Front Wheel
Bearings
Differential,
Front and Rear
Axle
Transfer Case
Windshield
Washer Solvent
FLUIDLUBRICANT
Chassis lubricant (GM Part
No. 1052497
or equivalent) or
lubricant meeting requirements of
’ NLGI Grade 2, Category LB or
GC-LB.
Wheel bearing lubricant meeting
requirements
of NLGI Grade 2,
Category GC or GC-LB (GM Part
No.
105 1344 or equivalent).
Axle Lubricant (GM Part
No. 105227 1) or SAE
8OW-90
GL-5 Gear Lubricant.
DEXRON@-111 Automatic
Transmission Fluid.
GM Optikleen@ Washer Solvent
(GM Part
No. 1051515)
or equivalent.
USAGE
Hood Latch
Assembly Pivots,
Spring Anchor
and Release
Pawl
Hood and Door
Hinges
Weatherstrip
Conditioning
Gas Line
FLUIDLUBRICANT
Lubriplate lubricant aerosol (GM
Part
No. 12346293 or equivalent)
or lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
Multi-pu ose lubricant,
Superlube
% (GM Part
No. 1234624
1 or equivalent).
Dielectric Silicone Grease (GM
Part No. 12345579 or equivalent).
Gas Line De-Icer (GM Part
No. 105 15
16).
See “Replacement Parts” in the Index for recommended
replacement filters, valves and spark plugs.

Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed
the service
in the boxes provided after the maintenance interval.
Any additional information from “Owner Checks and aervices”
or “Periodic Maintenance” can be added on
the following record pages. Also, you should retain all
maintenance receipts. Your owner information portfolio
is a convenient place to store them.
Maintenance Record
ODOMETER
DATE READING SERVICED
BY MAINTENANCE PERFORMED
7-49

I
Maintenance Record
SERVICED BY MAINTENANCE PERFORMED
7 cn

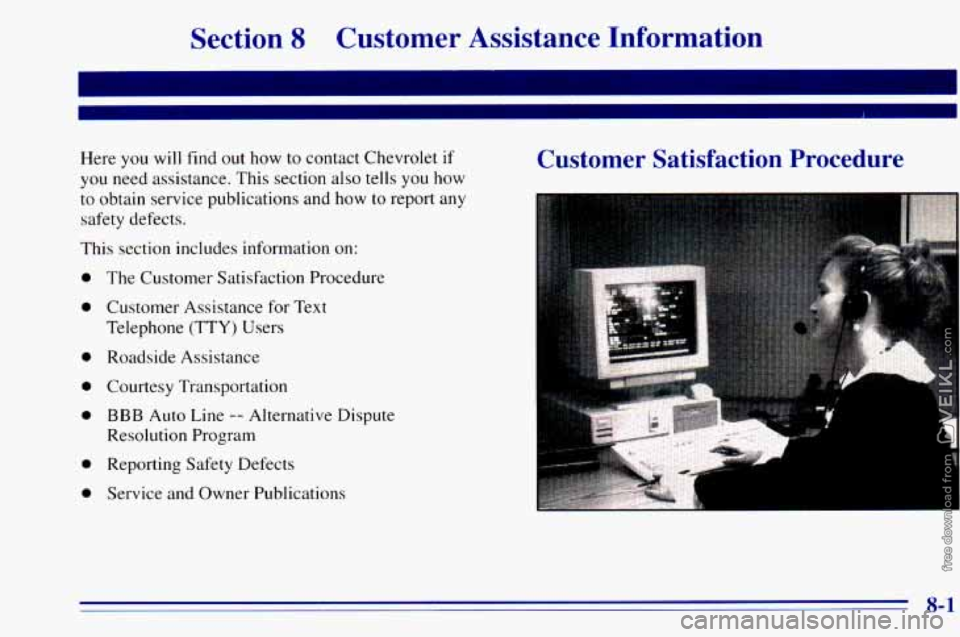

Section 8 Customer Assistance Information
I
I
Here you will find out how to contact Chevrolet if
you need assistance. This section also tells you how
to obtain service publications and how
to report any
safety defects.
This section includes information on:
0
0
0
0
0
0
0
The Customer Satisfaction Procedure
Customer Assistance for Text
Telephone (TTY) Users
Roadside Assistance
Courtesy Transportation
BBB Auto Line -- Alternative Dispute
Resolution Program
Reporting Safety Defects
Service and Owner Publications
Customer Satisfaction Procedure
8-1

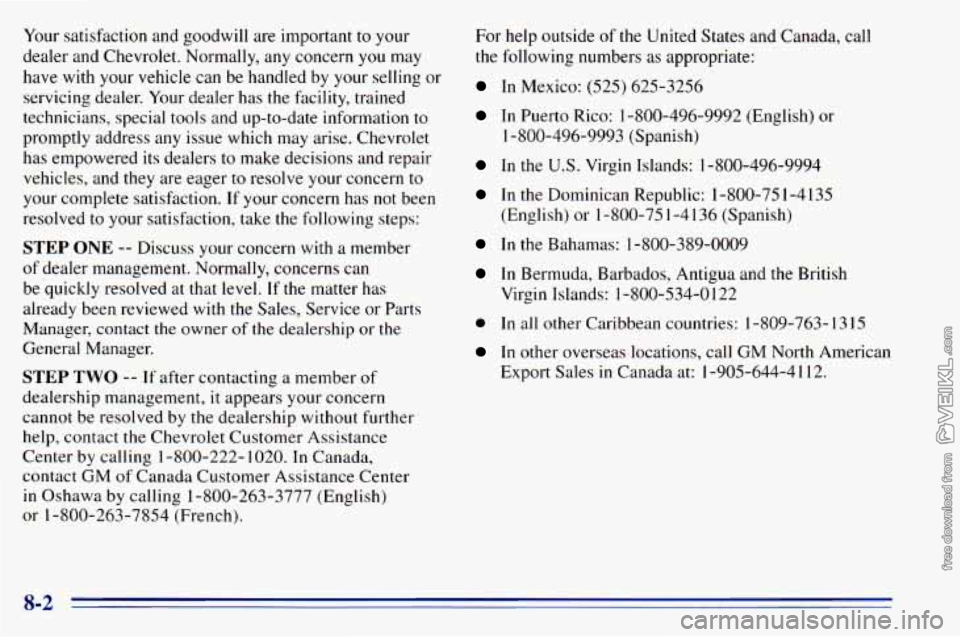

Your satisfaction and goodwill are important to your
dealer and Chevrolet. Normally, any concern
you may
have with your vehicle can be handled by your selling or
servicing dealer. Your dealer has the facility, trained
technicians, special tools and up-to-date information to
promptly address
any issue which may arise. Chevrolet
has empowered its dealers to make decisions and repair
vehicles, and
they are eager to resolve your concern to
your complete satisfaction. If your concern has
not been
resolved
to your satisfaction, take the following steps:
STEP ONE -- Discuss your concern with a member
of dealer management. Normally, concerns can
be 'quickly resolved at that level.
If the matter has
already been reviewed with the Sales, Service or Parts
Manager, contact the owner
of the dealership or the
General Manager.
STEP TWO -- If after contacting a member of
dealership management, it appears your concern
cannot be resolved by the dealership without further
help, contact
the Chevrolet Customer Assistance
Center by calling 1-800-222- 1020.
In Canada,
contact GM
of Canada Customer Assistance Center
in Oshawa by calling 1-800-263-3777 (English)
or 1-800-263-7854 (French). For help outside
of the United States and
Canada, call
the following numbers as appropriate:
In Mexico: (525) 625-3256
In Puerto Rico: 1-800-496-9992 (English) or
1-800-496-9993 (Spanish)
In the U.S. Virgin Islands: 1-800-496-9994
In the Dominican Republic: 1-800-75 1-4135
(English) or 1-800-75 1-4136 (Spanish)
In the Bahamas: 1-800-389-0009
In Bermuda, Barbados, Antigua and the British
Virgin Islands: 1-800-534-0 122
0 In all other Caribbean countries: 1-809-763- 13 15
In other overseas locations, call GM North American
Export Sales
in Canada at: 1-905-644-4 1 12.
