Downloaded from www.Manualslib.com manuals search engine Fuse
HTD MIR
HTD SEAT R
HTD SEAT L
PULLDOWN
ELC
ANTENNA
HDLP WASH
CONVENC
Usage
Right and Left Outside Heated
Mirror
Passenger Heated Seat Relay
~~~
~ ~
___~
Driver Heated Seat Relay
Trunk Pull-Down Motor
~~~
-~ ~
ELC Relay and Motor ~~
Power Mast Antenna
Headlamp Wash Motor
Trunk Release Relay, Trunk
Release Solenoid, Fuel Door
Release Relay, Fuel Filler Door
Release Solenoid, Door Lock Relay, Right and Left Front
Door
Motors, Door Unlock Relay
Fuse
BATT
RTD
RT PARK
LT PARK
Usage
Driver and Passenger Seat Lumbar Switch, Driver and Passenger Seat
Belt Comfort Solenoid, Memory Seat Module
RTD Module
~~ ~
Front and Rear Park Lamps, Right
Front and Rear Sidemarker Lamps, Headlamp Switch (Export), Rear
Fog Lamps
(Export), Rear
Fog Lamp Relay
(Export), Headlamp Switch
Left Front and Rear Sidemarker
Lamps, Right and Left Parking Lamps, License Lamp, Underhood
Lamp
* Do not alter OBD I1 related fuses or circuit
breakers.
6-62

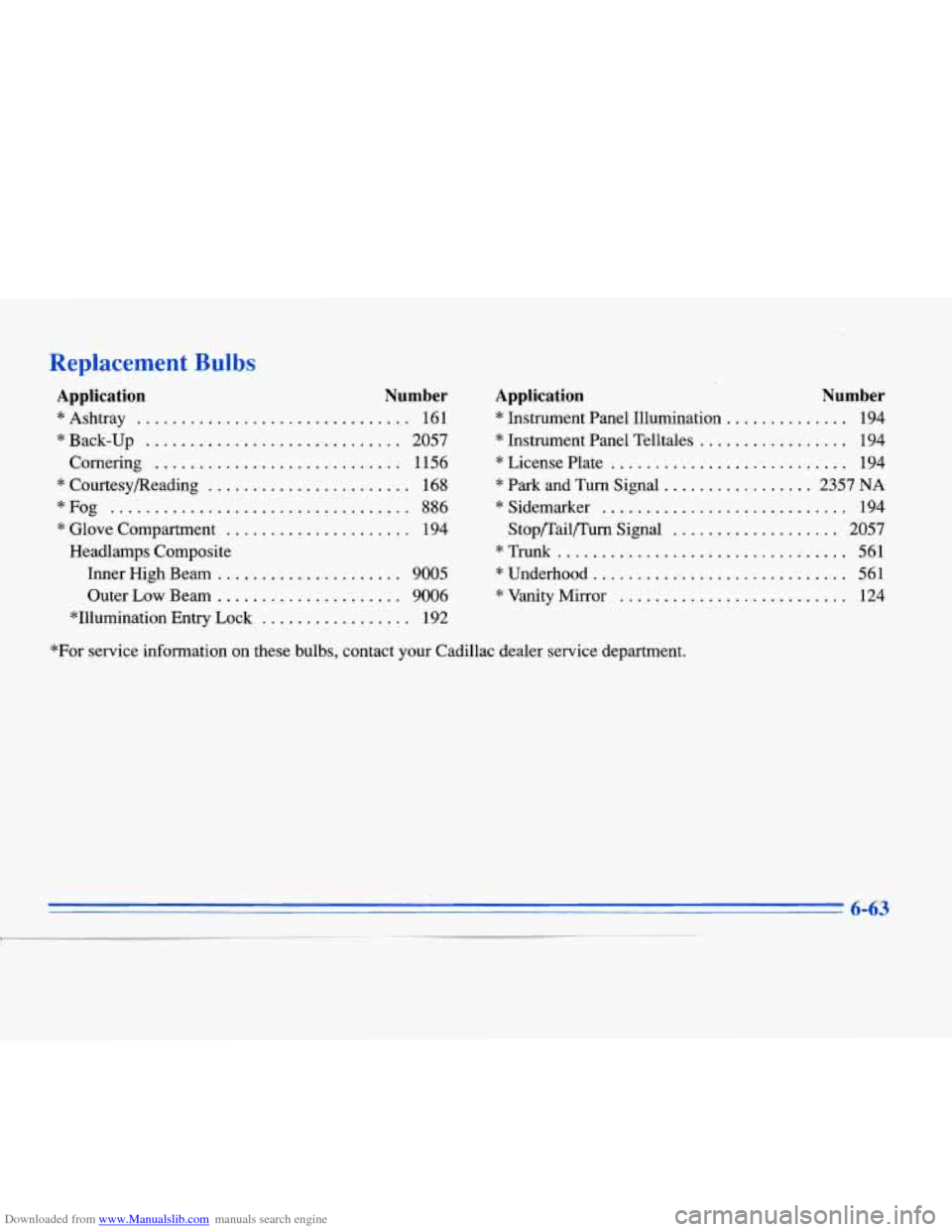

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Application Number
*Ashtray ............................... 161
* Back-up ............................. 2057
Cornering
............................ 1156
* Courtesy/Reading ....................... 168
*Fog
.................................. 886
* Glove Compartment ..................... 194
Inner High Beam
..................... 9005
Outer
Low Beam ..................... 9006
*Illumination Entry Lock
................. 192
Headlamps Composite
Application Number
* Instrument Panel Illumination .............. 194
* Instrument Panel Telltales ................. 194
* License Plate ........................... 194
* Park and Turn Signal ................. 2357 NA
* Sidemarker ............................ 194
Stop/Tail/Turn Signal
................... 2057
*Trunk
................................. 561
*Underhood
............................. 561
* Vanity Mirror .......................... 124
*For service information on these bulbs. contact your Cadillac \
dealer service department
.
6-63

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications
Engine Specifications
Displacement. ......................................... 279 cubic inches (4 565 cc)
Type
.......................................................... 4.6 L DOHC V8
VIN Engine Code
Eldorado
................................................................ Y
ETC .................................................................... 9
Eldorado ............................................... 27S(bhp)@S600rpm
205 (kW) @ 5600 rpm
ETC ................................................... 300(bhp)@6000rpm
224
(kW) @ 6000 rprn
Horsepower
Torque
Eldorado
.............................................. 300 (Ib-ft) @ 4000 rpm
ETC .................................................. 295 (Ib-ft) @ 4400 rpm
407
(N-m) @ 4000
rpm
400 (N-m)
@ 4400 rpm
Firingorder
................................................... 1-2-7-3-4-5-6-8
Thermostat
Starts To Open ................................... 177-184°F (81-85°C)
6-64

Downloaded from www.Manualslib.com manuals search engine Capacities and
Capacities
Transaxle (4T80-E)
Specifications (Continued)
........................................ 15quarts
Crankcase (Engine Oil with Filter Change)
..................... 7.5 quarts
Engine Cooling System
.................................... 12.5 quarts
Fuel Tank
............................................ rr ‘i 20 gallons
R- 134a Refrigerant
......................................... .2.0 lbs.
Wheel Base
............................................. 108 inches
Length
............................................... 200.2inches
Height
................................................ 53.6 inches
Width
................................................. 75.5inches
Front Tread
............................................ 60.9 inches
Rear Tread
............................................. 60.9-inches
WheelNutTorque ......................................... 1OOlb-ft
Vehicle Dimensions
(14.2 L)
(7.1 L)
(11.8 L)
(75.7 L)
(0.91
kg)
(2 743 mm)
(5 086
mm)
(1 361.5 mm)
(1 918.4 mm)
(1 546 mm)
(1 546 mm) (140 N-m)
6-65
I

Downloaded from www.Manualslib.com manuals search engine Normal Maintenance Replacement
Parts
Air Filter Element . . , . . ...... AC Type A1096C
25096932
Fuel Filter Element ............ AC Type GF-580
25121468
Engine Oil Filter ................ AC Type PF-58
250 14377
PCV
Valve ................ AC Type CV-774C
06487779
Spark Plugs ................... AC Type 4 1-900
56 14236
Thermostat .................... AC Type 13 1-66
353 1407
Windshield Wiper Blade
(Pin Type) .................. .22 inches (56.5 cm)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant
is used.
If you’re not sure, ask your Cadillac dealer.
6-66

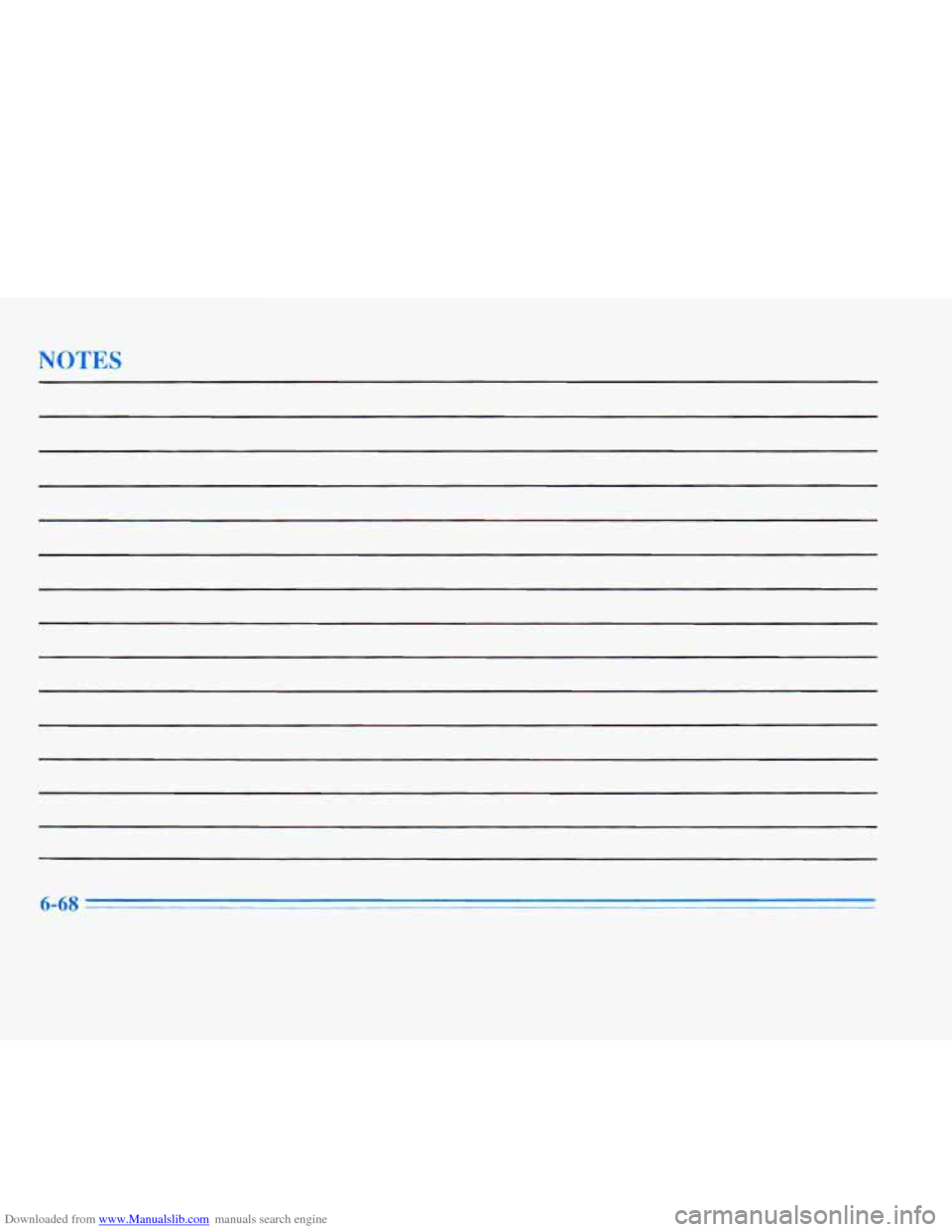

Downloaded from www.Manualslib.com manuals search engine NOTES
6-67

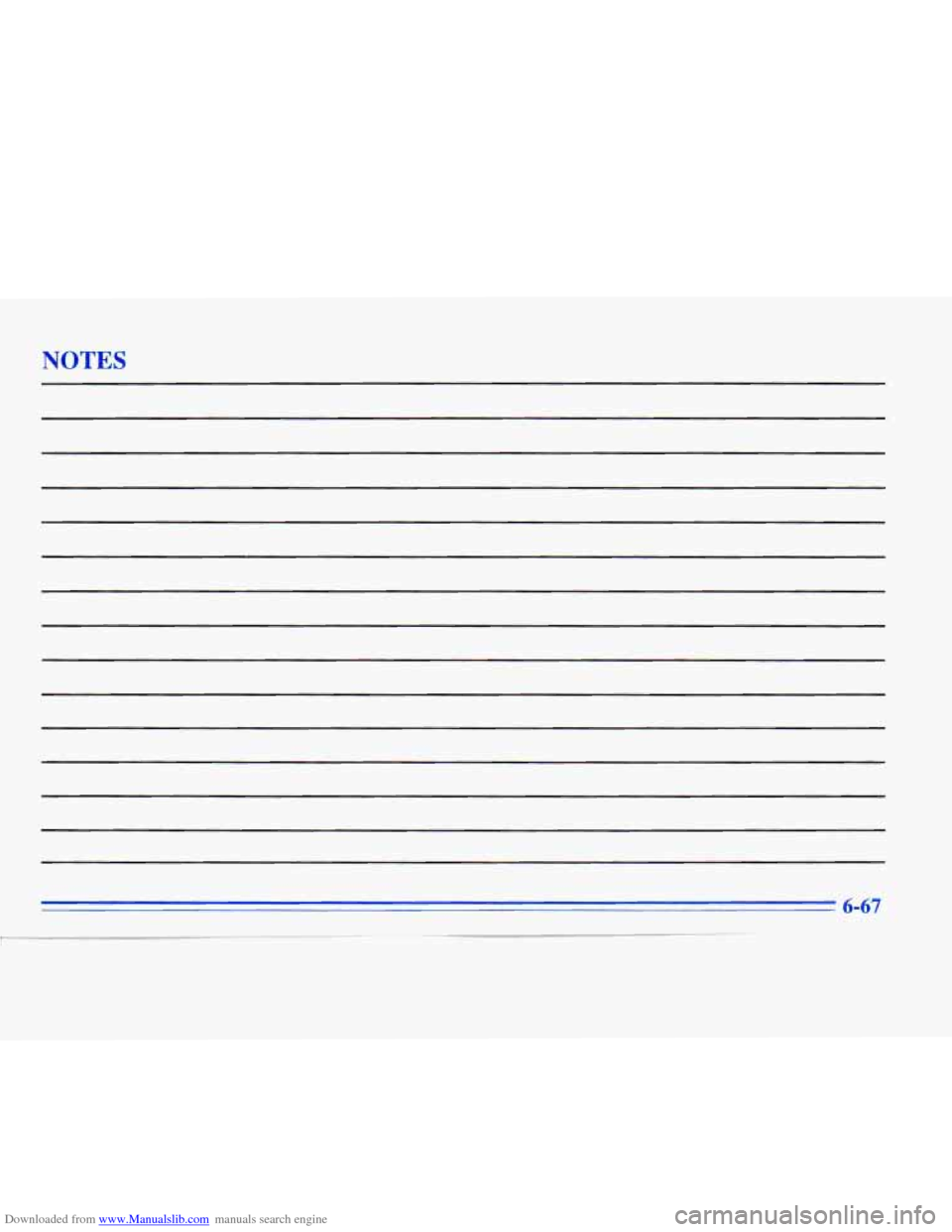

Downloaded from www.Manualslib.com manuals search engine NOTES
6-68

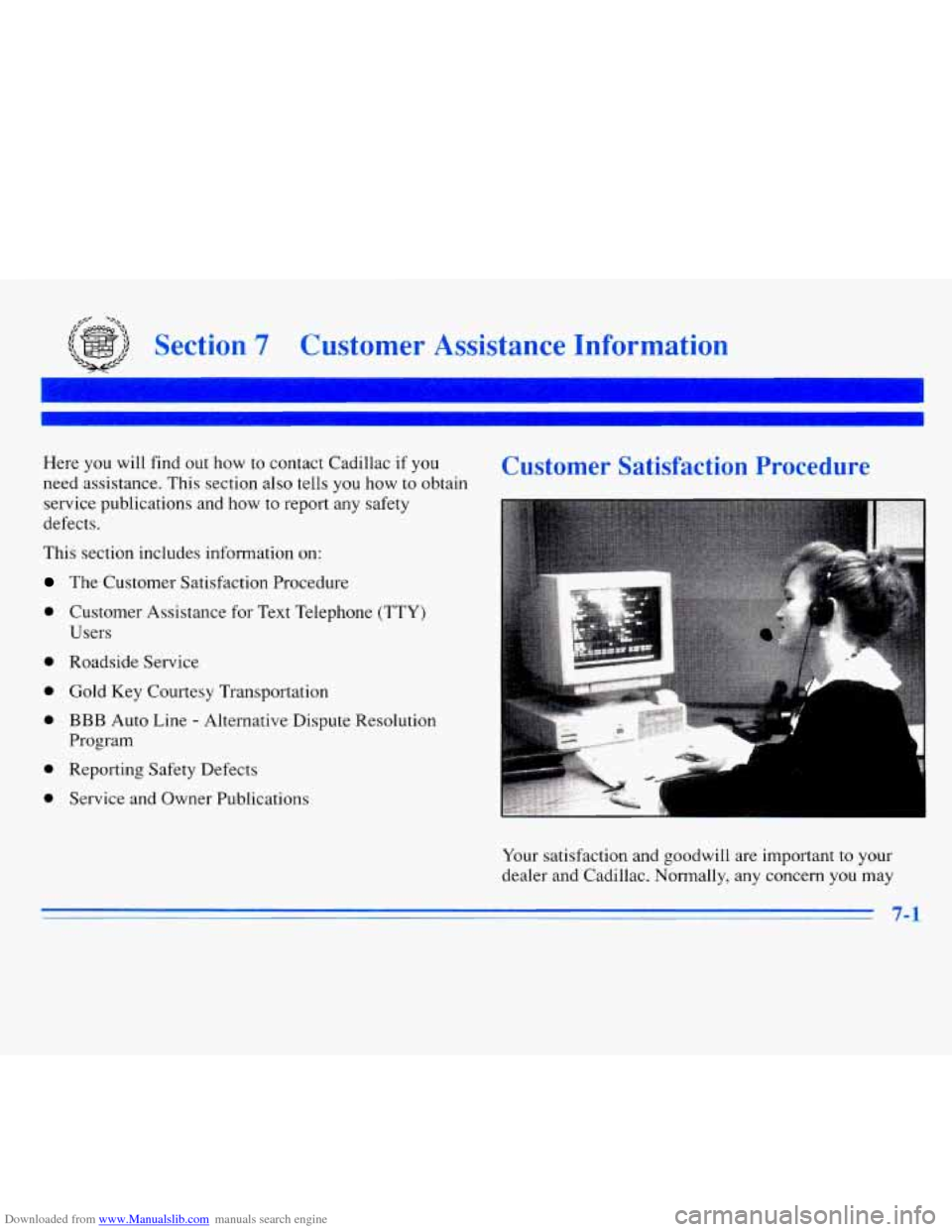

Downloaded from www.Manualslib.com manuals search engine Section 7 Customer Assistance Information
~~
