1996 CADILLAC ELDORADO Owners Manual

Downloaded from www.Manualslib.com manuals search engine If you get gasoline on yourself and then
something ignites it,
you could be badly burned.
Gasoline can spray out on you
if you open the
fuel fillet cap too quickly. This spray can happen
if your tank is nearly full, and is more likely in
hot weather. Open the fuel filler cap slowly and
wait for any “hiss” noise to stop. Then unscrew-
the cap all the way.
1 Be careful not to spill gasoline. Clean gasoline from
painted surfaces
as soon as possible. See “Cleaning the
Outside of Your Cadillac”
in the Index.
When you put the cap back on, turn it to the right until
you hear at least three clicks. Make sure you fully install the cap.
NOTICE:
If you need a new cap, be sure to get the.right
type. Your dealer can get one for you.
If yau get
the wrong type, it may not
fit or have proper
venting, and your fuel tank and emissions system
might be damaged.
Checking Things Under the Hood
I A CAUTION:
An,electric fan under the hood can start up and
injure you even when the engine
is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
’ 6-6

Downloaded from www.Manualslib.com manuals search engine 1

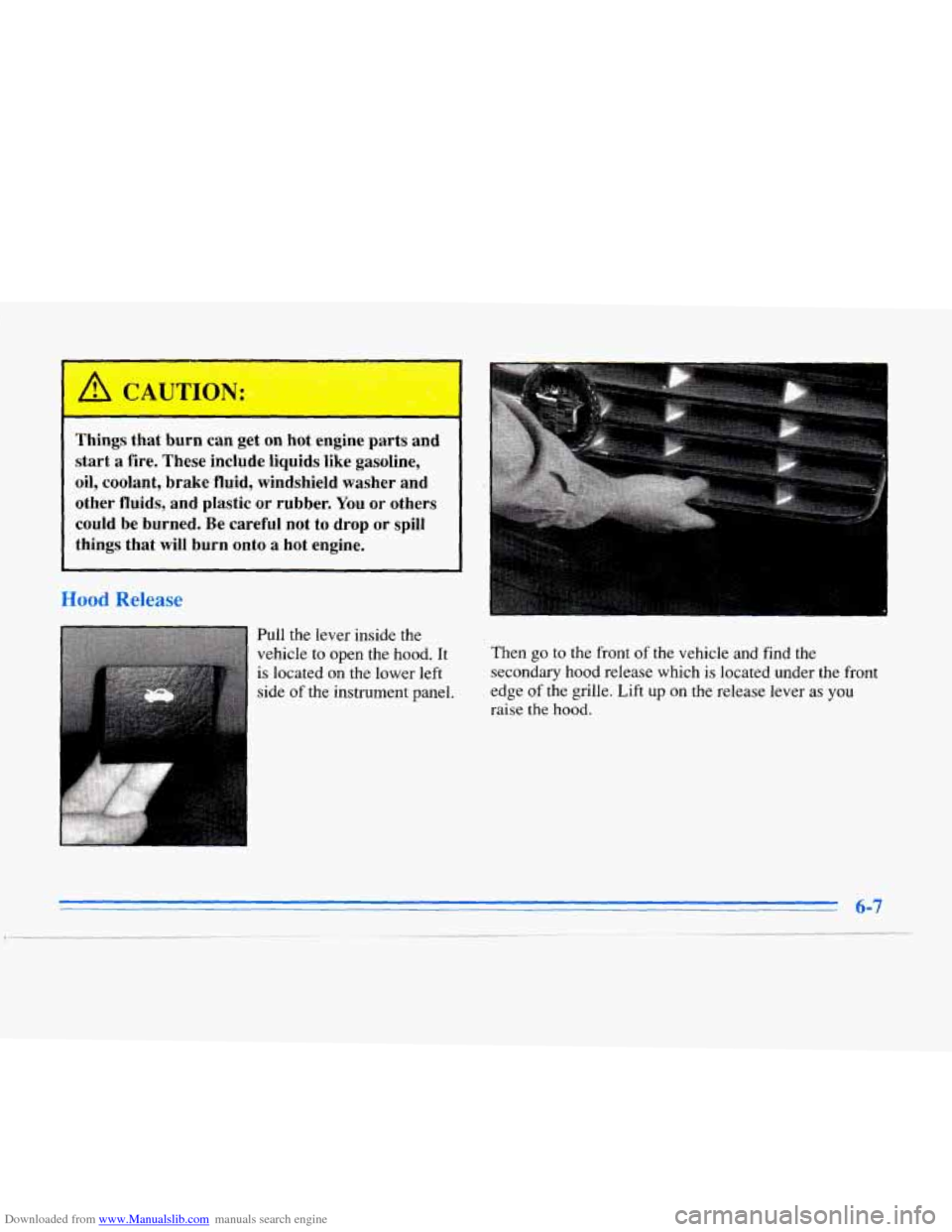

Things that burn can get on hot engine parts and
start
a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber.
You or others
could be burned. Be careful not to drop or mill
things that will burn onto
a hot engine.
Hood Release
Pull the lever inside the
vehicle to open the hood.
It I
is located on the lower left
side of the instrument panel. Then
go to the front
of the vehicle and find the
secondary
hood release which is located under the front
edge of the grille. Lift
up on the release lever as you
raise the hood.

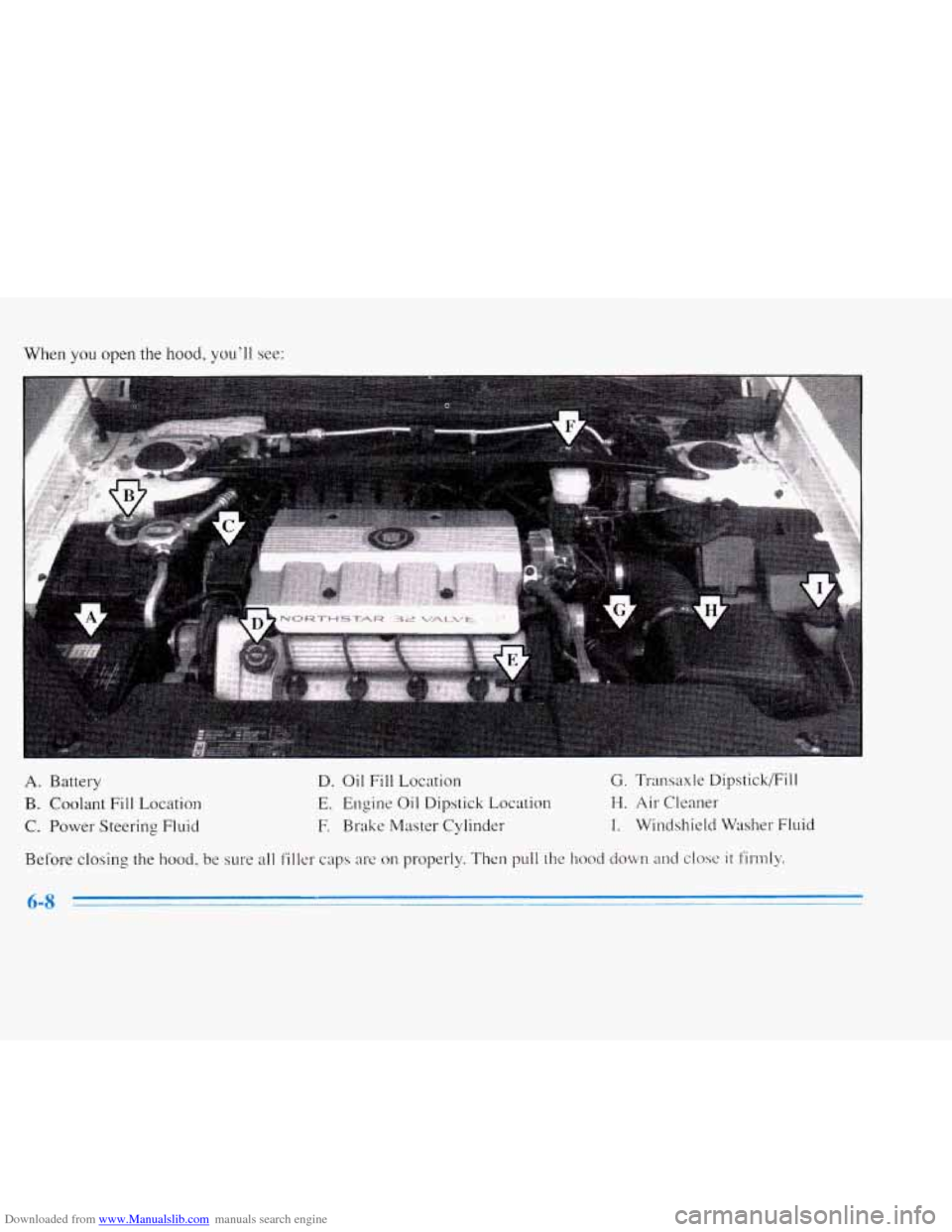

Downloaded from www.Manualslib.com manuals search engine When you open the hood, you'll see:
G. Transaxle Dipstick/FiIl
H. Air Cleaner
I. Windshield Wdsher Fluid
A. Battery
B. Coolant Fill Location
C. Power Steering Fluid D.
Oil Fill Location
E. Engine Oil Dipstick Location
E Brake Master Cylinder
Before closing the hood, be sure all filler caps are on properly. Then pull the hood down and close it firmly.

Downloaded from www.Manualslib.com manuals search engine e Oil
......... ............... . ........... ........... ...... ........... ...... .. .. ............ .... .......... ........... ....... ........... ..... ...................................................

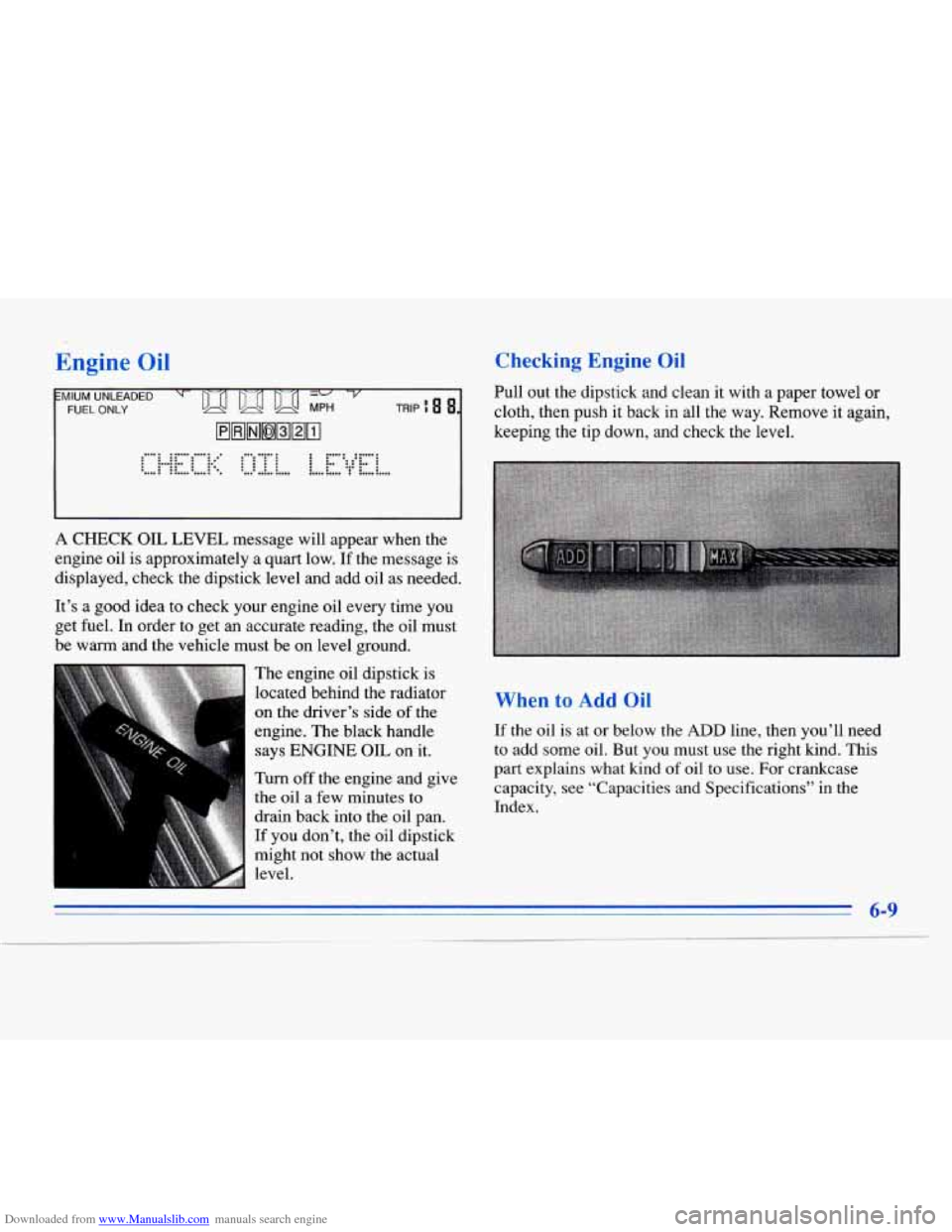

A CHECK OIL LEVEL message will appear when the
engine oil is approximately a quart low. If the message is
displayed, check the dipstick level and add oil as needed.
It’s
a good idea to check your engine oil every time you
get fuel. In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground.
The engine oil dipstick is
located behind the radiator
on the driver’s side of the
engine. The black handle
says
ENGINE OIL on it.
Turn off the engine and give
the oil a few minutes to
drain back into the oil pan.
If you don’t, the oil dipstick
might not show the actual
level.
Checking Engine Oil
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping
the tip down, and check the level.
11 the oil is at or below the ADD line, then you’ll need
to add some oil. But you must use the right kind, This
part explains what kind of oil to use. For crankcase
capacity, see “Capacities
and Specifications’’ in the
Index.
6-9

Downloaded from www.Manualslib.com manuals search engine ~ NOTICE:
~
Don’t add too much oil: If your engine has so
much oil that the oil level gets above the upper
mark that shows the proper operating range,
your engine could be damaged.
I
The oil fill
cap is located
behind the radiator on the
passenger’s side of the
engine.
Turn the cap
counterclockwise to
remove.
’ Just fill it enough to put’the level somewhere in the
proper operating range. Push the dipstick all the way
back
ip when you’re through.
What’Kind of Oil to Use
Oils recommended for your vehicle can be identified by
looking for the “Starburst” symbol. This symbol
indicates that the oil has been certified by the American
Petroleum Institute
(API). Do not use any oil which
does not carry this Starburst symbol.
’
- If you change your own oil,
be sure you use oil that has
the Starburst symbol on the
front of the oil container. If
you have your oil changed
for you, be sure the
oil put
into your engine is American Petroleum
Institute certified for
gasoline engines.
You should also use the proper viscosity oil for your
vehicle, as shown in the following’chart:
6-10

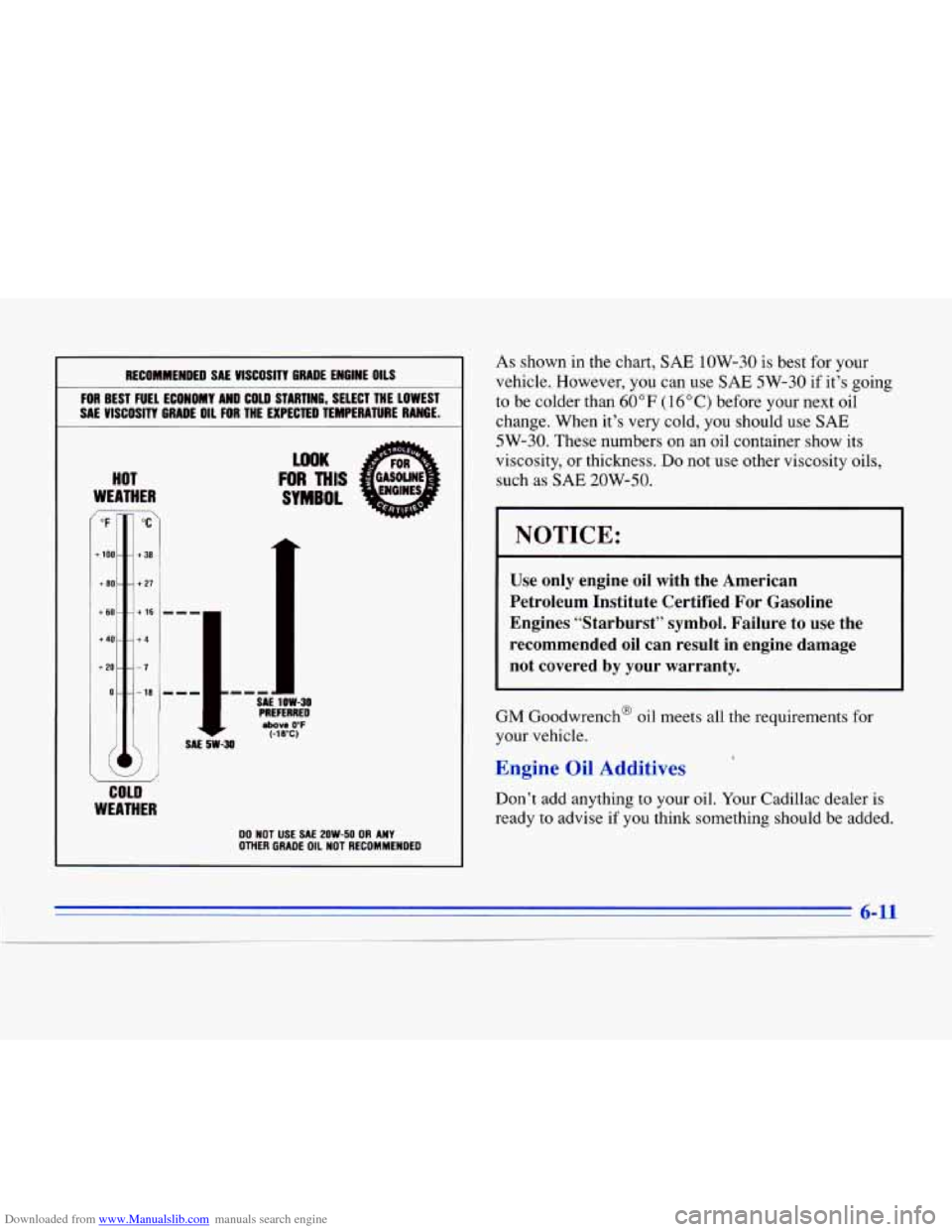

Downloaded from www.Manualslib.com manuals search engine RECOMMENDED SAE VISCOSITY 6RADE ENGINE OILS
FOR BEST FUEL ECONOMY AND COLD STARTING, SELECT THE LOWEST
SAL VISCOSITY GRADE OIL FOR THE EXPECTED TEMPERATURE RANGE.
HOT
WEATHER
’OF OC‘ -
+loo- - +38
+ao- - +27
+60--+16 I
+40--+4
+20---7
0---18 -
COLD
WEATHER
LOOK
FOR THIS
--
PREFERRED above 0°F (-18%) SA€ 5w-30
m
DO NOT USE SAE 2OW-50 OR ANY OTHER GRADE OIL NOT RECOMMENDED
As shown in the chart, SAE 1OW-30 is best for your
vehicle. However, you can use
SAE 5W-30 if it’s going
to be colder than 60°F ( 16 O C) before your next oil
change. When it’s very cold, you should use
SAE
5W-30. These numbers on an oil container show its
viscosity, or thickness. Do not use other viscosity oils,
such as
SAE 2OW-50.
I NOTICE:
Use only engine oil with the American
Petroleum Institute Certified For Gasoline
Engines “Starburst” symbol. Failure to use the
recommended oil can result in engine damage
not covered by your warranty.
GM Goodwrench@ oil meets all the requirements for
your vehicle.
Engine Oil Additives
1
Don’t add anything to your oil. Your Cadillac dealer is
ready to advise if you think something should be added.
6-11

Downloaded from www.Manualslib.com manuals search engine When to Change Engine Oil
Your Cadillac has an Oil Life Indicator. This feature
will let you know when to change your
oil and
filter
-- usually between 3,000 miles (5 000 km) and
7,500 miles (12 500 km) since your last oil change.
Under severe conditions,
the indicator may come on
before
3,000 miles (5 000 km). Never drive your vehicle
more than
7,500 miles (12 500 km) or 12 months,
(whichever occurs first) without an
oil change.
The system won’t detect dust in the oil.
So, if you
drive in a dusty area, be sure to change your oil every
3,000 miles (5 000 km) or sooner if the CHANGE
ENGINE OIL message comes on. Remember to reset
the Oil Life Indicator when the oil has been changed.
For more information, see “Oil Life Indicator”
in
the Index.
How to Reset the Oil Life Indicator
After the oil has been changed, display the OIL LIFE
LEFT message by pressing the 1NFORMATION button.
Then press and hold the RESET button until the display
shows
“100.” This resets the oil life index. The message
will remain off until the next oil change is needed. The
percentage of oil life remaining may be checked
at any time
by pressing the INFORMATION button several
times
until the OIL LIFE LEFT message appears. For
more information on
the Oil Life feature, see “Oil Life
Indicator” in the Index.
What to Do with Used Oil
Did you know that used engine oil contains certain
elements that may be unhealthy for your skin and could
even cause cancer? Don’t let used oil stay on your skin
for very long. Clean your skin and nails with soap
and
water, or a good hand cleaner. Wash or properly throw
away clothing or rags containing used engine oil. (See
the manufacturer’s warnings about the use and disposal
of oil products.)
Used
oil can be a real threat to the environment. If you
change your own oil, be sure to drain all free-flowing oil
from the filter before disposal. Don’t ever dispose
of oil
by putting it in the trash, pouring
it on the ground, into
sewers, or into streams or bodies of water. Instead,
recycle
it by taking it to a place that collects used oil. If
you have a problem properly disposing of your used oil,
ask your dealer, a service station or a local recycling
center for
help.
6-12

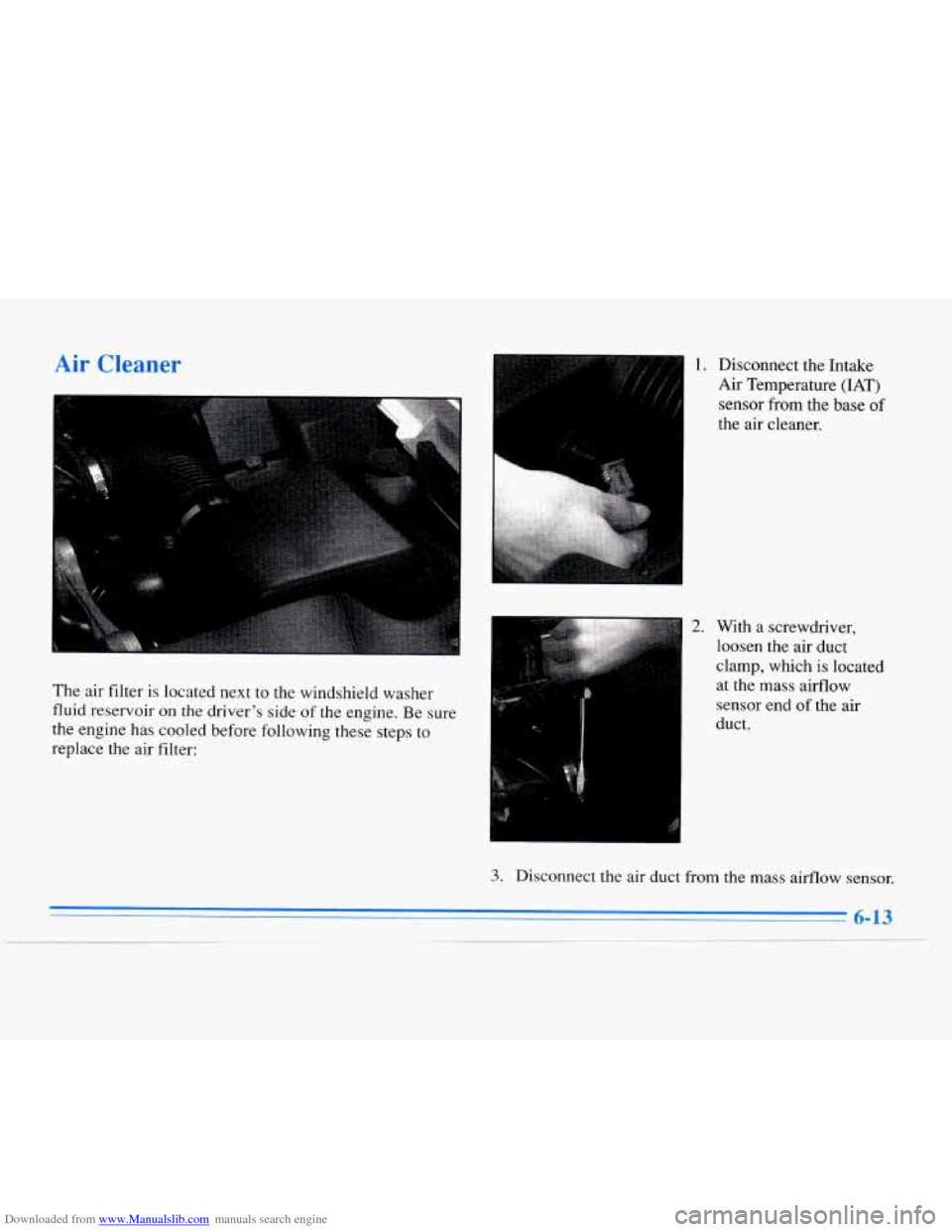

Downloaded from www.Manualslib.com manuals search engine Air Cleaner
The air filter is located next to the windshield washer
fluid reservoir
on the driver’s side of the engine. Be sure
the engine has cooled before following these steps
to
replace the air filter:
I
1. Disconnect the Intake
Air Temperature
(IAT)
sensor from the base of
the air cleaner.
2. With a screwdriver,
loosen the air duct
clamp, which is located
at the mass airflow
sensor end
of the air
duct.
3. Disconnect the air duct from the mass airflow sensor.
6-13
