1996 CADILLAC ELDORADO Owners Manual

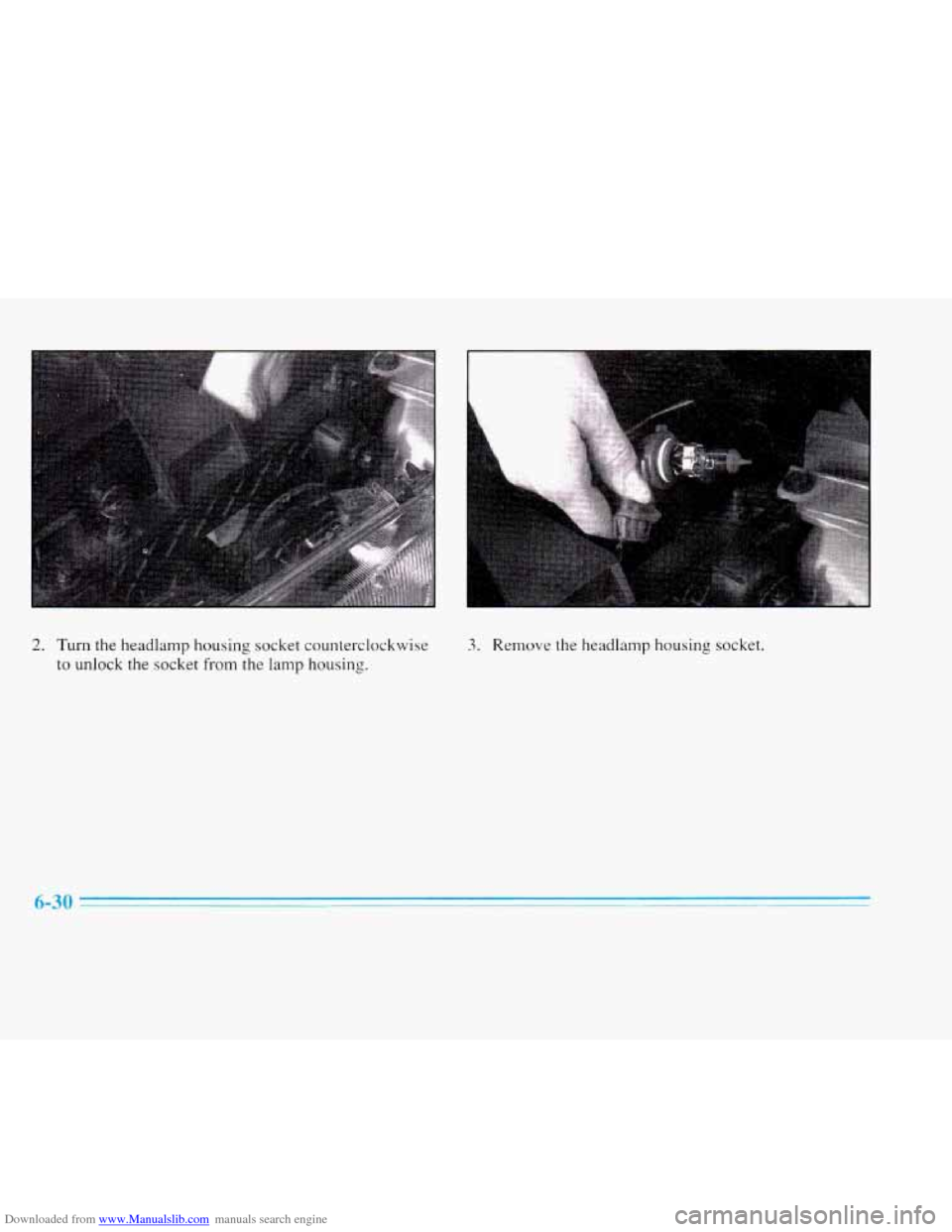

Downloaded from www.Manualslib.com manuals search engine 2. Turn the headlamp housing socket counterclockwise
to unlock the socket from the lamp housing.
I
3. Remove the headlamp housing socket.
6-30 .

Downloaded from www.Manualslib.com manuals search engine Cor1 ring amps
1. Open the hood to gain access to the mounting screw.
2. Remove the screw
securing the cornering
lamp housing.
I
4. After removing the wiring harness from the
headlamp housing socket, replace the bulb and
socket. Reconnect
it to the wiring harness and
reinstall
the headlamp housing socket back into the
headlamp assembly.
-31
T

Downloaded from www.Manualslib.com manuals search engine 3. Gently pull out the cornering lamp assembly. 4. Remove the socket by rotating it counterclockwise
slightly, then replace the bulb
and reinstall.
6-32
I'

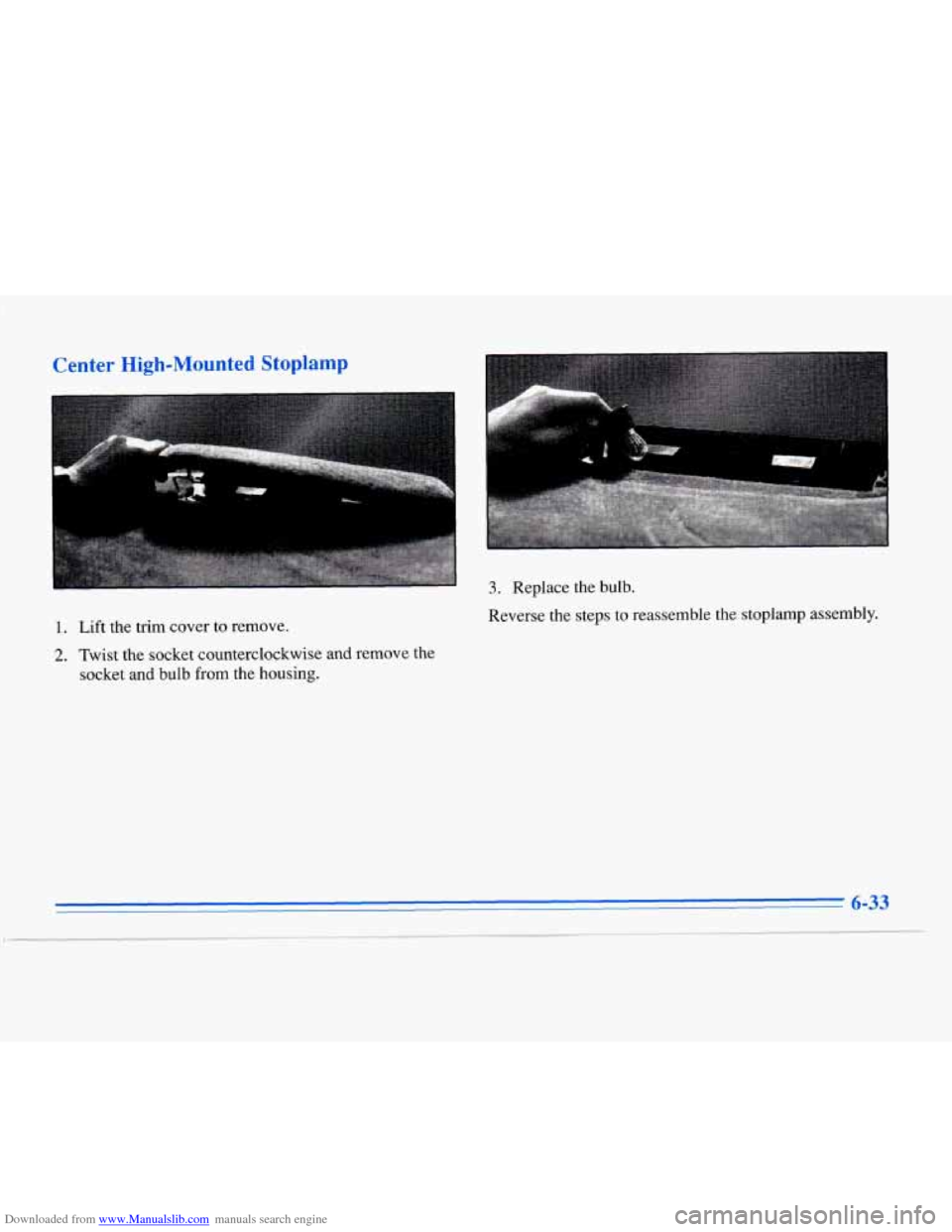

Downloaded from www.Manualslib.com manuals search engine Center High-Mounted S plamp
1. Lift the trim cover to remove.
2. Twist the socket counterclockwise and remove the socket and bulb from the housing.
3. Replace the bulb.
Reverse the steps to reassemble the stoplamp assembly.
6-33
I

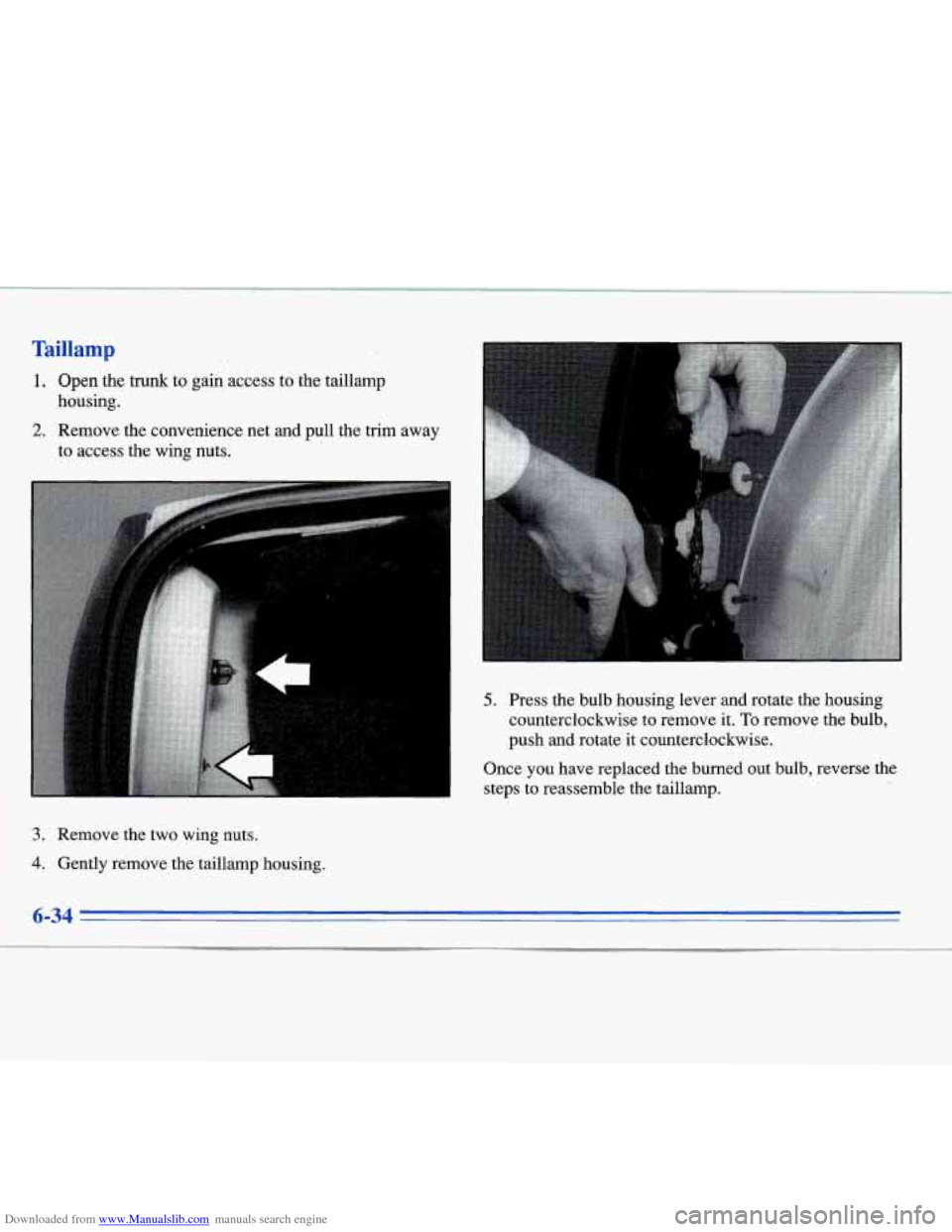

Downloaded from www.Manualslib.com manuals search engine Taillamp
1. Open the trunk to gain access to the taillamp
2. Remove the convenience net and pull the trim away
housing.
to access the wing nuts.
3. Remove the two wing nuts.
4. Gently remove the taillamp housing.
5. Press the bulb housing lever and rotate the housing
counterclockwise to remove it.
To remove the bulb,
push and rotate it counterclockwise.
Once you have replaced the burned out bulb, reverse the
steps to reassemble the taillamp.
6-34

Downloaded from www.Manualslib.com manuals search engine Wiper Blade Replacement
It’s a good idea to clean or replace the wiper blade
assembly on a regular basis or when worn. For proper
windshield wiper blade length and type, see “Normal
Maintenance Replacement Parts” later in this section.
To replace the wiper blade assembly:
1. Turn the ignition key to ACCESSORY and turn the
wipers on. Position the wipers on the windshield in
the “mid” wipe position. Then with the door open,
turn the key to OFF.
2. Insert a screwdriver into the slot as shown and press
down to release the wiper blade assembly.
3. Align the wiper arm pin with the hole on the wiper
blade assembly and snap it into place to install.
6-35
1

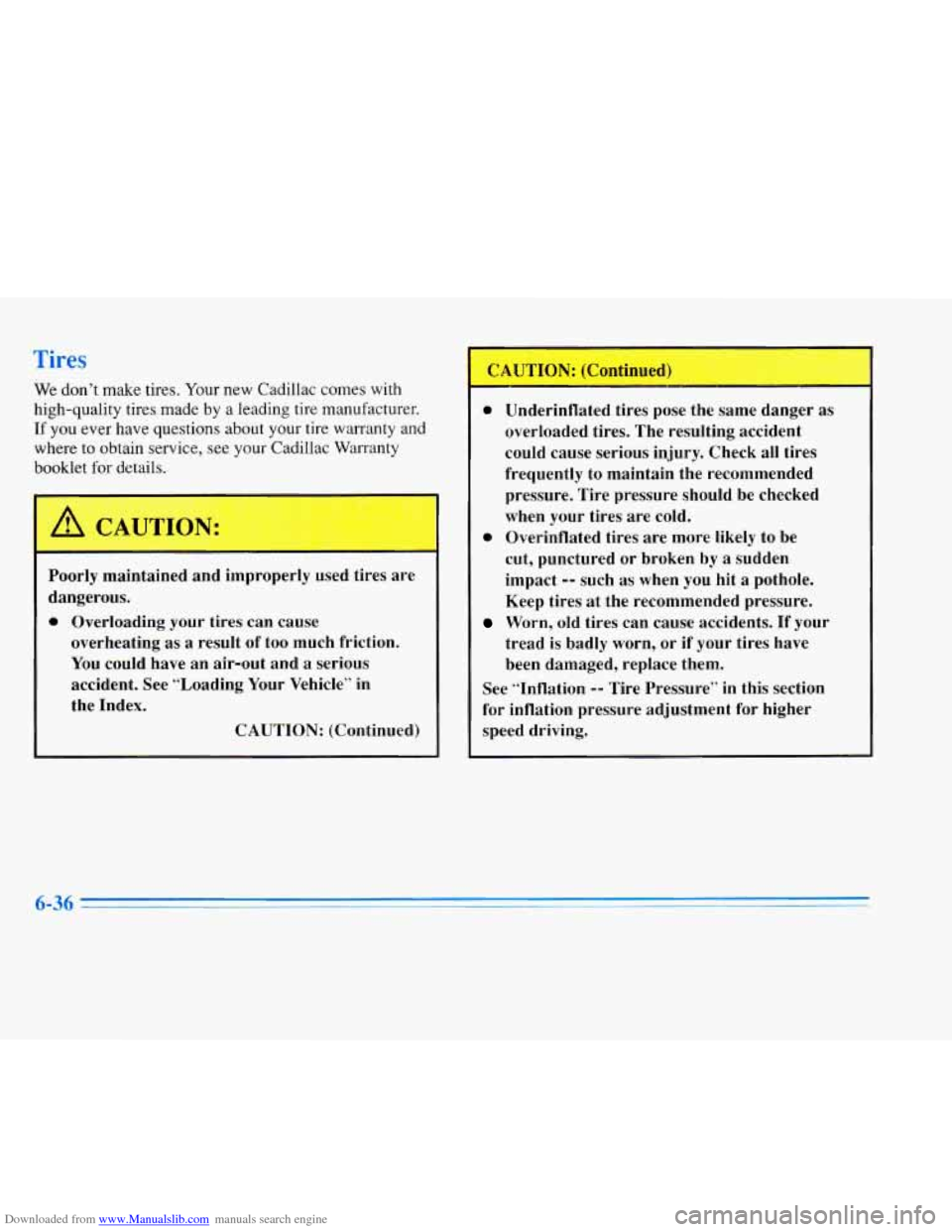

Downloaded from www.Manualslib.com manuals search engine We don’t make tires. Your new Cadillac comes with
high-quality tires made by a leading tire manufacturer.
If you ever have questions about your tire warranty and
where to obtain service,
see your Cadillac Warranty
booklet
for details.
A CAUTION:
Poorly maintained and improperly used tires are
dangerous.
0 Overloading your tires can cause
overheating
as a result of too much friction.
You could have an air-out and a serious
accident. See “Loading Your Vehicle”
in
the Index.
CAUTION: (Continued)
0
0
Underinflated tires pose the same danger as
overloaded tires. The resulting accident
could cause serious injury. Check
all tires
frequently to maintain the recommended pressure. Tire pressure should be checked
when your tires are cold.
Overinflated tires
are more likely to be
cut, punctured or broken by
a sudden
impact
-- such as when you hit a pothole.
Keep tires at the recommended pressure.
Worn, old tires can cause accidents.
If your
tread is badly worn, or if your tires have
been damaged, replace them.
See “Inflation
-- Tire Pressure” in this section
for inflation pressure adjustment for higher
speed driving.

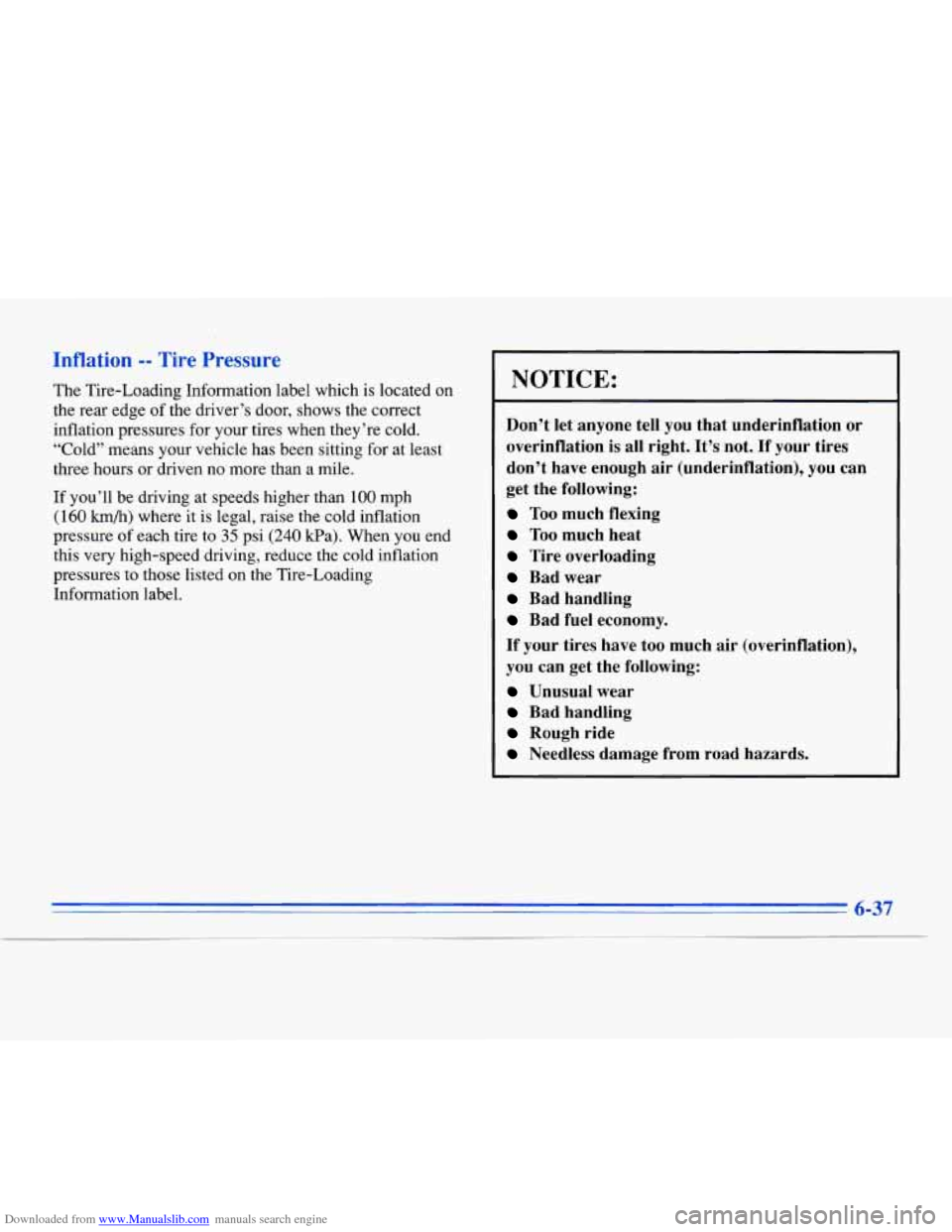

Downloaded from www.Manualslib.com manuals search engine Inflation -- Tire Pressure
The Tire-Loading Information label which is located on
the rear edge of the driver’s door, shows the correct
inflation pressures for your tires when they’re cold.
“Cold” means your vehicle has been sitting for at least
three hours or driven no more than a mile.
If you’ll be driving at speeds higher than 100 mph
(160 km/h) where it is legal, raise the cold inflation
pressure
of each tire to 35 psi (240 Wa). When you end
this very high-speed driving, reduce the cold inflation
pressures to those listed on the Tire-Loading
Information label.
NOTICE:
Don’t let anyone tell you that underinflation or
overinflation is all right.
It’s not. If your tires
don’t have enough air (underinflation), you can
get the following:
Too much flexing
Too much heat
Tire overloading
Bad wear
Bad handling
Bad fuel economy.
If your tires have too much air (overinflation),
you can get the following:
Unusual wear
Bad handling
Rough ride
Needless damage from road hazards.
6-37
