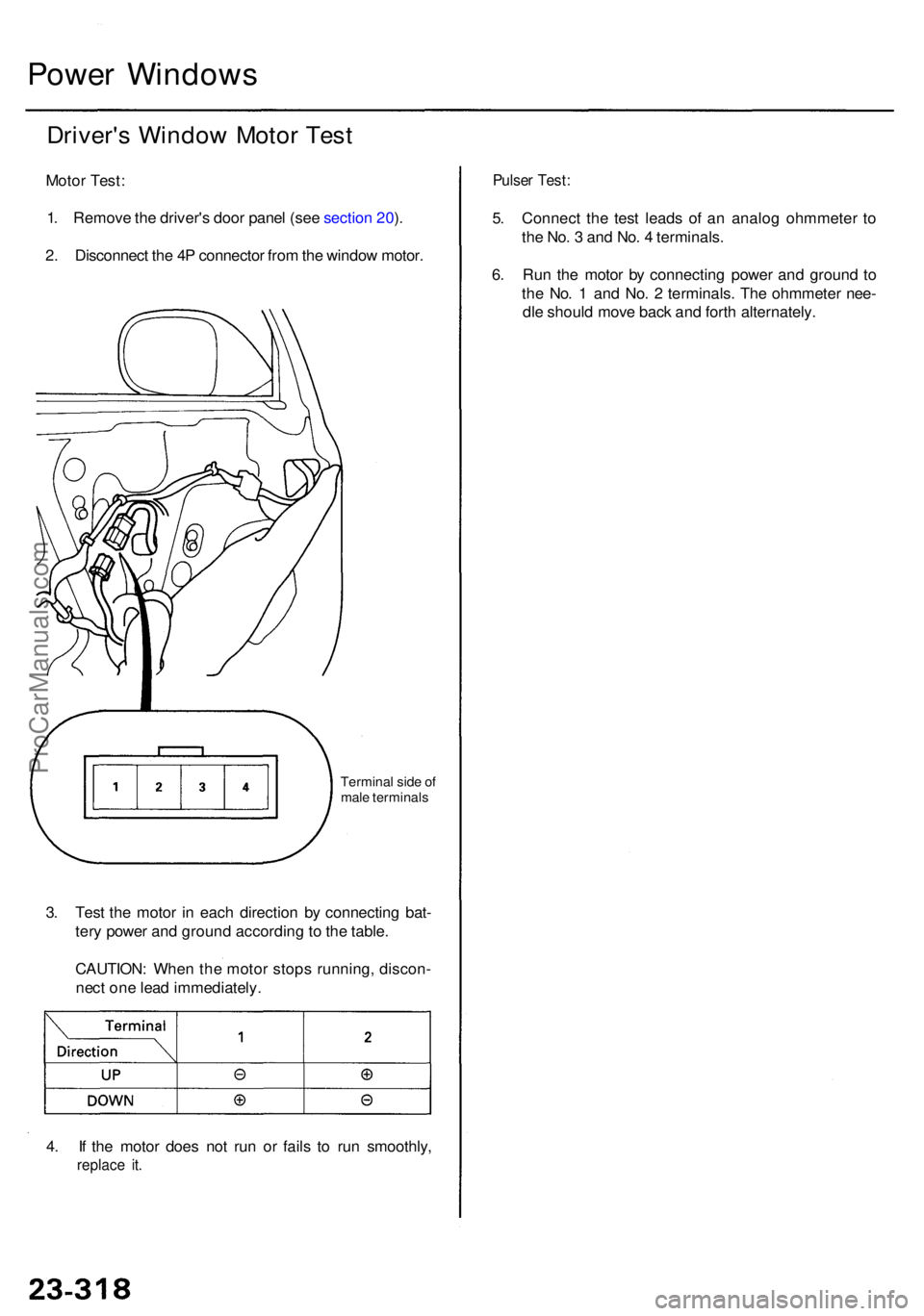

Power Window s
Driver's Windo w Moto r Tes t
Moto r Test :
1 . Remov e th e driver' s doo r pane l (se e sectio n 20 ).
2 . Disconnec t th e 4 P connecto r fro m th e windo w motor .
Termina l sid e o f
mal e terminal s
3. Tes t th e moto r i n eac h directio n b y connectin g bat -
ter y powe r an d groun d accordin g t o th e table .
CAUTION : Whe n th e moto r stop s running , discon -
nec t on e lea d immediately .
4 . I f th e moto r doe s no t ru n o r fail s t o ru n smoothly ,
replace it .
Pulse r Test :
5. Connec t th e tes t lead s o f a n analo g ohmmete r t o
th e No . 3 an d No . 4 terminals .
6 . Ru n th e moto r b y connectin g powe r an d groun d t o
th e No . 1 an d No . 2 terminals . Th e ohmmete r nee -
dl e shoul d mov e bac k an d fort h alternately .
