1995 PONTIAC BONNEVILLE Owners Manual

I Maintenance Schedule I1

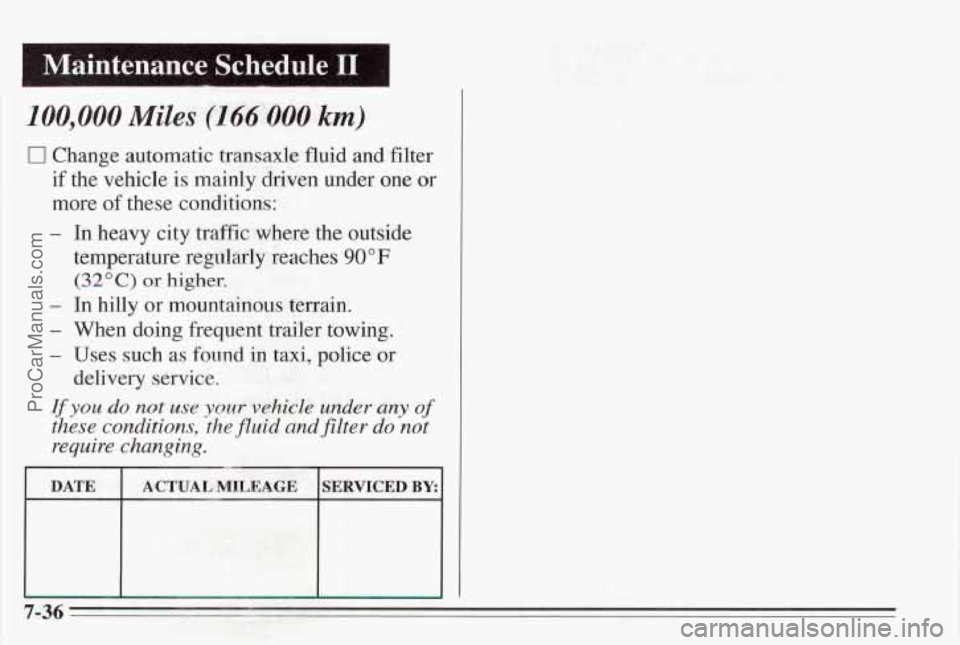

100,000 Miles (1 66' 000 km)
0 Change automatic transaxle fluid and filter
if the vehicle
is mainly driven under one or
more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 OF
(32 O C) OT higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi., police or
If you do not use yow vehicle under any of
these conditions, the fluid and filter do not
require
changirg.
delivery service.
I DATE I ACTUAL MILEAGE SERVICED BY: I
7-36
ProCarManuals.com

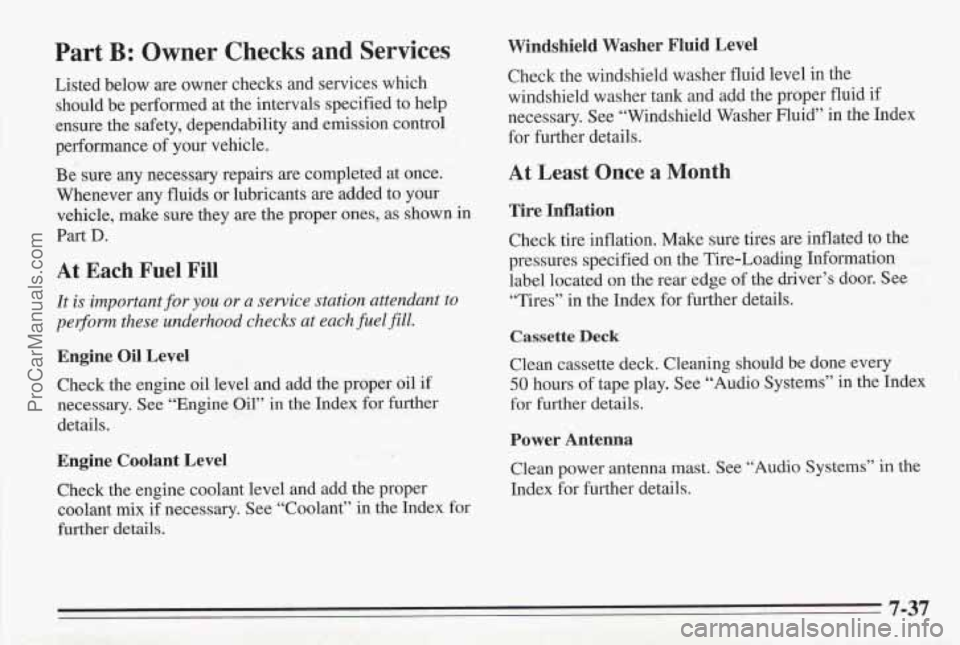

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown in
Part
D.
At Each Fuel Fill
It is important for you or a service station attendant to
perform- these underhood checks at eachfuelfill.
Engine Oil Level
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil”
in the Index for further
details.
Engine Coolant Level
Check the engine coolant level and add the proper
coolant mix
if necessary. See “Coolant” in the Index for
further details.
Windshield Washer Fluid Level
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid
if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
At Least Once a Month
Tire Inflation
Check tire inflation. Make sure tires are inflated to the
pressures specified on the Tire-Loading Information
label located on the rear edge of the driver’s door.
See
“Tires” in the Index for further details.
Cassette Deck
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the Index
for further details.
Power Antenna
Clean power antenna mast. See “Audio Systems” in the
Index for further details.
7-37
ProCarManuals.com

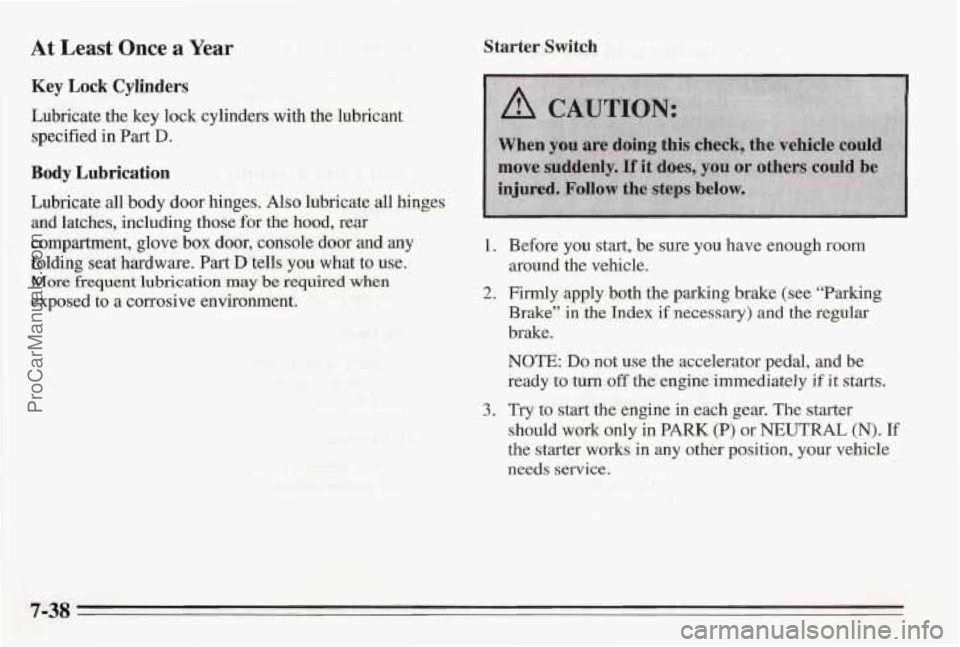

At Least Once a Year Starter Switch
Key Lock Cylinders
Lubricate the key lock cylinders with the lubricant
specified
in Payt D.
Body
Lubrication
Lubricate all body door hinges. Also lubricate all hinges
and latches, including those
for the hood, rear
compartment, glove box
door, console door and any
folding seat hardware. Part D tells you what to use.
More frequent lubrication may be required when
exposed to a corrosive environment.
1. Before you stat, be sure you have enough mom
around the vehicle.
NOTE: Do not me the amelerator pedal, md be
ready to turn off the engine immediately if it starts.
should work only in PARR (P) or NEUTRAL (N). If
the starter works in any otherposition, your vehicle
needs seruice.
3. Try to sm’hs! engine in each gear. The starter
7-38
ProCarManuals.com

Brake-Transaxle Shift Interlock -- BTSI Steering Column Lock
While
parked, and with the parlung brake set, try to turn
the key to
LOCK in each shift lever position.
The key should turn to LOCK only when the shift
0 The key should come out only in LOCK.
Parking Brake and Automatic Transaxle PARK (P)
lever is in PARK (P).
Mechanism Check
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the key to the RUN
position, but don’t
start the engine. Without applying
the regular brake, try to move the shift lever out
of
PARK (P) with normal effort. If the shift lever
moves out
of PARK (P), your vehicle’s BTSI needs
service.
ProCarManuals.com

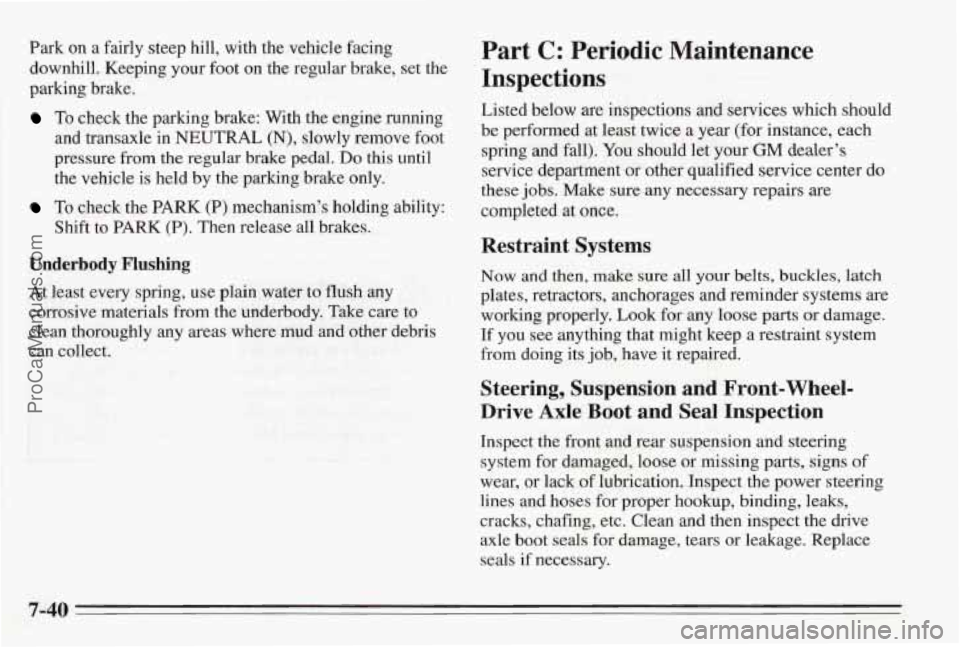

Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
To check the parking brake: With the engine running
and transaxle in
NEUTRAL (N), slowly remove foot
pressure from the regular brake pedal.
Do this until
the vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
Shift to PARK
(P). Then release all brakes.
Underbody Flushing
At least every spring, use plain water to flush any
corrosive materials
from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring
and fall). You should let your GM dealer’s
service department or other qualified service center do
these
jobs. Make sure any necessary repairs are
completed at once.
Restraint Systems
Now and then, make sure all your belts, buckles, latch
plates, retractors, anchorages and reminder systems are
working properly.
Look for any loose parts or damage.
If you see anything that might keep a restraint system
from doing its
job, have it repaired.
Steering, Suspension and Front-Wheel-
Drive
Axle Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear, or lack
of lubrication. Inspect the power steering
lines and hoses for proper hookup, binding,
leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals
if necessary.
7-40
ProCarManuals.com

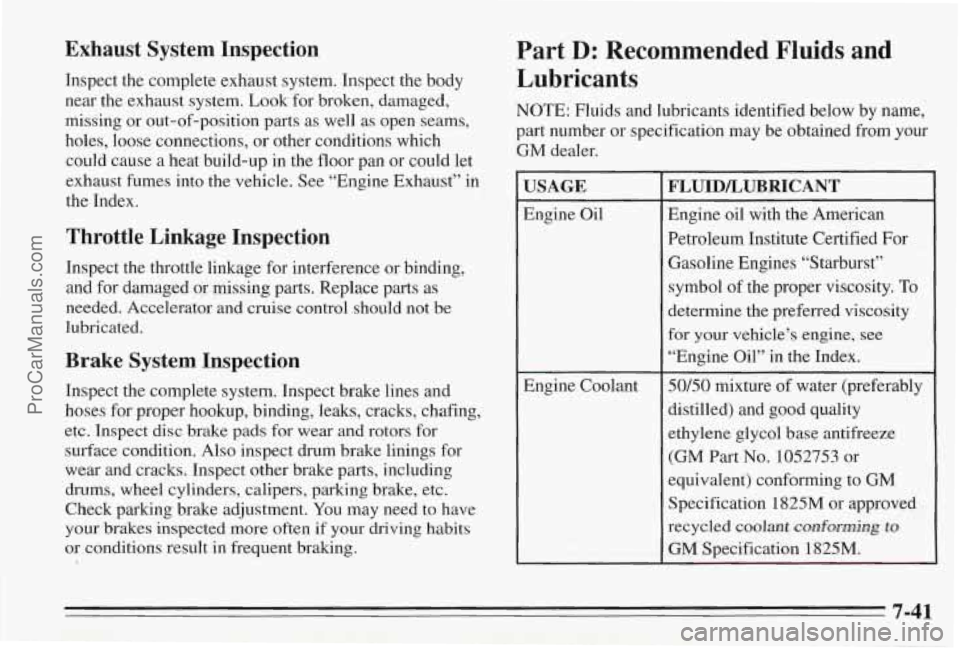

Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open seams,
holes, loose connections, or other conditions which
could cause a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust” in
the Index.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damaged or missing parts. Replace parts as
needed. Accelerator and cruise control should not
be
lubricated.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hookup, binding, leaks, cracks, chafing,
etc. Inspect disc brake pads for wear and rotors for
surface condition. Also inspect drum brake linings for
wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment. You may need to have
your brakes inspected more
often if your driving habits
or conditions result in frequent braking.
I.
...
Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number
or specification may be obtained from your
GM dealer.
USAGE
Engine Oil
Engine Coolant
FLUIDLUBRICANT
Engine oil with the American
Petroleum Institute Certified
For
Gasoline Engines “Starburst”
symbol of the proper viscosity.
To
determine the preferred viscosity
for your vehicle’s engine,
see
“Engine Oil” in the Index.
50/50 mixture of water (preferably
distilled) and good quality
ethylene glycol base antifreeze
(GM Part
No. 1052753 or
equivalent) conforming to GM
Specification 1825M or approved
recycled coolant
conforming ta
GM Specification 1825M.
ProCarManuals.com

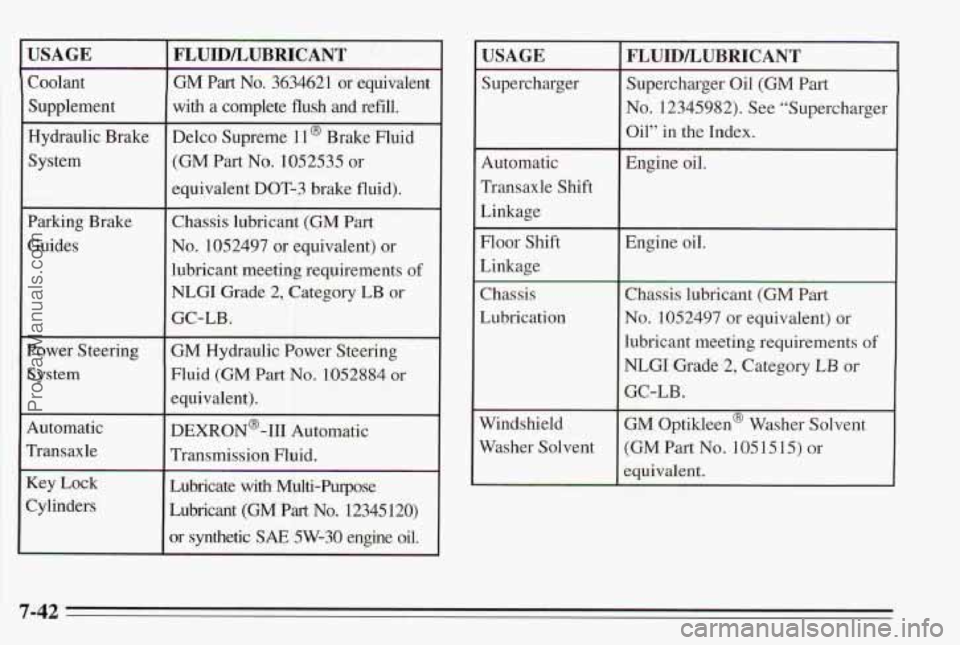

USAGE
Coolant Supplement
Hydraulic Brake
System
Parking Brake
Guides
Power Steering
System
Automatic
Transaxle
Key Lock
Cylinders
FLUIDLUBRICANT
GM Part No. 3634621 or equivalent
with a complete flush and refill.
Delco Supreme 11
@ Brake Fluid
(GM Part
No. 1052535 or
equivalent DOT-3 brake fluid).
Chassis lubricant (GM
Part
No. 1052497 or equivalent) or
lubricant meeting requirements of
NLGI Grade 2, Category
LB or
GC-LB.
~ ~~
Fluid (GM Part No. 1052884 or
equivalent).
DEXRON@-I11 Automatic
Transmission Fluid.
Lubricate with Multi-Pwpose
Lubricant
(GM Part No. 12345120)
or synthetic
SAE 5W-30 engine oil.
USAGE
Supercharger
Automatic
Transaxle Shift
Linkage
Floor Shift
Linkage
Chassis
Lubrication
Windshield
Washer Solvent
FLUIDLUBRICANT-
Supercharger Oil (GM Part
No. 12345982). See “supercharger
Oil” in the Index.
Engine
oil.
Engine oil.
Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of
NLGI Grade 2, Category LB or
GC-LB.
GM Optikleen@ Washer Solvent
(GM Part No. 1051515) or
equivalent.
7-42
ProCarManuals.com

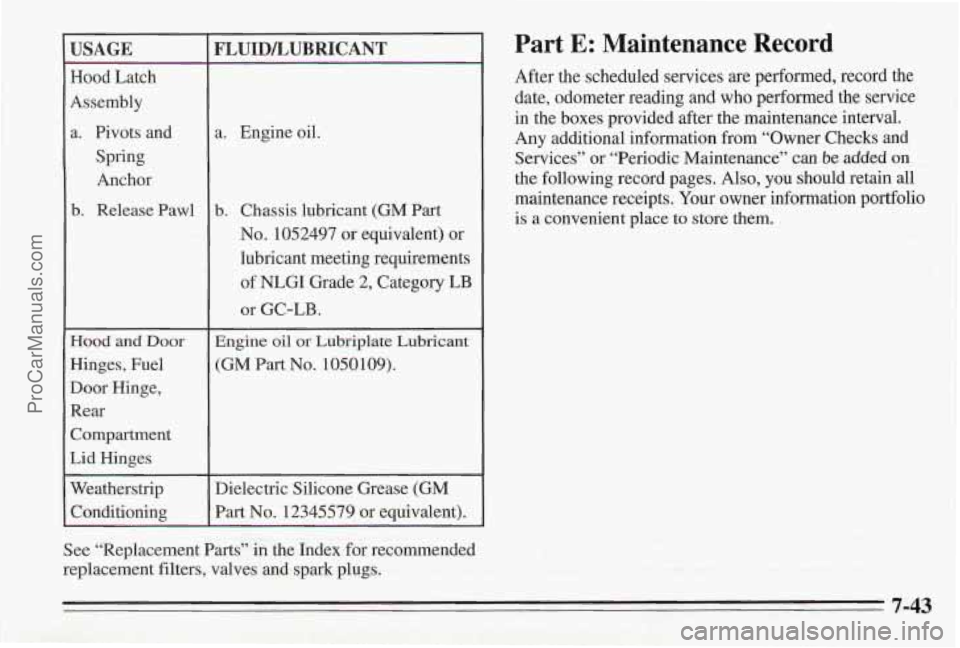

I USAGE
Hood Latch Assembly
a. Pivots and Spring Anchor
b. Release Pawl
~
Hood and Door
Hinges, Fuel
Door Hinge,
Rear Compartment
Lid Hinges
Weatherstrip Conditioning
FLUIDLUBRICANT
a. Engine oil.
b. Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
Engine oil or Lubriplate Lubricant
(GM Part No. 1050109).
Dielectric Silicone Grease (GM
Part No. 12345579 or equivalent).
See “Replacement Parts” in the Index ror recommenaed
replacement filters, valves and spark plugs.
Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and
who performed the service
in the boxes provided after the maintenance interval.
Any additional information from “Owner Checks and
Services” or “Periodic Maintenance”
can be added on
the following record pages. Also, you should retain all
maintenance receipts. Your owner information portfolio
is a convenient place to store them.
7-43
