1995 PONTIAC BONNEVILLE Owners Manual

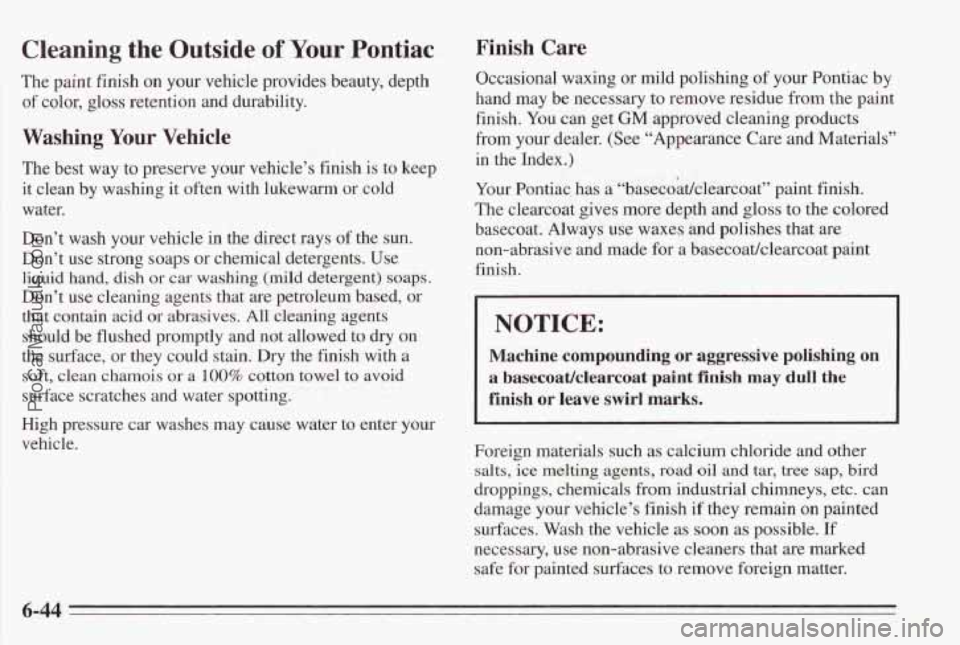

Cleaning the Outside of Your Pontiac
The paint finish on your vehicle provides beauty, depth
of color, gloss retention and durability.
Washing Your Vehicle
The best way to preserve your vehicle’s finish is to keep
it clean by washing it often with lukewarm or cold
water.
Don’t wash your vehicle in the direct rays of the sun.
Don’t use strong soaps or chemical detergents. Use
liquid
hand, dish or car washing (mild detergent) soaps.
Don’t use cleaning agents that
are petroleum based, or
that contain acid or abrasives. All cleaning agents
should be flushed promptly and not allowed to dry
on
the surface, or they could stain. Dry the finish with a
soft, clean chamois or a 100% cotton towel to avoid
surface scratches and water spotting.
High pressure car washes may cause water to enter your
vehicle.
I. ’: 2.. ,,.,!,
Finish Care
Occasional waxing or mild polishing of your Pontiac by
hand may be necessary to remove residue from the paint
finish. YOU can get
GM approved cleaning products
from your dealer. (See “Appearance Care and Materials”
in the Index.)
Your Pontia,c has
a “basecoatlclearcoat)’ paint finish.
The clearcoat gives more depth and gloss
to the colored
basecoat. Always use waxes and polishes that are
non-abrasive and made for a basecoatlclearcoat paint
finish.
NOTICE:
Machine compounding or aggressive polishing on
a basecoatlclearcoat paint finish may dull the
finish
or leave swirl marks.
Foreign materials such as calcium chloride and other
salts, ice melting agents, road oil and tar, tree sap, bird
droppings, chemicals from industrial chimneys, etc. can
damage
your vehicle’s finish if they remain on painted
surfaces. Wash the vehicle as soon as possible.
If
necessary, use non-abrasive cleaners that are marked
safe for painted surfaces to remove foreign matter.
6-44
ProCarManuals.com

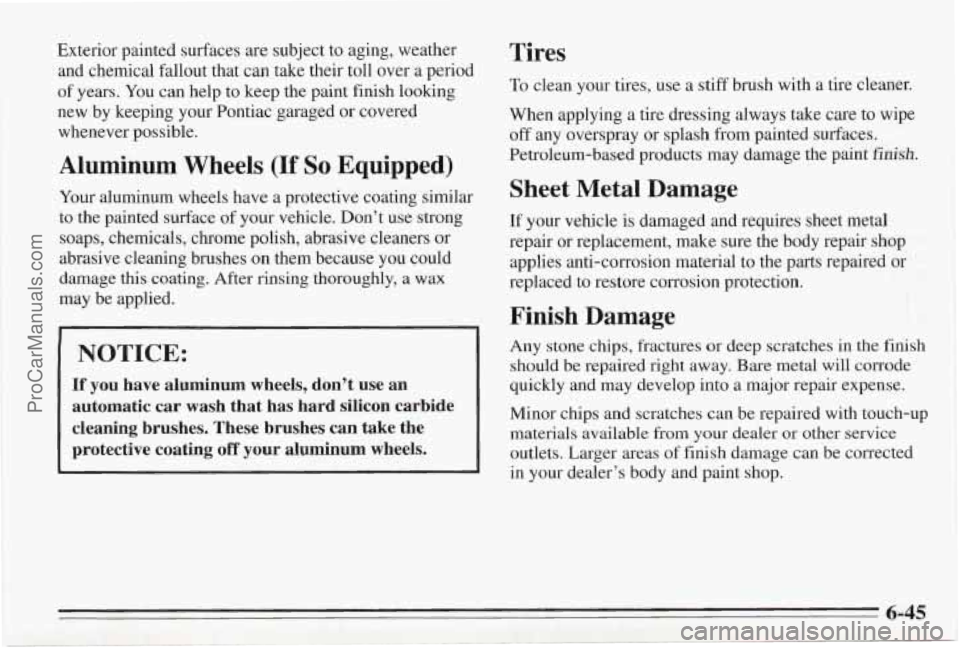

Exterior painted surfaces are subject to aging, weather
and chemical fallout that can take their toll over
a period
of years. You can help to keep the paint finish looking
new by keeping your Pontiac garaged
or covered
whenever possible.
Aluminum Wheels (If So Equipped)
Your aluminum wheels have a protective coating similar
to the painted surface of your vehicle. Don’t use strong
soaps, chemicals, chrome polish, abrasive cleaners or
abrasive cleaning brushes
on them because you could
damage this coating. After rinsing thoroughly, a wax
may be applied.
NOTICE:
If you have aluminum wheels, don’t use an
automatic car wash that has hard silicon carbide
cleaning brushes. These brushes can take the
protective coating
off your aluminum wheels.
Tires
To clean your tires, use a stiff brush with a tire cleaner.
When applying a tire dressing always take care to wipe
off any overspray or splash from painted surfaces.
Petroleum-based products may damage the paint
finish.
Sheet Metal Damage
If your vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair shop
applies anti-corrosion material to the parts repaired or
replaced to restore corrosion protection.
Finish Damage
Any stone chips, fractures or deep scratches in the finish
should be repaired right away. Bare metal will corrode
quickly and may develop into a major repair expense.
Minor chips and scratches can be repaired with touch-up
materials available from your dealer or other service
outlets. Larger areas of finish damage can be corrected
in your dealer’s body and paint shop.
6-45
ProCarManuals.com

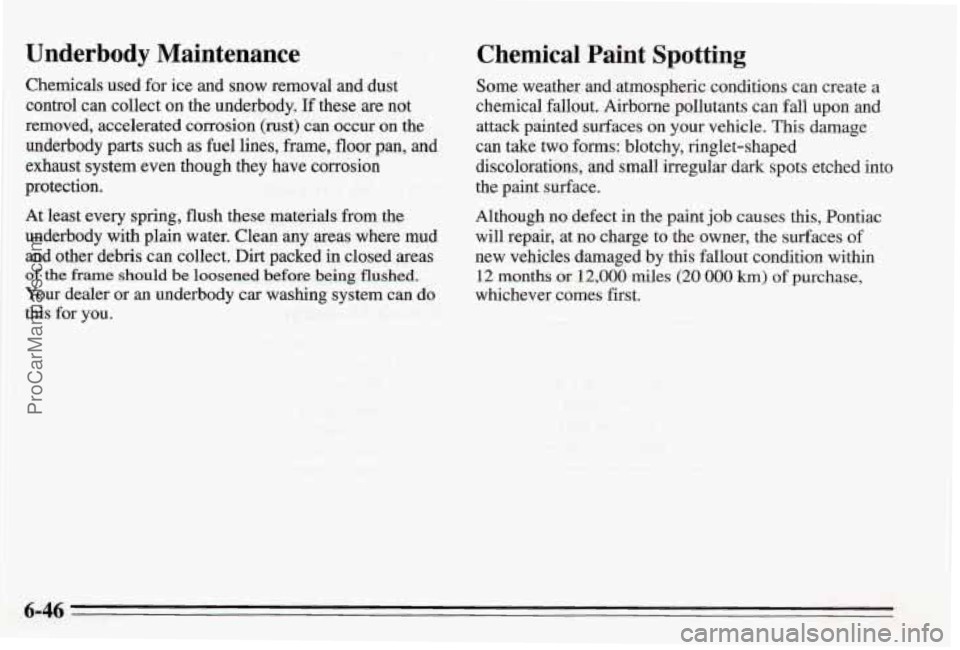

Underbody Maintenance
Chemicals used for ice and snow removal and dust
control can collect
on the underbody. If these are not
removed, accelerated corrosion
(rust) can occur on the
Underbody
parts such as fuel lines, kame, floor pan, and
exhaust system even though they have corrosion
protection.
At least
every spring, flush these materials from the
underbody with plain water. Clean any areas where mud
and other debris can collect. Dirt packed in closed areas
of the frame should be loosened before being flushed.
Your dealer or am underbody car washing system can do
this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create a
chemical fallout. Airborne pollutants can
€dl upon and
attack painted surfaces
on your vehicle. This damage
can take two forms: blotchy, ringlet-shaped
discolorations,
and small irregular dark spots etched into
the paint surface.
Although no defect in the
paint job causes this, Pontiac
will repair, at
no charge to the owner, the surfaces of
new vehicles damaged
by this fallout condition within
12 months or 12,000 des (20 000 km) of purchase,
whichever comes first.
6-46
ProCarManuals.com

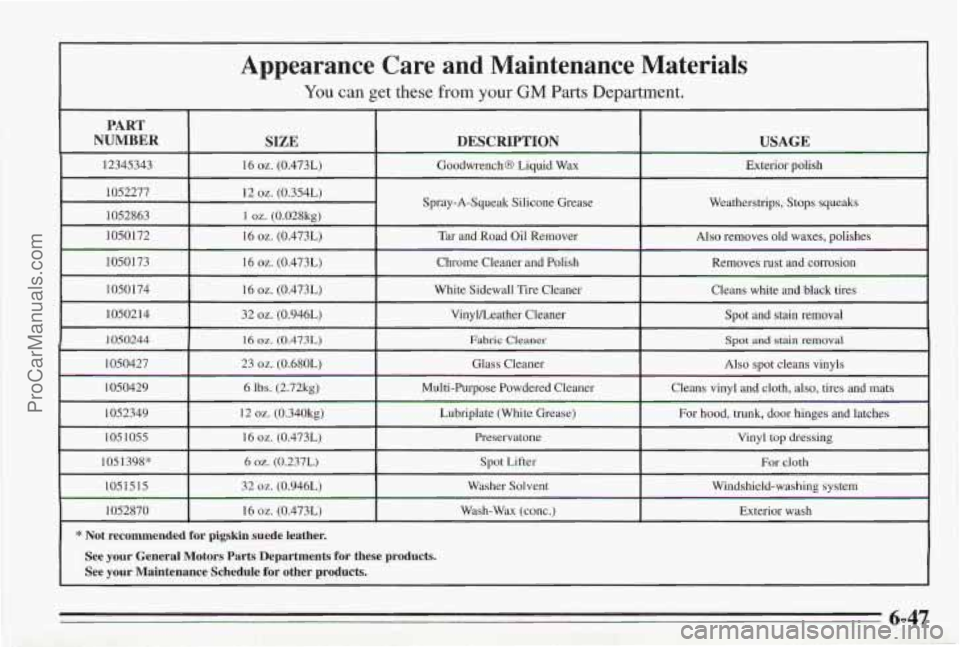

Appearance Care and Maintenance Materials
I You can get these from your GM Parts Department.
Spray-A-Squeak Silicone Grease Weatherstrips, Stops squeaks
I * Not recommended for pigskin suede leather.
See your General Motors
Parts Departments for these products.
See your Maintenance Schedule
for other products.
6-47
ProCarManuals.com

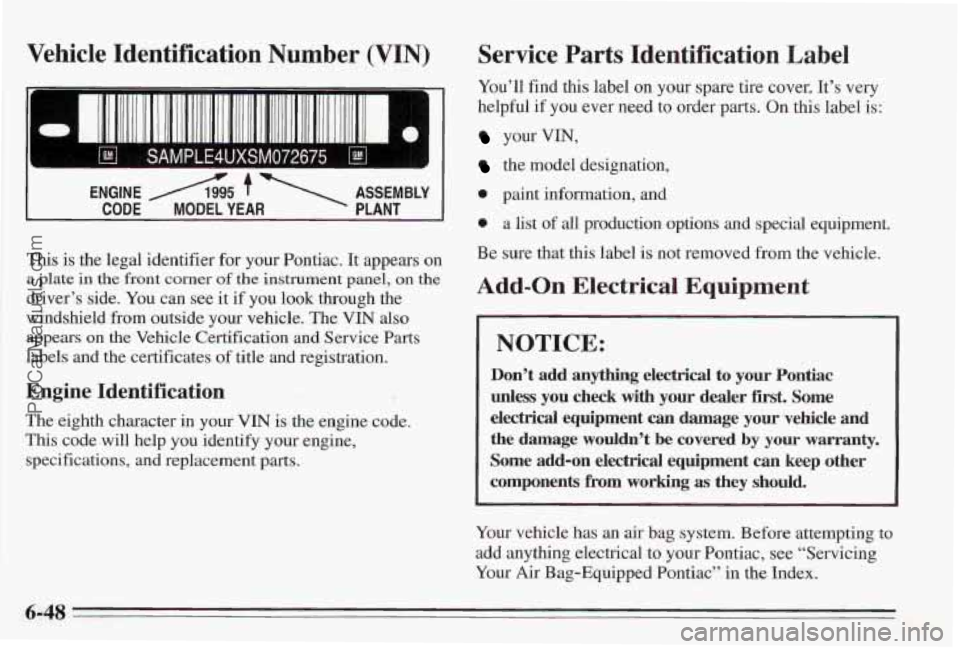

Vehicle Identification Number (VIN)
I ENGINE A5 f ASSEMBLY I
CODE MODEL YEAR PLANT
This is the legal identifier for your Pontiac. It appears on
a plate in the front corner of the instrument panel, on the
driver’s side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears
on the Vehicle Certification and Service Parts
labels and the certificates
of title and registration.
Engine Identification
The eighth character in your VIN is the engine code.
This code will help you identify your engine,
specifications, and replacement parts.
Service Parts Identification Label
You’ll find this label on your spare tire cover. It’s very
helpful
if you ever need to order parts. On this label is:
your VIN,
the model designation,
0 paint information, and
0 a list of all production options and special equipment.
Be sure that this label is not removed
from the vehicle.
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Pontiac
unless you check with your dealer first. Some
electrical equipment can damage your vehicle and
the damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from
working as they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Pontiac, see “Servicing
Your
Air Bag-Equipped Pontiac” in the Index.
6-48
ProCarManuals.com

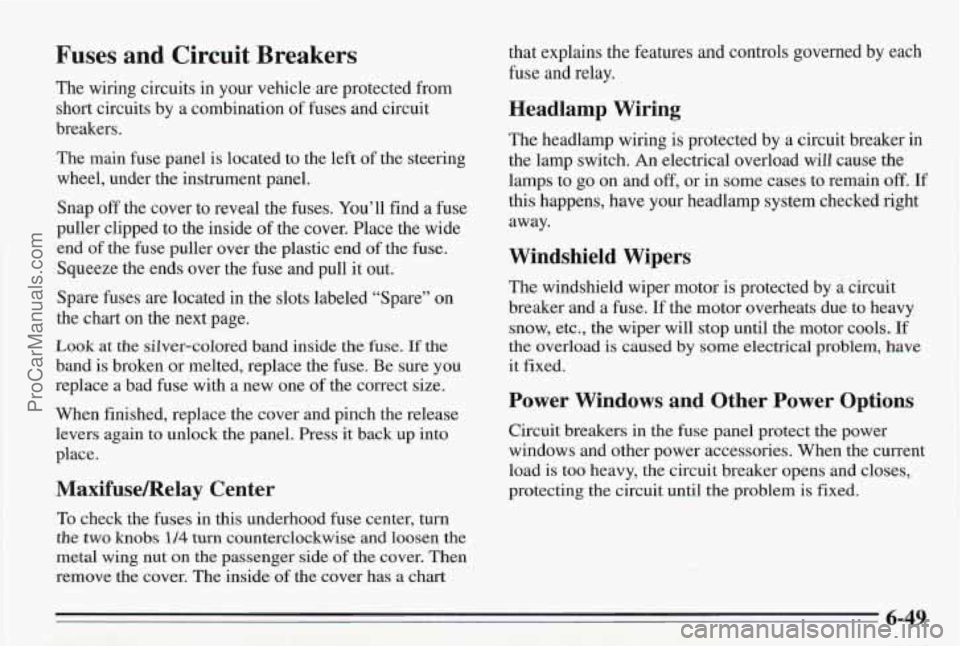

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers.
The main fuse panel is located to the left of the steering
wheel, under the instrument panel. that
explains the features and controls governed by each
fuse and relay.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the lamp switch. An electrical overload will
cause the
lamps to
go on and off, or in some cases to remain off. If
Snap off the cover to reveal the fuses. You’ll find
a fuse this happens,
have your headlamp system checked right
puller clipped to the inside of the cover. Place the wide away.
end of the fuse puller over the plastic end of the fuse.
Squeeze the ends over the fuse and pull it out.
Spare fuses
are located in the slots labeled “Spare” on
the chart on the next page.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the correct size.
When finished, replace the cover and pinch the release
levers again
to unlock the panel. Press it back up into
place.
Maxifusemelay Center
To check the fuses in this underhood fuse center, turn
the two knobs 1/4 turn counterclockwise and loosen the
metal wing nut on the passenger side of the cover. Then
remove the cover. The inside of the cover has a chart
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed.
6-49
ProCarManuals.com

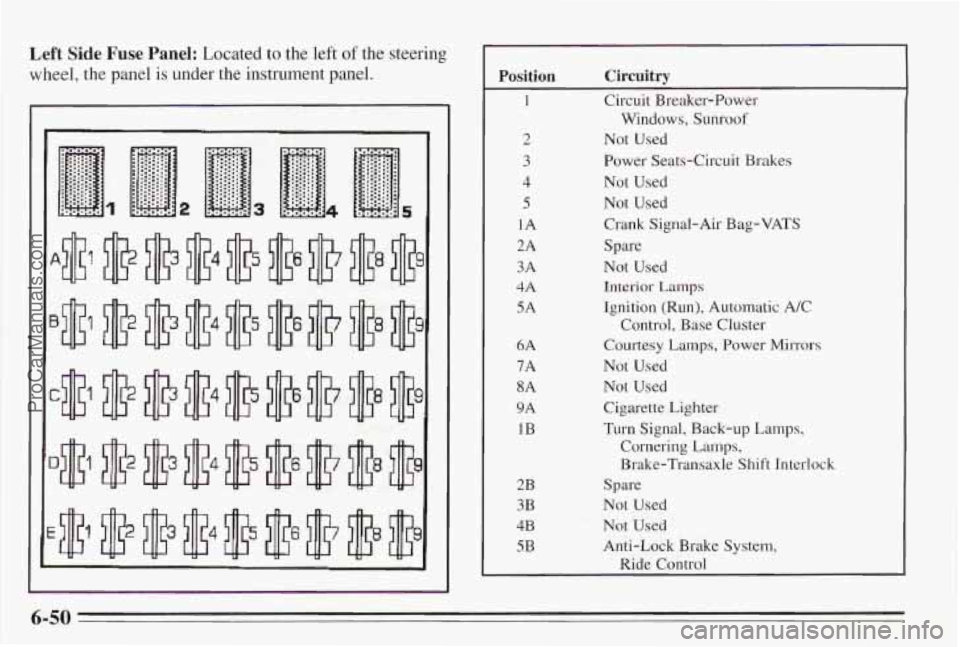

Left Side Fuse Panel: Located to the left of the steering
wheel, the panel
is under the instrument panel. Position Circuitry
1 Circuit Breaker-Power
2 Not Used
3 Power Seats-Circuit Brakes
4 Not Used
5 Not Used
1A Crank Signal-Air Bag-VATS
2A Spare
3A Not Used
4A Interior Lamps
5A Ignition (Run), Automatic A/C
6A Courtesy Lamps, Power Mirrors
7A Not Used
8A Not Used
9A Cigarette Light.er
1B Turn Signal, Back-up Lamps,
Windows, Sunroof
Control, Base Cluster
Cornering
Lamps,
Brake-Transaxle Shift Interlock
2B Spare
3B Not Used
4B Not Used
5B Anti-Lock Brake System,
Ride
Control
6-50
ProCarManuals.com

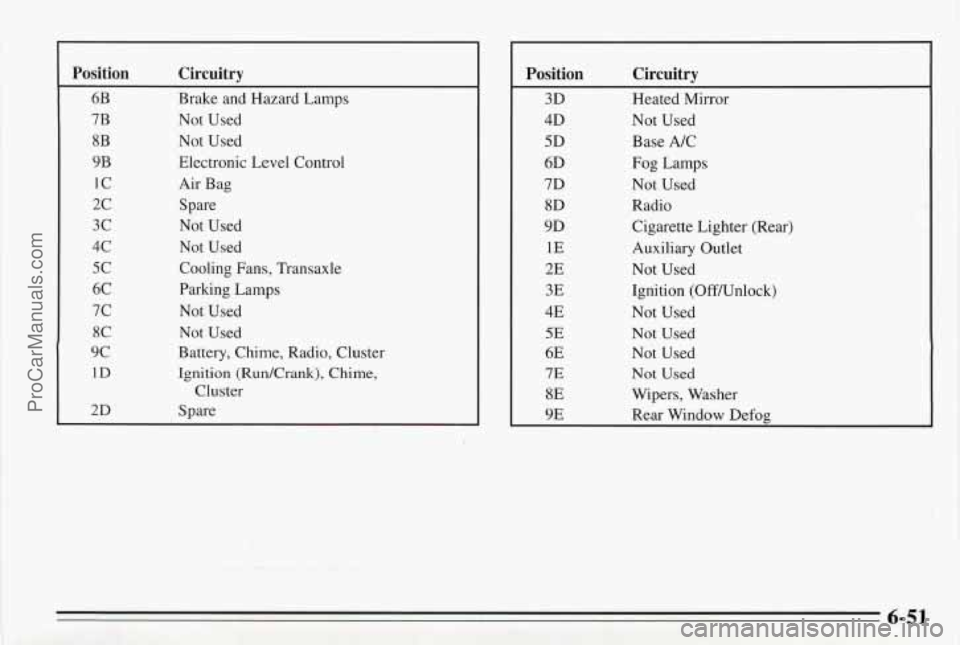

Position Circuitry
6B Brake and Hazard Lamps
7B Not Used
8B Not Used
9B Electronic Level Control
1c Air Bag
2c Spare
3c Not Used
4c Not Used
5c Cooling Fans, Transaxle
6C Parking Lamps
7c Not Used
8C Not Used
9c Battery, Chime, Radio, Cluster
1D Ignition (RudCrank), Chime,
2D Spare Cluster
Position Circuitry
3D Heated Mirror
4D Not Used
5D Base
A/C
6D Fog Lamps
7D Not Used
8D Radio
9D Cigarette Lighter (Rear)
1E Auxiliary Outlet
2E Not Used
3E Ignition (OffAJnlock)
4E Not Used
5E Not Used
6E Not Used
7E Not Used
8E Wipers, Washer
9E Rear Window Defog
